Inspection is only as good as the light on the part. Phil Industries supplies stereo microscopes, digital vision systems and industrial lighting in Singapore for electronics QA, failure analysis and precision assembly.
🔬 Which tool for which job
| Task | Tool | Why |
|---|---|---|

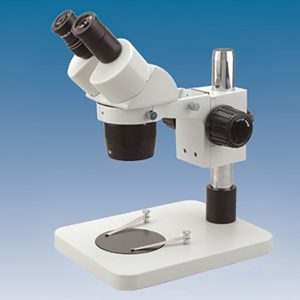

| Hand rework and soldering | Stereo microscope | True 3D depth perception at the joint |
| Shared review, screen capture | Digital vision system | Whole team sees the same image; records evidence |
| General bench inspection | Magnifying lamp | Fast, no eyepiece, low cost |
| Surface and edge defects | Task and ring lighting | Angle of light reveals what magnification alone misses |
💡 Lighting changes what you can see
Which lighting reveals which defect

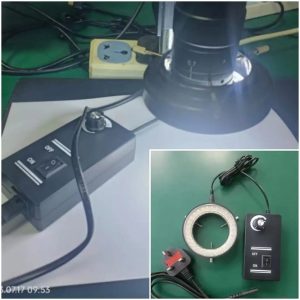

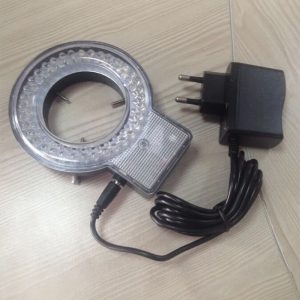

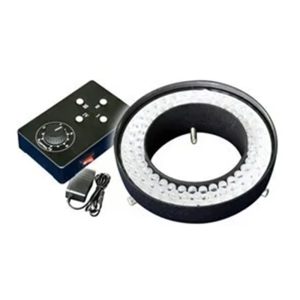

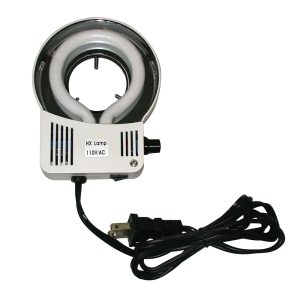

| Ring light |
|
Even, shadow-free — general inspection |
|---|---|---|
| Low-angle light |
|
Surface scratches, edge chips |
| Backlight |
|
Silhouette, hole and gap measurement |
Indicative guide. The right answer is usually to try two lighting angles on a known-bad sample.
📝 What to specify

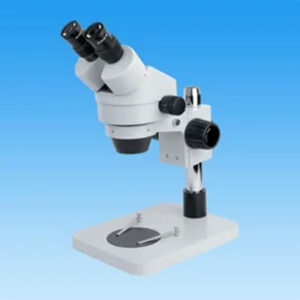

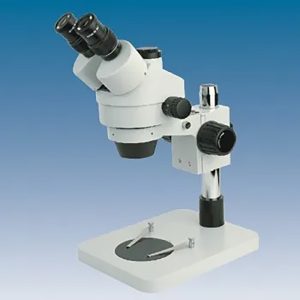

- Magnification range — zoom stereo heads cover more than a fixed objective.
- Working distance — leave room for a soldering iron and tweezers under the head.
- Stand type — pillar for small parts, boom arm for large assemblies.
- ESD version — specify it if the station sits inside an EPA.
🏭 Where these are used
- PCB inspection, rework and failure analysis
- Incoming goods and final QA
- Medical device and aerospace component checks
- Research and materials laboratories
❓ Common questions
Stereo microscope or digital vision system?
Stereo for hands-on rework, because you keep depth perception. Digital when several people need to see the same image or you need a record.
How much magnification do I need?
Most SMD rework sits between 10× and 40×. Going higher shrinks the field of view faster than it helps.
Do you supply ESD-safe versions?
Yes. Tell us the station is inside an EPA and we will quote accordingly.
Can you supply lighting separately?
Yes — ring, low-angle and backlights can be added to an existing microscope or bench.
🔎 Related
For simpler bench work, see magnifying lamps.
✅ Get a quotation
Tell us the part, the defect you are hunting and the bench space. Call +65 6555 1745 or email kenneth@phil-industries.com.sg.
