TOK Highest torque in continuous rotation | TD58

  • Highest torque among our continuous rotation dampers
  • Outer mounting diameter of Ø 31 mm
  • Facilitates easy centering during mounting
  • A wide variety of torques
  • Best-selling continuous rotation
Category:
Request Quote

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction Cap color
TD58R1-3K 0.3 ± 0.06 (2.66 ± 0.53) CW Dark gray
TD58R1-5K 0.5 ± 0.10 (4.43 ± 0.89) CW Dark gray
TD58R1-8K 0.8 ± 0.16 (7.08 ± 1.42) CW Dark gray
TD58R1-16K 1.6 ± 0.32 (14.16 ± 2.83) CW Dark gray
Product name Torque [N·m] (lbf·in) Damping direction Cap color
TD58L1-3K 0.3 ± 0.06 (2.66 ± 0.53) CCW Gray
TD58L1-5K 0.5 ± 0.10 (4.43 ± 0.89) CCW Gray
TD58L1-8K 0.8 ± 0.16 (7.08 ± 1.42) CCW Gray
TD58L1-16K 1.6 ± 0.32 (14.16 ± 2.83) CCW Gray

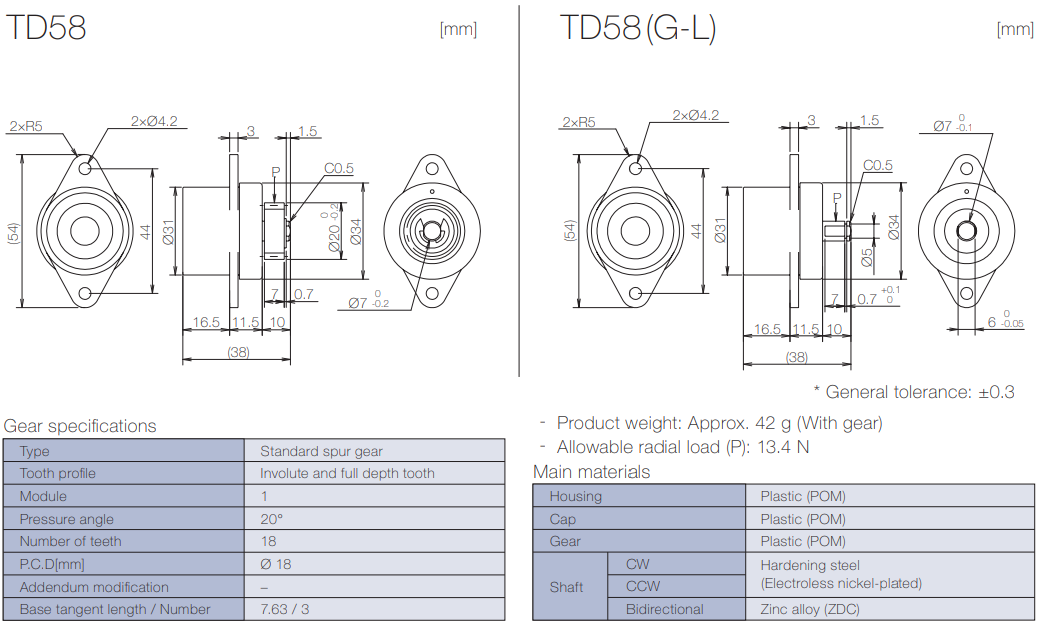

Product information

Product information td58 1

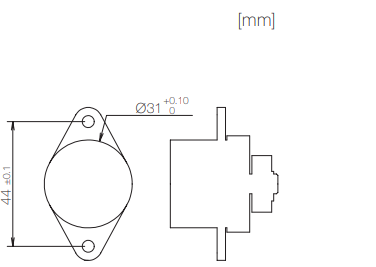

Dimensions related to mounting

Dimensions related to mounting TD58 1

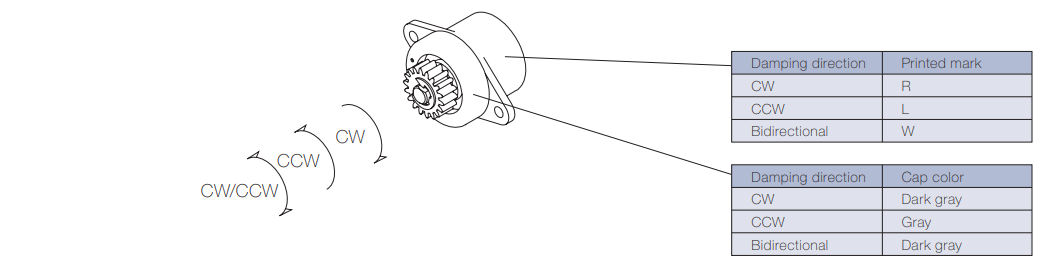

Damping directions

Damping direction of the shaft

Damping directions TD58 1

Product specifications

*Find the catalog below.

CATALOG
