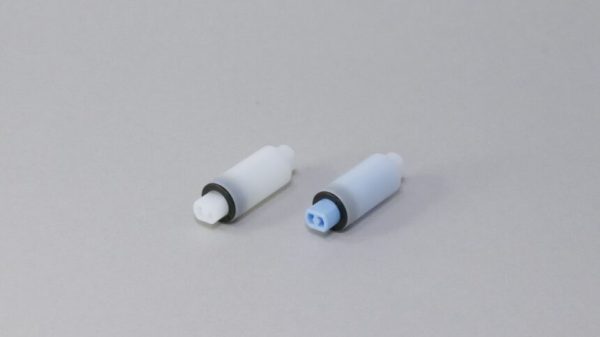

TD148 860×483

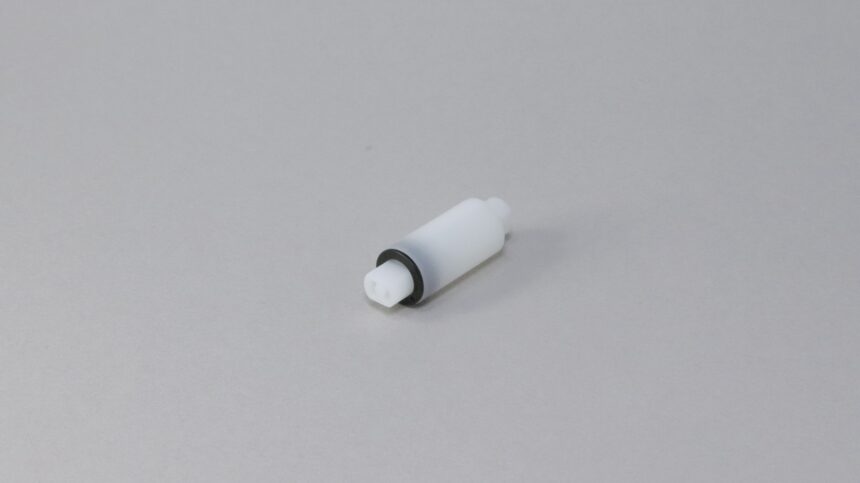

TD148A1 860×483 A

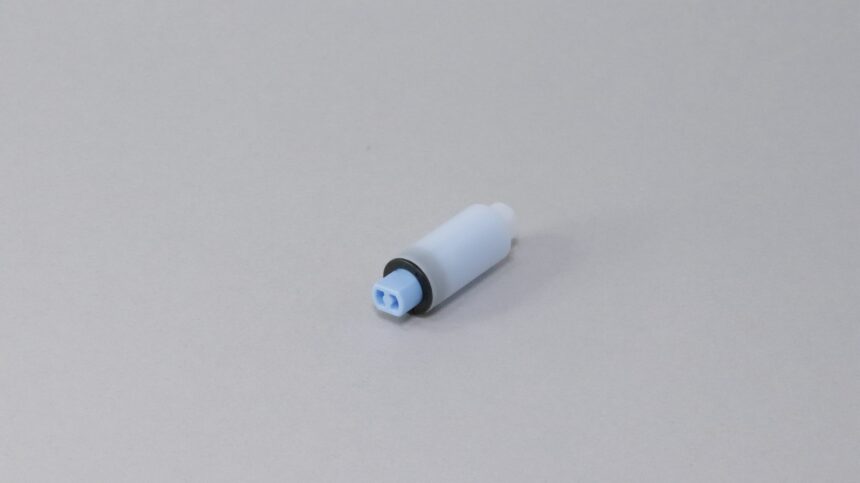

TD148B1 860×483 B
TD148 860×483
TD148A1 860×483 A
TD148B1 860×483 B

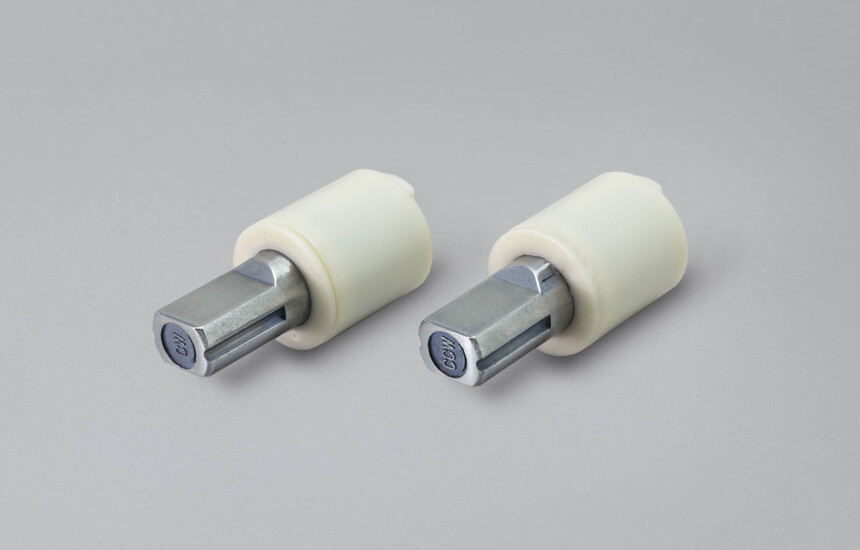

Zinc alloy shaft | TD133 Zinc alloy shaft | TD133

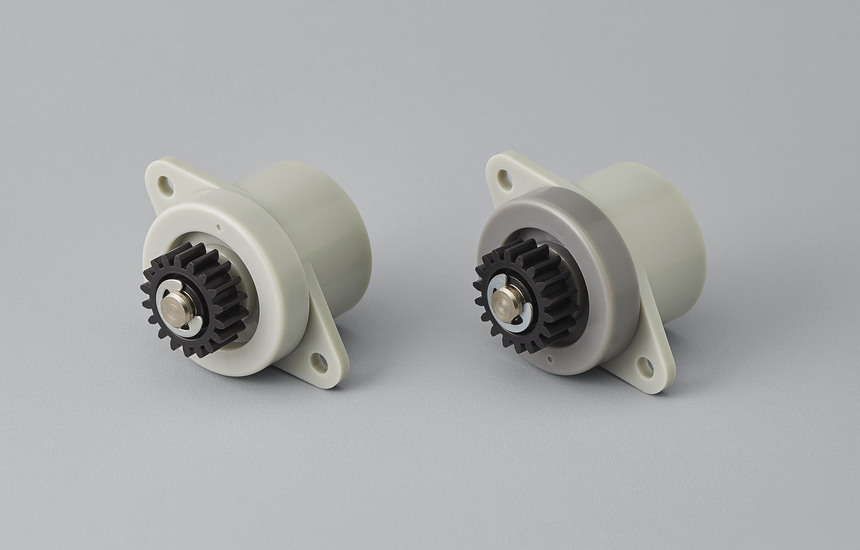

Highest torque in continuous rotation | TD58 Highest torque in continuous rotation | TD58

Can be inserted in either direction | TD148

  • The form of the TD148 is symmetrical, so it can be inserted in either direction
  • The smallest partial rotation angle damper (Ø 11 mm)
  • Equal in shape to and different in operation feeling from TD73
  • Best-selling products
Category:
Request Quote

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction Shaft color
TD148A1- 1K 0.10 (0.89) CW Natural
TD148A1- 2K 0.20 (1.77) CW Natural
TD148A1- 3K 0.30 (2.66) CW Natural
Product name Torque [N·m] (lbf·in) Damping direction Shaft color
TD148B1- 1K 0.10 (0.89) CCW Sky blue
TD148B1- 2K 0.20 (1.77) CCW Sky blue
TD148B1- 3K 0.30 (2.66) CCW Sky blue

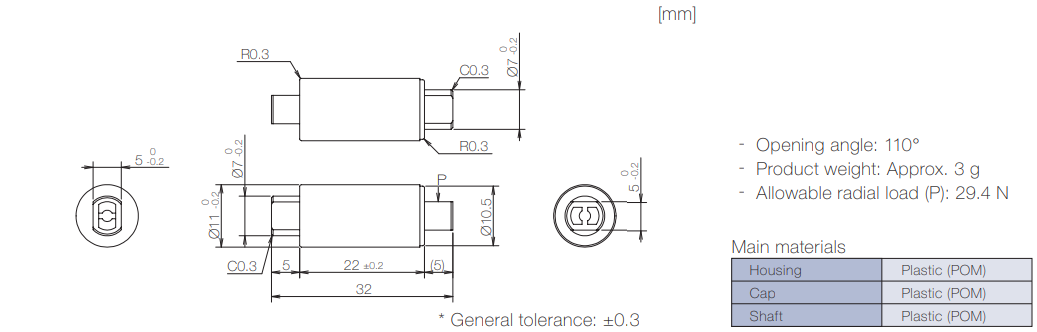

Product information

Product information td148 1

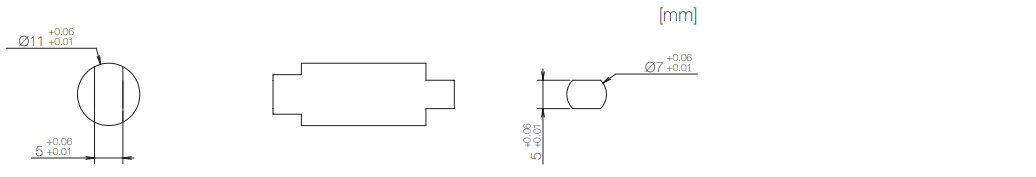

Dimensions related to mounting

Can be inserted in either direction | TD148

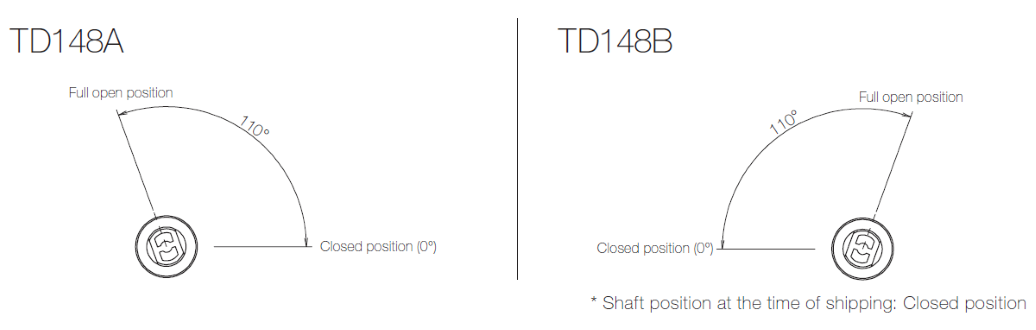

Opening angle

Can be inserted in either direction | TD148

Damping directions

Rotation directions of the shaft to which torque is applied

Can be inserted in either direction | TD148

Product specifications

*Find the catalog below.
