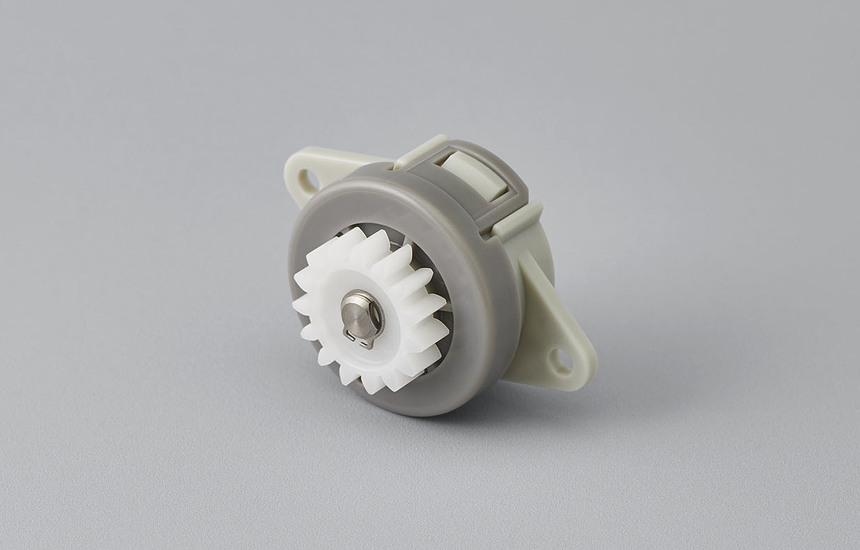

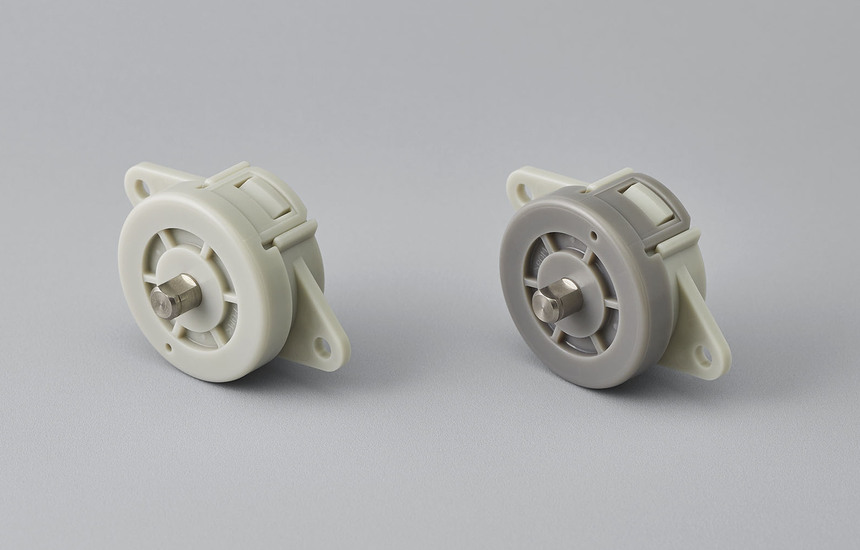

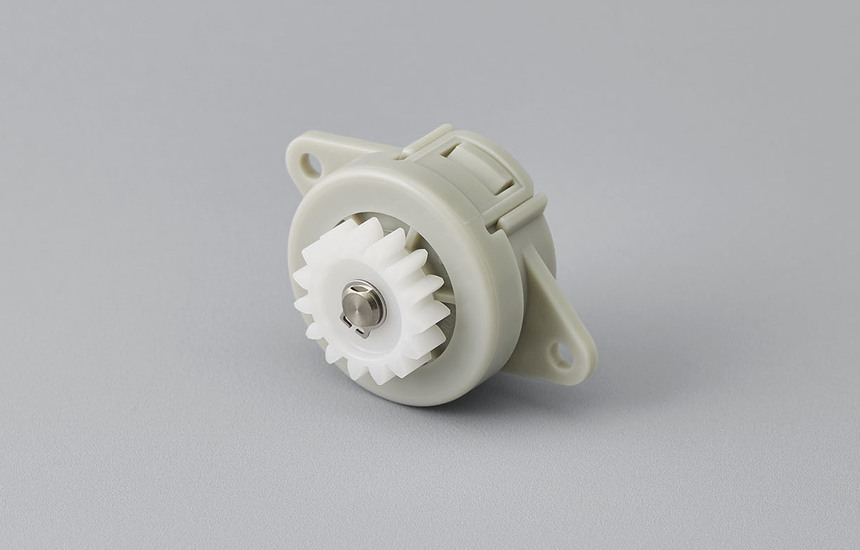

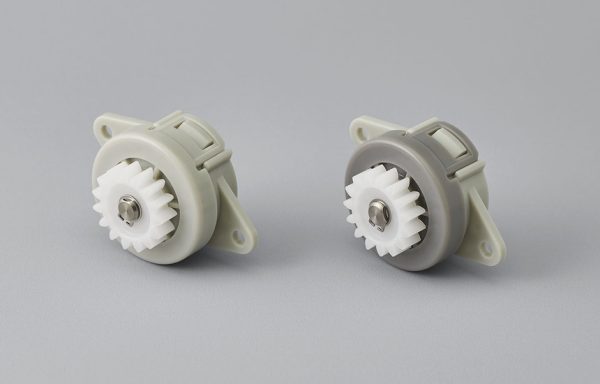

Easy centering during installation | TD62

  • Middle torque range of our continuous rotation dampers
  • Outer mounting diameter of Ø 25 mm
  • Facilitates easy centering during mounting
  • A wide variety of torques
Category:

Description

Product lineup

Product name Torque [mN·m] (lbf·in) Damping direction Cap color
TD62R1-300 30.0 ± 9 (0.27 ± 0.08) CW Dark gray
TD62R1-600 60.0 ± 15 (0.53 ± 0.13) CW Dark gray
TD62R1-900 90.0 ± 18 (0.80 ± 0.16) CW Dark gray
TD62R1-1500 150.0 ± 30 (1.33 ± 0.27) CW Dark gray
TD62R1-2000 200.0 ± 40 (1.77 ± 0.35) CW Dark gray
Product name Torque [mN·m] (lbf·in) Damping direction Cap color
TD62L1-300 30.0 ± 9 (0.27 ± 0.08) CCW Gray
TD62L1-600 60.0 ± 15 (0.53 ± 0.13) CCW Gray
TD62L1-900 90.0 ± 18 (0.80 ± 0.16) CCW Gray
TD62L1-1500 150.0 ± 30 (1.33 ± 0.27) CCW Gray
TD62L1-2000 200.0 ± 40 (1.77 ± 0.35) CCW Gray

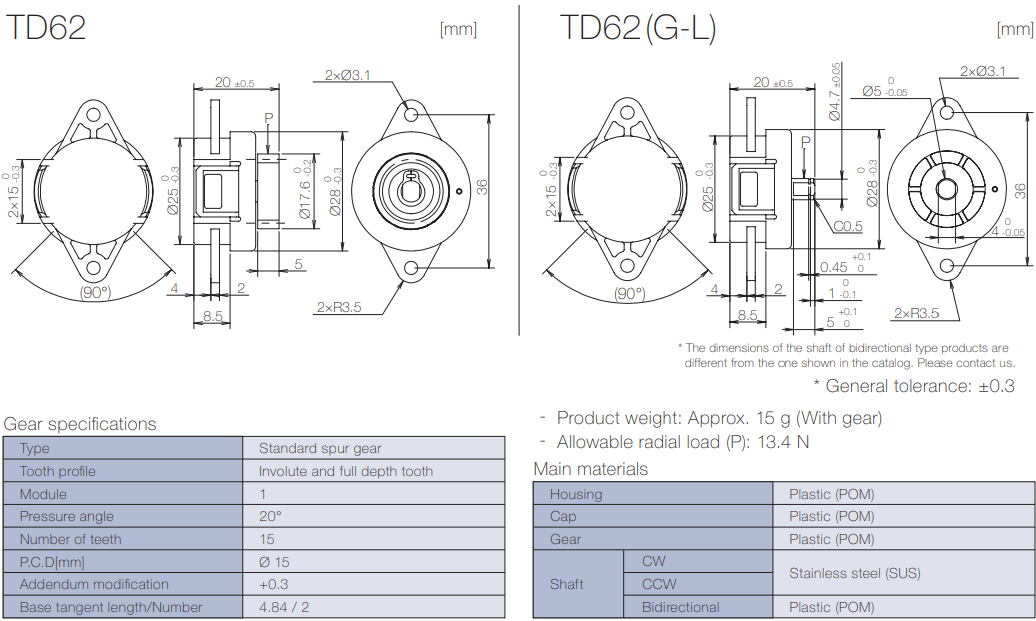

Product information

Product information td62 1

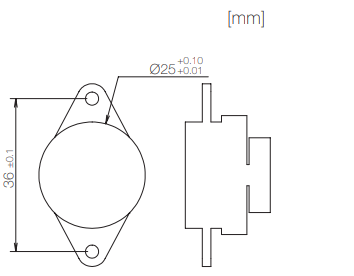

Dimensions related to mounting

Dimensions related to mounting TD62 1

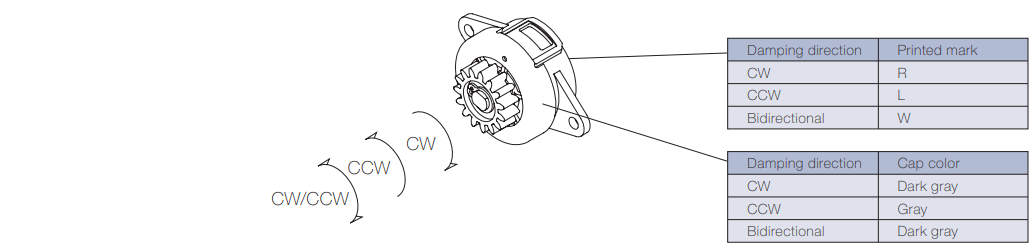

Damping directions

Damping direction of the shaft

Damping directions TD62 1

Product specifications

*Find the catalog below.
