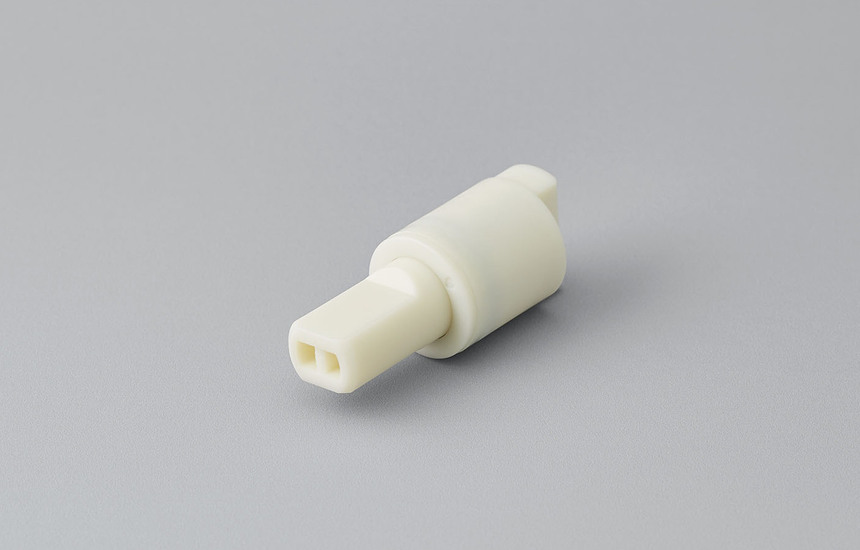

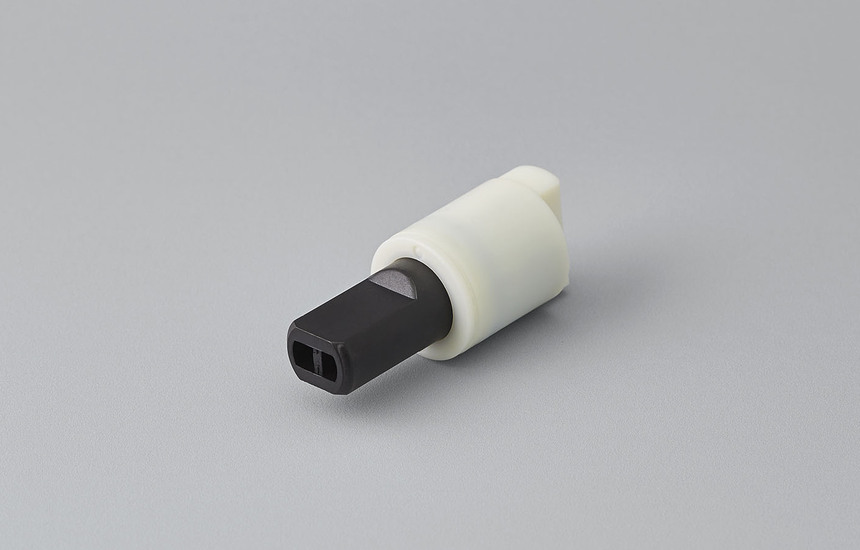

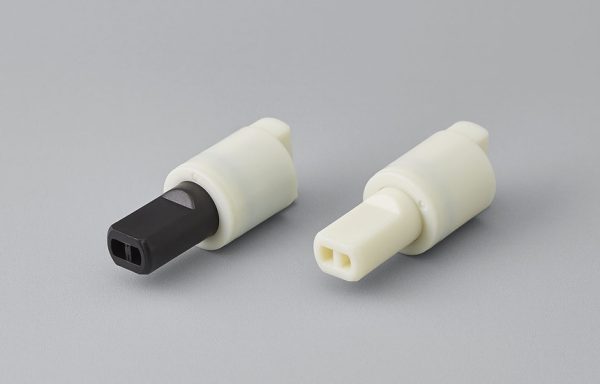

Most popular damper design | TD99 (Horizontal use)

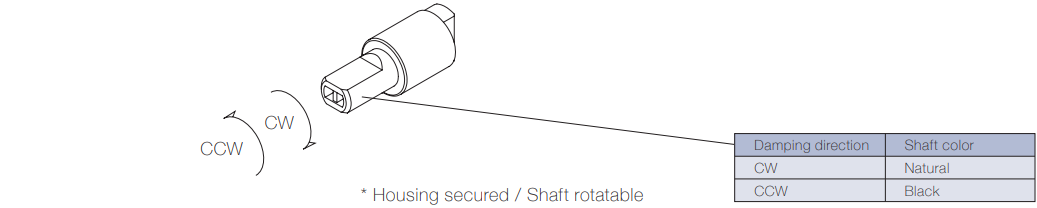

Rotation directions of the shaft to which torque is applied

• Durability

*Find the catalog below.

TD99 Horizontal Rotary Damper in Singapore

The TD99 horizontal rotary damper is a specialised variant of the most popular TOK damper design, optimised specifically for horizontal mounting applications. Available in Singapore from Phil Industries, the authorised TOK Inc. distributor, this TD99 horizontal rotary damper Singapore engineers prefer is calibrated to deliver optimal performance when the axis of rotation is positioned horizontally. Its horizontal-specific tuning ensures smooth, controlled motion in side-opening mechanisms like doors, lids, and panels.

Features of the TD99 Horizontal Rotary Damper

The TD99 horizontal use model is engineered to provide ideal damping resistance when mounted in a horizontal orientation. In horizontal installations, the damper compensates for the specific force characteristics of side-swinging components, delivering consistent torque throughout the rotation cycle. The internal fluid mechanism is optimised for horizontal operation, preventing any inconsistencies in damping speed that could occur if a vertical-specific damper were used in a horizontal position. Built with premium materials, the TD99 horizontal rotary damper maintains reliable output over thousands of cycles. Temperature-stable characteristics ensure consistent operation in tropical climates common across Singapore and Southeast Asia.

Singapore Applications for the TD99 Horizontal Damper

Manufacturers in Singapore widely use the TD99 horizontal rotary damper for products with side-opening mechanisms. Door hardware companies install it in interior doors, gates, and partitions to provide smooth, controlled closing action. Electronics manufacturers integrate this damper into side-hinge equipment covers, printer lids, and copier panels. Furniture producers in Singapore specify the TD99 horizontal model for horizontally-hinged cabinet doors, drawer fronts, and wardrobe panels. Automotive component suppliers also use this damper for centre console lids, side storage compartments, and armrest mechanisms that operate on a horizontal axis.

Why Choose Phil Industries for TOK Dampers

Phil Industries is the authorised TOK distributor in Singapore, offering expert technical guidance, competitive pricing, and rapid local delivery. Our team helps you select the optimal TD99 variant for your horizontal-mount applications. We maintain comprehensive stock of TOK rotary dampers including all TD99 orientation-specific models.

Order the TD99 Horizontal Rotary Damper in Singapore

To order the TD99 horizontal rotary damper or request a quotation, contact Phil Industries at +65 6555 1745 or visit our contact page. Browse our full TOK rotary damper catalogue to compare all available models and find the ideal solution for your project.
