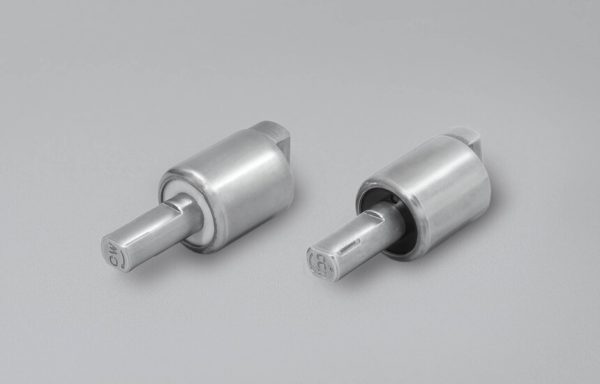

TOK Slim shaft damper | TD112

0 out of 5
( There are no reviews yet. )
  • Compact design made with zinc alloy
  • Shaft is thinner than that of plastic rotary dampers
  • High rigidity achieved by the use of zinc alloy
  • High torque up to 3 N･m
  • Using the attachment, the form of TD112 will be the same as TD99
Category:
Request Quote

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction Cap color

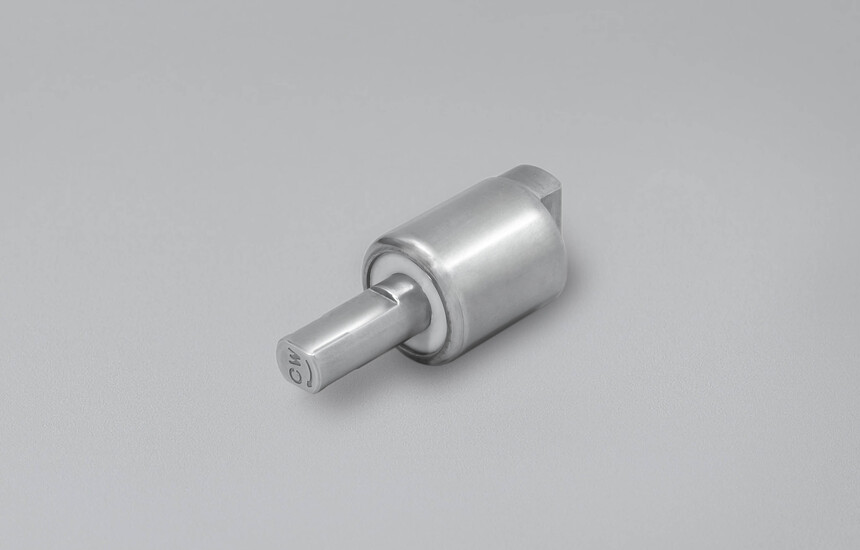

TD112A1-15K 1.5 (13.28) CW Natural
TD112A1-20K 2.0 (17.70) CW Natural
TD112A1-25K 2.5 (22.13) CW Natural
TD112A1-30K 3.0 (26.55) CW Natural
Product name Torque [N·m] (lbf·in) Damping direction Cap color

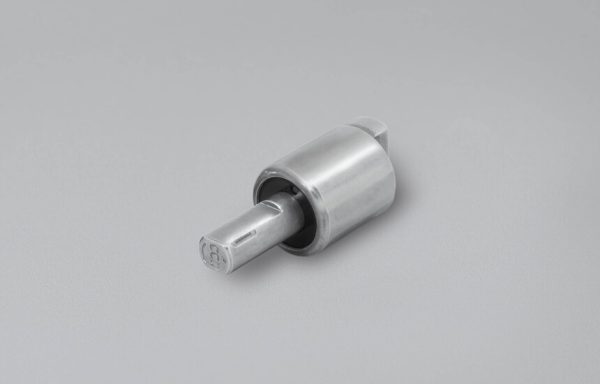

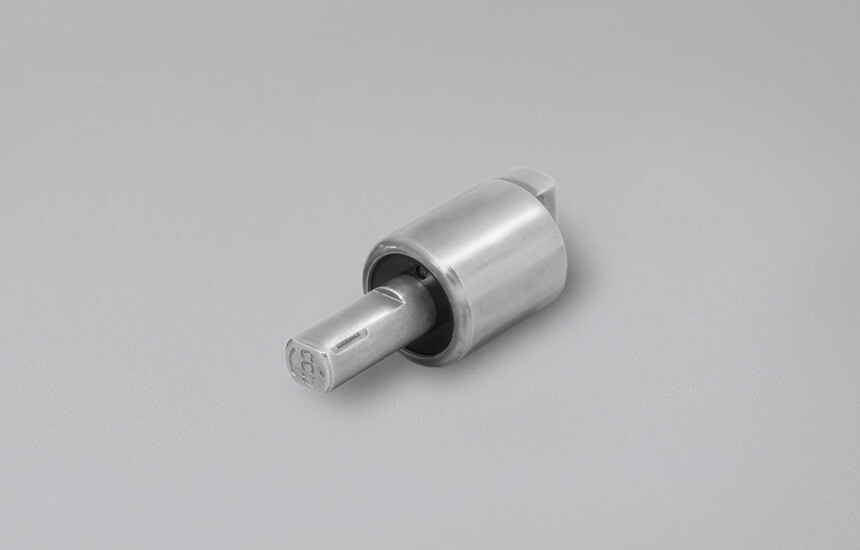

TD112B1-15K 1.5 (13.28) CCW Black
TD112B1-20K 2.0 (17.70) CCW Black
TD112B1-25K 2.5 (22.13) CCW Black
TD112B1-30K 3.0 (26.55) CCW Black

Product information

Product information td112 1

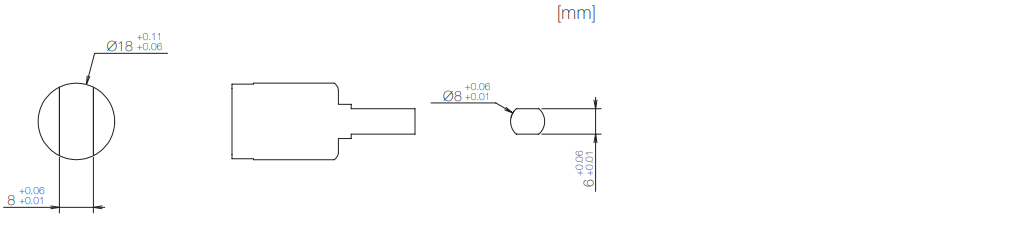

Dimensions related to mounting

Dimensions related to mounting TD112 1

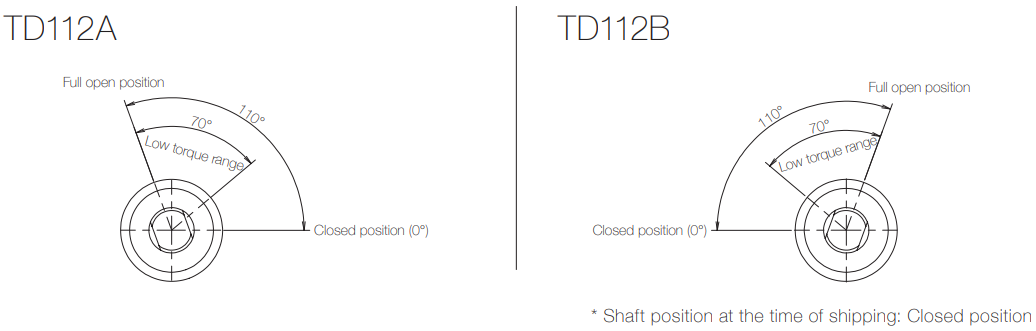

Opening angle

Opening angle TD112 1

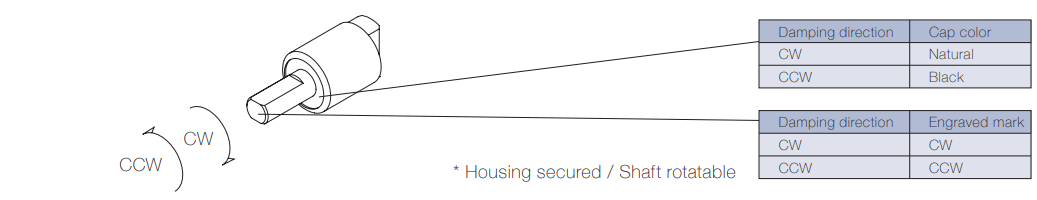

Damping directions

Rotation directions of the shaft to which torque is applied

Damping directions TD112 1

Product specifications

*Find the catalog below.

CATALOG

Reviews

There are no reviews yet.

Be the first to review “TOK Slim shaft damper | TD112”
