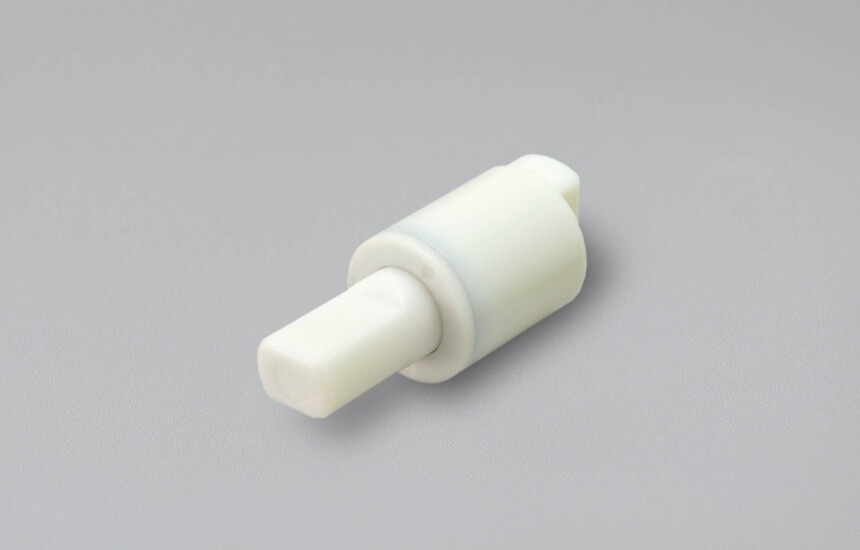

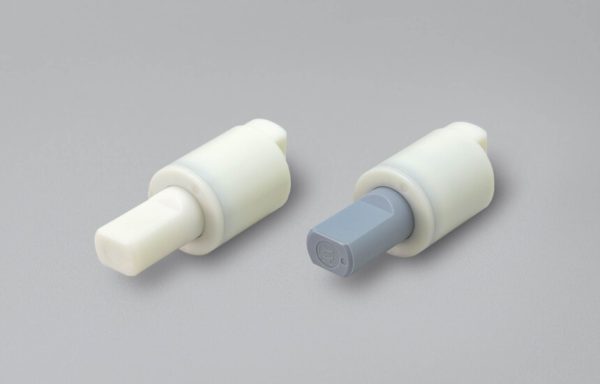

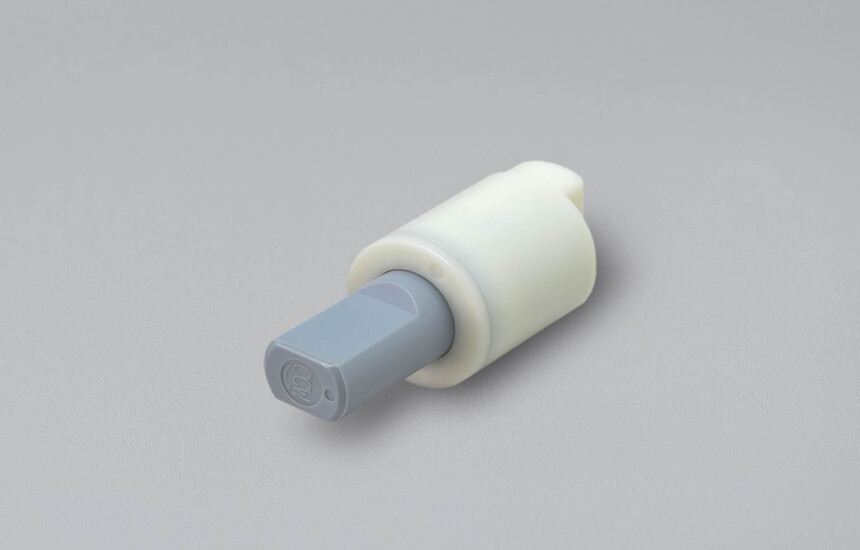

Chemical resistant | TD54

  • Made with chemical-resistant PBT plastic is used
  • 100% plastic version of TD133
Category:
Request Quote

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction Shaft color
TD54A2-8K 0.78 (6.90) CW Natural
TD54A2-10K 0.98 (8.67) CW Natural
TD54A2-15K 1.47 (13.01) CW Natural
TD54A2-20K 1.96 (17.35) CW Natural
Product name Torque [N·m] (lbf·in) Damping direction Shaft color
TD54B2-8K 0.78 (6.90) CCW Fog blue
TD54B2-10K 0.98 (8.67) CCW Fog blue
TD54B2-15K 1.47 (13.01) CCW Fog blue
TD54B2-20K 1.96 (17.35) CCW Fog blue

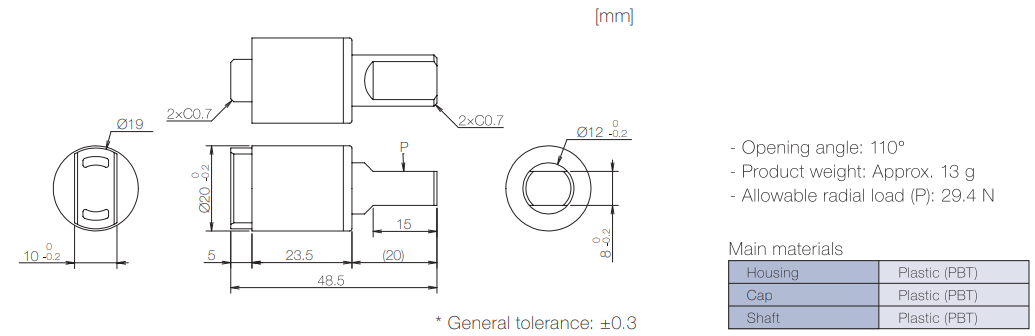

Product information

Chemical resistant | TD54

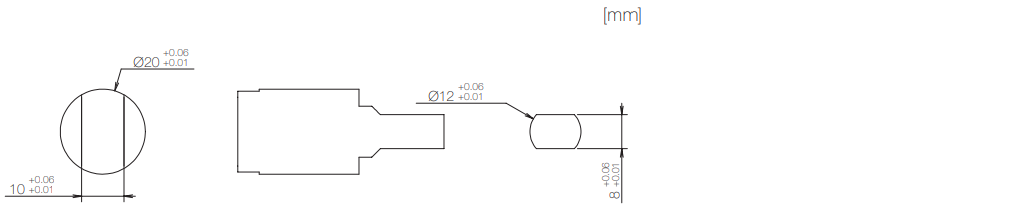

Dimensions related to mounting

Chemical resistant | TD54

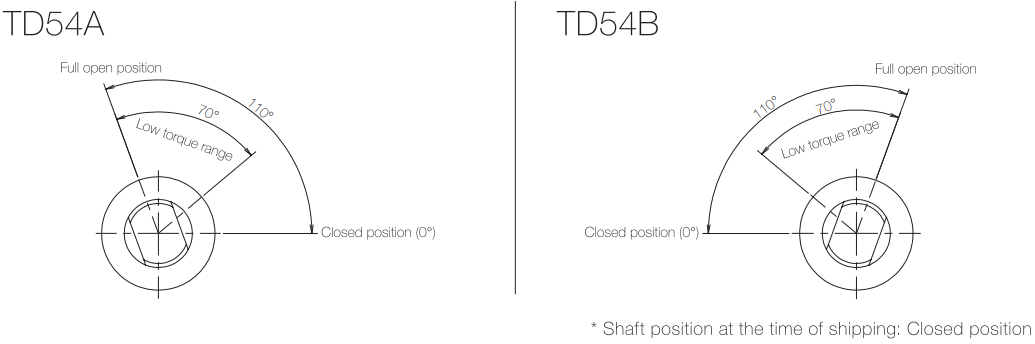

Opening angle

Chemical resistant | TD54

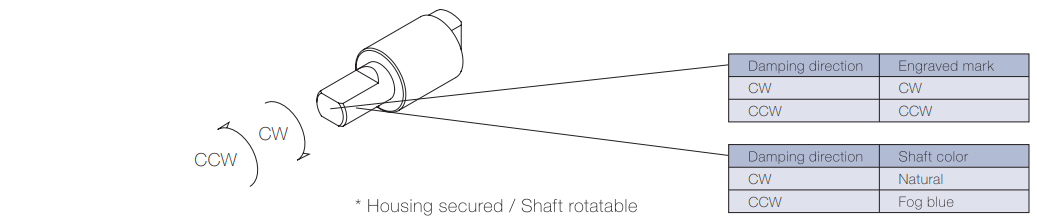

Damping directions

Rotation directions of the shaft to which torque is applied

Chemical resistant | TD54

Product specifications

*Find the catalog below.

CATALOG
