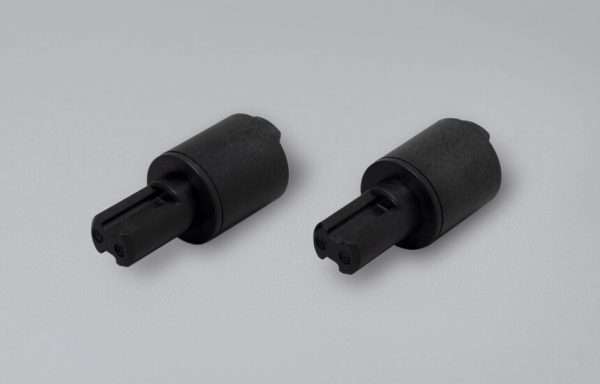

  • Made with super engineering plastic (PEI)
  • Wide temperature range for operation (-5°C to 80°C)
  • Made with chemical-resistant
  • Highest torque with Ø 20 mm damper (Up to 4 N･m)
Category:
Request Quote

Description

Product lineup

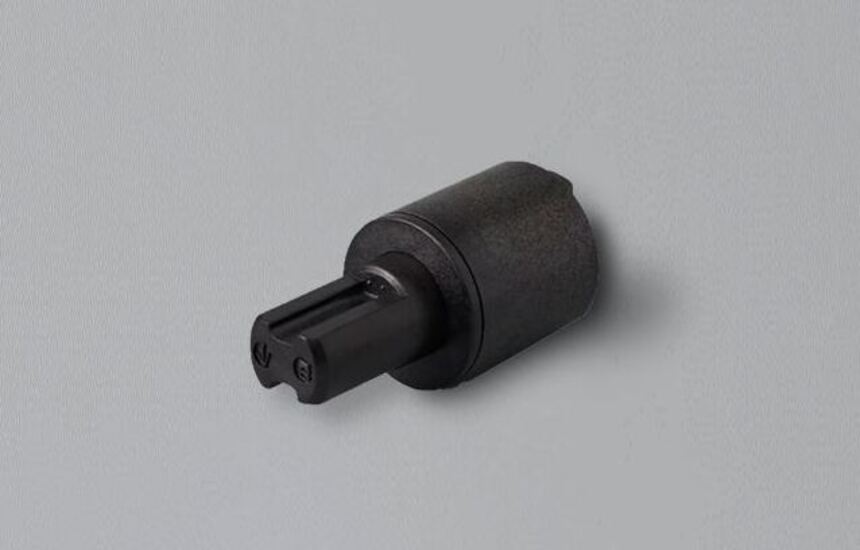

Product name Torque [N·m] (lbf·in) Damping direction Operating temperature range [°C] (°F)
TD69A1-15K 1.5 (13.28) CW -5 to 80 (23 to 176)
TD69A1-20K 2.0 (17.70) CW -5 to 80 (23 to 176)
TD69A1-25K 2.5 (22.13) CW -5 to 80 (23 to 176)
TD69A1-30K 3.0 (26.55) CW -5 to 80 (23 to 176)
TD69A1-35K 3.5 (30.98) CW -5 to 50 (23 to 122)
TD69A1-40K 4.0 (35.40) CW 0 to 40 (32 to 104)

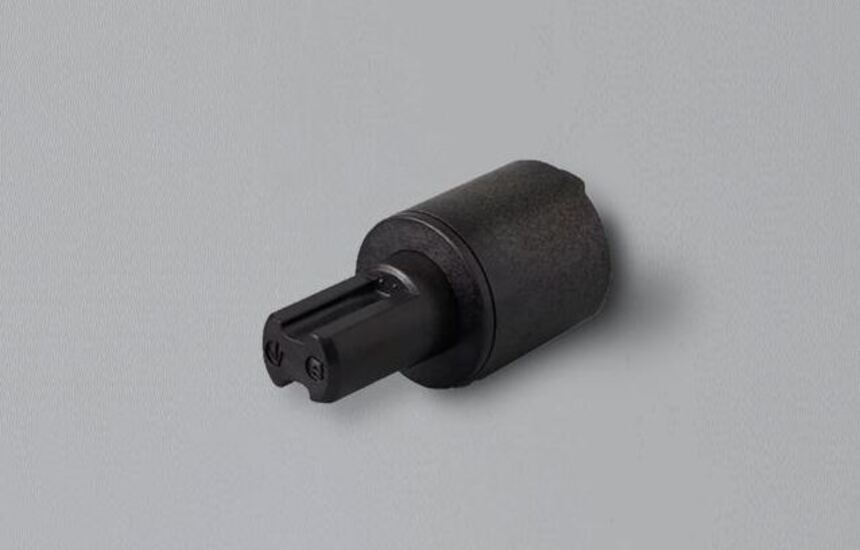

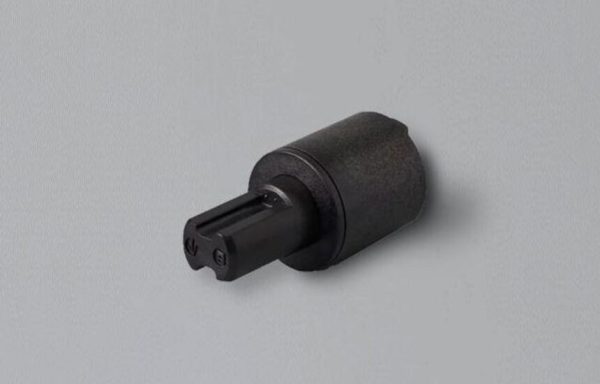

Product name Torque [N·m] (lbf·in) Damping direction Operating temperature range [°C] (°F)
TD69B1-15K 1.5 (13.28) CCW -5 to 80 (23 to 176)
TD69B1-20K 2.0 (17.70) CCW -5 to 80 (23 to 176)
TD69B1-25K 2.5 (22.13) CCW -5 to 80 (23 to 176)
TD69B1-30K 3.0 (26.55) CCW -5 to 80 (23 to 176)
TD69B1-35K 3.5 (30.98) CCW -5 to 50 (23 to 122)
TD69B1-40K 4.0 (35.40) CCW 0 to 40 (32 to 104)

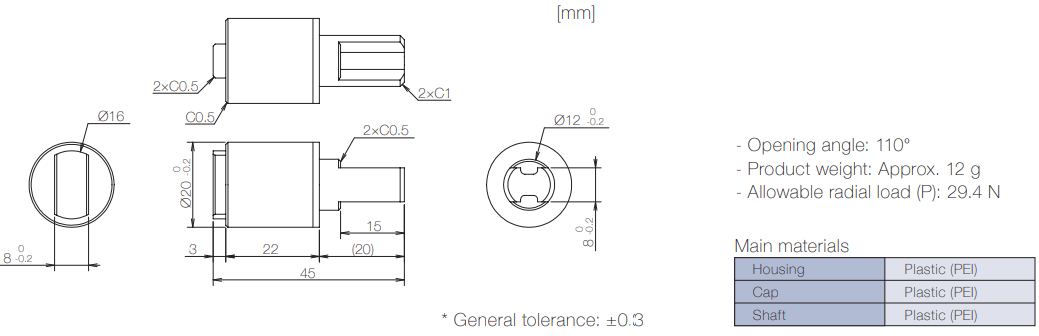

Product information

Wide temperature range for operation | TD69

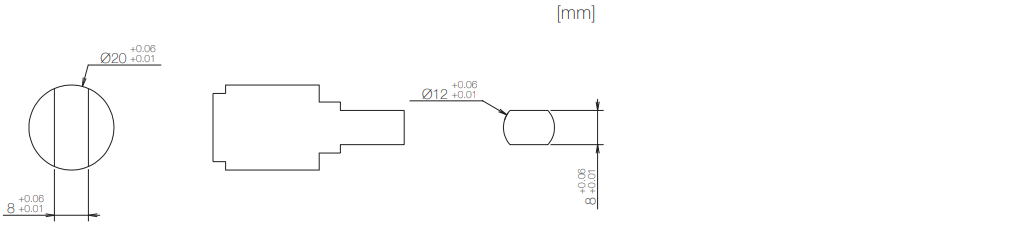

Dimensions related to mounting

Wide temperature range for operation | TD69

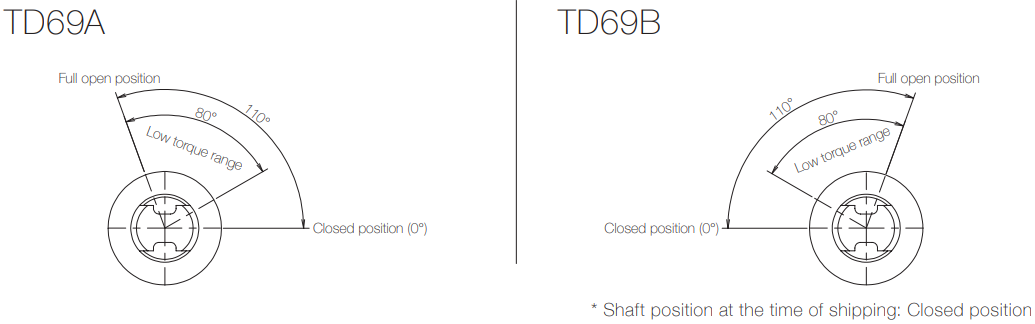

Opening angle

Wide temperature range for operation | TD69

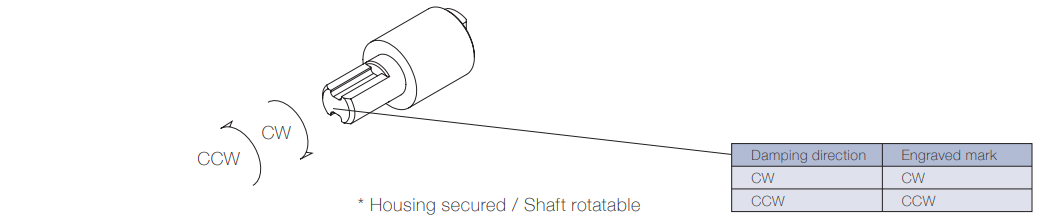

Damping directions

Rotation directions of the shaft to which torque is applied

Wide temperature range for operation | TD69

Product specifications

*Find the catalog below.

CATALOG
