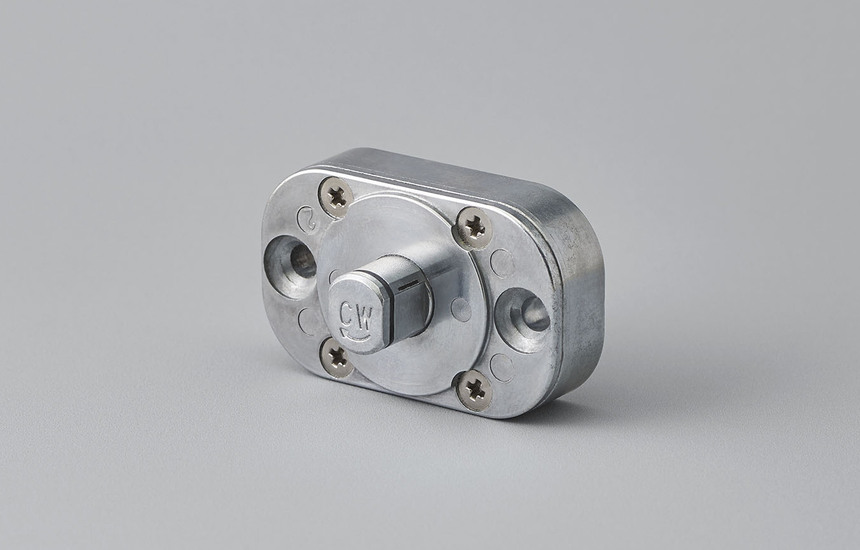

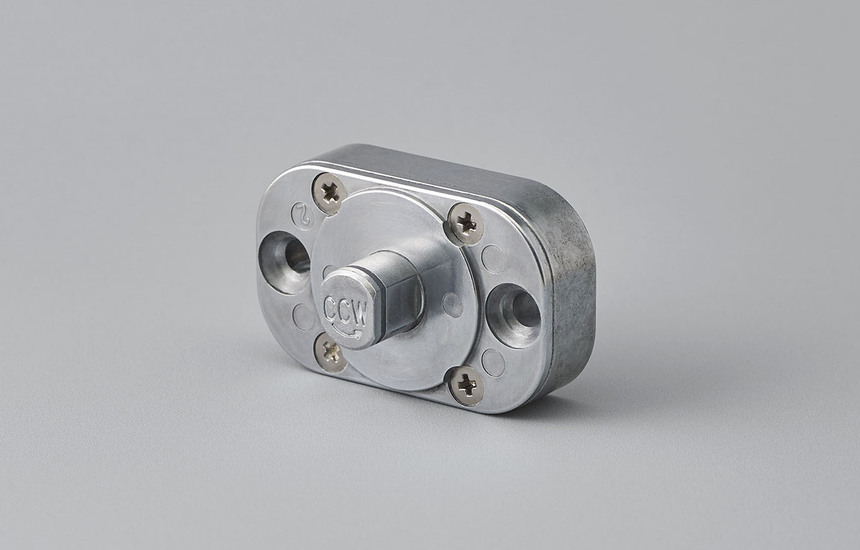

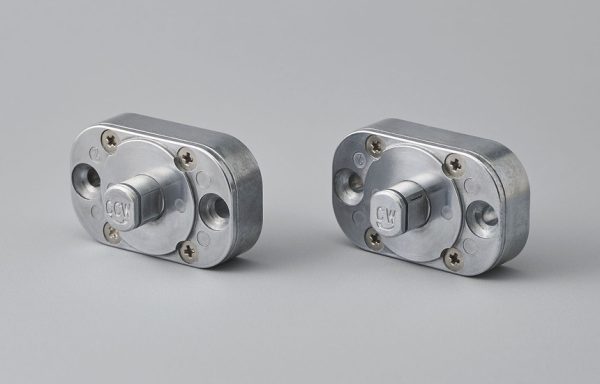

The thinnest product | TD60

  • The thinnest product for horizontal use
  • Space-saving design
  • High rigidity achieved by the use of zinc alloy
Category:

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction
TD60A1-5K 0.49 (4.34) CW
TD60A1-10K 0.98 (8.67) CW
TD60A1-15K 1.47 (13.01) CW
TD60A1-20K 1.96 (17.35) CW
Product name Torque [N·m] (lbf·in) Damping direction
TD60B1-5K 0.49 (4.34) CCW
TD60B1-10K 0.98 (8.67) CCW
TD60B1-15K 1.47 (13.01) CCW
TD60B1-20K 1.96 (17.35) CCW

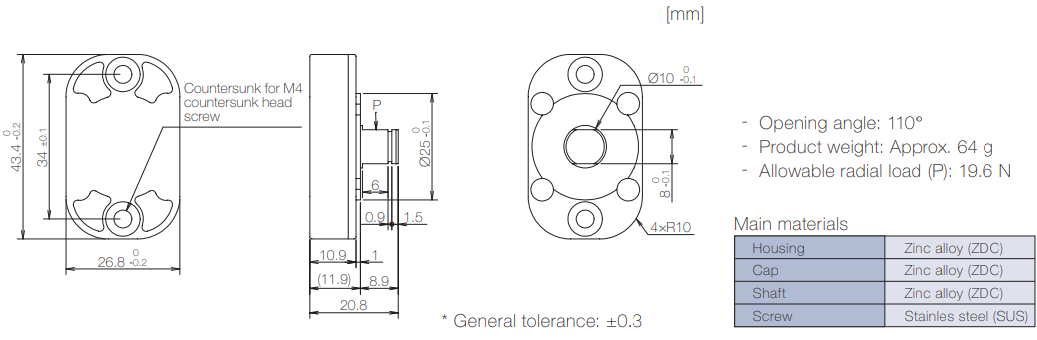

Product information

Rotation directions of the shaft to which torque is applied

The thinnest product | TD60

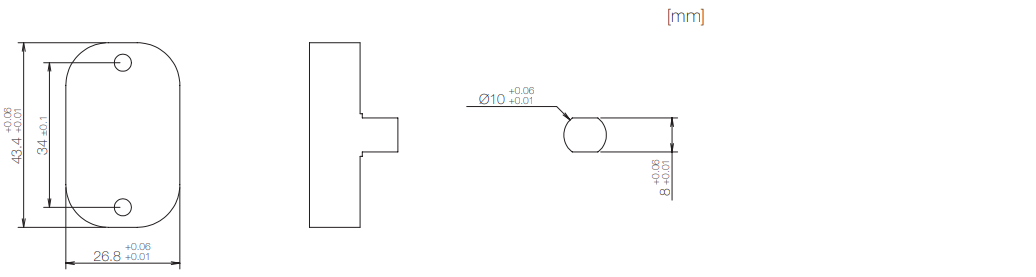

Dimensions related to mounting

The thinnest product | TD60

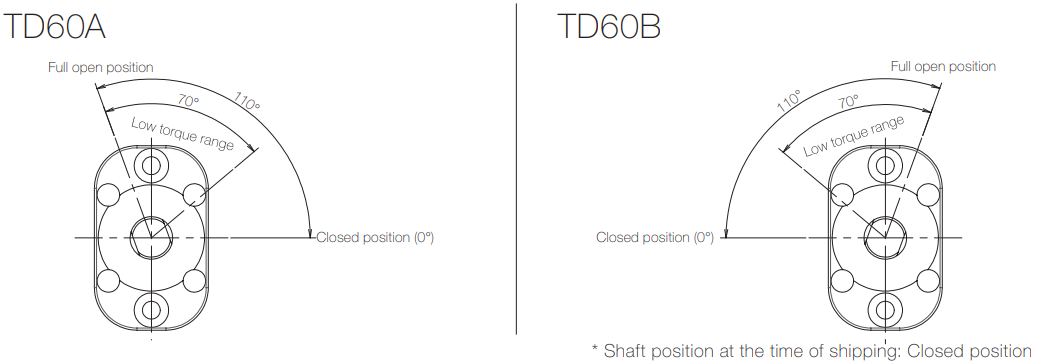

Opening angle

The thinnest product | TD60

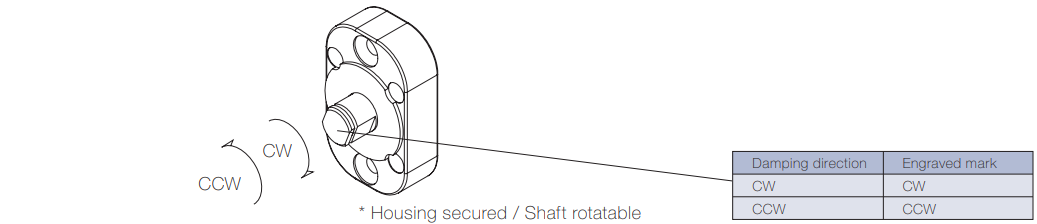

Damping directions

The thinnest product | TD60

Product specifications

*Find the catalog below.
