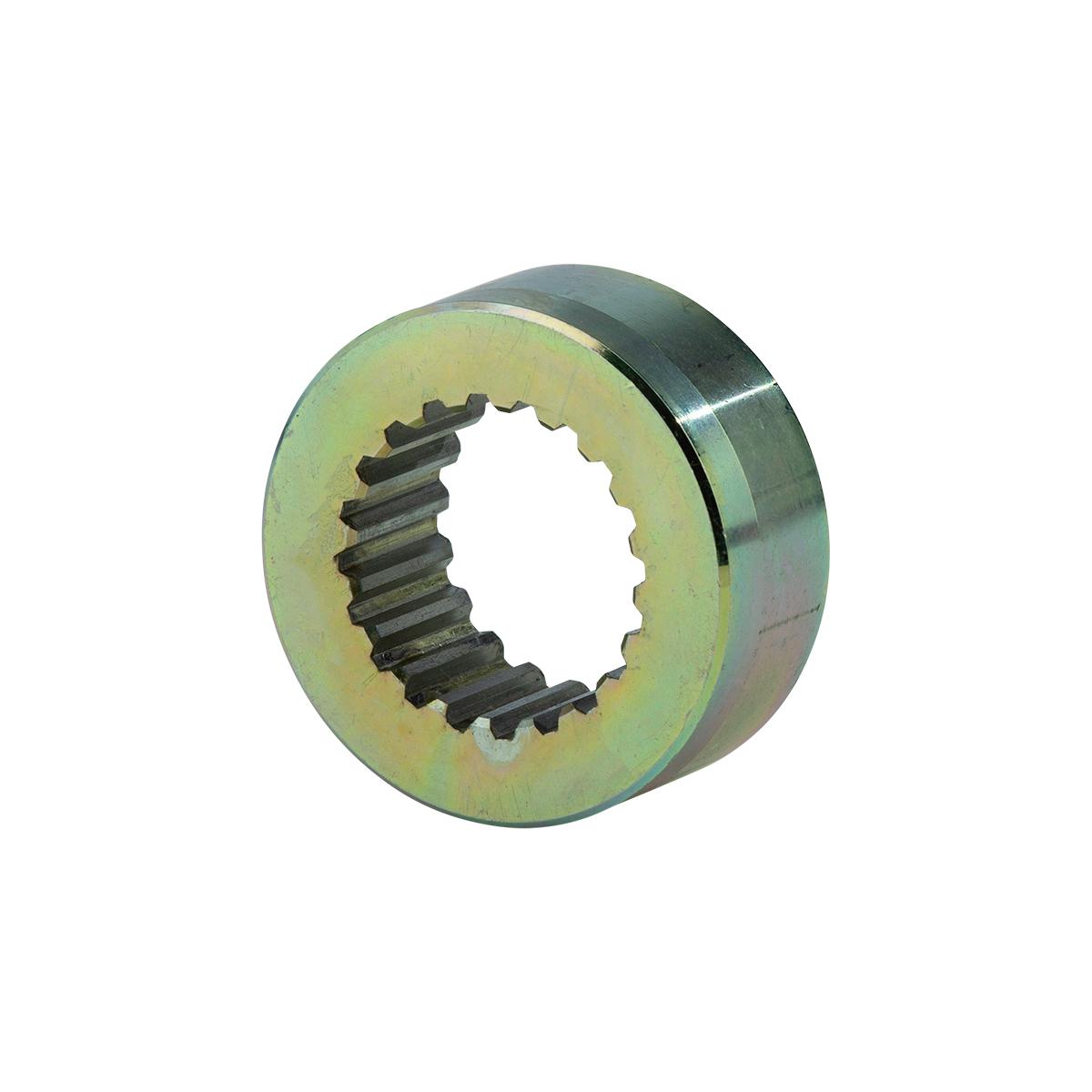

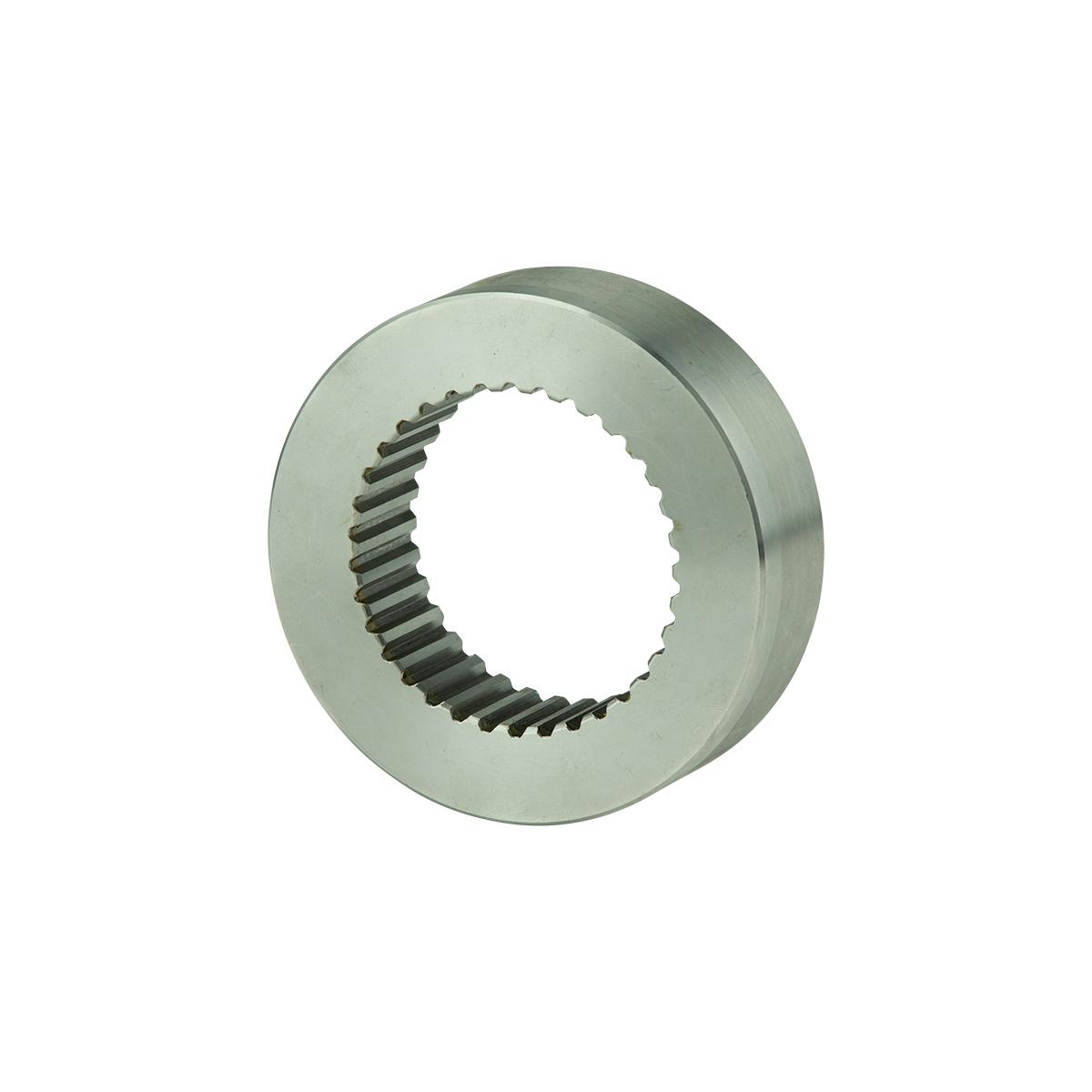

Mountz Reaction Ring
A Mountz reaction ring takes the torque reaction from a multiplier instead of the operator’s wrist.
- Eight models matched to DMA-series multipliers
- Spline diameter and D2 size listed in millimetres
- Safety item: never run a multiplier without the correct reaction fitting
- Model, item number and dimensions are listed in the table below
- From Phil Industries, an authorised Mountz distributor in Singapore — held at our Ubi warehouse
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Spline Diameter | D2 Size (MM) | Dimension A | Dimension B | |
|---|---|---|---|---|---|---|
 |
Reaction Ring – DMA 10246 | 213896 | 41 mm | 85 | 65 mm | 28 mm |
 |
Reaction Ring – DMA 10247 | 213917 | 54 mm | 85 | 80 mm | 28 mm |
 |
Reaction Ring – DMA 10248 | 213889 | 72 mm | 98 | 110 mm | 33 mm |
|
Reaction Ring – DMA 10249 | 213904 | 72 mm | 123 | 110 mm | 47 mm |
|
Reaction Ring – DMA 10249 | 213895 | 72 mm | 148 | 110 mm | 47 mm |
|
Reaction Ring – DMA 10250 | 213894 | 91 mm | 173 | 130 mm | 52 mm |
|
Reaction Ring – DMA 10416 | 213943 | 275 | 57 mm | 180 mm |
CHOOSE THE MODEL BELOW
