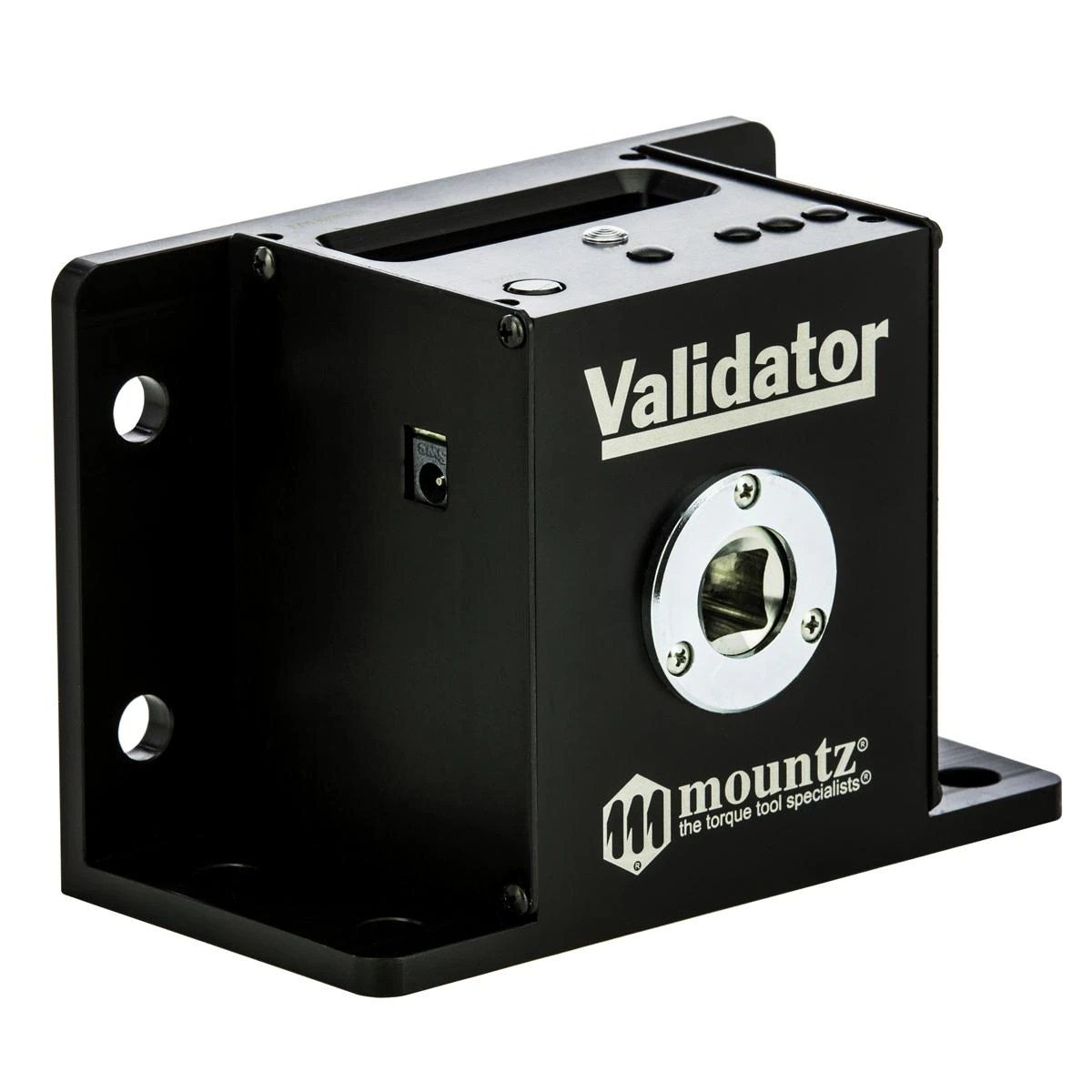

Mountz Validator Torque Wrench Tester
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | American | S.I. | Metric | Drive Size | |
|---|---|---|---|---|---|---|
 |
Validator | 070532 | 40 – 200 lbf.ft | 54.4 – 272 N.m | 5.5 – 27.6 kgf.m | 1/2″ F/Sq |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Validator |
| Item Name / Number: | 070532 |
| American: | 40 – 200 lbf.ft |
| S.I. : | 54.4 – 272 N.m |
| Metric : | 5.5 – 27.6 kgf.m |
| Drive Size : | 1/2″ F/Sq |
- Designed for testing and calibrating torque wrenches.
- Perform daily or weekly verification tests to confirm wrenches are operating at proper torque setting.
- Clockwise direction only.
- Selection of three operation modes: Peak, First Peak & Track
- Three units of torque measurements: (lbf.ft, N.m, kgf.m).
- Includes 9V Li-ion rechargeable battery and universal charger (100-240 VAC).
- Easy-to-use menu structure.
- LCD display.
- Small and lightweight.
- Built-in mounting plate provides flexibility for mounting options. Suitable to be placed within the assembly line area.
- Menu prompting calibration process.
- Features Go / No Go LED that illuminates when high or low tolerance setting is achieved or out of tolerance.
Accuracy ± 1% of reading from 20% to 100% of full scale
Validator Data Sheet
Validator Manual As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
