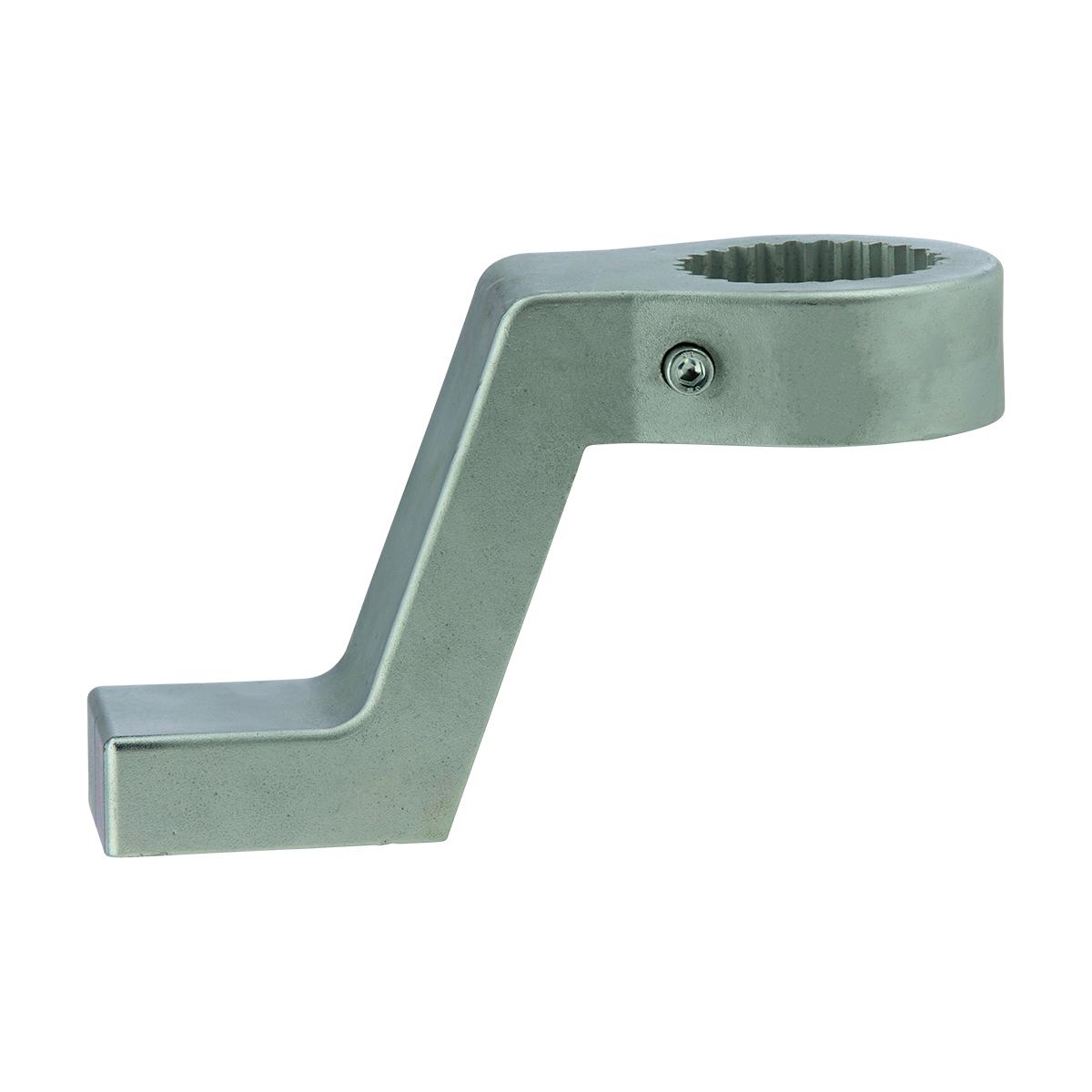

Mountz Reaction Foot
A Mountz reaction foot braces a torque multiplier against an adjacent surface, so the tool absorbs the reaction rather than the operator.
- Seven models for DMA-series multipliers
- Spline diameter and dimensions listed per model
- Choose the foot to suit the surface you can brace against
- Model, item number and dimensions are listed in the table below
- From Phil Industries, an authorised Mountz distributor in Singapore — held at our Ubi warehouse
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Spline Diameter | D2 Size (MM) | Dimension A | Dimension B | |
|---|---|---|---|---|---|---|
 |
Reaction Foot – DMA 10251 | 213893 | 41 mm | 85 | 110 mm | 130 mm |
|
Reaction Foot – DMA 10252 | 218077 | 54 mm | 85 | 110 mm | 130 mm |
 |
Reaction Foot – DMA 10253 | 213916 | 54 mm | 85 | 115 mm | 150 mm |
|
Reaction Foot – DMA 10256 | 213891 | 72 mm | 123 | 170 mm | 220 mm |
|
Reaction Foot – DMA 10256 | 218074 | 72 mm | 148 | 170 mm | 220 mm |
|
Reaction Foot – DMA 10257 | 213890 | 91 mm | 173 | 174 mm | 220 mm |
CHOOSE THE MODEL BELOW
