Most popular damper design | TD99 (Horizontal & Vertical use)
- Made with chemical-resistant PBT plastic is used
- Capable of achieving high torque at all opening angles
- TD99 series is identifiable by the shaft color
- Description
Description
Product lineup

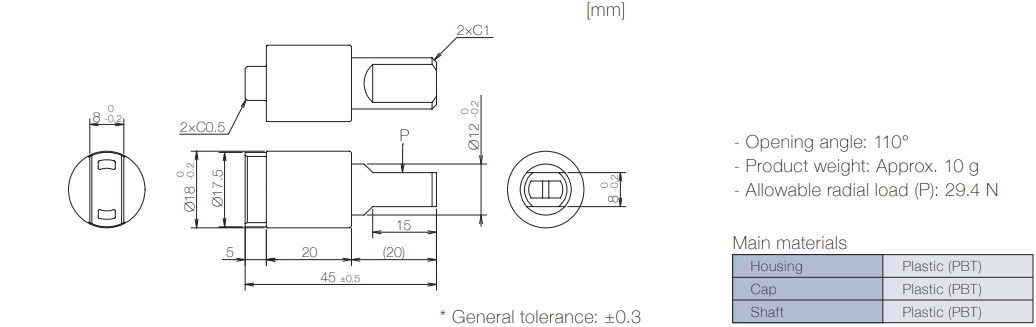

Product information

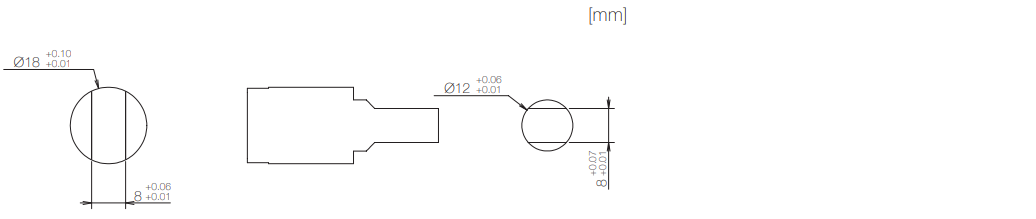

Dimensions related to mounting

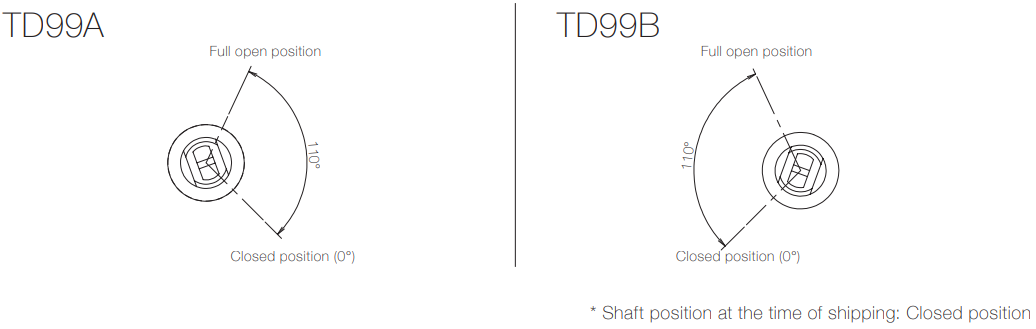

Opening angle

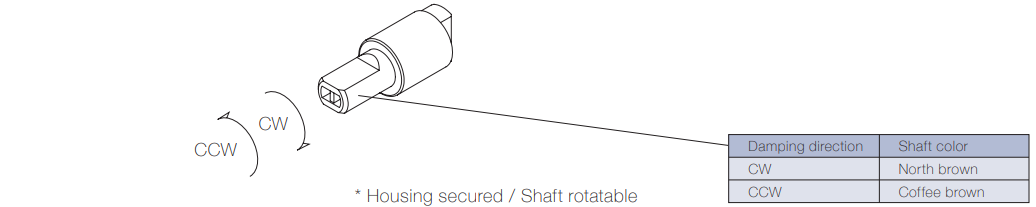

Damping directions
Rotation directions of the shaft to which torque is applied
Product specifications
*Find the catalog below.
TD99 Horizontal Vertical Rotary Damper in Singapore
The TD99 horizontal vertical rotary damper is the most popular damper design from TOK, engineered for both horizontal and vertical mounting orientations. Available in Singapore through Phil Industries, the authorised TOK Inc. distributor, this versatile TD99 horizontal vertical rotary damper Singapore professionals rely on delivers consistent damping performance regardless of installation angle. Its dual-orientation capability makes it the preferred choice for designers who need a single damper solution across multiple product configurations.
Features of the TD99 Horizontal Vertical Rotary Damper
The TD99 horizontal and vertical use model provides reliable torque output whether mounted horizontally or vertically. This eliminates the need for separate damper models for different mounting positions, simplifying inventory management and product assembly. The damper delivers smooth, controlled rotational resistance that prevents slamming and ensures gentle, quiet motion. Its proven design has been adopted by manufacturers worldwide, making it the most popular rotary damper in the TOK range. Robust internal components ensure consistent performance over thousands of operating cycles in varying temperature conditions.
Singapore Applications for the TD99 Horizontal Vertical Damper
Singapore manufacturers across multiple sectors use the TD99 horizontal vertical rotary damper in their products. Toilet seat producers install it for soft-close functionality in both standard and wall-mounted configurations. Electronics companies integrate the TD99 into laptop hinges, display stands, and equipment covers that may be oriented horizontally or vertically. Furniture manufacturers in Singapore use this damper for cabinet doors, drawer mechanisms, and adjustable fixtures. The flexibility to mount in any orientation reduces design complexity and production costs significantly.
Why Source from Phil Industries Singapore
Phil Industries is the authorised TOK distributor in Singapore, providing expert technical support, competitive pricing, and rapid local delivery. Our team assists customers in selecting the correct torque rating and configuration for their specific applications. We carry a full range of TOK rotary dampers including all TD99 variants to meet diverse engineering needs.
Order the TD99 Horizontal Vertical Rotary Damper in Singapore
To order the TD99 horizontal vertical rotary damper or request a quotation, contact Phil Industries at +65 6555 1745 or visit our contact page. Browse our complete TOK rotary damper catalogue to compare all available models and specifications.
