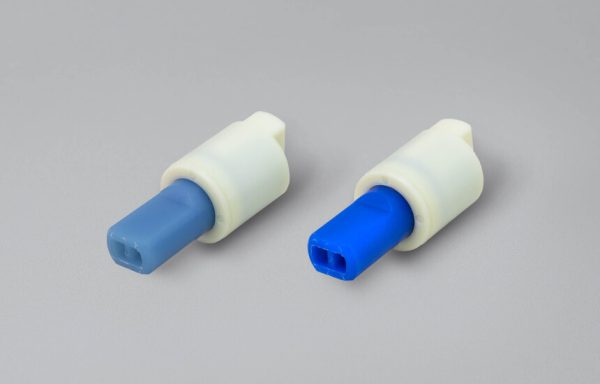

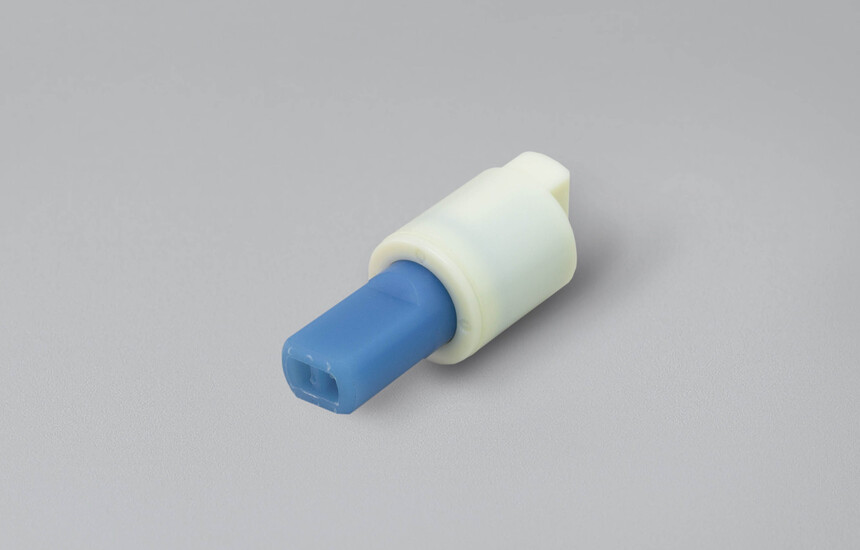

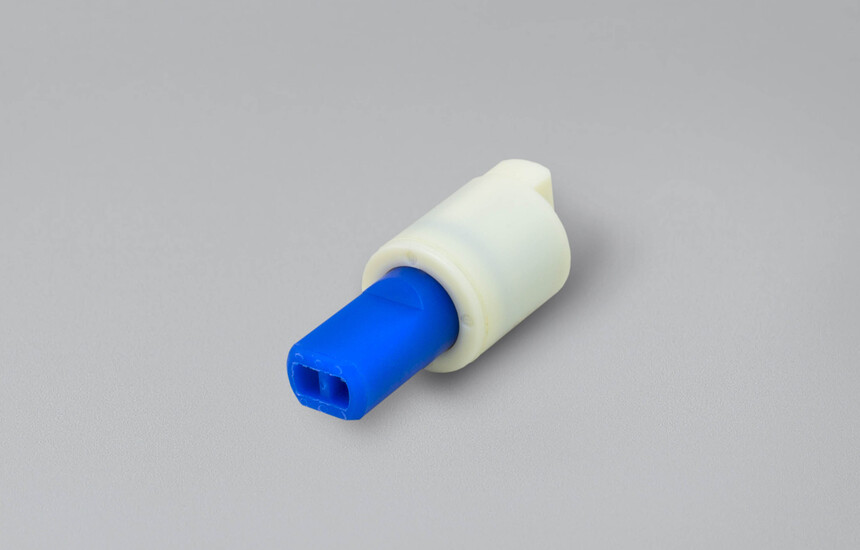

Most popular damper design | TD99 (Vertical use)

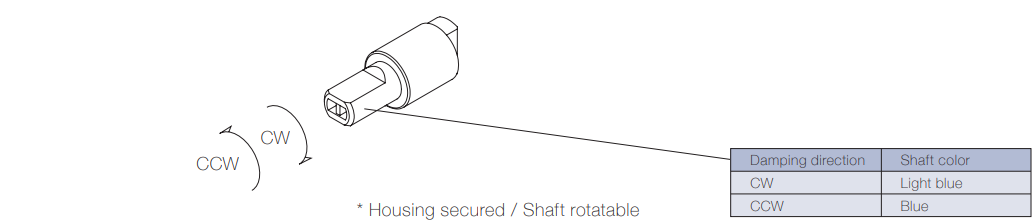

Rotation directions of the shaft to which torque is applied

• Durability

*Find the catalog below.

TD99 Vertical Rotary Damper in Singapore

The TD99 vertical rotary damper is a specialised variant of the most popular TOK damper design, optimised for vertical mounting applications. Available in Singapore from Phil Industries, the authorised TOK Inc. distributor, this TD99 vertical rotary damper Singapore engineers prefer is specifically calibrated to deliver optimal damping performance when gravity acts along the axis of rotation. Its vertical-specific design ensures smooth, controlled motion in downward-closing mechanisms such as toilet seats and overhead panels.

Features of the TD99 Vertical Rotary Damper

The TD99 vertical use model is engineered to account for the effects of gravity on the damping mechanism. In vertical installations, the weight of the attached component influences rotational speed, and this damper compensates to maintain a steady, controlled closing motion. The internal fluid and vane design are tuned for vertical orientation, providing consistent torque output that prevents slamming or abrupt stops. Built with durable materials, the TD99 vertical rotary damper maintains reliable performance across tens of thousands of cycles. Its temperature-stable characteristics ensure consistent operation in tropical climates like Singapore.

Singapore Applications for the TD99 Vertical Damper

Manufacturers in Singapore widely use the TD99 vertical rotary damper across multiple product categories. It is the leading choice for toilet seat soft-close mechanisms, providing a quiet and gentle closing action. Cabinet and furniture makers install this damper in top-hinged doors and overhead compartments where gravity-assisted closing requires controlled deceleration. Electronics enclosure designers also integrate the TD99 vertical variant for equipment covers and access panels that swing downward. In the automotive sector, Singapore suppliers use it for overhead storage bin doors and sun visors that require reliable vertical-axis damping.

Why Choose Phil Industries for TOK Dampers

Phil Industries is the authorised TOK distributor in Singapore, offering expert technical guidance, competitive pricing, and prompt delivery. Our team helps you select the optimal TD99 variant and torque rating for your vertical-mount applications. We stock a comprehensive range of TOK rotary dampers including all TD99 orientation-specific models.

Order the TD99 Vertical Rotary Damper in Singapore

To order the TD99 vertical rotary damper or request a quotation, call Phil Industries at +65 6555 1745 or visit our contact page. You can also explore our full range of TOK rotary damper products to find the best solution for your application needs.
