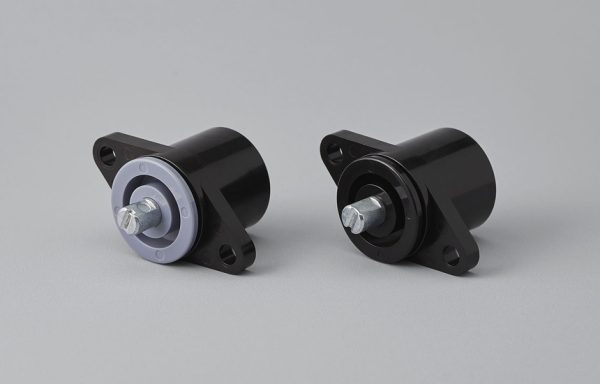

TOK Large opening angle | TD38

  • Long-selling vertical use type rotary dampers
  • Allowable opening angle of 180°
  • Durable for 300,000 cycles
  • Wide temperature range for operation (-15°C to 60°C )
Category:
Request Quote

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction Housing color Cap color

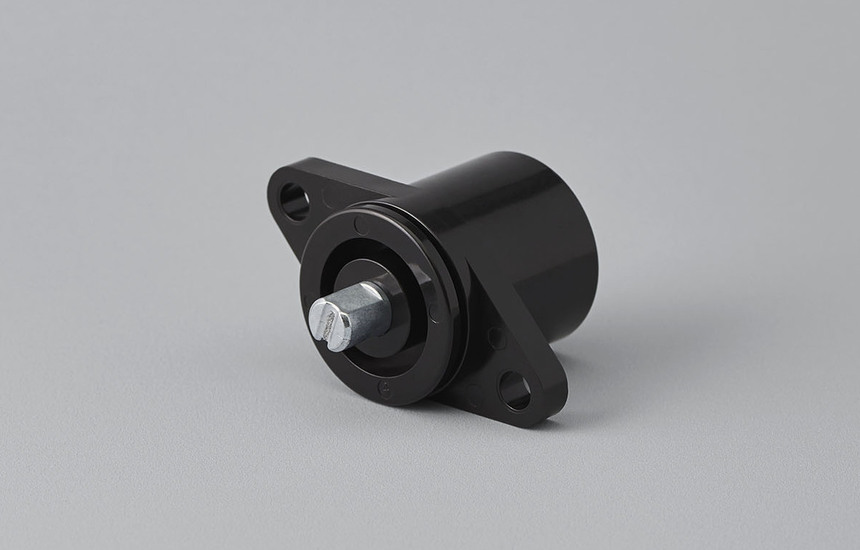

TD38A1-1.5K(R) 0.15 (1.33) CW Brown Black
TD38A1-3K(R) 0.29 (2.57) CW Black Black
TD38A1-6K(R) 0.59 (5.22) CW Purple Black
Product name Torque [N·m] (lbf·in) Damping direction Housing color Cap color

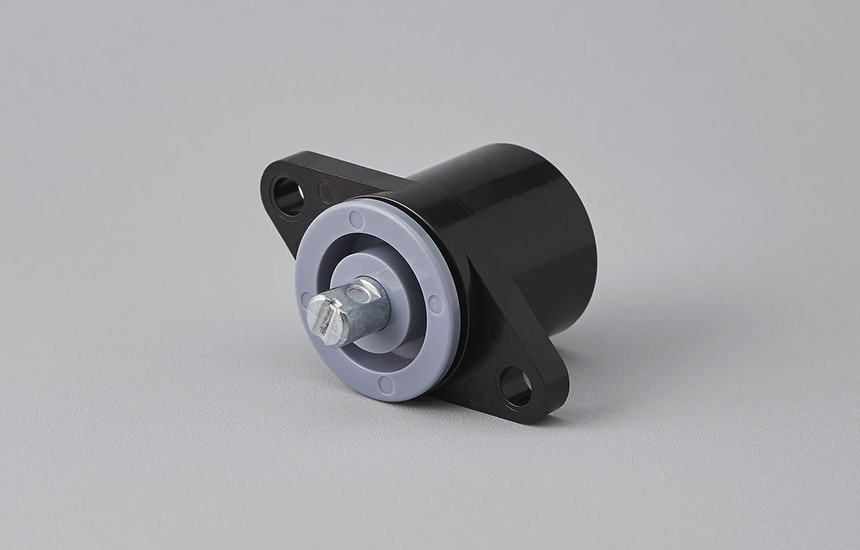

TD38B1-1.5K(L) 0.15 (1.33) CCW Brown Purple
TD38B1-3K(L) 0.29 (2.57) CCW Black Purple
TD38B1-6K(L) 0.59 (5.22) CCW Purple Purple

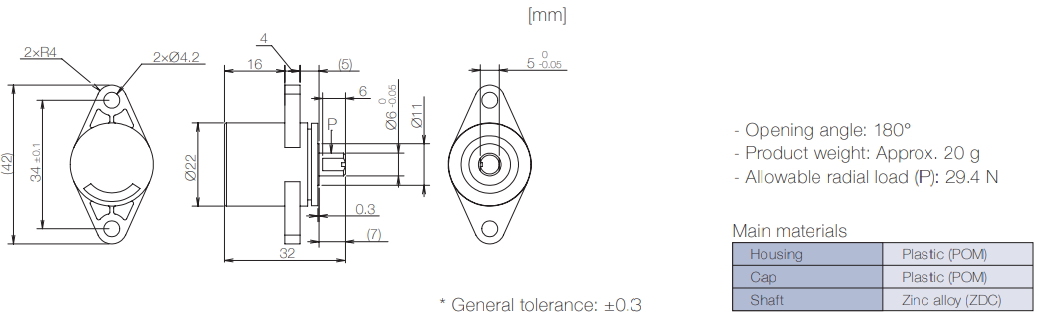

Product information

Large opening angle | TD38

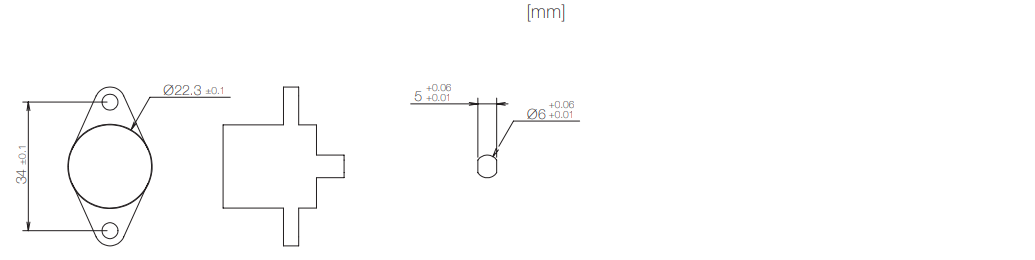

Dimensions related to mounting

Large opening angle | TD38

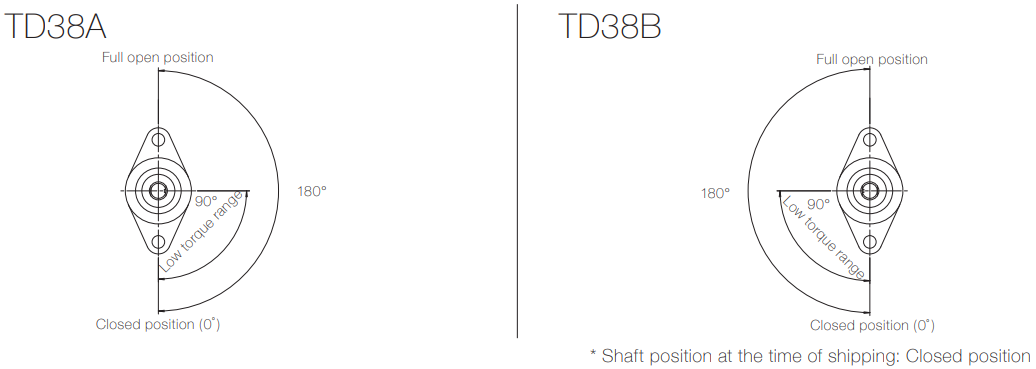

Opening angle

Large opening angle | TD38

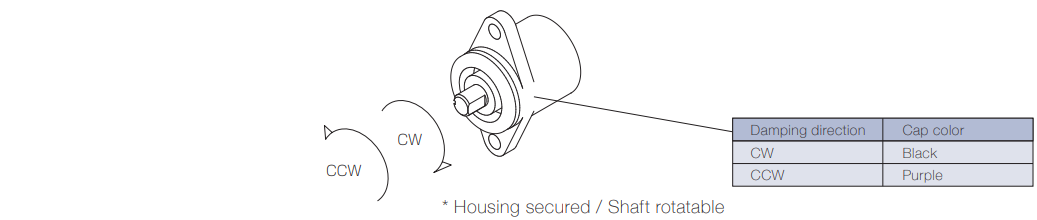

Damping directions

Large opening angle | TD38

Product specifications

*Find the catalog below.

CATALOG
