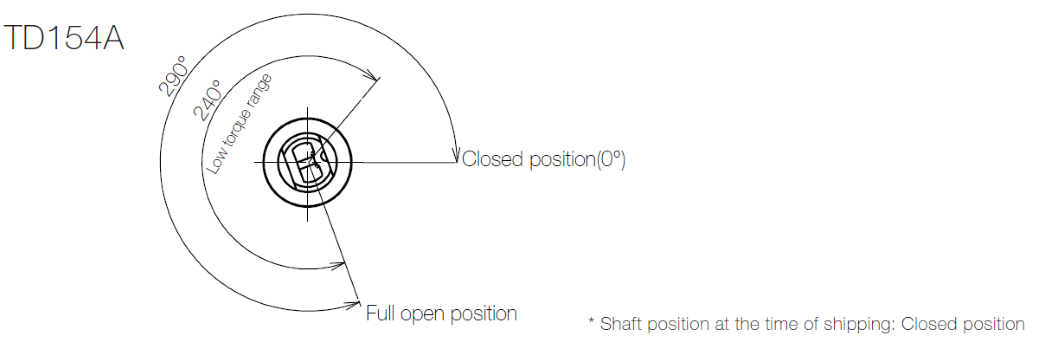

Larger opening angle (290 degrees) | TD154

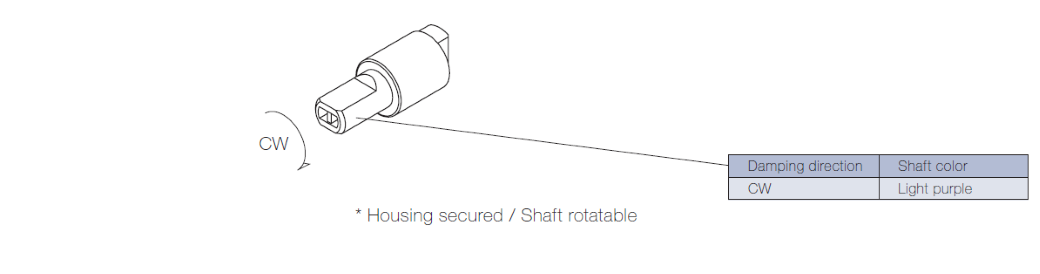

Rotation directions of the shaft to which torque is applied

• Durability

*Find the catalog below.

Larger Opening Angle 290 Degrees TD154 in Singapore

The larger opening angle 290 degrees TD154 is a unique rotary damper from TOK that provides controlled damping over an extended rotational range of up to 290 degrees. Available in Singapore from Phil Industries, the authorised TOK Inc. distributor, this damper is designed for applications that require smooth, controlled motion across a wider arc than standard models offer. Engineers in Singapore choose the larger opening angle 290 degrees TD154 when their designs demand full rotation coverage with consistent damping throughout the entire sweep.

Key Features of the Larger Opening Angle 290 Degrees TD154

The TD154 stands apart from conventional rotary dampers by offering a 290-degree operational range, compared to the typical 90 to 180 degrees found in most standard designs. This extended angle enables designers to create mechanisms that open almost fully while still benefiting from damped, controlled movement. The internal fluid-based damping system provides smooth torque resistance at every point in the rotation. Durable construction materials ensure long-term reliability, even with frequent use in demanding environments. Temperature stability allows the TD154 to perform consistently whether installed in climate-controlled indoor settings or in warmer tropical conditions found across Singapore.

Singapore Applications for the TD154 Damper

Manufacturers in Singapore use the larger opening angle 290 degrees TD154 in products that require wide-arc motion control. Furniture designers incorporate it into fold-flat table mechanisms and wide-opening cabinet doors. Medical equipment manufacturers integrate the TD154 for instrument panel covers and examination table accessories that need to swing open broadly. In the electronics sector, this damper is used in server rack doors, large equipment enclosures, and display mounting systems. Automotive accessory makers in Singapore also use the TD154 for wide-opening glove boxes and storage compartments.

Why Choose Phil Industries Singapore

Phil Industries is the authorised TOK distributor in Singapore, offering technical consultation, fast local delivery, and competitive pricing. We carry a wide selection of TOK rotary dampers including specialised models like the TD154 for customers with unique angle requirements.

Order the TD154 290-Degree Rotary Damper in Singapore

To order the larger opening angle 290 degrees TD154 or request a quotation, contact Phil Industries at +65 6555 1745 or visit our contact page. Browse our complete TOK rotary damper catalogue to compare models and specifications for your project.
