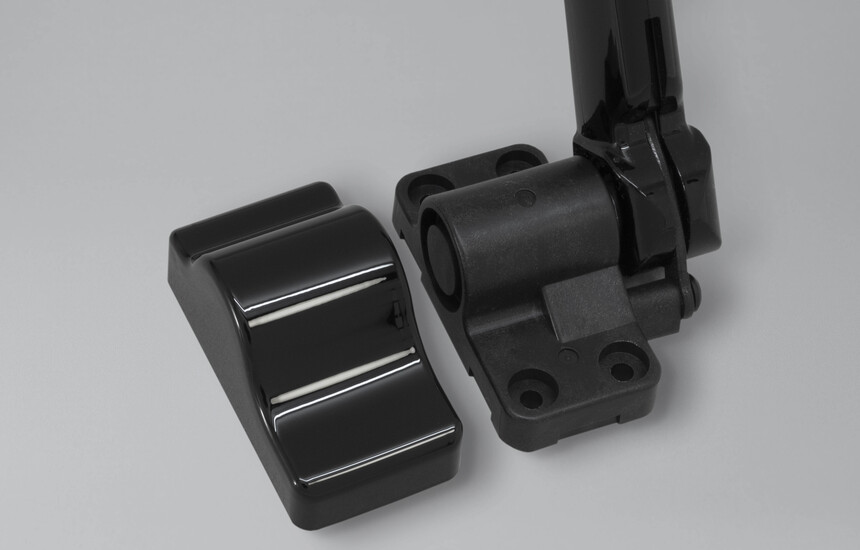

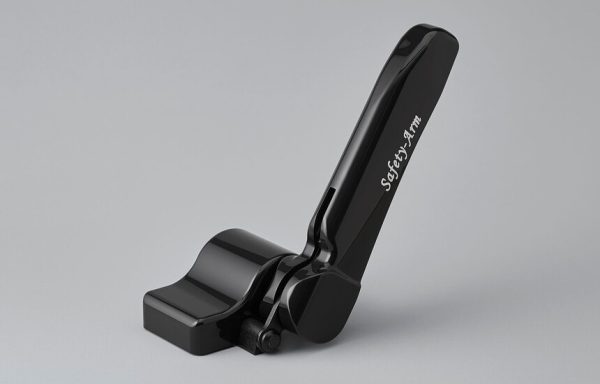

Can be additionally attached to the piano | TD90
- This product has been developed for additional mounting on piano key lids without damping function
- Removing the load returns the arm to its default position automatically
- 4 color variations are available
- Description
Description
Product lineup

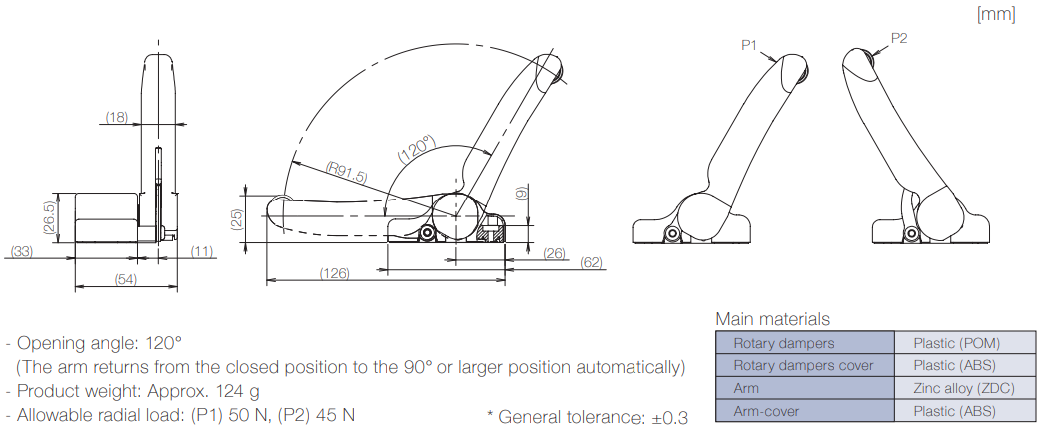

Product information

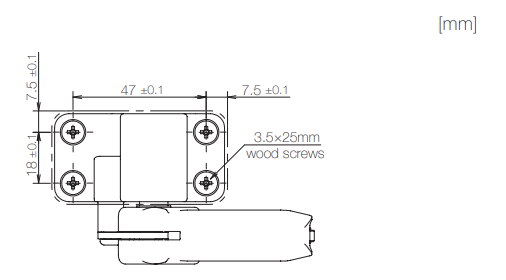

Dimensions related to mounting

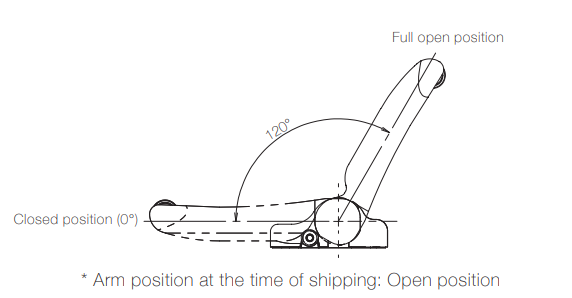

Opening angle
Mounting method with screws (Sold separately)
Attention
‐ Install damper (TD90) in the position where the key-block operates correctly.
‐ Be careful not to damage the damper (TD90) or the piano when installing the damper (TD90) on the piano.
‐ Secure the damper in the position where the arm-cover does not hit a fall board.
‐ By separating the installation position from the rotation axis of a fall board, the closing time of fall board becomes longer.
Product specifications
*Find the catalog below.
