Mountz IPT Preset Click Wrenches
The IPT is a preset click wrench that ensures a reliable tightening process for manufacturing applications. A preset click wrench securely ensures that the correct torque value is applied consistently to each fastener without the risk of operator adjustment.
Strong, robust, and reliable, our click wrenches deliver the power you need to tighten any bolt. More economical than other styles of torque wrenches, click wrenches can also handle far higher torque values.
The metal handle click wrenches are designed with durable all-steel construction and a corrosion-resistant finish and are suitable for various industries like aerospace, automotive, machinery, chemical, nuclear, energy, and other industrial environments.
The Mountz IPT click wrench features a lightly knurled, non-slip grip. Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO6789:2003, IPT click models offer a torque range from 3.7– 885.6 lbf.ft. Suitable for medium and high torque applications.
Fastening Productivity and Process Control:
- A preset click wrench ensures that the correct torque value is used consistently for each fastener by reducing the risk of the operator tampering with settings. This tool has no external adjustment scale and is set using a torque analyzer.
- Tamper-proof internal adjustment. The torque setting is adjusted using the IPT torque adjusting key (sold separately).
- Features a bi-directional ratchet head. Easily switch between CW and CCW operation for tightening or loosening bolts.
- A click sound can be heard and felt when torque is reached.
- Description
- Reviews (0)
Description
The Mountz IPT is a preset click wrench for production lines in Singapore where every fastener takes the same value. A technician sets and locks the torque, and the operator simply pulls until the click. Eight models cover 5 N·m (IPT 18) to 1,200 N·m (IPT 885).
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | American | S.I. | Metric | Drive Size | |
|---|---|---|---|---|---|---|
 |

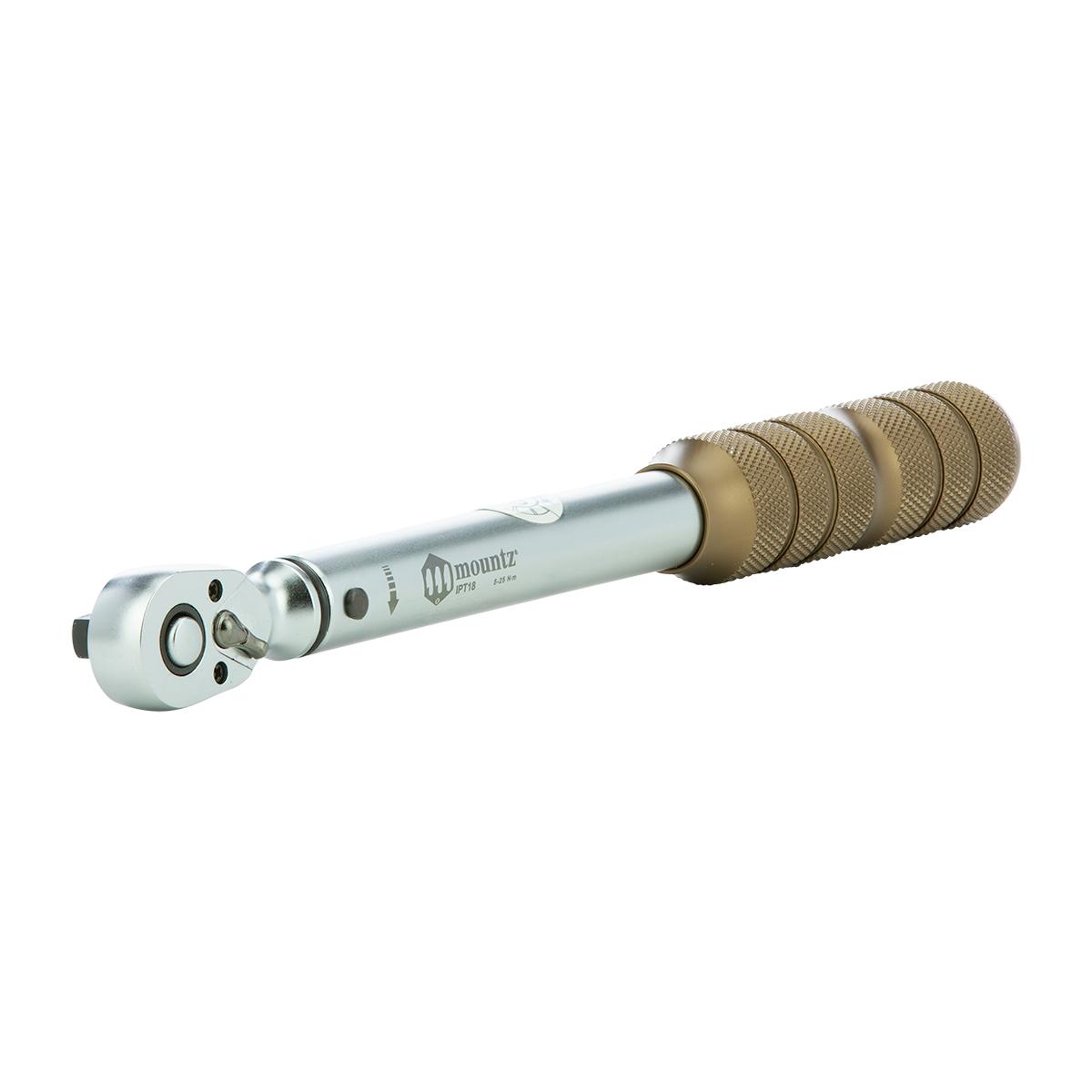

IPT 18 | 280041 | 3.7 – 18.4 lbf.ft | 5 – 25 N.m | 0.5 – 2.5 kgf.m | 1/4″ Sq. Dr. |
 |

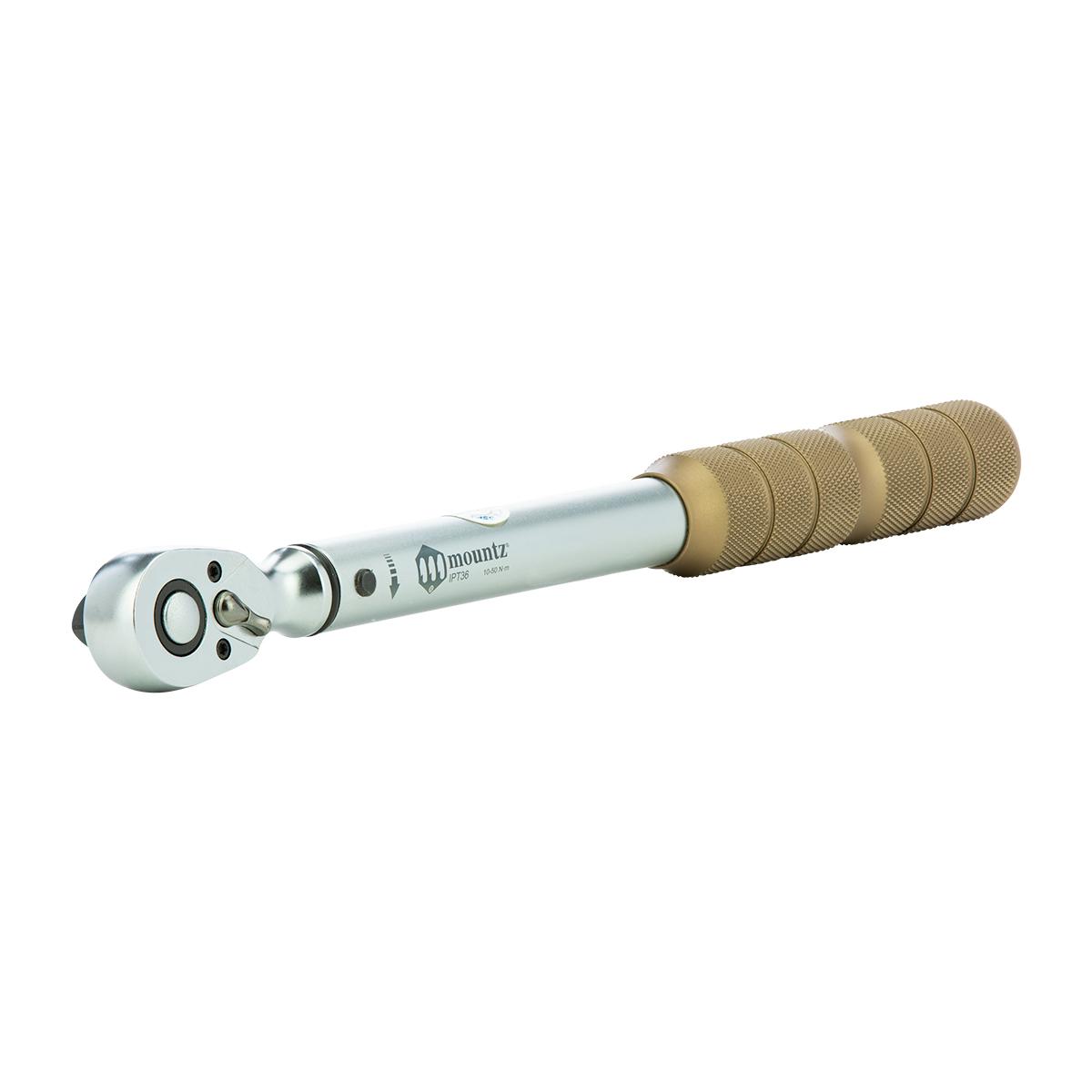

IPT 36 | 280042 | 7.4 – 36.9 lbf.ft | 10 – 50 N.m | 1 – 5.1 kgf.m | 3/8″ Sq. Dr. |
 |

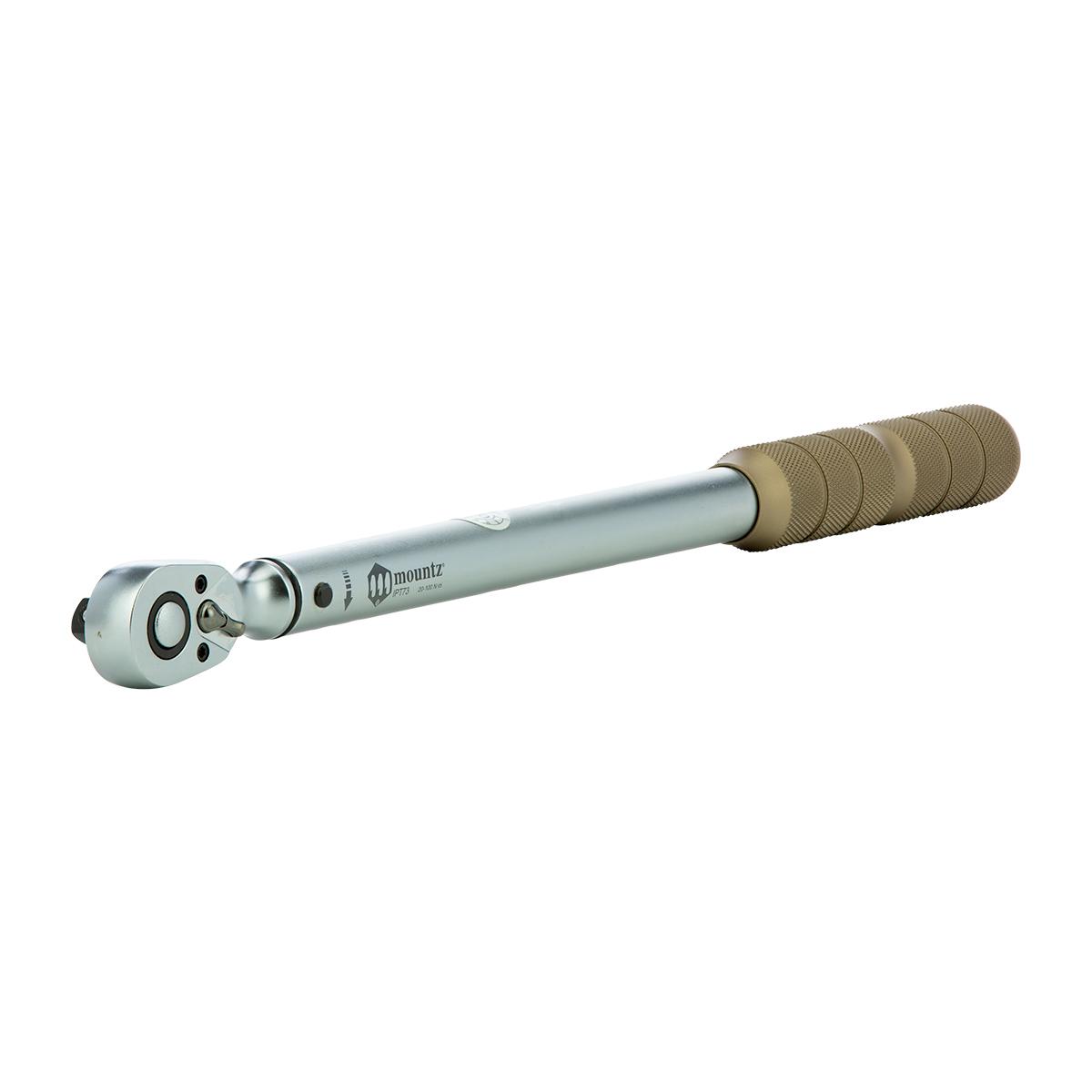

IPT 73 | 280043 | 14.8 – 73.8 lbf.ft | 20 – 100 N.m | 2 – 10.2 kgf.m | 3/8″ Sq. Dr. |
 |

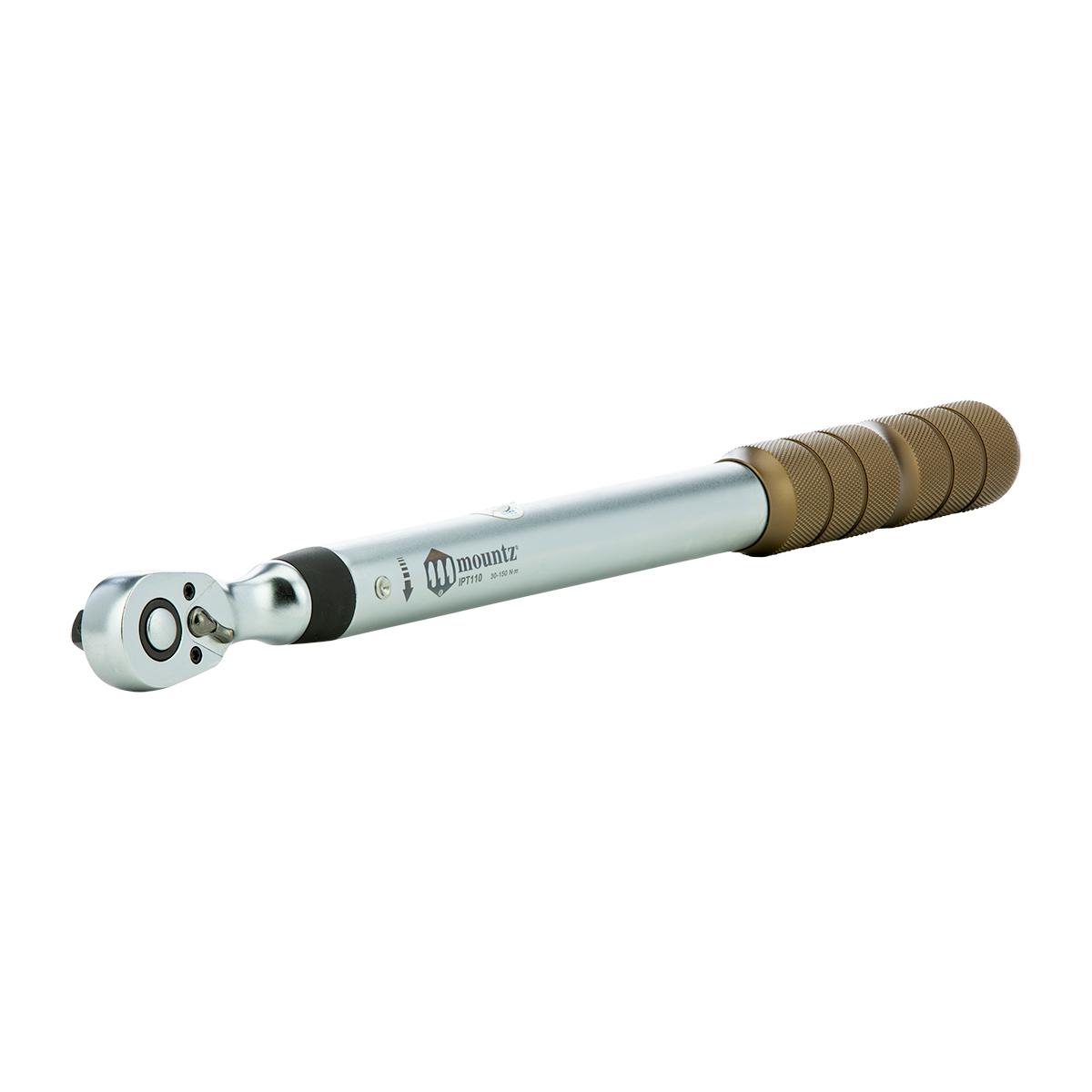

IPT 110 | 280044 | 22.1 – 110.7 lbf.ft | 30 – 150 N.m | 3.1 – 15.3 kgf.m | 3/8″ Sq. Dr. |
 |
IPT 150 | 280045 | 29.5 – 147.6 lbf.ft | 40 – 200 N.m | 4.1 – 20.4 kgf.m | 1/2″ Sq. Dr. |
 |

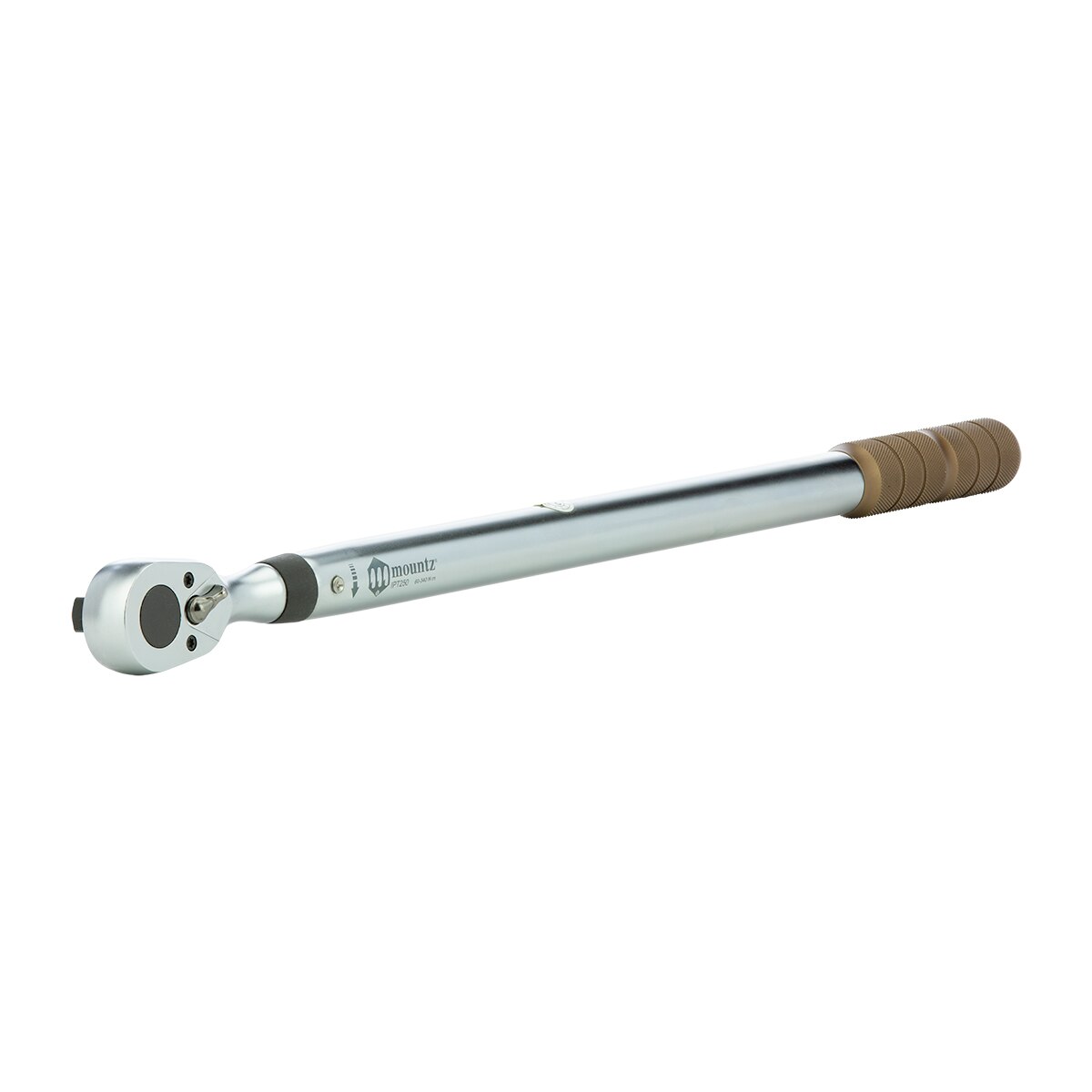

IPT 250 | 280046 | 44.3 – 250.9 lbf.ft | 60 – 340 N.m | 6.1 – 34.7 kgf.m | 1/2″ Sq. Dr. |
 |

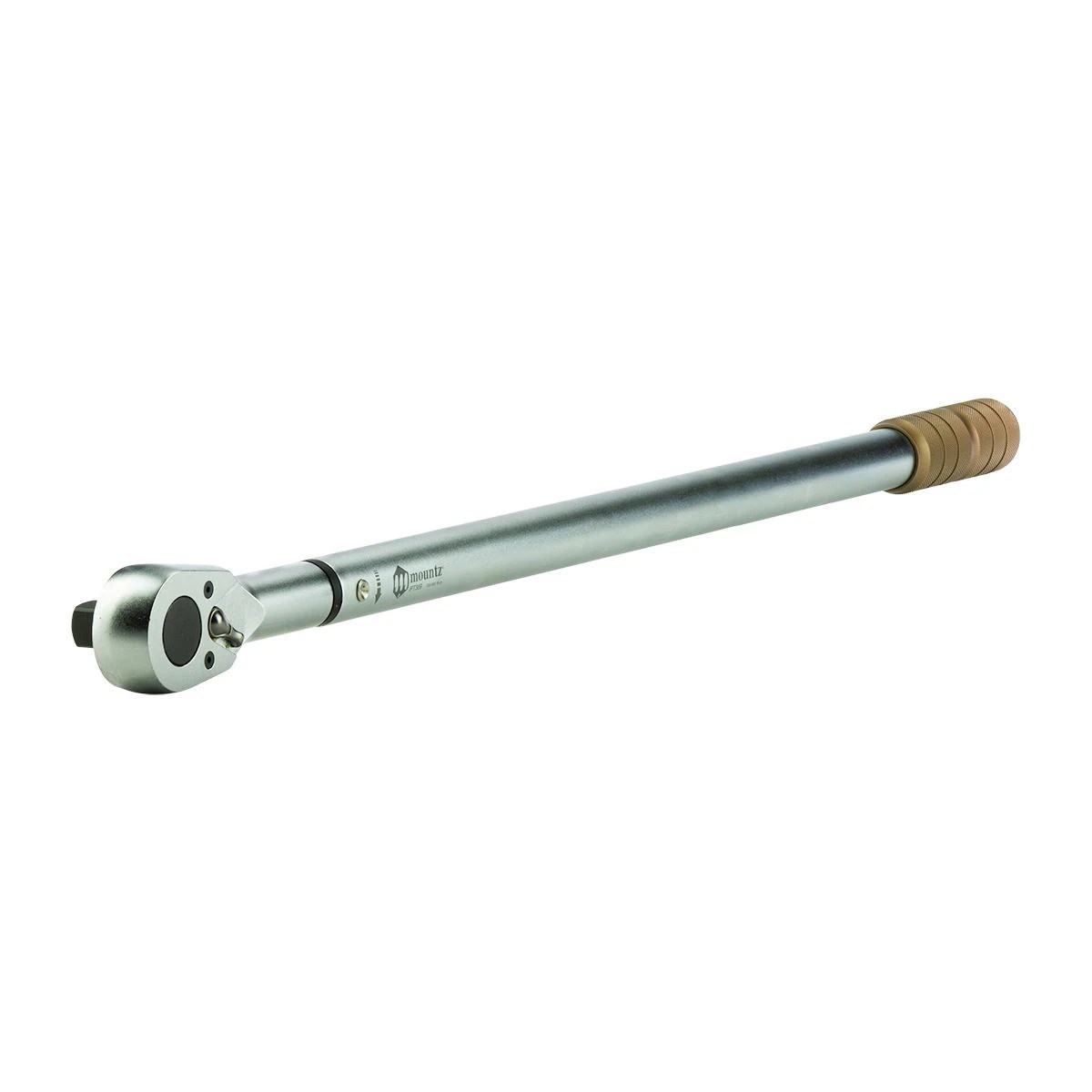

IPT 369 | 280047 | 73.8 – 369 lbf.ft | 100 – 500 N.m | 10.2 – 51 kgf.m | 3/4″ Sq. Dr. |
 |

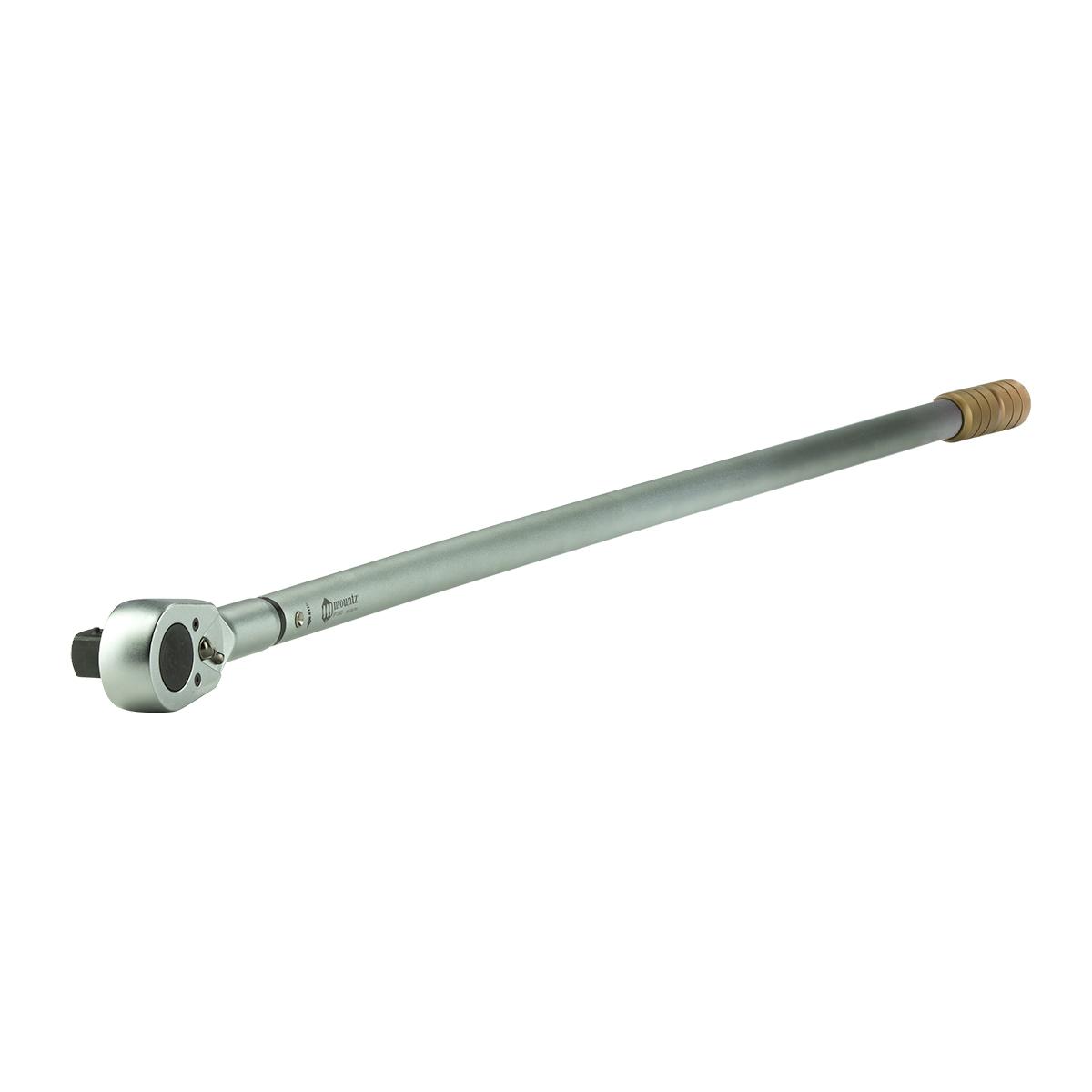

IPT 885 | 280048 | 171.1 – 885.6 lbf.ft | 240 – 1200 N.m | 24.5 – 122.4 kgf.m | 1″ Sq. Dr. |
Fastening Productivity and Process Control
-
-
- A preset click wrench ensures that the correct torque value is used consistently for each fastener by reducing the risk of the operator tampering with settings. This tool has no external adjustment scale and is set using a torque analyzer.
- Tamper-proof internal adjustment. The torque setting is adjusted using the IPT torque adjusting key (sold separately).
- Features a bi-directional ratchet head. Easily switch between CW and CCW operation for tightening or loosening bolts.
- A click sound can be heard and felt when torque is reached.
-
Durability and Reliability
-
-
- The cost-effective click wrench is durable and robust for various industrial fastening applications. It is built with durable all-steel construction and a corrosion-resistant finish.
- The torque wrench features a ratcheting head style and is built with high-quality materials. The tool has a low repair frequency and a low cost to repair. The models have 48 tooth ratchet head.
- The wrench tightens in the CW and CCW.
-
Ergonomics
-
-
- Features a lightly knurled non-slip grip that reduces discomfort, fatigue, and risk of injury.
-
Mountz Quality Standards
-
- Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO6789:2003
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 4% of indicated setting).
Calibration & Service:
Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
Where it fits in Singapore
The IPT is the production-line staple among Singapore manufacturers: an internally preset click wrench, so operators cannot tamper with the validated torque setting — one value, all shift, every station. Where over-pull after the click is a concern, step up to the FGC cam-over wrenches, which make over-torque mechanically impossible; the full family sits under Torque Wrenches. Background: Torque Control Basics — An Engineer’s Guide. Phil Industries is an authorised Mountz distributor in Singapore — call +65 6555 1745 or WhatsApp +65 9853 9030.
Preset click wrench at a glance
| Type | Preset (no visible scale) click torque wrench |
| Range | 5 – 1,200 N·m across 8 models |
| Models | IPT 18, IPT 36, IPT 73, IPT 110, IPT 150, IPT 250, IPT 369, IPT 885 |
| Drive sizes | 1/4″, 3/8″, 1/2″, 3/4″ and 1″ square drive |
| Adjustment | Internal, set with an adjusting key and a torque analyzer |
| Standard | Built and certified to ISO 6789 |
Where the preset click wrench fits in Singapore
Preset click wrenches are the standard answer to operator error on repeat assembly. Automotive component plants, EMS lines fixing heat sinks and brackets, and aerospace cells running one torque per station all use them. As a result, nobody on the line can change the value, which is exactly what auditors want to see.
Pair it with
- Wrench adjusting keys for the technician who sets each wrench.
- Mountz torque analyzers to preset and verify the value.
- EPT adjustable click wrenches for maintenance teams who need to change values.
Frequently asked questions about the preset click wrench
What is a preset click wrench
It is a click wrench with no external scale. The torque is set internally with a key and checked on an analyzer, so operators cannot change it during production.
Preset or adjustable: which should I buy
Choose preset when one station always uses the same value, because it removes operator error. On the other hand, choose adjustable when one person tightens many different joints.
Can the IPT be reset to a new torque
Yes. A technician uses the adjusting key to change the internal setting and then confirms it on a torque analyzer before the wrench returns to the line.
What is the highest torque in the IPT range
The IPT 885 covers 240 to 1,200 N·m on a 1-inch drive, while the IPT 18 at the other end covers 5 to 25 N·m on a 1/4-inch drive.
Need help choosing a model? Message our Singapore engineers on WhatsApp at +65 9853 9030, call +65 6555 1745 or email sales@phil-industries.com.sg for a quotation, a stock check or an on-site demonstration.
Related Mountz pages in Singapore
- Browse all Click Wrenches and the wider Torque Wrenches range.
- See the full Mountz torque tools range in Singapore.
- Read our engineers’ guides to torque control basics and choosing between a torque wrench, screwdriver or multiplier.
- Verify tool output in-house with the Mountz EZ-TorQ III torque analyzer.
Phil Industries, an authorised Mountz distributor in Singapore, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
