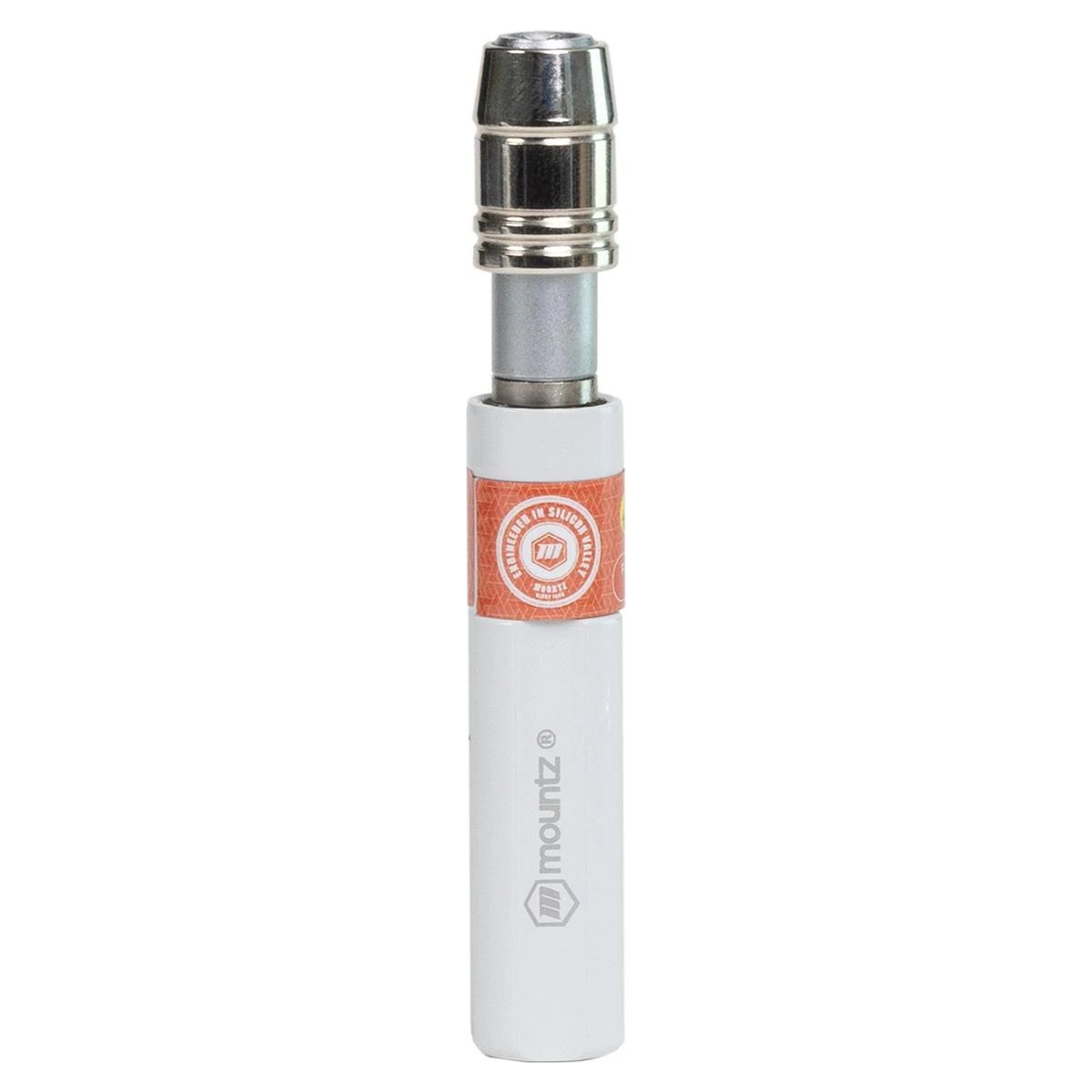

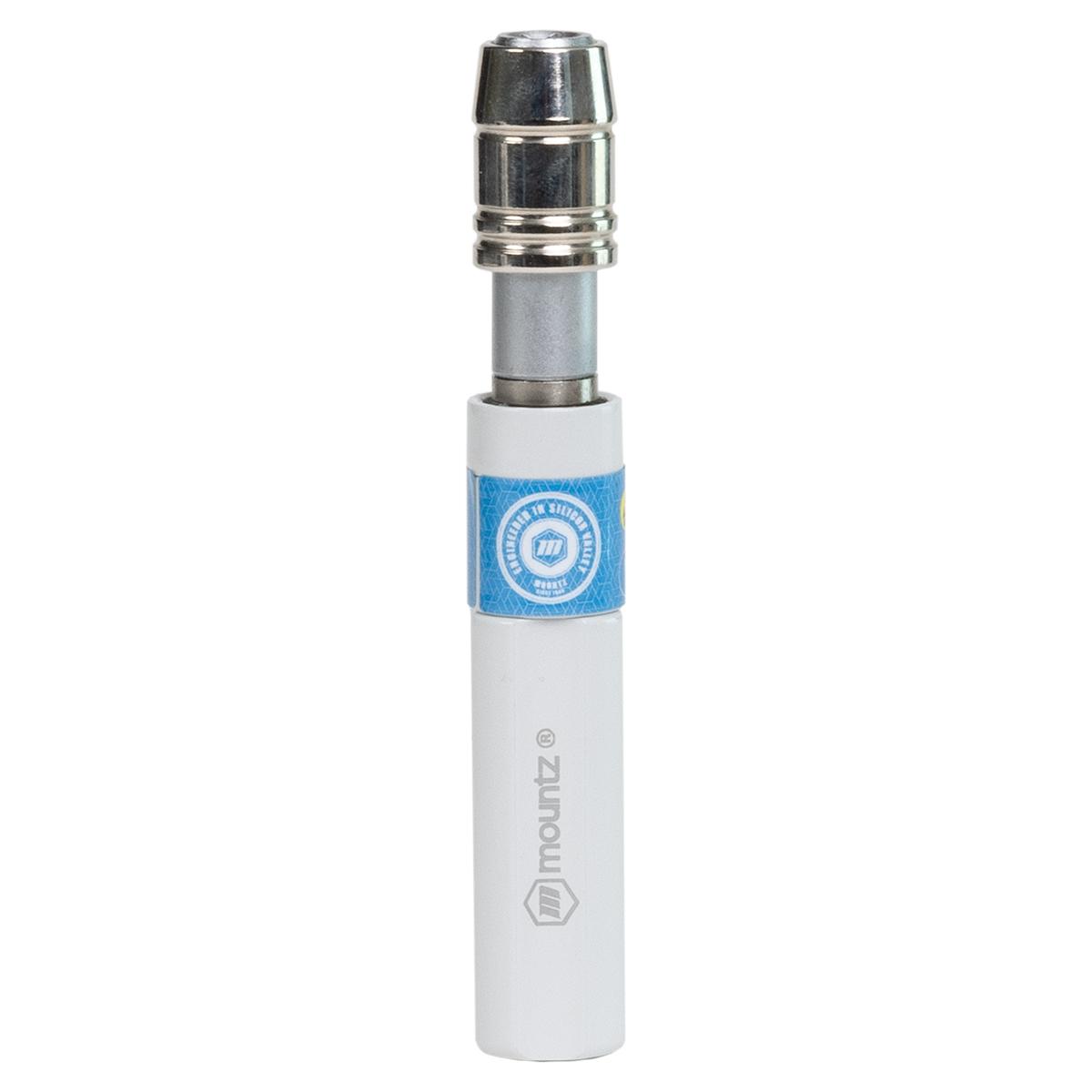

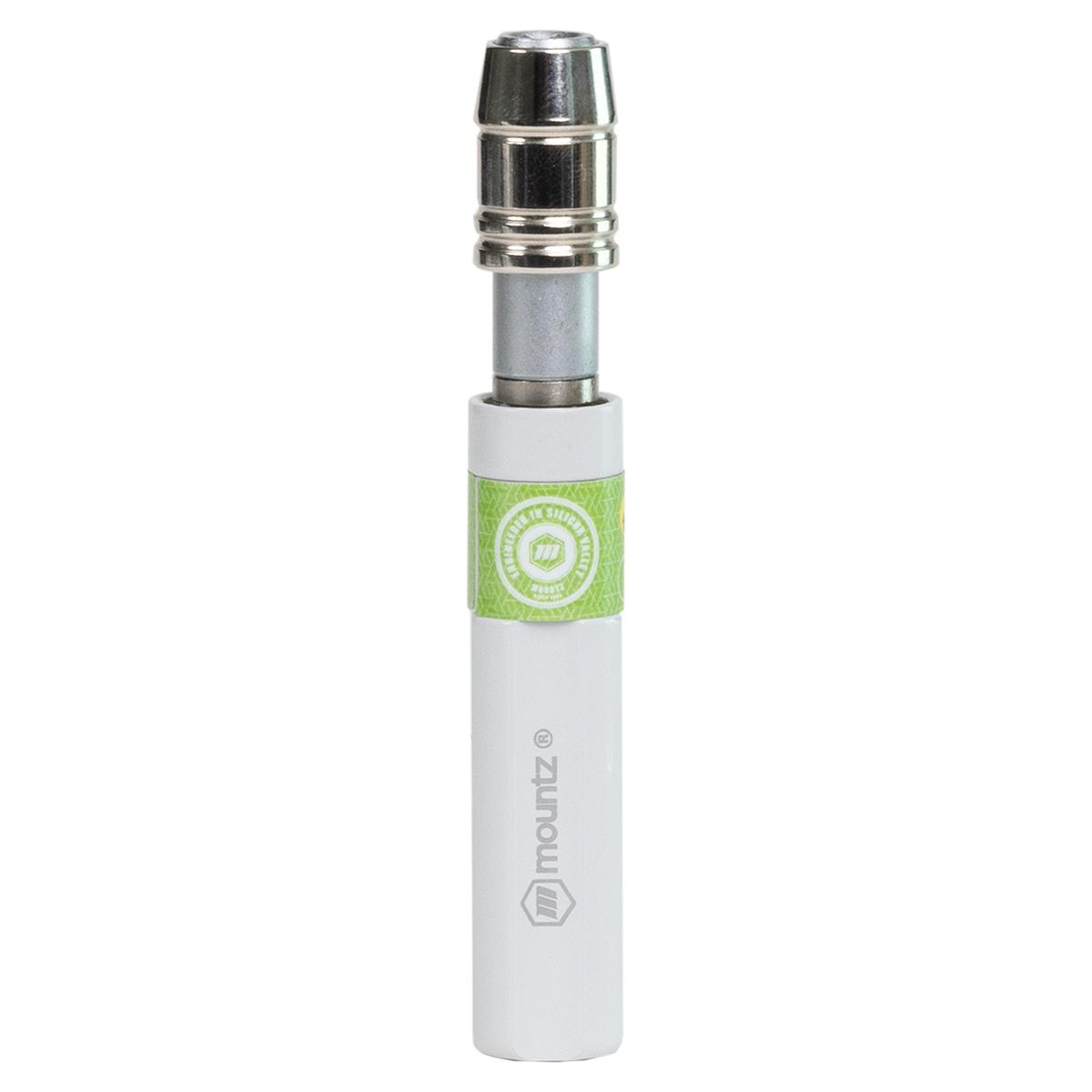

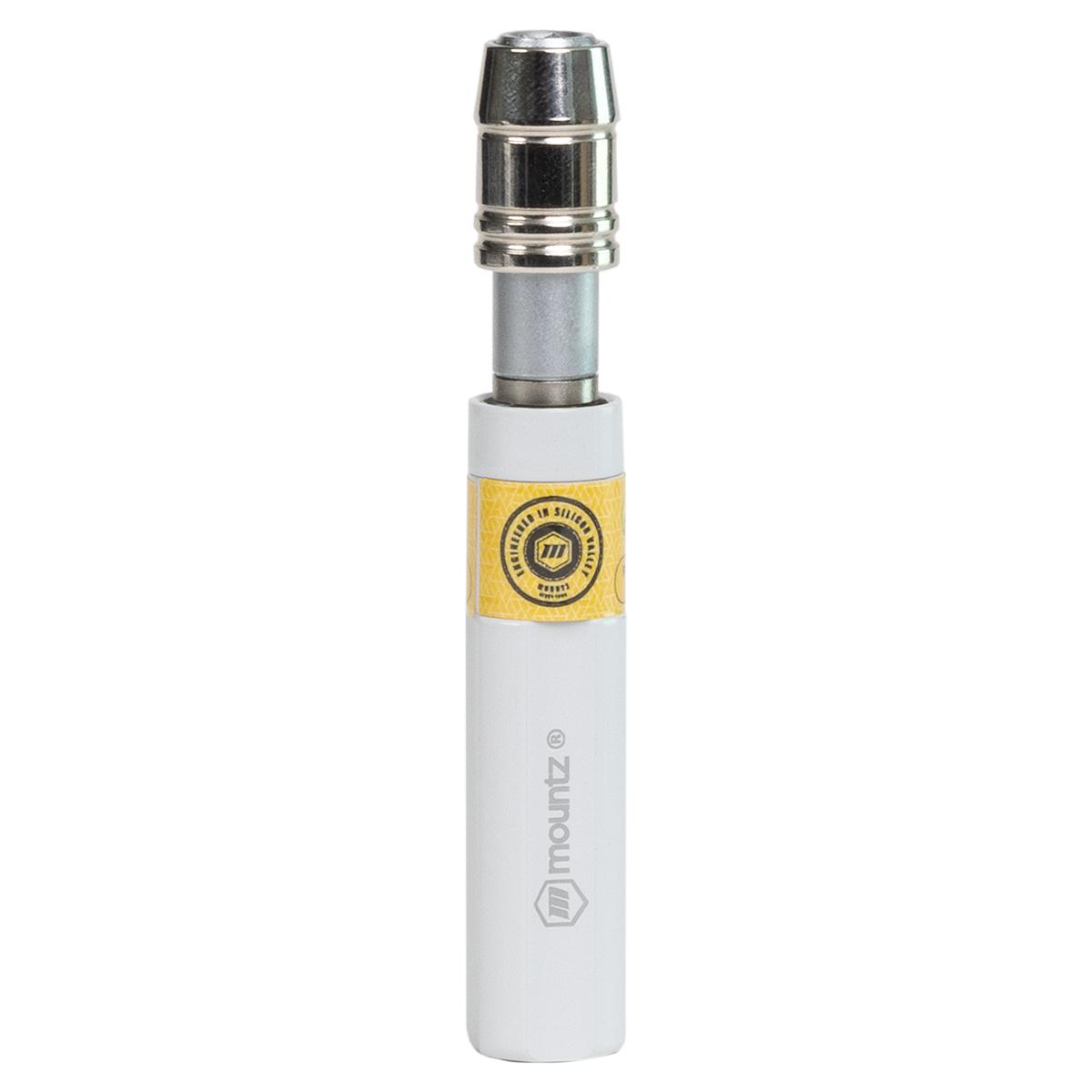

Mountz FG Mini ESD Preset Torque Screwdrivers Mountz FG Mini ESD Preset Torque Screwdrivers
Mountz FG Mini Cleanroom Preset Torque Screwdrivers Mountz FG Mini Cleanroom Preset Torque Screwdrivers

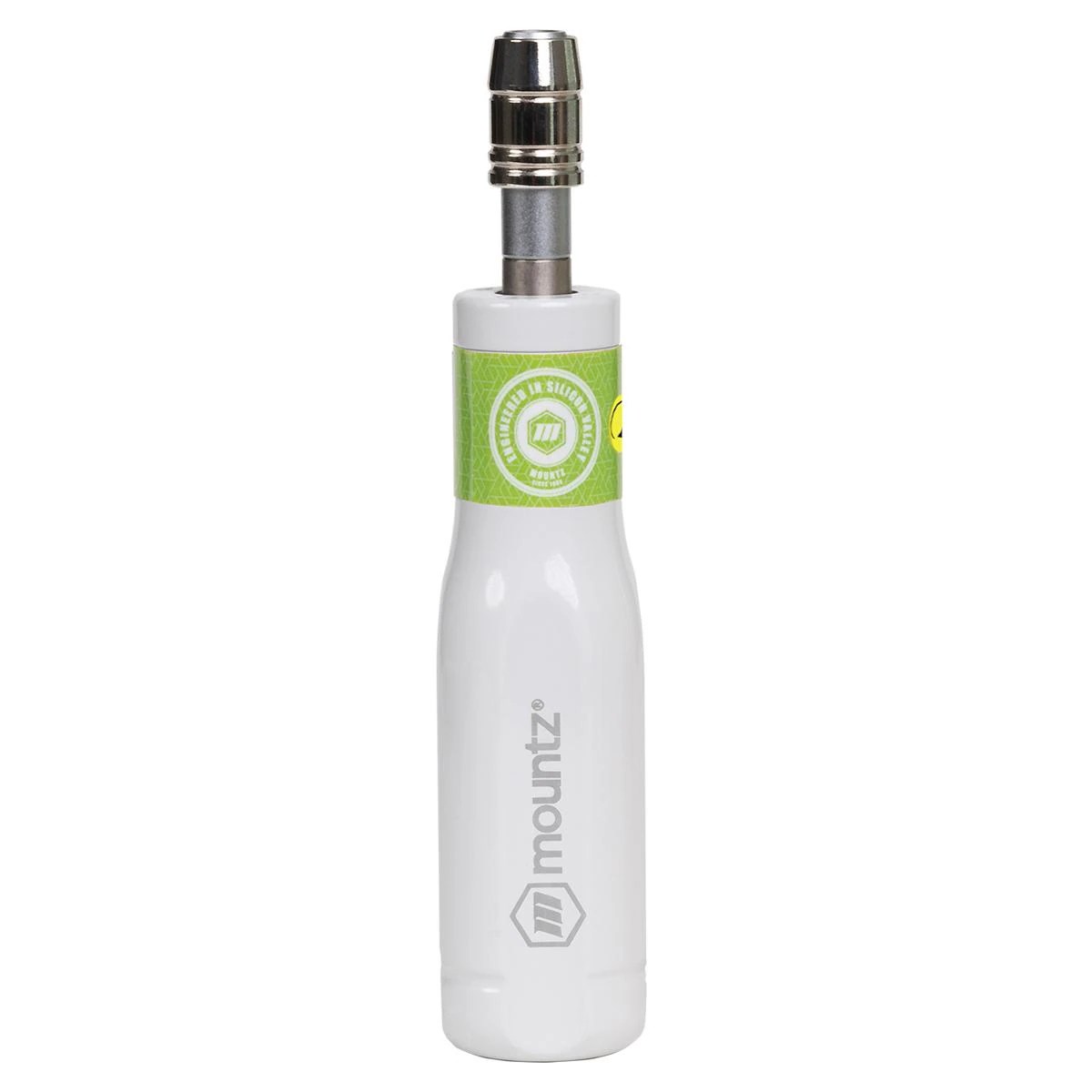

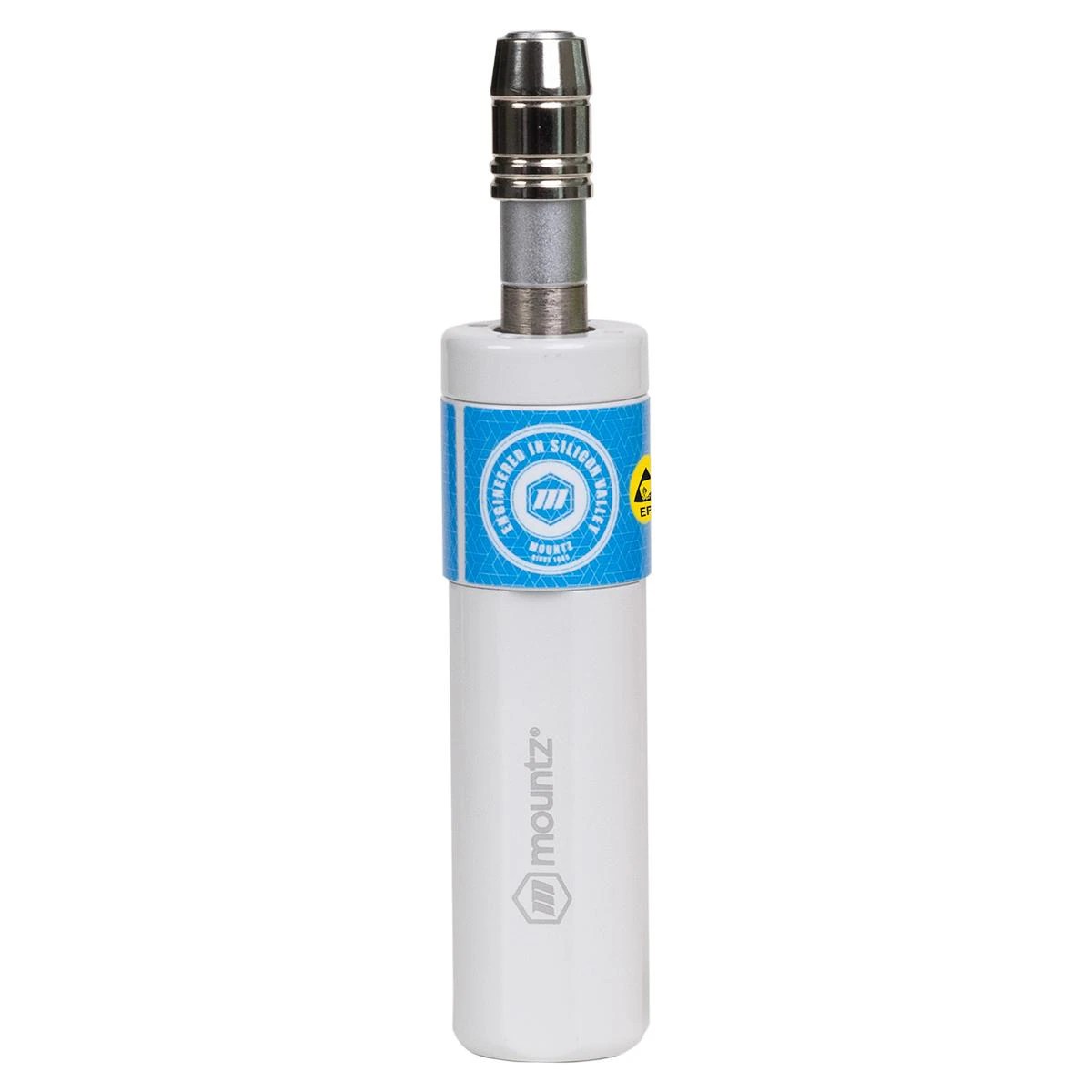

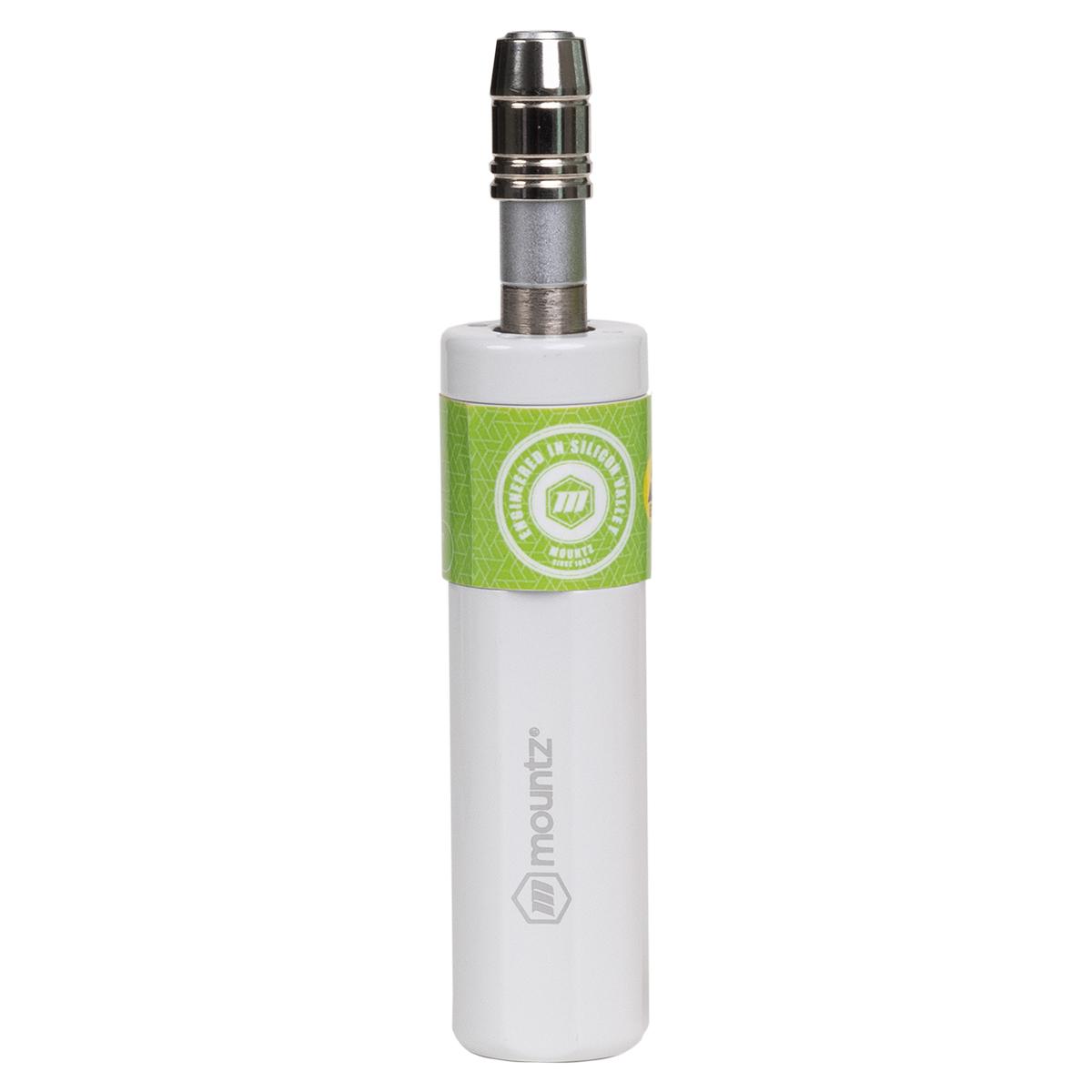

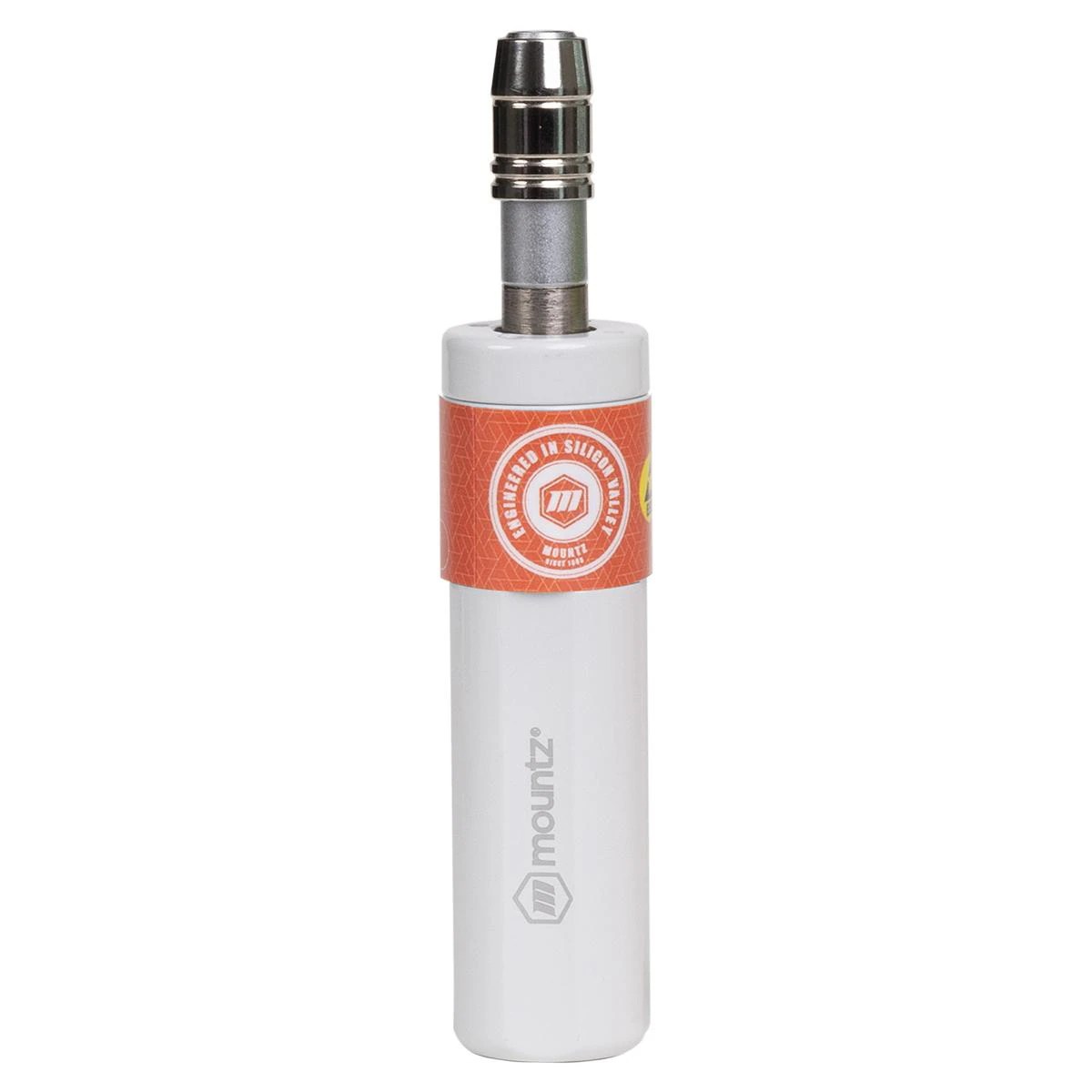

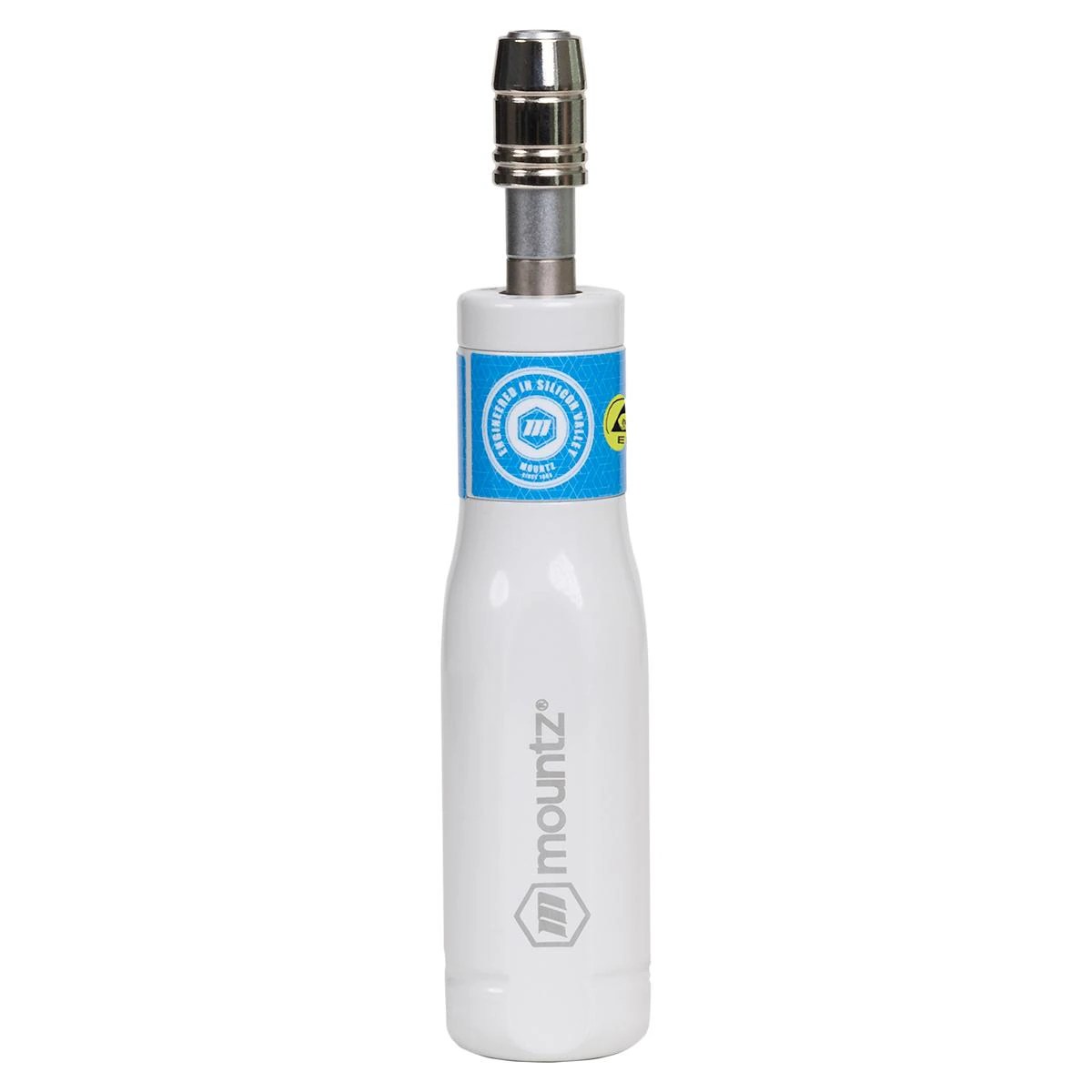

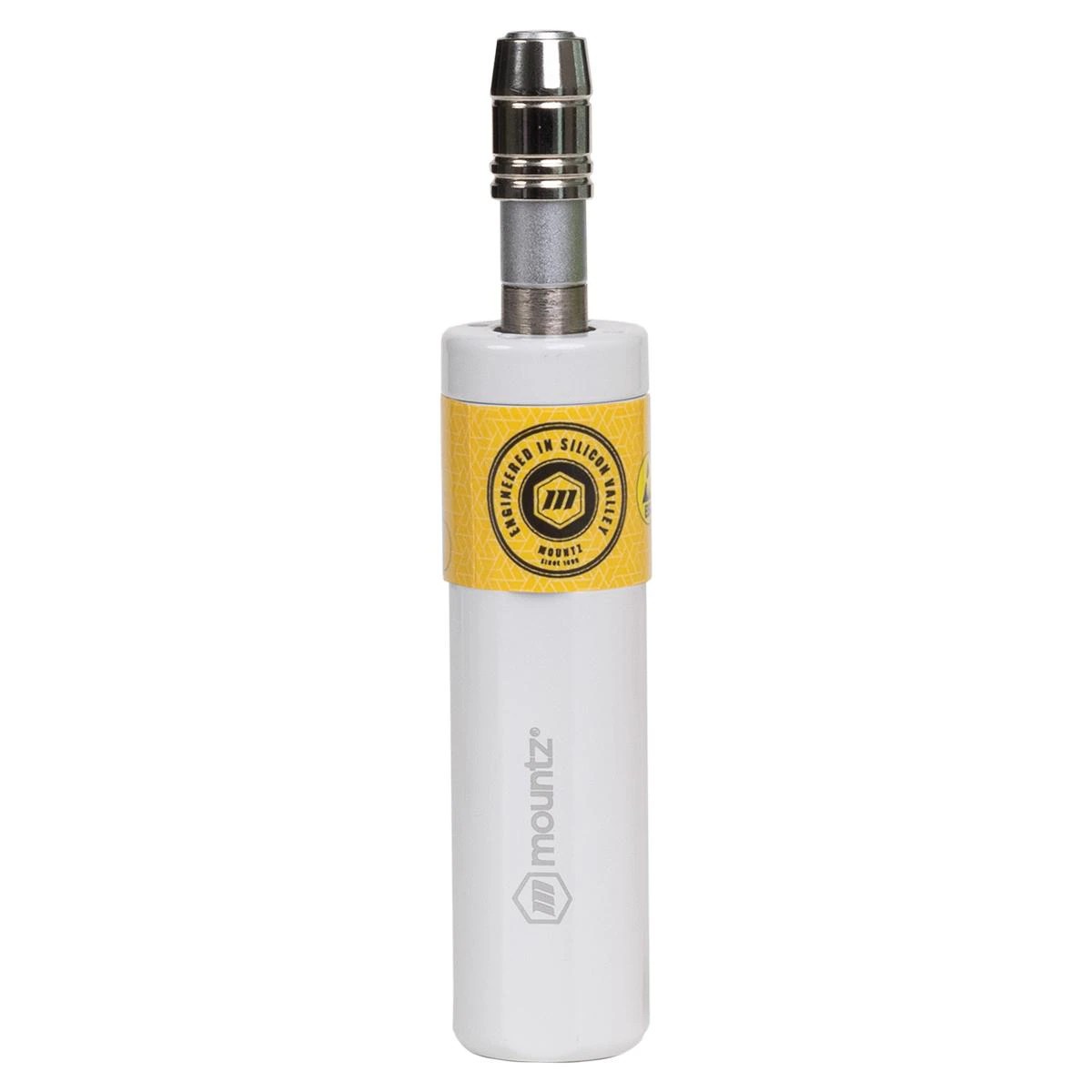

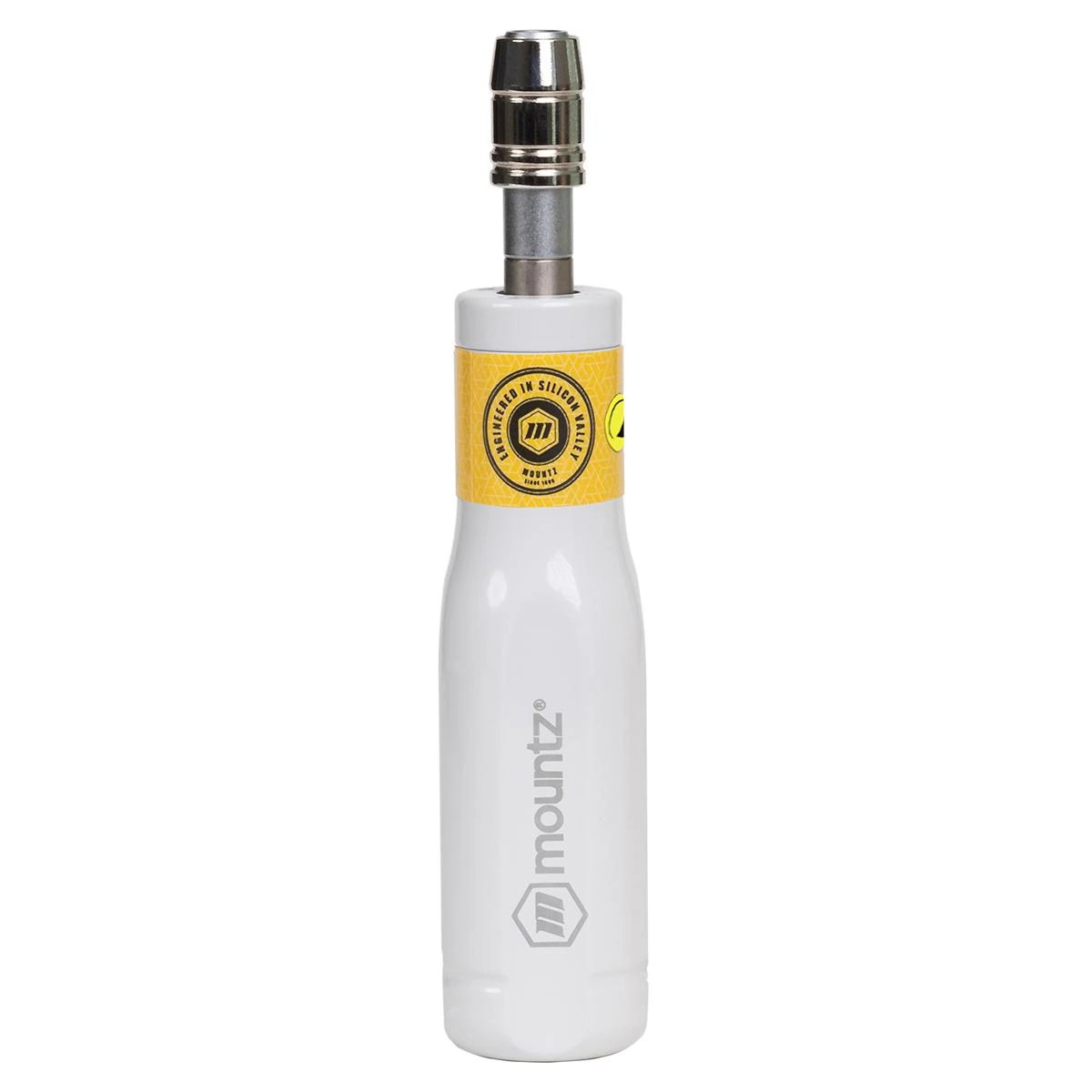

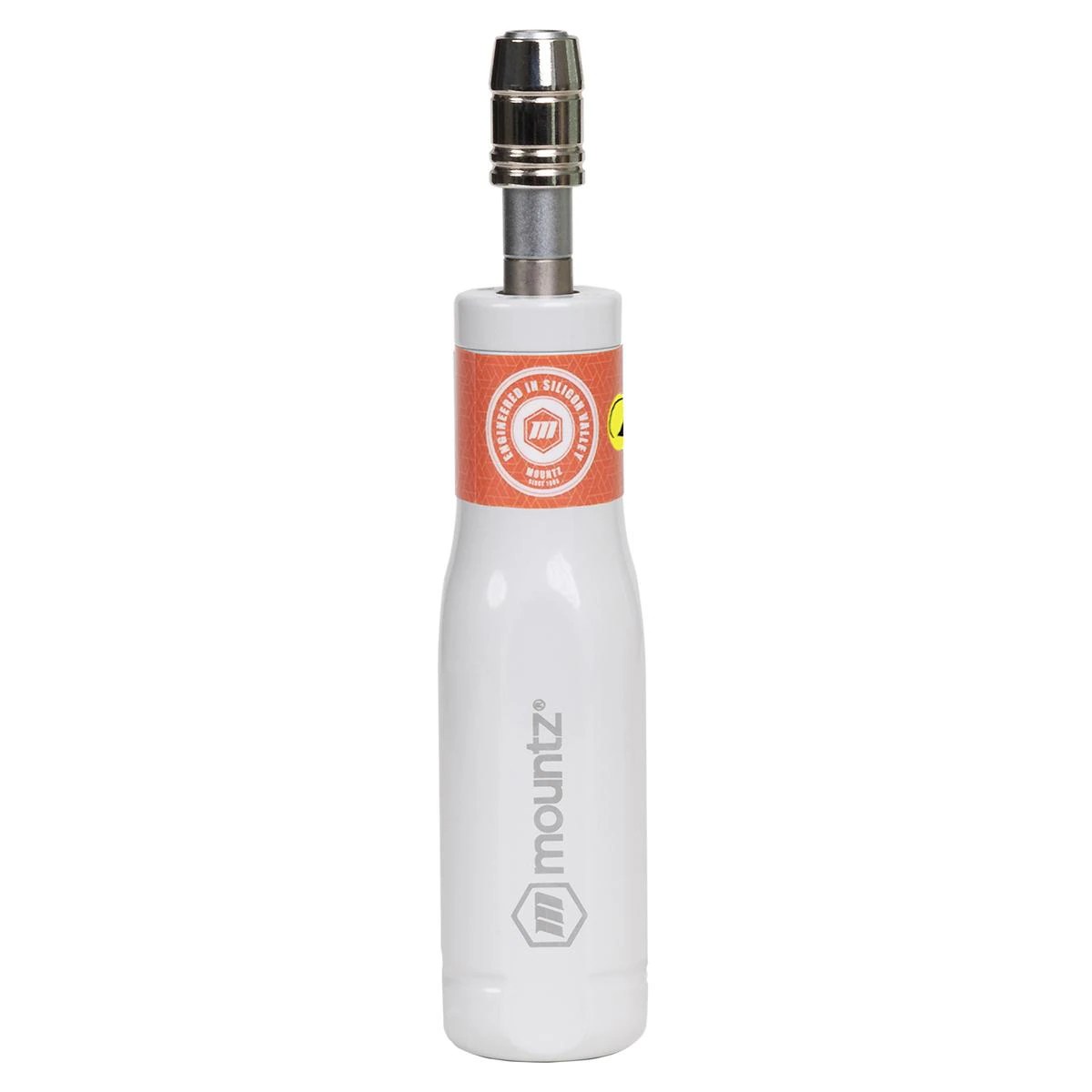

Mountz FG ESD Preset Torque Screwdrivers

Mountz FG ESD Preset Torque Screwdrivers are static-dissipative preset drivers engineered and assembled in Silicon Valley for ESD-protected assembly lines. Torque range suitable for micro, low, and medium torque applications.

Designed for an ESD-safe environment with sensitive electronic components and assemblies, the Mountz ESD screwdriver adheres strictly to IEC standards, safeguarding against electrostatic energy and ensuring the utmost protection for delicate electronics. The tool features dynamic wear-resistant internal seals as an added protective measure to prevent grease leakage and contamination from infiltrating sensitive areas or components.

Preset torque screwdrivers improve productivity by consistently applying the correct torque value to each fastener. They are ideal for fastening applications where operators repeatedly assemble parts at the same torque setting. A preset screwdriver doesn’t have an external torque adjustment scale. These tools have an internal torque adjustment mechanism for setting the torque value and preset using a hex key and a torque analyzer.

The locking mechanism prevents accidental torque setting changes. Designed for industries where production errors aren’t acceptable, poka-yoke torque screwdrivers prevent over-torque events.

Quality-minded engineers can give Mountz FG tools to any operator and have the confidence that they will deliver the correct torque, time after time.

ESD Environment:

  • Equipped with anti-static properties, the ESD screwdrivers effectively minimize static electricity generation and particle attraction.
  • ESD safe tool prevents electrostatic discharge — high-grade dissipative coating maintains a surface resistance within the range of 10⁵ to 10⁸ Ohms, ensuring compliance with ESD standards (Methods: IEC 61340-5-1, ANSI/ESD STM11.13)
  • Features dynamic wear-resistant internal seals as an added protective measure to prevent grease leakage and contamination from infiltrating sensitive areas or components.
  • Low-impact poka-yoke torque screwdriver prevents over-torque and vibration on sensitive components and delivers repeatability, traceability, and precision for all tightening applications.
  • Preset screwdriver reduces the risk of operator tampering and ensures that the operator consistently applies the correct torque value to each fastener.
Categories: , , ,
Request Quote

Description

Mountz FG ESD preset torque screwdrivers give an ESD-protected assembly line one tool that controls both hazards at once: a static-dissipative body that drains charge safely and a cam-over clutch that releases at the preset torque so the fastener cannot be over-tightened. Phil Industries, an authorised Mountz distributor in Singapore, supplies the FG ESD range with preset values, calibration certificates, on-site demonstrations and after-sales support.

Choose the model below

Each row is one preset band, so first find the band that contains your target torque; then pick the label colour you want on the line.

Model Item Name / Number Label Color American S.I. Drive Size
Mountz FG ESD Preset Torque Screwdrivers FG-25z ESD 076750 Blue 3 – 25 ozf.in 2 – 17.7 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-25z ESD 076751 Red 3 – 25 ozf.in 2 – 17.7 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-25z ESD 076752 Green 3 – 25 ozf.in 2 – 17.7 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-25z ESD 076753 Gold 3 – 25 ozf.in 2 – 17.7 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-50z ESD 076625 Blue 20 – 50 ozf.in 14.1 – 35.3 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-50z ESD 076635 Red 20 – 50 ozf.in 14.1 – 35.3 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-50z ESD 076640 Green 20 – 50 ozf.in 14.1 – 35.3 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-50z ESD 076645 Gold 20 – 50 ozf.in 14.1 – 35.3 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-8i ESD 076631 Blue 1.6 – 8 lbf.in 18 – 90 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-8i ESD 076636 Red 1.6 – 8 lbf.in 18 – 90 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-8i ESD 076641 Green 1.6 – 8 lbf.in 18 – 90 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-8i ESD 076646 Gold 1.6 – 8 lbf.in 18 – 90 cN.m 1/4″ F/Hex

Higher torque bands: FG-20i, FG-40i and FG-125i ESD

These bands cover housing screws, brackets and larger connectors, whereas the bands above suit PCB-level fasteners.

Model Item Name / Number Label Color American S.I. Drive Size
Mountz FG ESD Preset Torque Screwdrivers FG-20i ESD 076632 Blue 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-20i ESD 076637 Red 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-20i ESD 076642 Green 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-20i ESD 076647 Gold 2 – 20 lbf.in 22 – 226 cN.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-40i ESD 076633 Blue 4 – 40 lbf.in 0.4 – 4.5 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-40i ESD 076638 Red 4 – 40 lbf.in 0.4 – 4.5 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-40i ESD 076643 Green 4 – 40 lbf.in 0.4 – 4.5 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-40i ESD 076648 Gold 4 – 40 lbf.in 0.4 – 4.5 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-125i ESD 076634 Blue 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-125i ESD 076639 Red 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-125i ESD 076644 Green 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex
Mountz FG ESD Preset Torque Screwdrivers FG-125i ESD 076649 Gold 25 – 125 lbf.in 2.8 – 14.1 N.m 1/4″ F/Hex

Technical Product Support Documents

  • Download the FG ESD Product Technical Support document to learn more about the testing method and results that ensure compliance with ESD standards. (Methods: IEC 61340-5-1, ANSI/ESD STM11.13)

FG ESD Preset Torque Screwdrivers at a glance

Specification FG ESD Preset Torque Screwdrivers
Torque range 2 cN·m – 14.1 N·m across six bands (FG-25z, FG-50z, FG-8i, FG-20i, FG-40i and FG-125i ESD); choose the band that puts your target near the middle
ESD performance Static-dissipative construction with surface resistance in the 10⁵ – 10⁸ Ω range, tested to IEC 61340-5-1 and ANSI/ESD STM11.13
Mechanism Cam-over preset clutch: releases at the set torque, so the operator cannot apply more
Accuracy ±6%, in line with ISO 6789 for indicating and setting hand torque tools
Drive 1/4″ female hex, accepts standard power bits and Mountz bit holders
Setting Internal preset, adjusted with a setting tool; no external scale for operators to change
Identification Colour-coded labels (blue, red, green, gold) so a line can run several presets without mix-ups
Sealing Wear-resistant internal seals keep lubricant inside the tool and away from the product
Verification Check on a Mountz torque analyzer between jobs; supplied with a calibration certificate

Where the FG ESD Preset Torque Screwdrivers fit in Singapore

Singapore EMS plants, semiconductor equipment builders and medical device lines run their fastening inside an EPA under ANSI/ESD S20.20 or IEC 61340-5-1. On those benches an ordinary torque screwdriver is a compliance gap, because the tool body and the operator are part of the discharge path. The FG ESD closes that gap without giving up torque control: the preset clutch protects threads on plastic housings and PCB standoffs, the colour code stops operators picking up the wrong preset, and the dissipative body keeps the bench audit clean. For micro fasteners below 35 cN·m, the compact FG Mini ESD is the lighter choice; for ISO Class 5 cleanrooms, see the FG Cleanroom version.

Pair it with

Frequently asked questions about FG ESD preset torque screwdrivers

Are Mountz FG ESD screwdrivers compliant with IEC 61340-5-1?

Yes. The FG ESD range is built as a static-dissipative tool with surface resistance in the 10⁵ to 10⁸ Ω range and is tested to IEC 61340-5-1 and ANSI/ESD STM11.13, which is what an ANSI/ESD S20.20 programme requires of hand tools used inside an EPA.

What torque range do FG ESD preset torque screwdrivers cover?

Six bands from 2 cN·m to 14.1 N·m: FG-25z, FG-50z, FG-8i, FG-20i, FG-40i and FG-125i ESD. Choose the band that places your target torque near the middle of its range.

What is the difference between the FG ESD and the standard FG preset screwdriver?

The mechanism, accuracy and torque bands are the same. The ESD version adds a static-dissipative body and handle so the tool can be used on a grounded ESD bench without carrying charge to the component.

Can operators change the torque setting?

No. FG ESD screwdrivers are preset internally with a setting tool and have no external scale, so the value stays where the tool room set it. The colour-coded label identifies the preset on the line.

How often should the preset be verified?

Most Singapore quality systems verify hand torque tools on a torque analyzer at a fixed interval, and ISO 6789 suggests recalibration at 5,000 cycles or 12 months, whichever comes first. Our guide on how often torque tools need calibration explains how to set the interval.

Can Phil Industries demonstrate the FG ESD screwdriver in Singapore?

Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can bring the tool to your ESD bench, help you choose the torque band and preset value, and quote with a calibration certificate. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.


Tool Benefits

ESD Environment

      • Equipped with anti-static properties, the ESD screwdrivers effectively minimize static electricity generation and particle attraction.
      • ESD safe tool prevents electrostatic discharge — high-grade dissipative coating maintains a surface resistance within the range of 10⁵ to 10⁸ Ohms, ensuring compliance with ESD standards (Methods: IEC 61340-5-1, ANSI/ESD STM11.13). Review our technical support document to learn more about our ESD testing process.
      • Features dynamic wear-resistant internal seals as an added protective measure to prevent grease leakage and contamination from infiltrating sensitive areas or components.

Error-Proofing

      • Engineered with a cam-over mechanism, the poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
      • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.

Process Improvement

      • Preset torque screwdrivers are ideal for production applications where consistent torque is critical. The screwdrivers are commonly used for precision fastening tasks where operators must consistently apply the same torque setting for each part. Preset torque screwdrivers offer greater consistency and repeatability, reducing the risk of operator error.

Ergonomics

      • Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold, and less likely to cause hand fatigue.

Advanced Technology

      • Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
      • Mountz tools use a patented secure bit locking mechanism with a one-touch release so that the operator can activate it to enable greater flexibility of applications and efficiency on the line.
      • Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
      • The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
      • The tool can be calibrated and operational in either the CW or CCW direction. (FG-ESD screwdriver default configuration: Torque Direction Arrow is engraved in CW direction on the tool. Mountz preset service option is conducted in the CW direction). Request a quote for an application that requires CCW calibration and CCW Torque Direction Arrow on the FG-ESD tool.

Mountz Quality Standards

    • Our tools are durable & reliable. We provide an industry-leading warranty: 2 years unconditional. Lifetime against defects.
    • Calibration life 4x ISO standards (for the FG-8i ESD, FG-20i ESD, FG-40i ESD, and FG-125i ESD models). Unmatched by any torque screwdriver.
    • Calibration life meets the ISO standards (for the FG-25z ESD & FG-50z ESD models).

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).

Accessories

Calibration & Service

    • Torque Analyzers & Sensors If torque tools slip out of calibration, that could impact the quality of your products. An accurate way to regularly test calibration onsite is a great way to reduce risk and ensure safety. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.

White Papers

Learn how ESD torque screwdrivers prevent electrostatic discharge and over torque events. Download the white paper.

Data Sheets & Manuals

Mountz publishes datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.

Parts List & Drawings

Model : FG-25z ESD

View/Download Parts List
FG-25z ESD Drawing
FG-25z ESD CAD/Step File

Model: FG-50z ESD

View/Download Parts List
FG-50z ESD Drawing
FG-50z ESD CAD/Step File

Model: FG-8i

FG-8i ESD Drawing

Model: FG-20i

View/Download Drawing

Model: FG-40i

FG-40i ESD Drawing

Model: FG-125i ESD

FG-125i ESD Drawing

Where it fits in Singapore

Built for EPAs handling sensitive electronics, the FG ESD screwdriver protects components against electrostatic discharge while delivering a preset, repeatable torque — the combination Singapore SMT and box-build lines need at every static-safe workstation. It belongs to the same platform as the standard FG preset and FG Cleanroom models. Why ESD control extends to tools at all? Our guide on ESD in electronics manufacturing explains the principles. Phil Industries is an authorised Mountz distributor in Singapore — call +65 6555 1745 or WhatsApp +65 9853 9030.

Related Mountz pages in Singapore

Phil Industries, an authorised Mountz distributor in Singapore, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
