Mountz CL-Series Electric Torque Screwdrivers
The CL-Series is electric torque screwdriver that is designed for heavy-duty production and delivers reliability and precision torque. Tool offers proven performance and ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | ESD Safe | |
|---|---|---|---|---|---|---|---|
 |

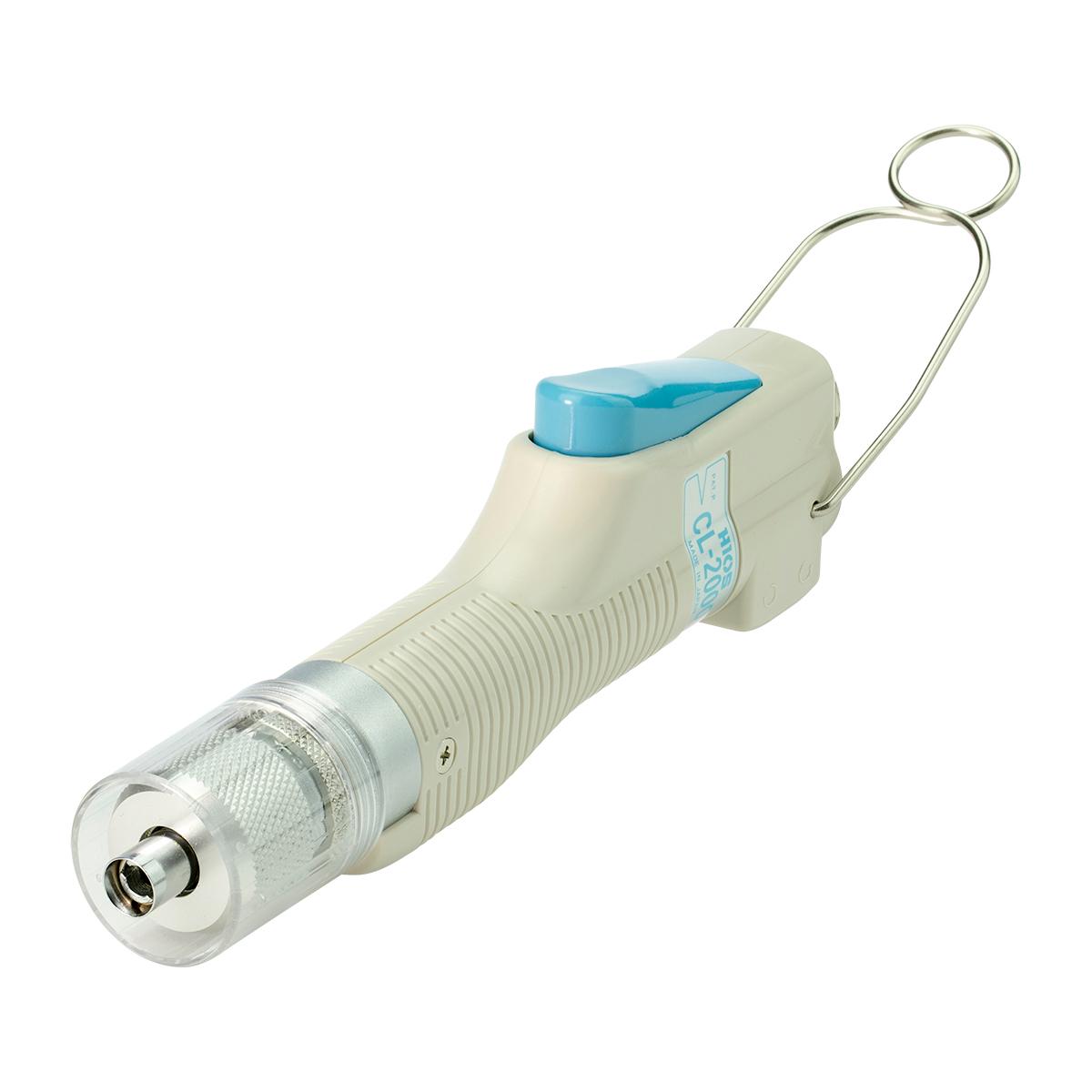

CL2000 | Lever Start | 144103 | 0.17 – 1.7 lbf.in | 2 – 20 cN.m | 4mm Hios Dr. | F |
 |
CL2000-ESD | Lever Start | 144097 | 0.17 – 1.7 lbf.in | 2 – 20 cN.m | 4mm Hios Dr. | T |
 |

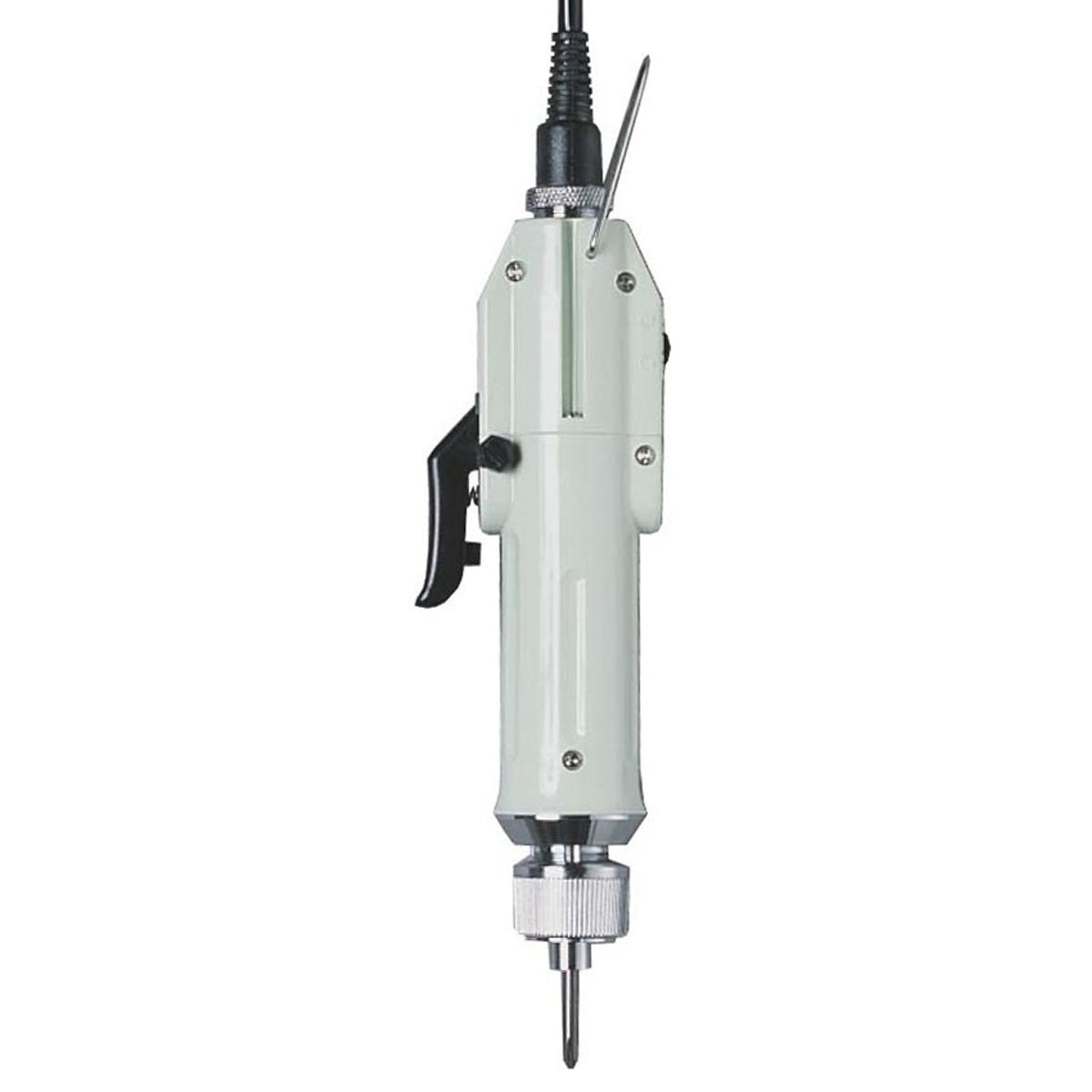

CL3000 | Lever Start | 144106 | 0.3 – 1.7 lbf.in | 3 – 20 cN.m | 4mm Hios Dr. | F |
 |

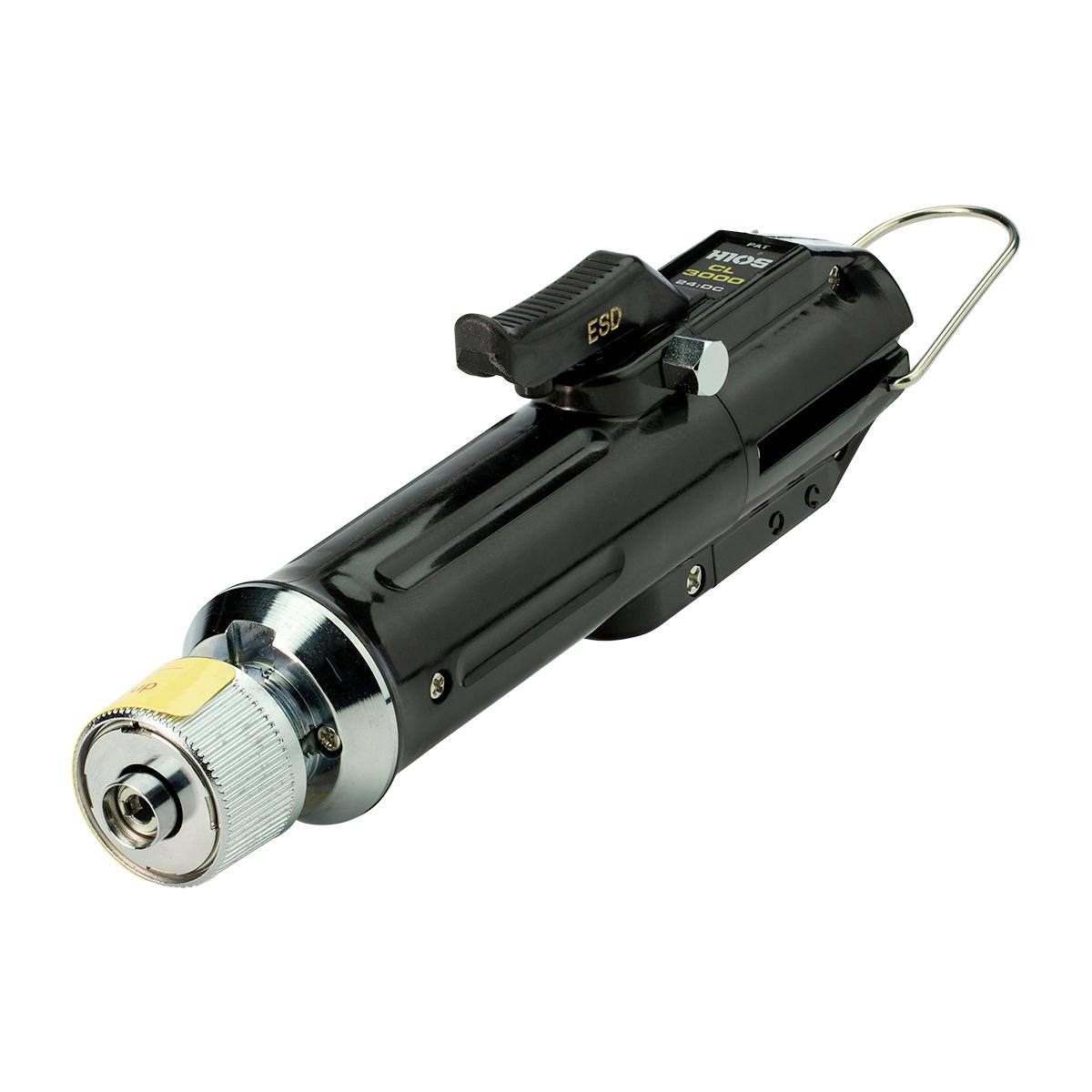

CL3000-ESD | Lever Start | 144098 | 0.3 – 1.7 lbf.in | 3 – 20 cN.m | 4mm Hios Dr. | T |
 |
CL4000 | Lever Start | 144110 | 0.9 – 4.8 lbf.in | 10 – 55 cN.m | 1/4″ F/Hex | F |
|

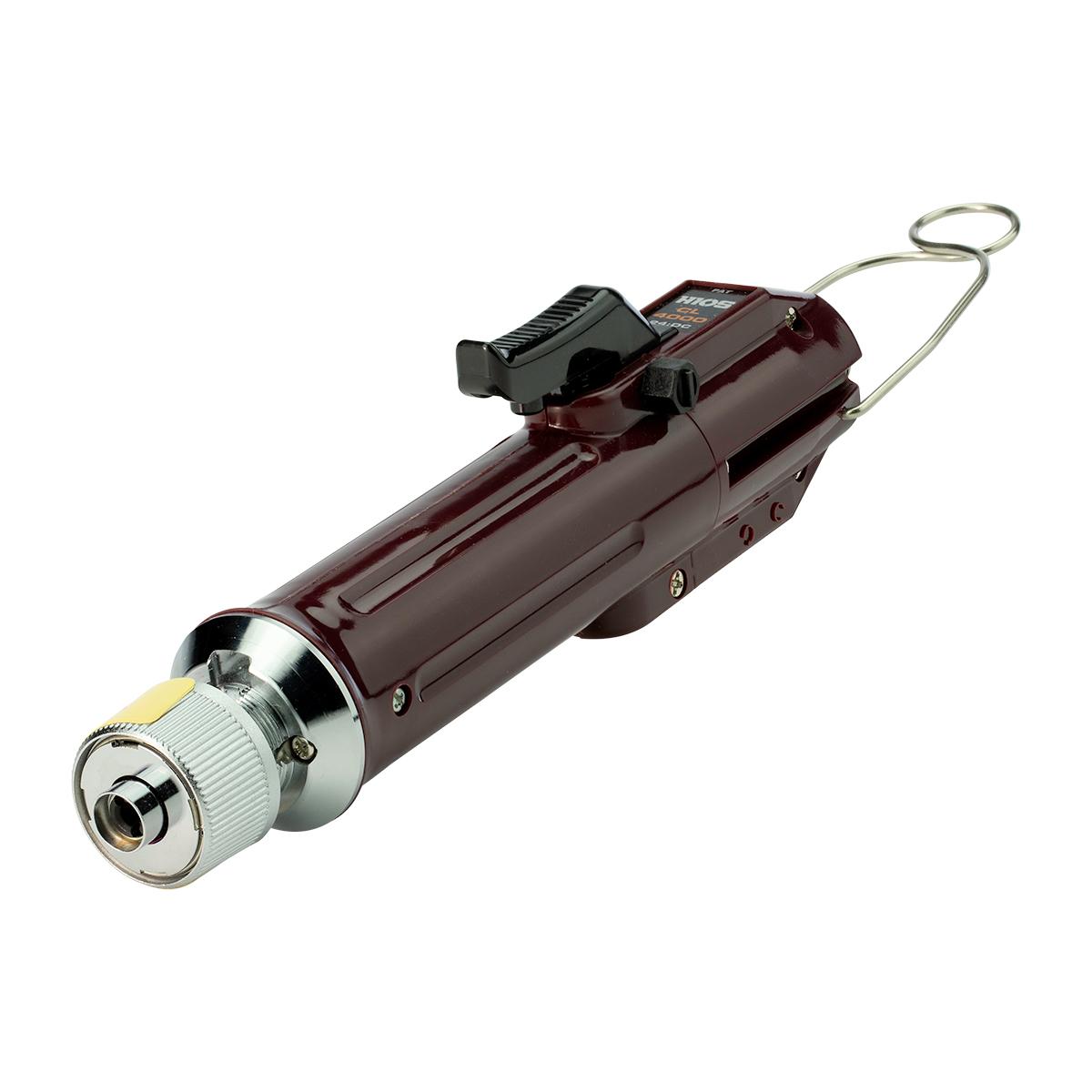

CL4000 | Lever Start | 144111 | 0.9 – 4.8 lbf.in | 10 – 55 cN.m | 4mm Hios Dr. | F |
 |

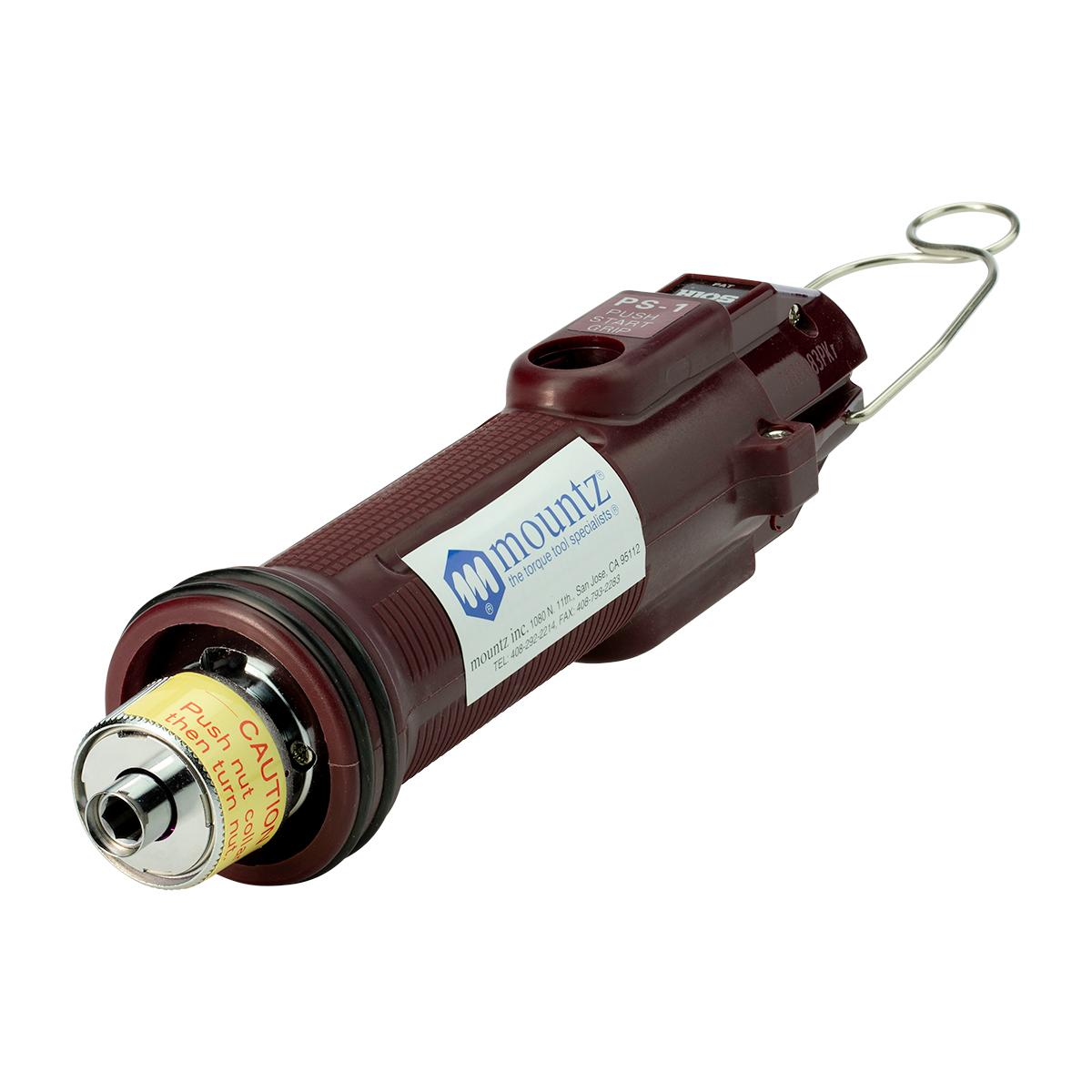

CL4000PS | Push-to-Start | 144108 | 0.9 – 4.8 lbf.in | 10 – 55 cN.m | 1/4″ F/Hex | F |
 |

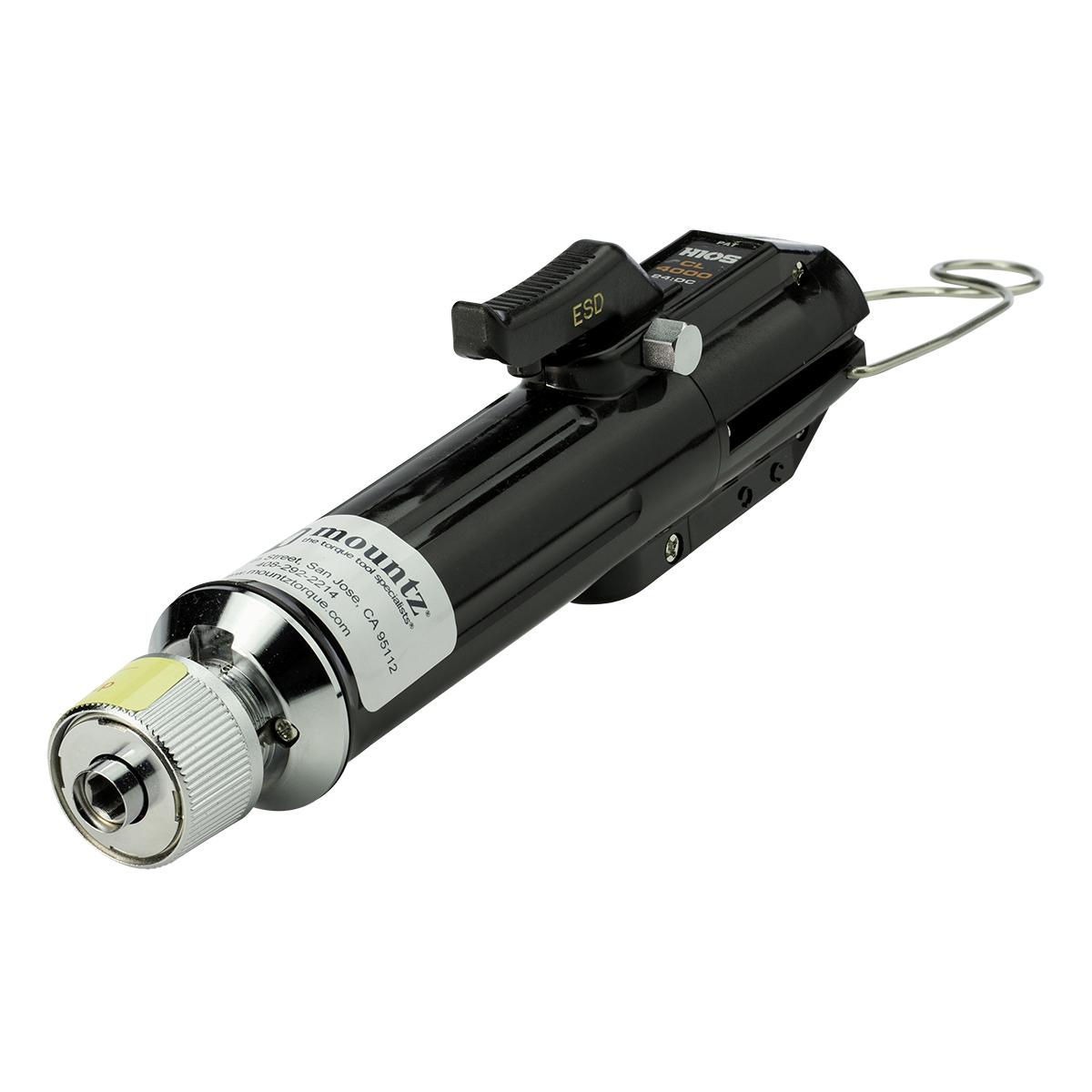

CL4000-ESD | Lever Start | 144099 | 0.9 – 4.8 lbf.in | 10 – 55 cN.m | 1/4″ F/Hex | T |
 |

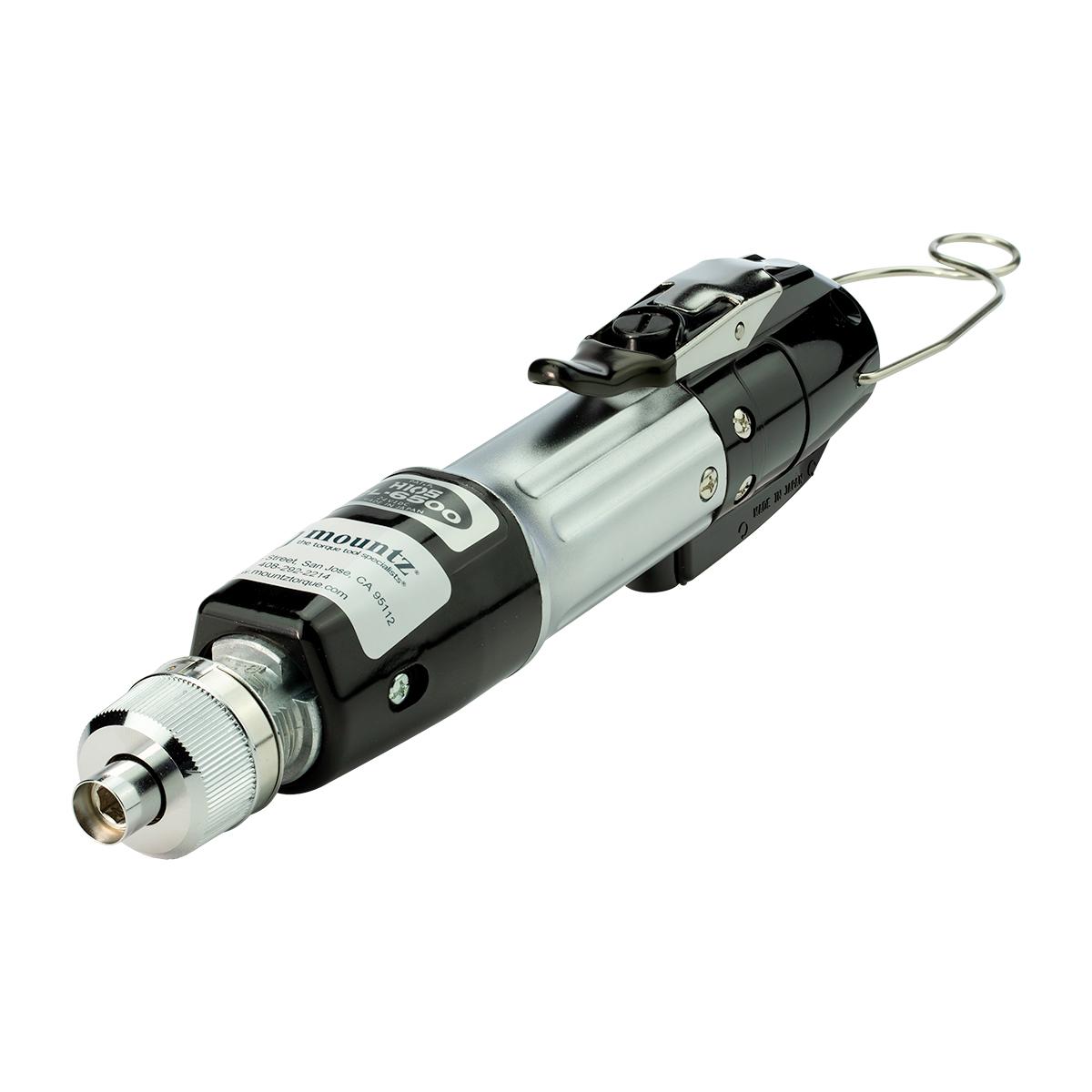

CL6500 | Lever Start | 144121 | 2.6 – 14 lbf.in | 30 – 160 cN.m | 1/4″ F/Hex | F |
 |

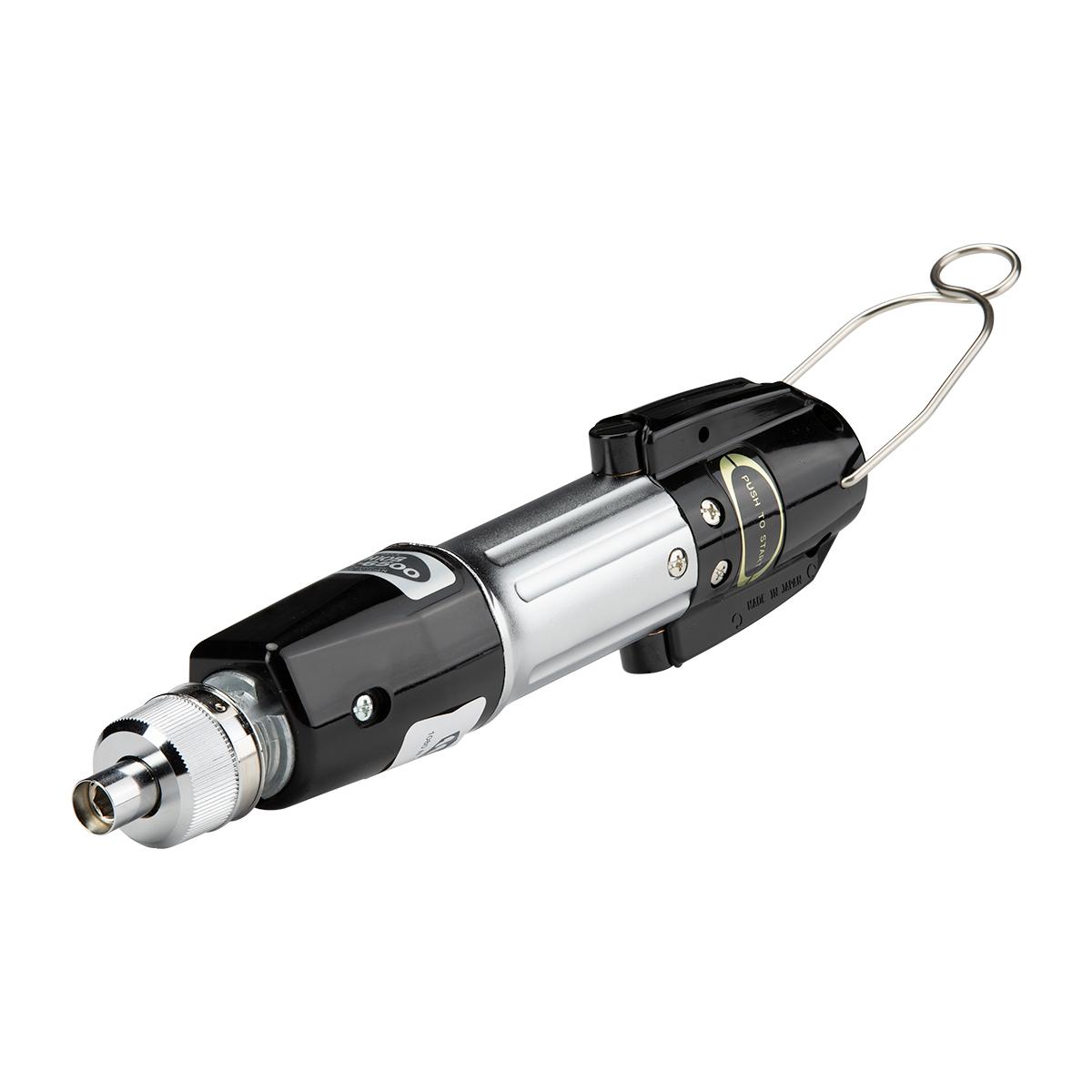

CL6500PS | Push-to-Start | 144120 | 2.6 – 14 lbf.in | 30 – 160 cN.m | 1/4″ F/Hex | F |
 |

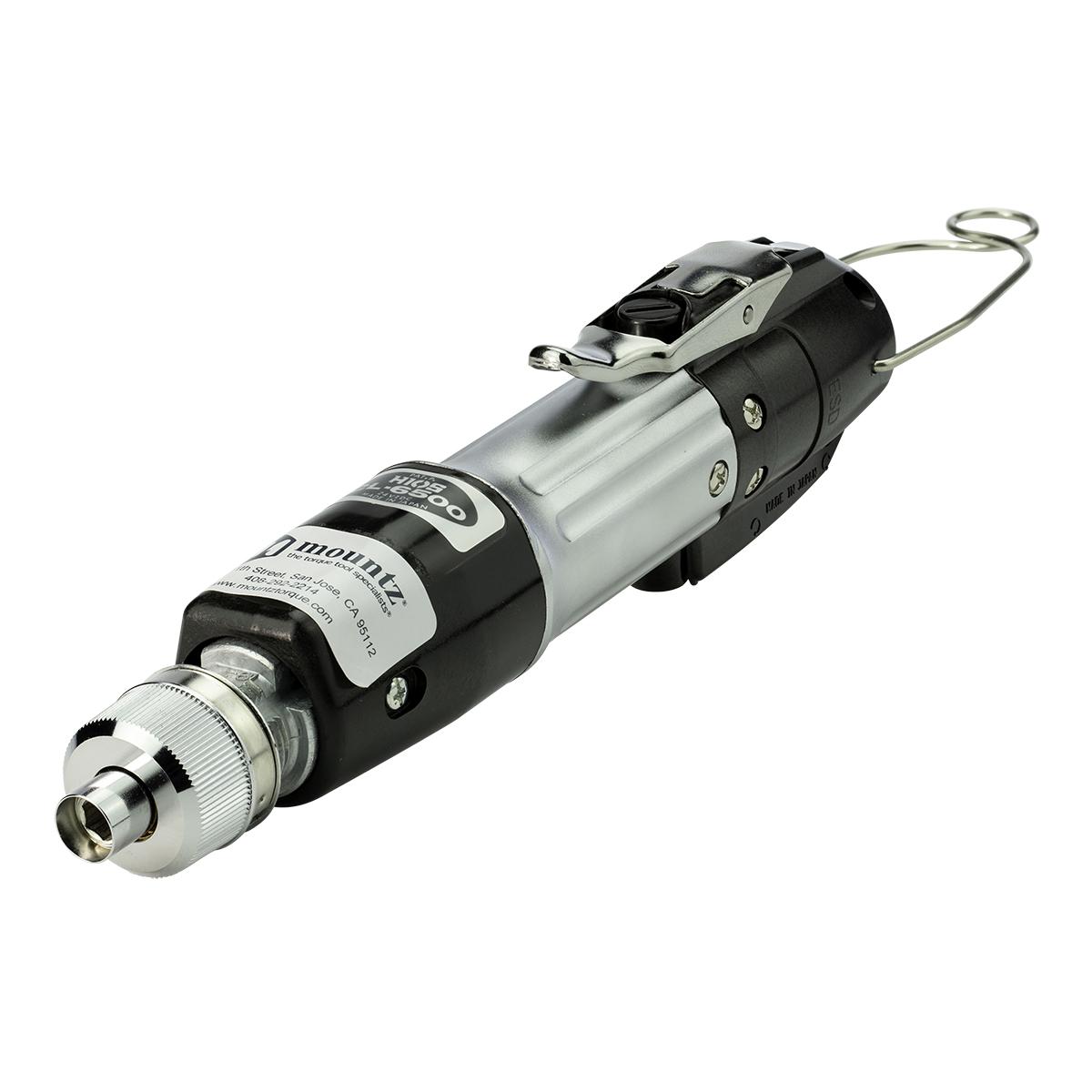

CL6500-ESD | Lever Start | 144100 | 2.6 – 14 lbf.in | 30 – 160 cN.m | 1/4″ F/Hex | T |
 |

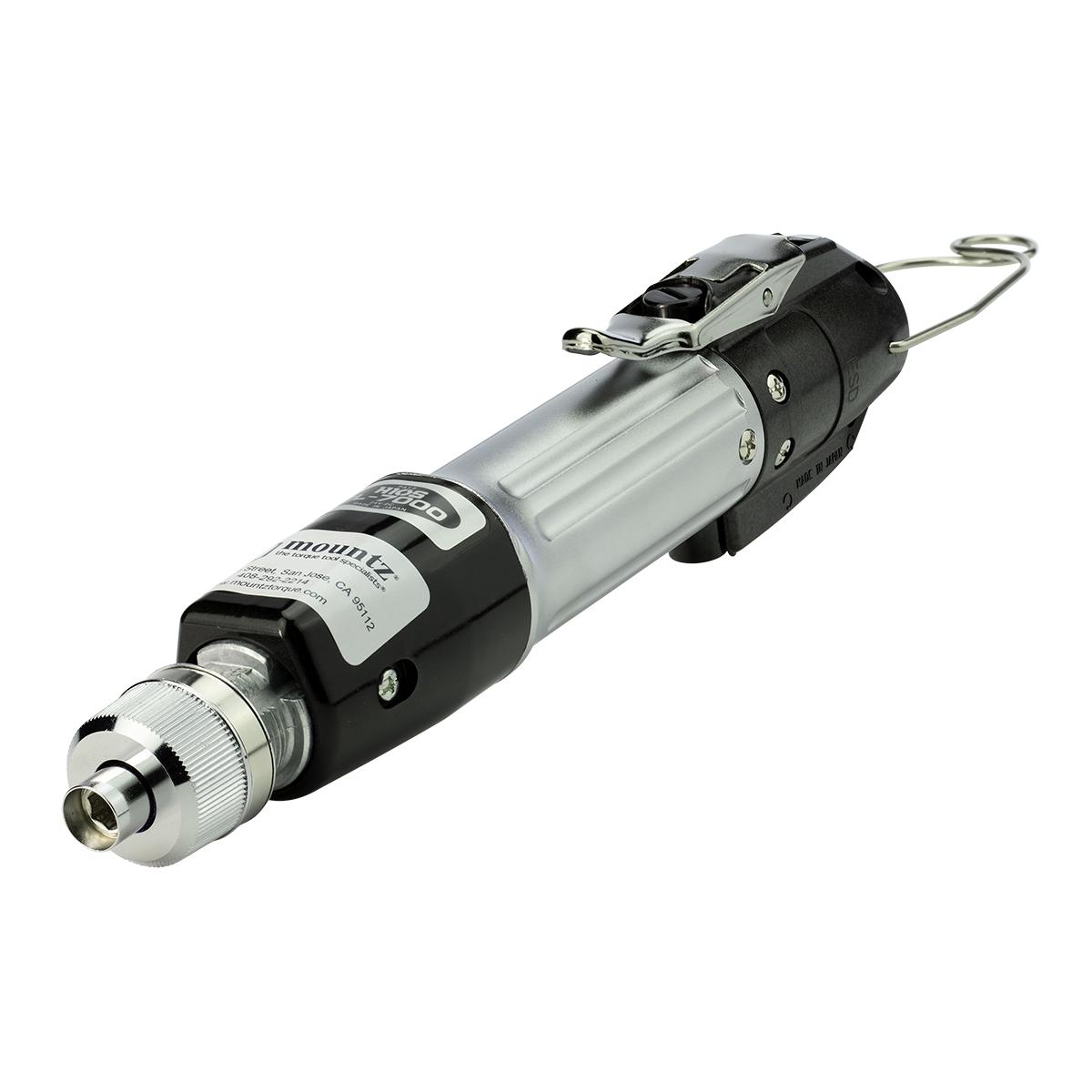

CL7000 | Lever Start | 144126 | 2.6 – 22 lbf.in | 30 – 250 cN.m | 1/4″ F/Hex | F |
 |
CL7000-ESD | Lever Start | 144101 | 2.6 – 22 lbf.in | 30 – 250 cN.m | 1/4″ F/Hex | T |
|
CL7000 | Lever Start | 144182 | 2.6 – 24 lbf.in | 30 – 271 cN.m | 1/4″ F/Hex | F |
 |

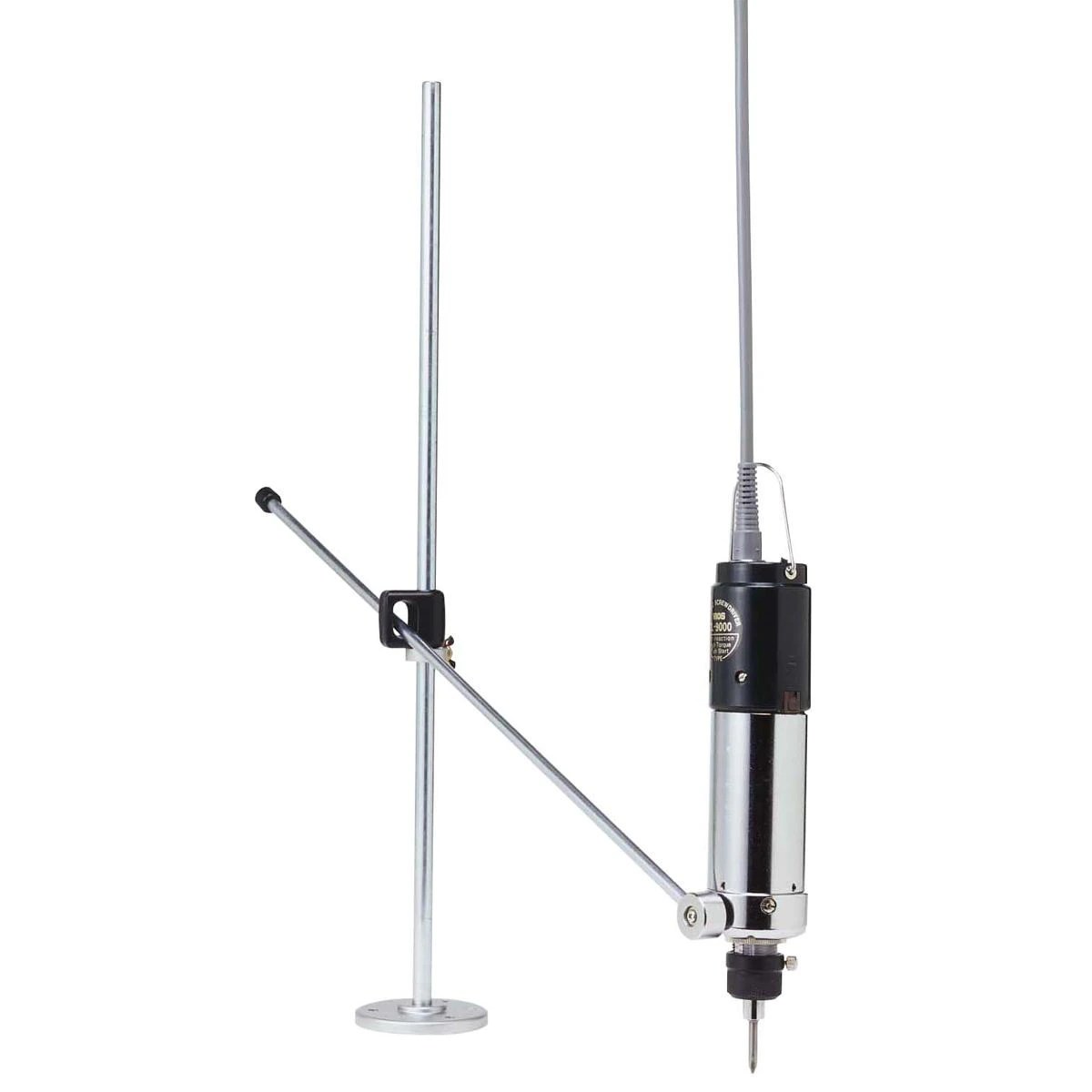

CL9000PS | Push-to-Start | 144130 | 10 – 43 lbf.in | 120 – 500 cN.m | 1/4″ F/Hex | F |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Models range from 0.17 – 43 in lbf.in
- Available in Lever, Push-to-Start, and ESD
- Ensures accuracy in fastening with precision automatic shut-off clutch once preset torque is achieved.
- Low DC voltage for safe operation and long life.
- Precision automatic shut-off clutch once preset torque is achieved.
- Compact size with a grip designed for operator comfort.
- Can be connected with the Scout Screw Counter.
- Requires a Transformer (power supply).
- External torque adjustment scale.
- Accurate torque control provides precise and controlled fastening with automatic shut-off clutch.
- Coiled Power Cord
- Extension Cord 10ft.
- Extension Cord 16ft.
- Drive Adapters
- Ergonomic Torque Arms
- Mag-O-Nets
- Pistol Grip Attachment
- Push-to-Start Adapter
- Right Angle Adapter
- Screw Counter
- Screw Presenter
- Tool Balancers
- Tool Stand
- Vacuum Adapter for CL-2000
- Vacuum Adapter for CL3000 and CL4000
- Vacuum Adapter for CL6000, CL6500 and CL7000
Model : CL2000
View/Download Parts List
Model : CL2000-ESD
View/Download Parts List
Model : CL3000
View/Download Parts List
Model : CL4000
View/Download Parts List
Model : CL6500
View/Download Parts List
Model : CL6500PS
View/Download Parts List
Model : CL6500-ESD
View/Download Parts List
Model : CL7000
View/Download Parts List
Model : CL7000-ESD
View/Download Parts List
Model : CL9000PS
View/Download Parts List As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
