Mountz BL-Series Brushless Electric Torque Screwdrivers

The HIOS BL-Series is a brushless electric screwdriver designed for high volume manufacturing. The power tool features a robust brushless motor design that provides durability and longer-lasting service life than their counterparts, brush type electric screwdrivers. There is minimal heat build-up while operating the tool continuously. It maintains a clean environment without emitting carbon particles and significantly reduce maintenance costs. High-speed rotation shortens the tightening time and improves work efficiency. The brushless electric screwdriver automatically shuts off once the preset torque is achieved and enhances product quality through precision torque control and user comfort. The ESD models prevent the occurrence of electrostatic discharge.

Description

CHOOSE THE MODEL BELOW

Model Driver Type Item Name / Number American S.I. Drive Size ESD Safe

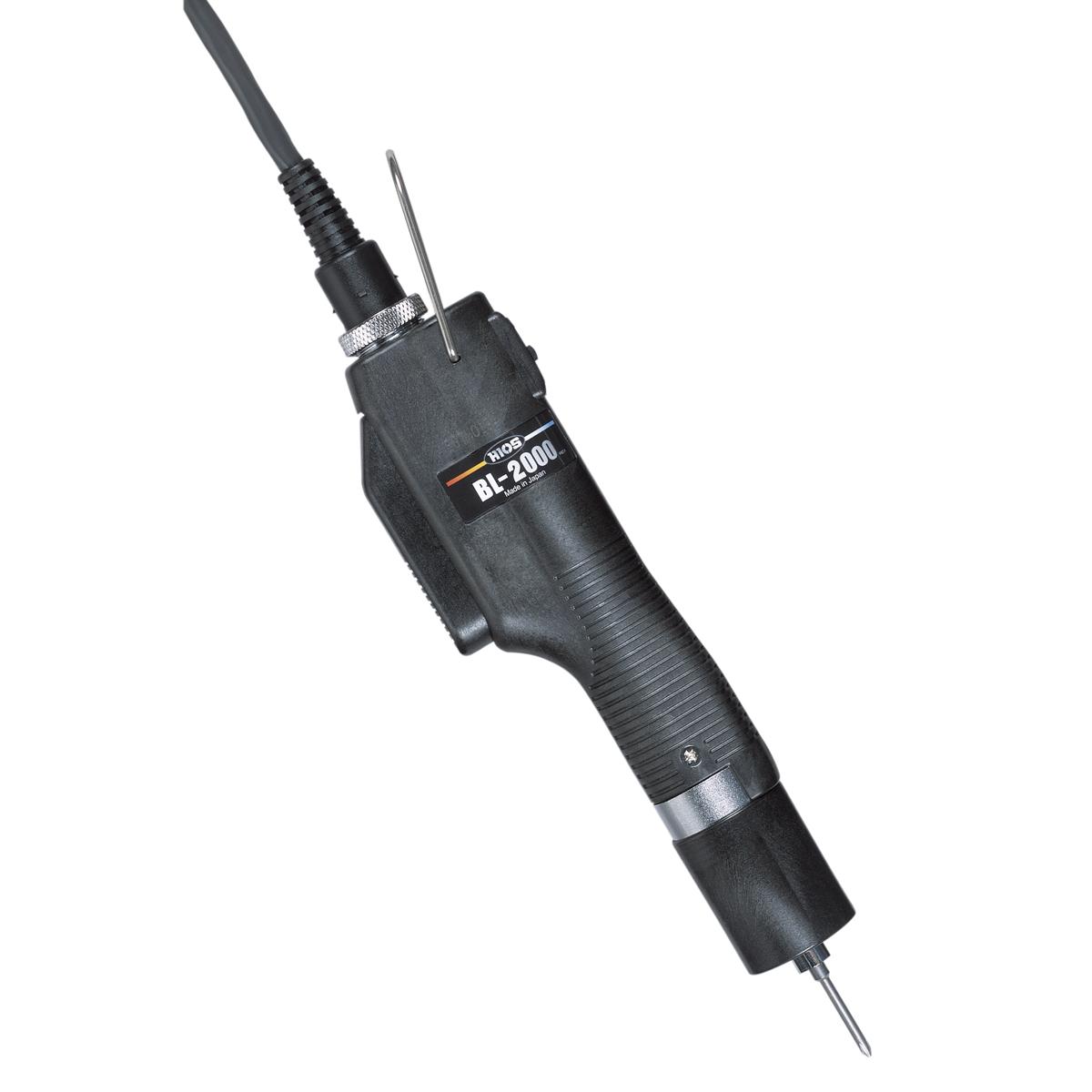

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-2000 ESD Lever Start 144390 0.17 – 1.7 lbf.in 2 – 20 cN.m 4mm Hios Dr. T
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-2000 ESD-OPC Lever Start 144312 0.17 – 1.7 lbf.in 2 – 20 cN.m 4mm Hios Dr. T

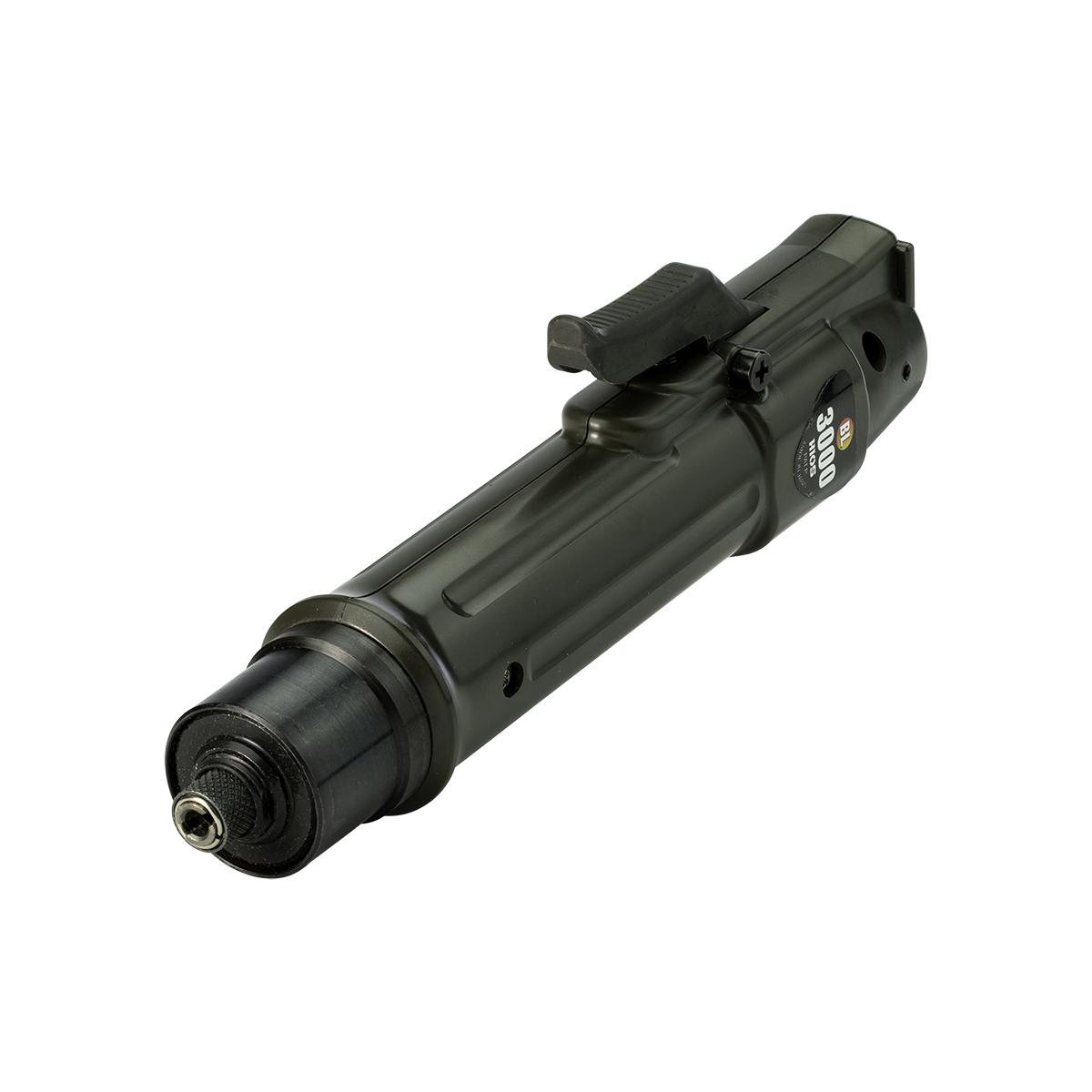

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-3000 Lever & Push-to-Start 144393 1.7 – 4.8 lbf.in 2 – 55 cN.m 4mm Hios Dr. F

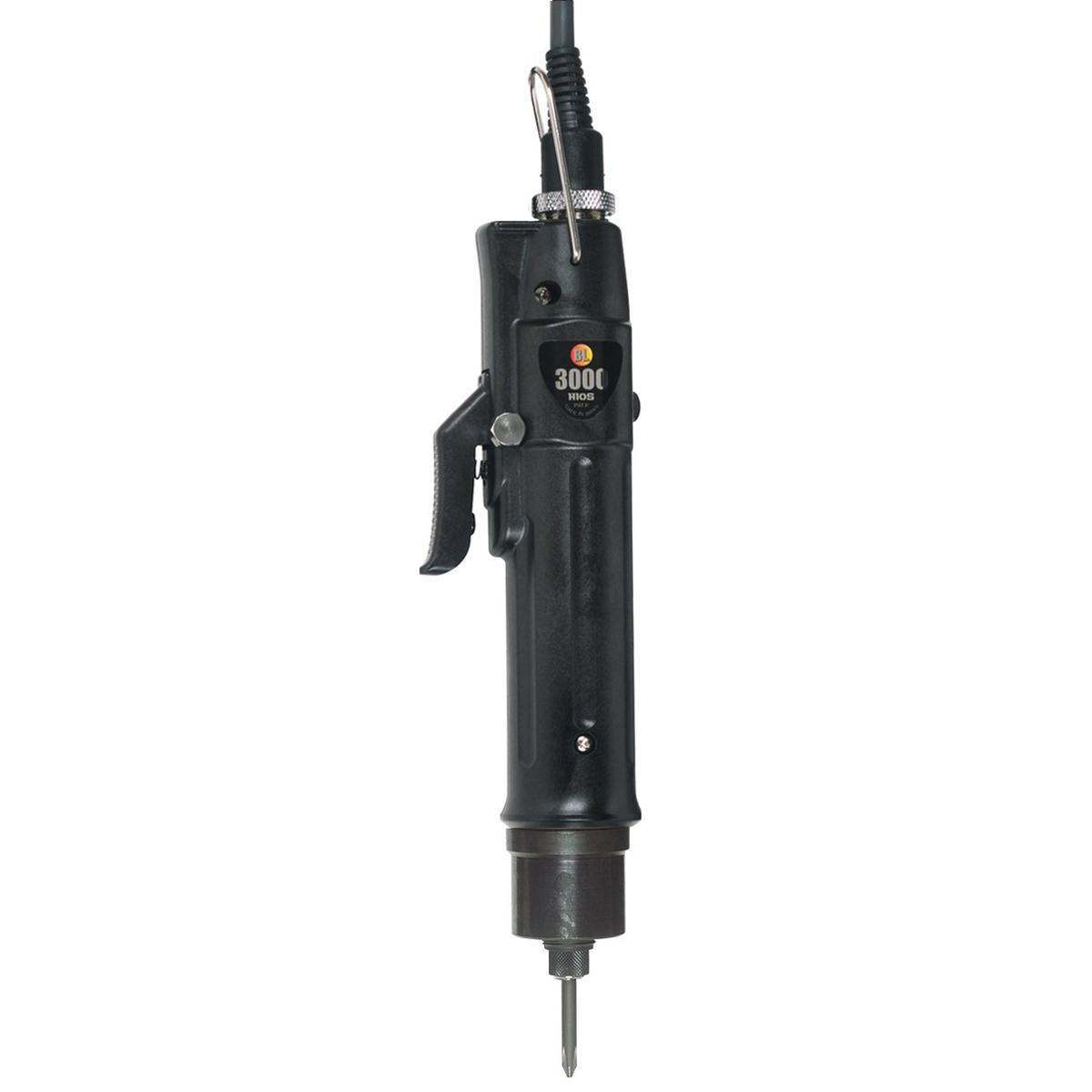

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-3000 ESD Lever & Push-to-Start 144395 1.7 – 4.8 lbf.in 2 – 55 cN.m 4mm Hios Dr. T
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-3000-OPC Lever & Push-to-Start 144313 1.7 – 4.8 lbf.in 2 – 55 cN.m 4mm Hios Dr. F

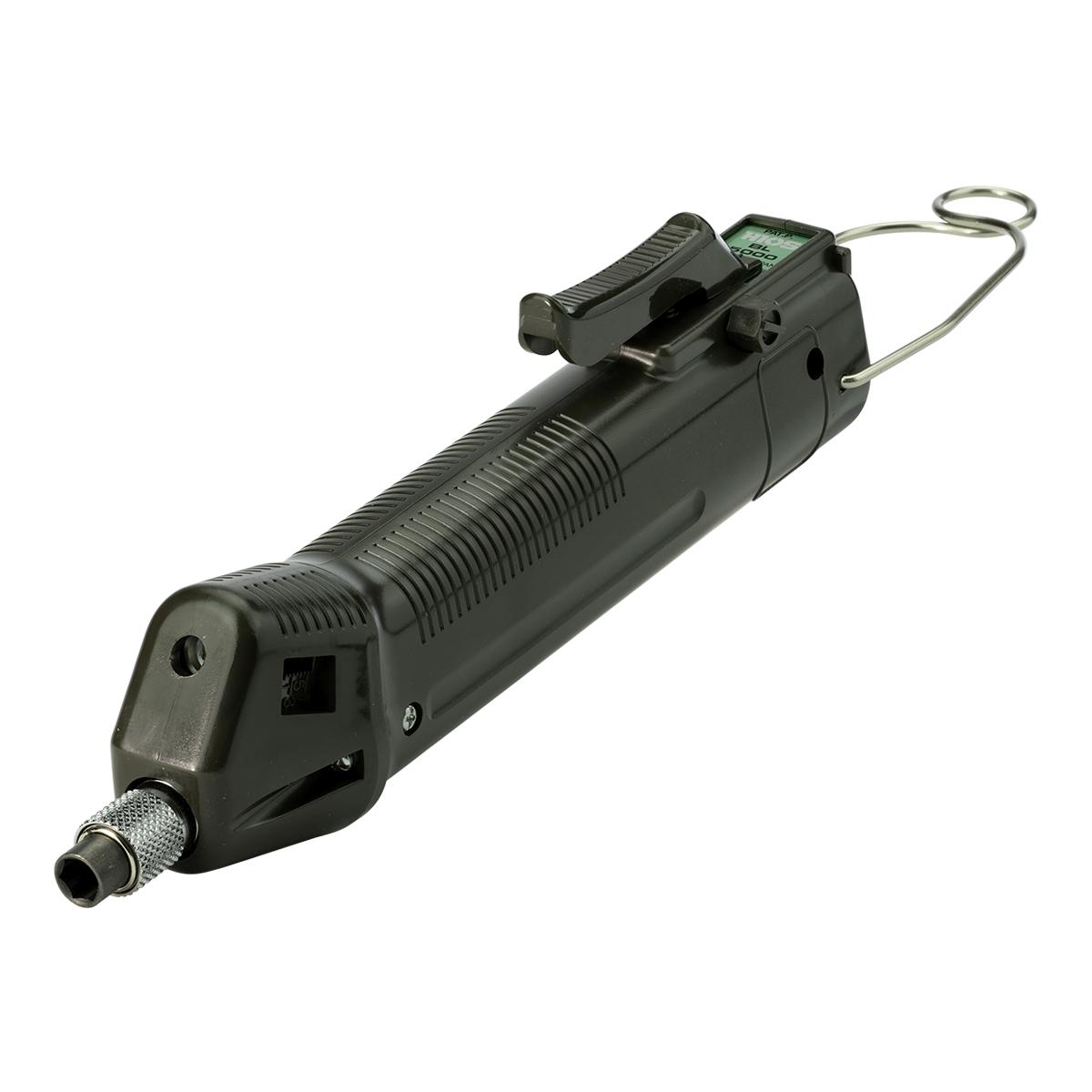

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5000X Lever & Push-to-Start 144383 1.7 – 10 lbf.in 20 – 120 cN.m 1/4″ F/Hex F

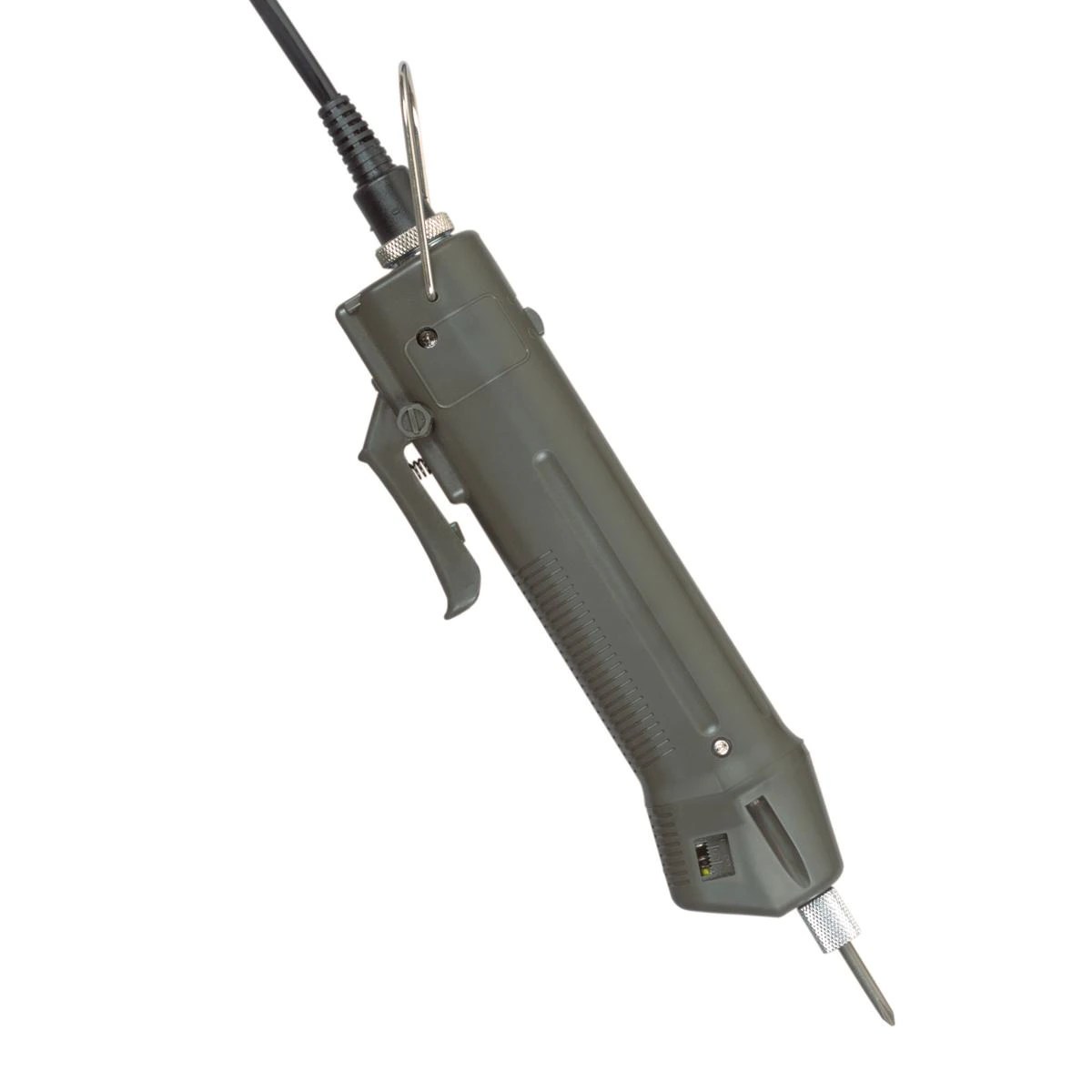

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5000 Lever & Push-to-Start 144380 1.7 – 10 lbf.in 20 – 120 cN.m 4mm Hios Dr. F

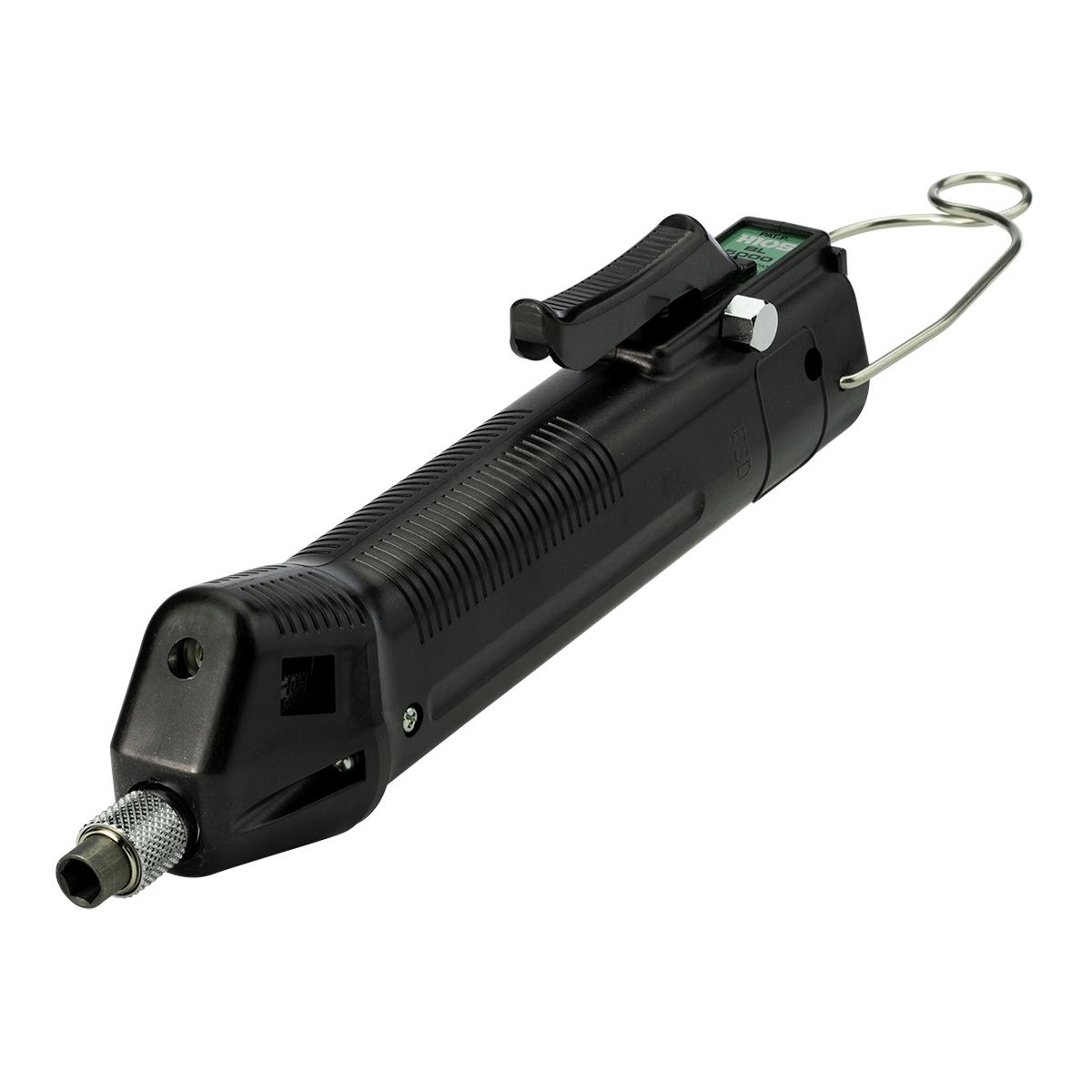

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5000X ESD Lever & Push-to-Start 144385 1.7 – 10 lbf.in 20 – 120 cN.m 1/4″ F/Hex T

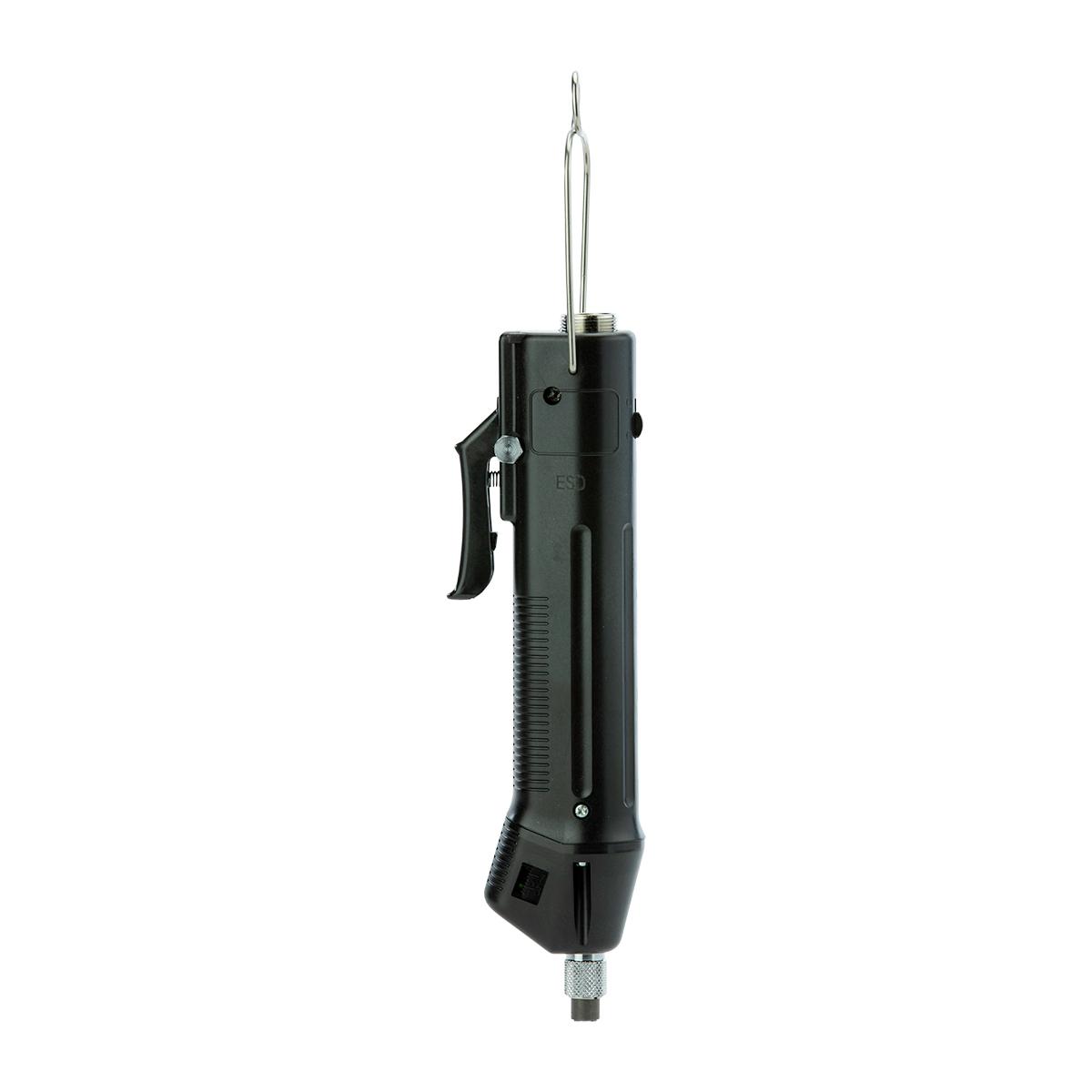

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5000 ESD Lever & Push-to-Start 144384 1.7 – 10 lbf.in 20 – 120 cN.m 4mm Hios Dr. T
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5000X-OPC Lever & Push-to-Start 144389 1.7 – 10 lbf.in 20 – 120 cN.m 1/4″ F/Hex F
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5020X Lever & Push-to-Start 144557 4.3 – 17.4 lbf.in 50 – 200 cN.m 1/4″ F/Hex T
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-5020X ESD Lever & Push-to-Start 144370 4.3 – 17.4 lbf.in 50 – 200 cN.m 1/4″ F/Hex T

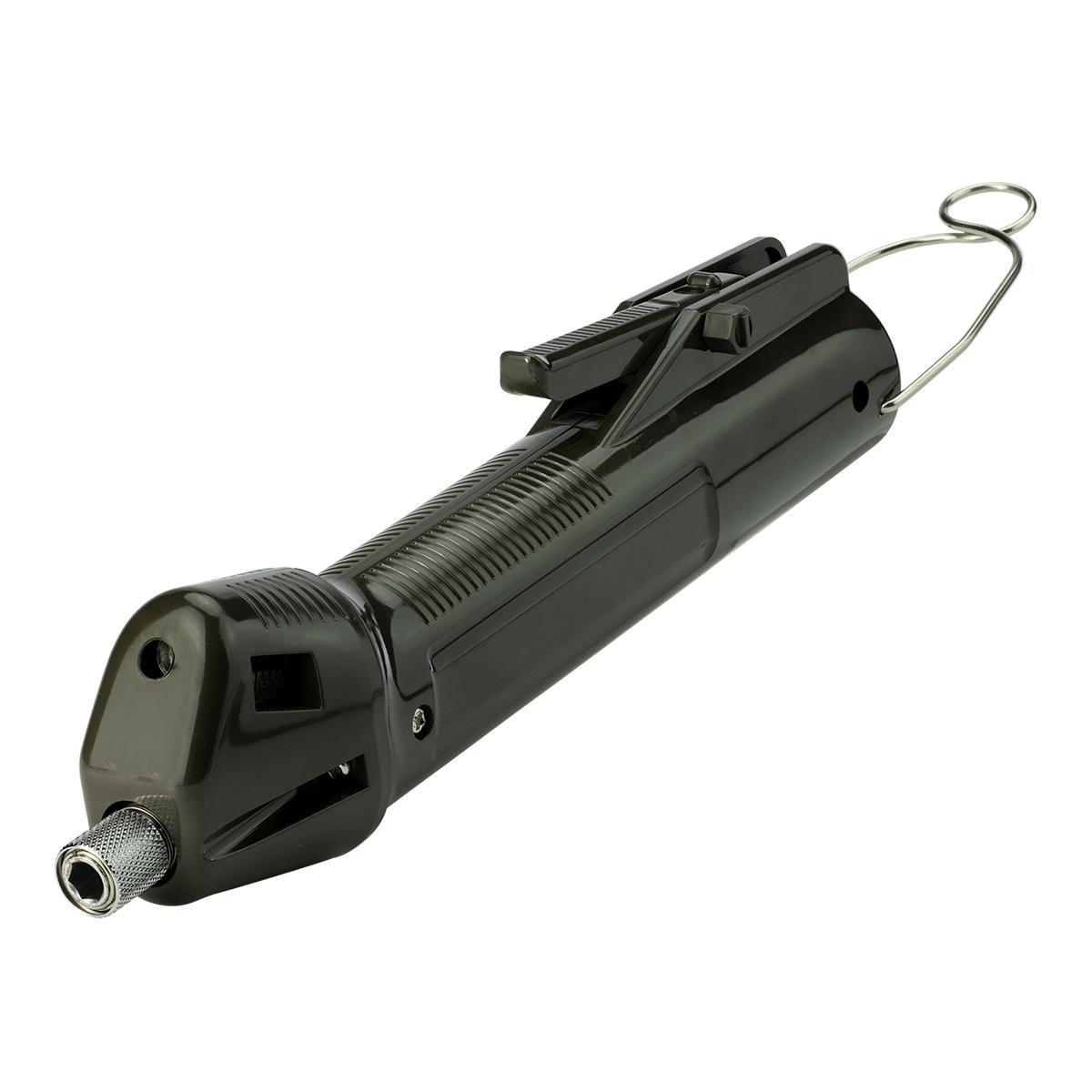

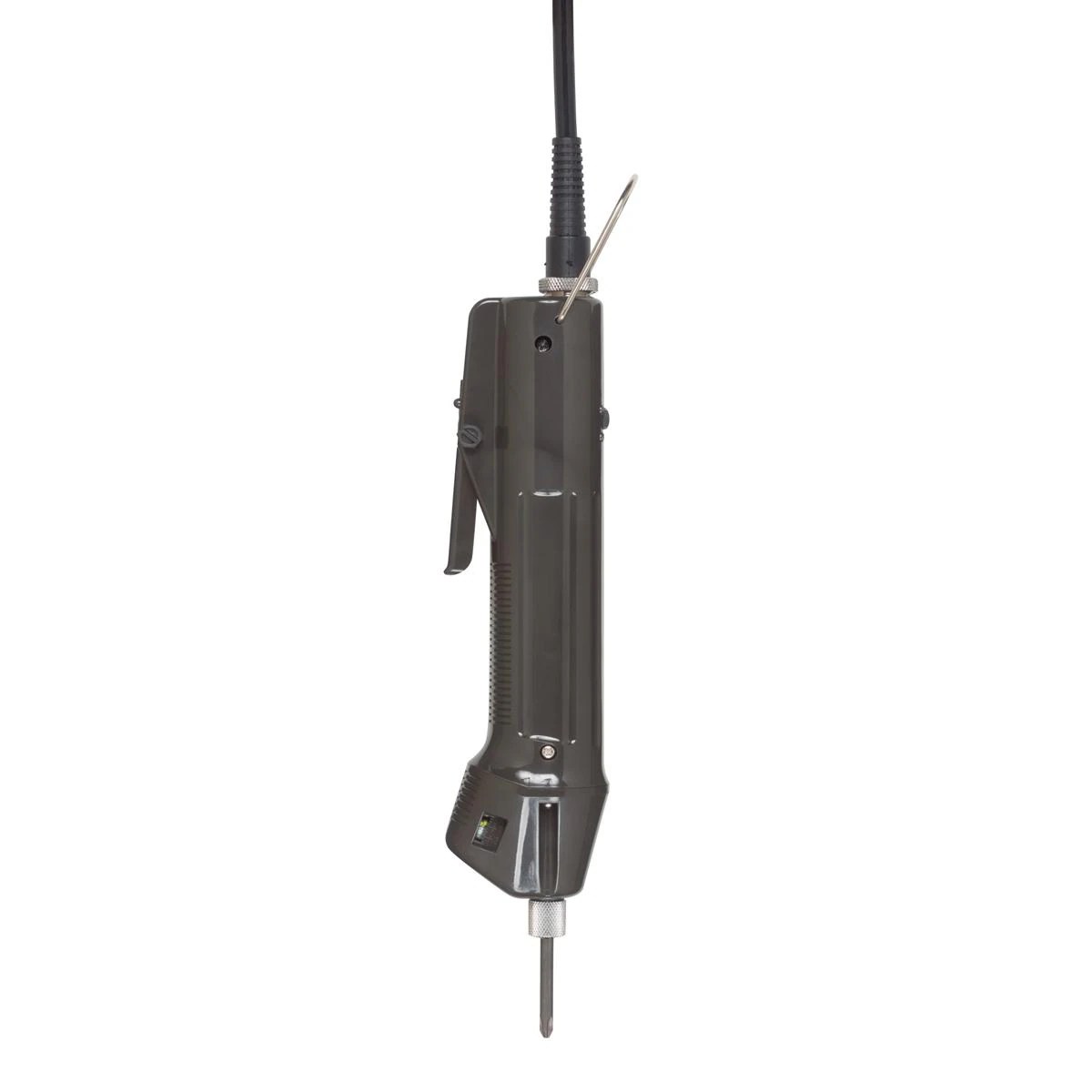

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-7000X Lever & Push-to-Start 144397 6.1 – 24 lbf.in 70 – 280 cN.m 1/4″ F/Hex F

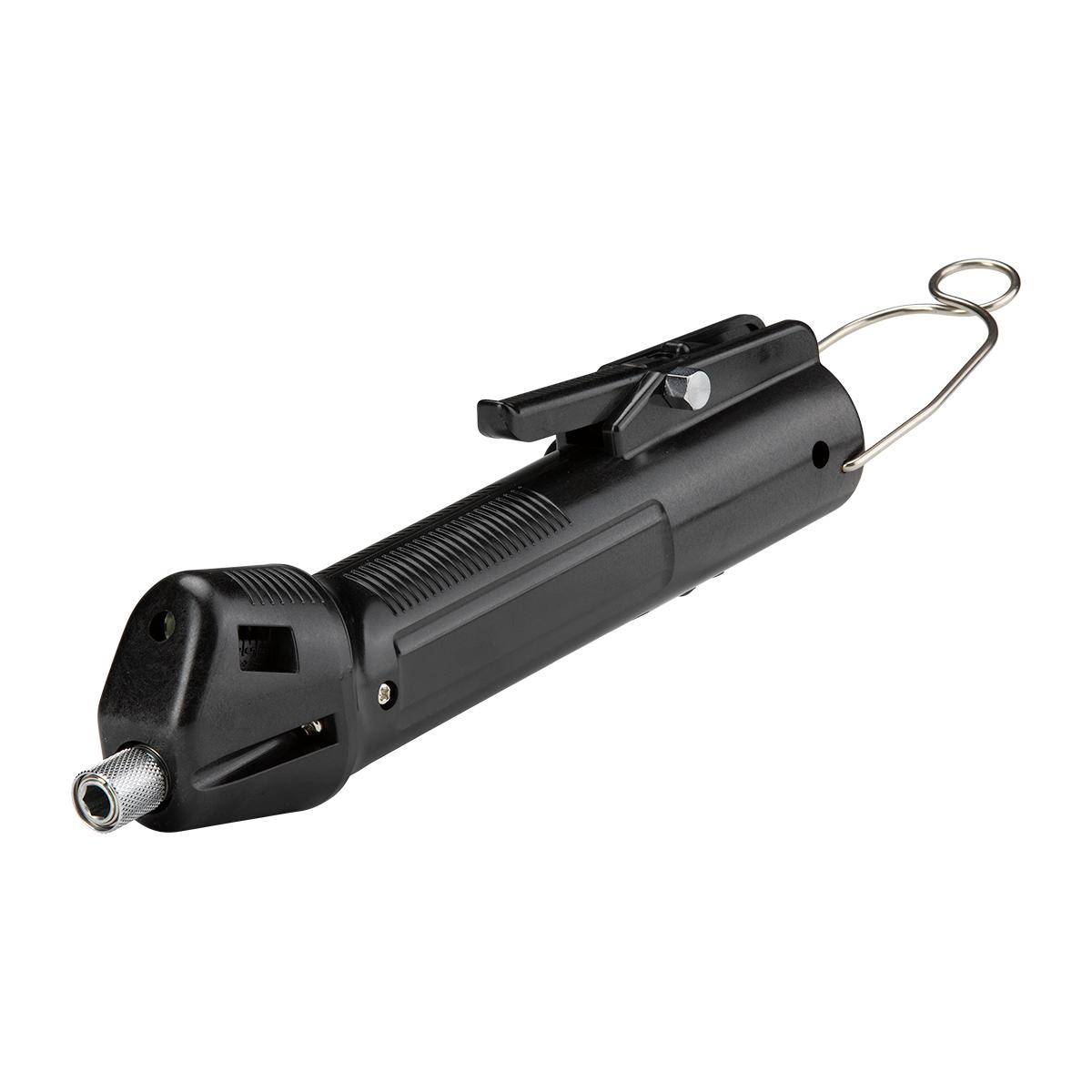

Mountz BL-Series Brushless Electric Torque Screwdrivers BL-7000X ESD Lever & Push-to-Start 144398 6.1 – 24 lbf.in 70 – 280 cN.m 1/4″ F/Hex T
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-7000X-OPC Lever & Push-to-Start 144376 6.1 – 24 lbf.in 70 – 280 cN.m 1/4″ F/Hex F
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-7000X-HT Lever & Push-to-Start 144399 6.1 – 30 lbf.in 70 – 340 cN.m 1/4″ F/Hex F
Mountz BL-Series Brushless Electric Torque Screwdrivers BL-7000X-HT ESD Lever & Push-to-Start 144309 6.1 – 30 lbf.in 70 – 340 cN.m 1/4″ F/Hex T
  • High Power brushless motor design that provides durability and longer-lasting service life than a brush type electric screwdriver.
  • Accurate torque control provides precise and controlled fastening with an automatic shut-off clutch.
  • Minimal heat build-up while operating the tool continuously.
  • ESD safe models prevent electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
  • OPC models are designed to operate with BLOP-STC3 screw counter. The error-proofing device detects and eliminates costly screw-fastening errors. It monitors and identifies missing screws, cross-threading, omissions, unfinished rundowns.
  • Precision automatic shut-off clutch once preset torque is achieved.
  • High-speed rotation shortens the tightening time and improves work efficiency.
  • Maintains a clean environment without emitting carbon particles and significantly reduce maintenance costs
  • Compact size with a soft texture ergonomic grip.
  • Torque adjustment scale.
  • Requires a transformer (power supply).

Mountz publishes datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.

Model : BL-2000 ESD

View/Download Parts List

Model : BL-3000

View/Download Parts List

Model : BL-5000X

View/Download Parts List

Model : BL-7000X

View/Download Parts List

Model : BL-7000X-OPC

View/Download Parts List

Model : BL-7000X-HT

View/Download Parts List As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
