Stackable Conductive PP Tray – Black
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | as bleow chart |
- Description
- Reviews (0)
Description
This conductive ESD tray is available in Singapore from Phil Industries. Stackable Black Plastic Conductive Tray Polypropylene F provides reliable ESD protection for packaging and electronics manufacturing. As a supplier of ESD packaging materials in Singapore, Phil Industries offers island-wide delivery on all conductive ESD tray products.
Detailed Product Description
Stackable Black Conductive Plastic Trays Polypropylene For Small Parts Storage
Description
1, It is made of conductive Polypropylene for Small Parts Storage
2, Smooth base and inner walls, stackable,
3, Provides excellent physical stability, safely transport ESD sensitive devices, ideal for carts, conveyors and work in process.
4, Typical surface resistance: 10⁴–10⁸ ohms
Features
| ESD Safe | Yes |
| External Dimension | As below |
| Internal Dimension | As below |
| Material | Conductive Polypropylene |
| Volume Resistance | 10⁶ ohms |
| Charge Decay | < 0.05 sec |
Standards
ESD standard compliance
Applications
Widely used for transportation of ESD sensitive devices
| Model | Ext Size | Int Size | Remarks |
| CR3606 | 317x231x40mm | 305x217x35mm | |
| CR3607 | 226x166x37mm | 215x155x32mm | |
| CR3608 | 440x290x50mm | 400x265x45mm | |
| CR3609 | 375x250x65mm | 345x225x60mm | |
| CR3610 | 440x295x80mm | 410x265x75mm | |
| CR3611 | 560x375x75mm | 525x340x70mm | |
| CR3612 | 320x235x43mm | 310x225x35mm | |
| CR3613 | 615x420x95mm | 570x370x90mm | |
| CR3614 | 480x328x42mm | 445x292x35mm | |
| CR3615 | 450x300x45mm | 430x280x38mm | |
| CR3616 | 450x300x60mm | 430x280x50mm | |
| CR3617 | 226x166x29mm | 214x154x25mm | |
| CR3618 | 315x290x29mm | 136x58x20mm | below photo A |
| CR3619 | 289x195x26mm | 274x183x23mm | |
| CR3620 | 460x305x35mm | 436x282x27mm | below photo B |
| CR3621 | 375x308x30mm | 360x294x23mm | |
| CR3622 | 530x365x43mm | 510x350x33mm | |
| CR3623 | 345x260x35mm | 302x212x34mm | |
| CR3624 | 220x175x26mm | 185x140x23mm | |
| CR3625 | 285x224x30mm | 240x182x28mm |

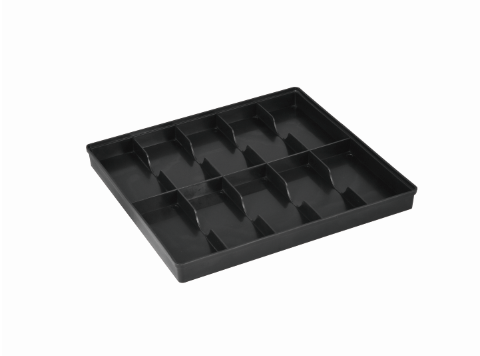

A

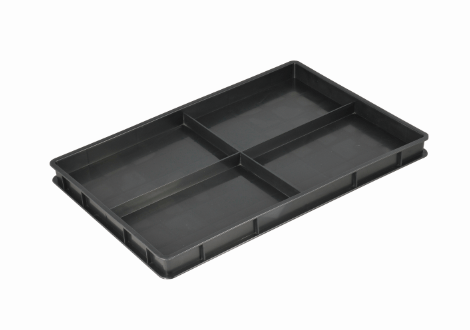

B
