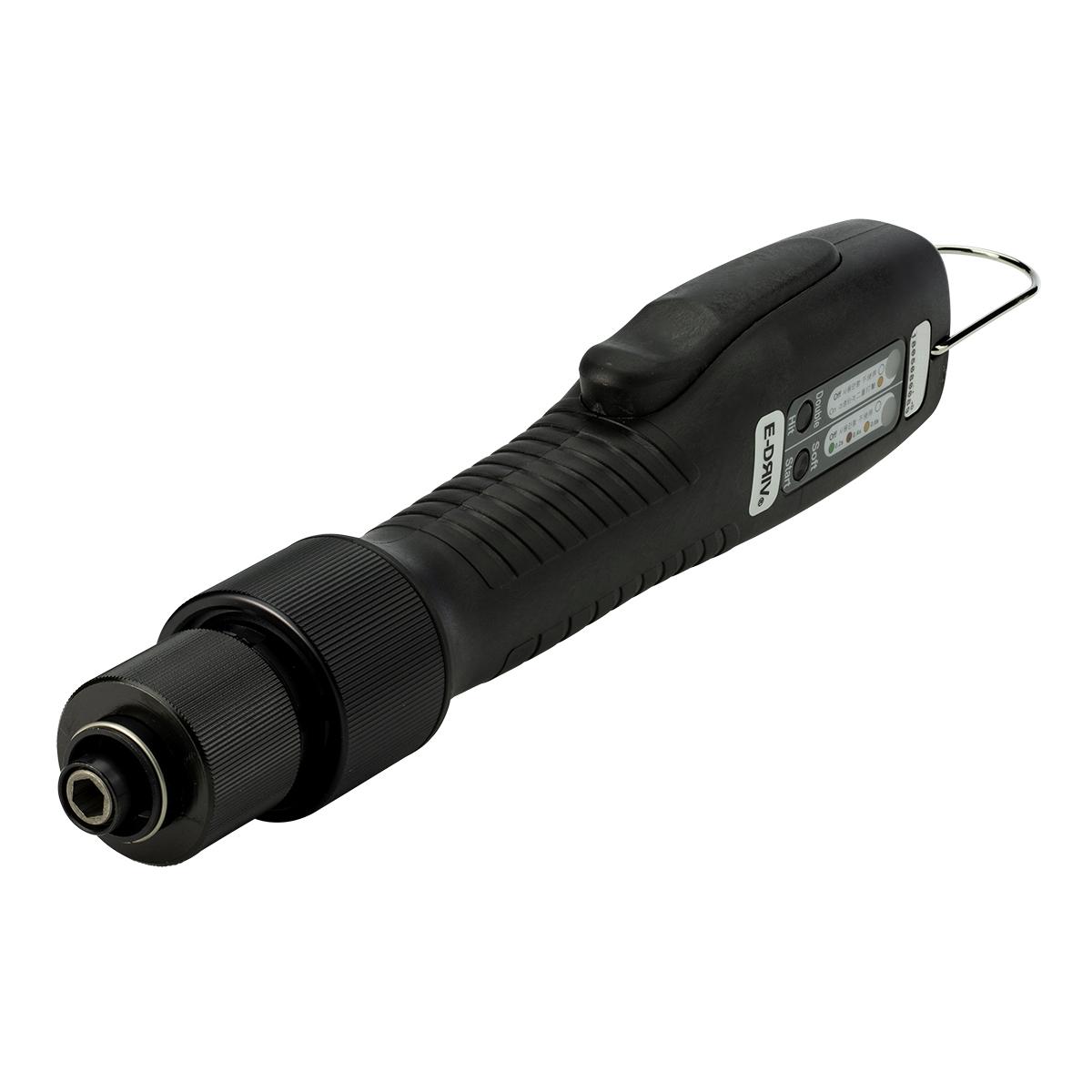

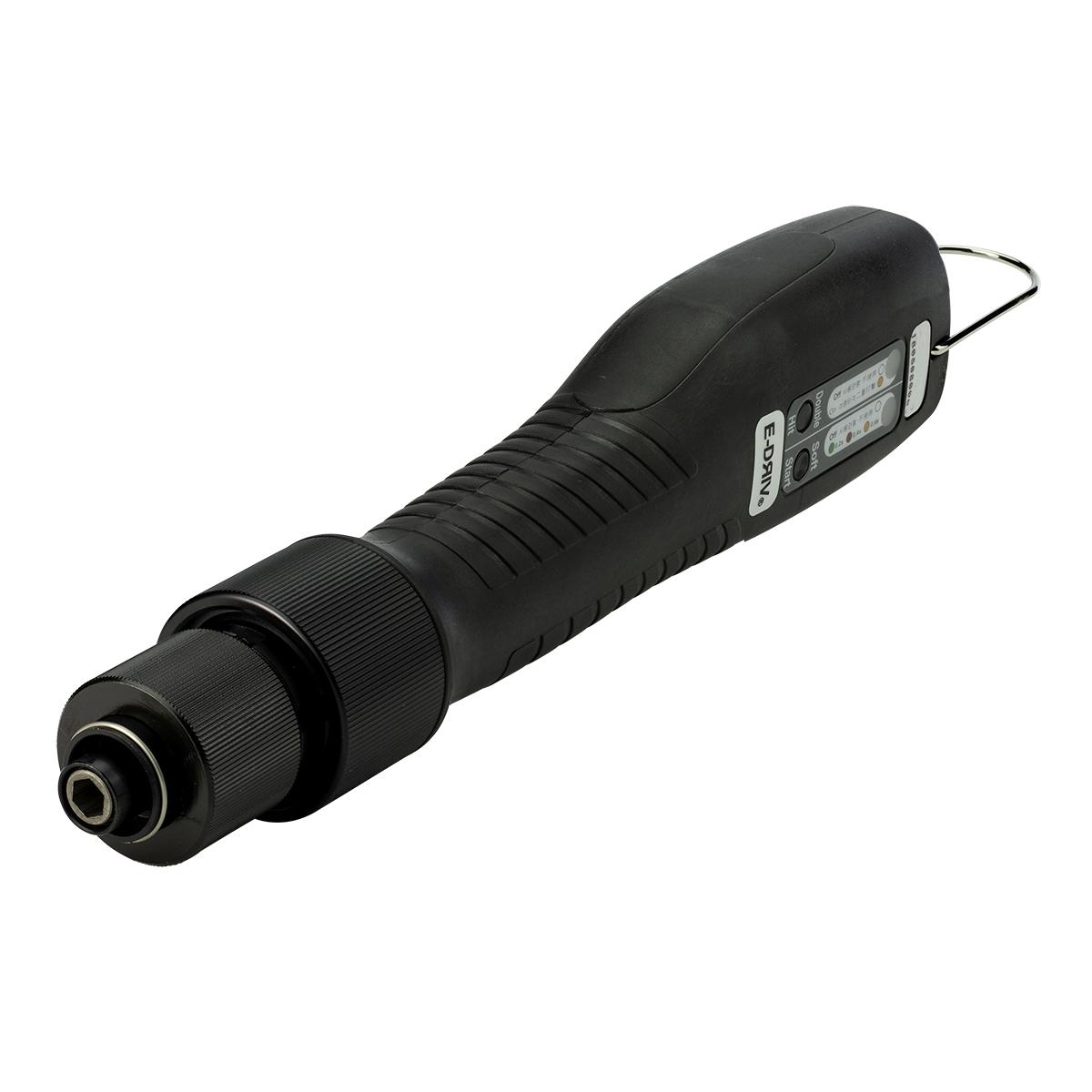

Mountz NF-Series Standard Plus Models

Set-Up

• Requires STC 40 Transformer (power supply).
• Requires Program Lock Key in order to adjust RPM & Soft Start Settings for NF-Series standard models. The Program Lock Key must be plugged into the STC40 Transformer.
• Pistol Grip Attachment: Converts the NF-Series in-line electric screwdriver into a pistol grip-style tool commonly used for vertical operations.
• Right Angle Adapters: Converts an in-line electric screwdriver into a right-angle power tool. It provides access to hard-to-reach fasteners in tight spaces.
• Drive Adapters: This adapter is for changing to a different bit drive socket configuration from a ¼” drive to a 4mm or 5mm HIOS drive on the NF series driver.

Error-Proofing & Process Improvement:

• Torque Cover: Torque cover protects the NF-Series electric screwdriver from incidental adjustment or operator tampering with the tool.
• Screw Counter: Add an error-proofing device to the NF driver, eliminate costly screw fastening errors and reduce scrap rates. The fastener tracking device counts the number of screws delivered and detects and displays fastening errors in real-time such as cross-threading, stripped screws, cam-outs, unfinished rundowns, and parts with missing screws.
• Screw Presenter: Deliver up to two screws per second to a fixed point where a human or robotic operator picks them up, cutting production time in half.
• Mag-O-Nets: Magnetize a bit by sliding it onto the bit—commonly used with a screw presenter.
• Vacuum Adapters: The kit is mounted on an electric screwdriver with a suction head that holds the screw on the bit, enabling the operator to pick it up with the tool. This effective, time-saving device works with most fasteners—commonly used with a screw presenter.

Ergonomics:

• Tool Balancers: Provides easy handling for operators that work with power tools for long, continuous hours. A balancer enables a tool to be positioned over the workstation and helps workers avoid fatigue which can lead to low productivity, mistakes, and injuries.
• Ergonomic Torque Arms: Providing ergonomic solutions for your assembly line workers lessens fatigue, prevents injuries, and boosts productivity. Torque arm absorbs the torque reaction generated by a power tool.. Mountz offers various arm configurations for flexible and mobile workstation designs. The ergonomic torque arms improve employee safety.
• Tool Stand: Prevent damage to power tools from dropping. Convenient tool positioning – adjust both vertically and horizontally.

Service & Calibration

• Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. Having an accurate way to test calibration onsite regularly is a great way to reduce risk. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
• Run-Down Adapters: It is used when testing power tools with a torque analyzer or sensor. The run-down adapter (RDA) is designed to provide consistent and reliable torque readings for power-driven torque control tools. An RDA reduces the impact and irregular peaks that cause poor repeatability. The device is mounted in-line between the tool drive and the transducer.
