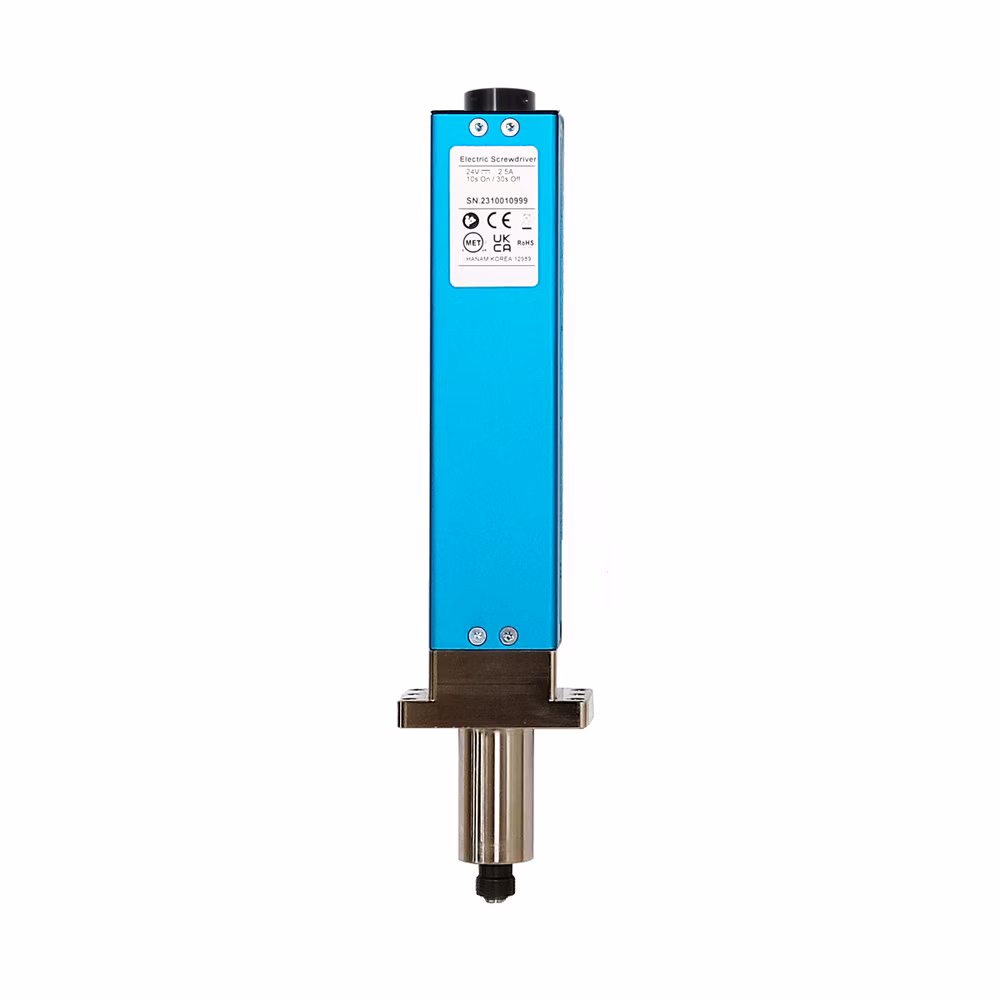

Mountz Mini MD-Series Robotic Electric Screwdrivers
The Mountz mini smart robotic screwdrivers are engineered for automation applications that provide manufacturers with a rapid, reliable, and precise method of fastening screws. Automation helps reduce production cycle times.
The mini MD-Series robotic torque screwdriver system provides engineers and operations with the latest error-proofing technology, eliminating manufacturing risks and reducing scrap rate costs.
Designed for high production and sensitive environments, the micro torque drivers are durable and reliable to ensure your assembly process runs smoothly with high-precision torque control.
Mini MD-Series drivers offer a torque range suitable for micro and low torque applications with torque capacity ranging from 1.4 up to 97.3 ozf.in.
Mini MD Screwdrivers MUST be combined with the MDC-22 Mini Controller.
Optimize Your Assembly Process:
- Accuracy ± 10% CW/CCW standard.
- Using a smart mini tool reduces tooling costs and improves operations by optimizing a company’s manufacturing footprint. A single electric screwdriver fastening system can replace up to 15 screwdrivers.
- All Mountz DC controllers include free product software (ParaMon) for programming and analysis – no annual licensing is required.
- Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
- ESD safe tool prevents electrostatic discharge.
- Description
- Reviews (0)
Description
Mountz Mini MD-Series robotic electric screwdrivers are micro-torque DC screwdrivers, 0.98–68.7 cN·m, built around a Swiss DC servo motor and driven by the MDC-22 mini controller with screw counting and error-proofing. Phil Industries, an authorised Mountz distributor in Singapore, supplies the Mini MD range with its controller, on-site demonstrations and after-sales support.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|---|
 |
MDA2203-E+C | Lever Start | 310372 | 5.5 – 27.8 ozf.in | 3.9 – 19.6 cN.m | 4mm Dr. |
 |
MDA2201-E+C | Lever Start | 310450 | 1.4 – 9.8 ozf.in | 0.98 – 6.9 cN.m | 4mm Dr. |
 |
MDA2203-A+C | Lever Start | 310451 | 5.5 – 27.8 ozf.in | 3.9 – 19.6 cN.m | 1/4″ F/Hex |
 |
MDA2203-E+C | Lever Start | 310452 | 5.5 – 27.8 ozf.in | 3.9 – 19.6 cN.m | 4mm Dr. |
 |
MDA2205-A+C | Lever Start | 310453 | 6.9 – 38.9 ozf.in | 4.9 – 38.9 cN.m | 1/4″ F/Hex |
 |
MDA2205-E+C | Lever Start | 310454 | 6.9 – 38.9 ozf.in | 4.9 – 38.9 cN.m | 4mm Dr. |
 |
MDA2208-A+C | Lever Start | 310455 | 12.5 – 62.5 ozf.in | 8.8 – 44.1 cN.m | 1/4″ F/Hex |
 |
MDA2208-E+C | Lever Start | 310456 | 12.5 – 62.5 ozf.in | 8.8 – 44.1 cN.m | 4mm Dr. |
 |
MDA2213-A+C | Lever Start | 310457 | 20.8 – 97.3 ozf.in | 14.7 – 68.7 cN.m | 1/4″ F/Hex |
Where the Mini MD-Series Robotic Electric Screwdrivers fit in Singapore
At centinewton-metre torque, a plain clutch driver either strips the thread or leaves the screw loose. The Mini MD robotic models are built for automated micro-assembly cells and robot end-effectors, and the MDC-22 controller stores presets, counts screws and reports through I/O. Because Mountz builds the tool as ESD safe, it suits Singapore PCB assembly, camera module, connector and medical device lines that run inside an EPA. For measured torque per joint at this scale, the transducerized Mini MDT-Series is the next step.
Pair it with
- Mountz Mini MDC controller (MDC-22)
- Mini MD-Series in-line electric screwdriver
- Mini MDT-Series transducerized version
- torque control basics
- ESD and cleanroom screwdriver guide
Frequently asked questions about Mini MD-Series robotic electric screwdrivers
What torque range do the Mini MD robotic models cover?
The Mini MD robotic family covers 0.98–68.7 cN·m, which suits M1 to M2.5 fasteners in electronics and precision device assembly. Choose the model whose band places your target torque near the middle.
Which controller runs the Mini MD-Series?
The Mountz MDC-22 mini controller, with a colour LCD touch screen for programming and preset selection.
Is the Mini MD-Series ESD safe?
Yes. Mountz builds the Mini MD-Series as an ESD-safe tool that prevents electrostatic discharge, so it can be used on grounded workstations inside an EPA under IEC 61340-5-1.
When should I choose the Mini MDT-Series instead?
Choose the transducerized Mini MDT-Series when your quality plan needs the measured torque of every micro fastening recorded, rather than a count and pass or fail result.
Can Phil Industries demonstrate the Mini MD robotic screwdriver in Singapore?
Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can demonstrate the Mini MD robotic screwdriver on your line, help you select the model and controller, and quote the complete system. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
- Drivers include a front mounting flange.
- Electric screwdriver is engineered for automation applications that provide manufacturers with a rapid, reliable and precise method of fastening screws. Automation helps reduce the production cycle time.
- Easy integration into the production line via ethernet or Modbus protocols. Rapid reconfiguration for new production projects into existing manufacturing infrastructure.
- Forward and reverse direction. Start and stop output signals.
MDC-22 Mini Controller
- Color LCD touch-screen provides an intuitive interface – quickly program and select fastening parameters.
- Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
- Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- Collect and save all fastening data on SD memory card.
- Mini Controller provides visibility into the fastening process with torque data analysis. (Real-time torque data and curve display. Perform analytics with Standard Deviation, Mean, Average, CP, CPK ).
- Mini Controller features a built-in stand, which can fold up snugly to the controller and mounted on the wall.
Free product (ParaMon) PC software — no annual licensing required — savings of $2K.
Error-Proofing
- Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
Process Optimization
- Suitable for micro and low torque applications.
- Achieve multiple fastening tasks with one screwdriver system. A single fastening system can replace up to 15 power tools.
- Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
- Programmable fastening sequences and workflows. Create standardized fastening workflows. Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- Monitor fastening quality with the screw counting process. The built-in function counts the number of screws delivered and detects cross-threading, omissions, and unfinished rundowns.
Data Collection and Analysis
- Data collection – record and store torque and fastening data. SD Card data memory slot (memory card included).
- Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
- Review torque curves and make adjustments to controller parameters
Mountz Quality Standards
- Low maintenance with an extended life cycle.
- Swiss DC servo motor provides precise, accurate, and repeatable torque control.
- ESD safe tool prevents electrostatic discharge.
Tool Packaging Includes
- Power tool table (3 meter length)
- Mounting flange
- Tool calibration report
Set-Up
- Requires MDC-22 Mini Controller.
- Drive Adapter: This adapter changes the bit drive socket configuration from a ¼” drive to a 4mm HIOS drive or vice versa.
- I/O Cable for connecting the Mini Controller to the 44P I/O Wiring Box device.
Process Improvement
- Automation Screw Presenter: Deliver up to two screws per second to a fixed point where a human or robotic operator picks them up, cutting production time in half.
- Vacuum Adapter: The kit is mounted on an electric screwdriver with a suction head that holds the screw on the bit, enabling the operator to pick it up with the tool. This effective, time-saving device works with most fasteners—commonly used with a screw presenter.
Service & Calibration
- Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. Having an accurate way to test calibration onsite regularly is a great way to reduce risk. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
- Run-Down Adapters: It is used when testing power tools with a torque analyzer or sensor. The run-down adapter (RDA) is designed to provide consistent and reliable torque readings for power-driven torque control tools. An RDA reduces the impact and irregular peaks that cause poor repeatability. The device is mounted in-line between the tool drive and the transducer.
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
Mountz also publishes further datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
