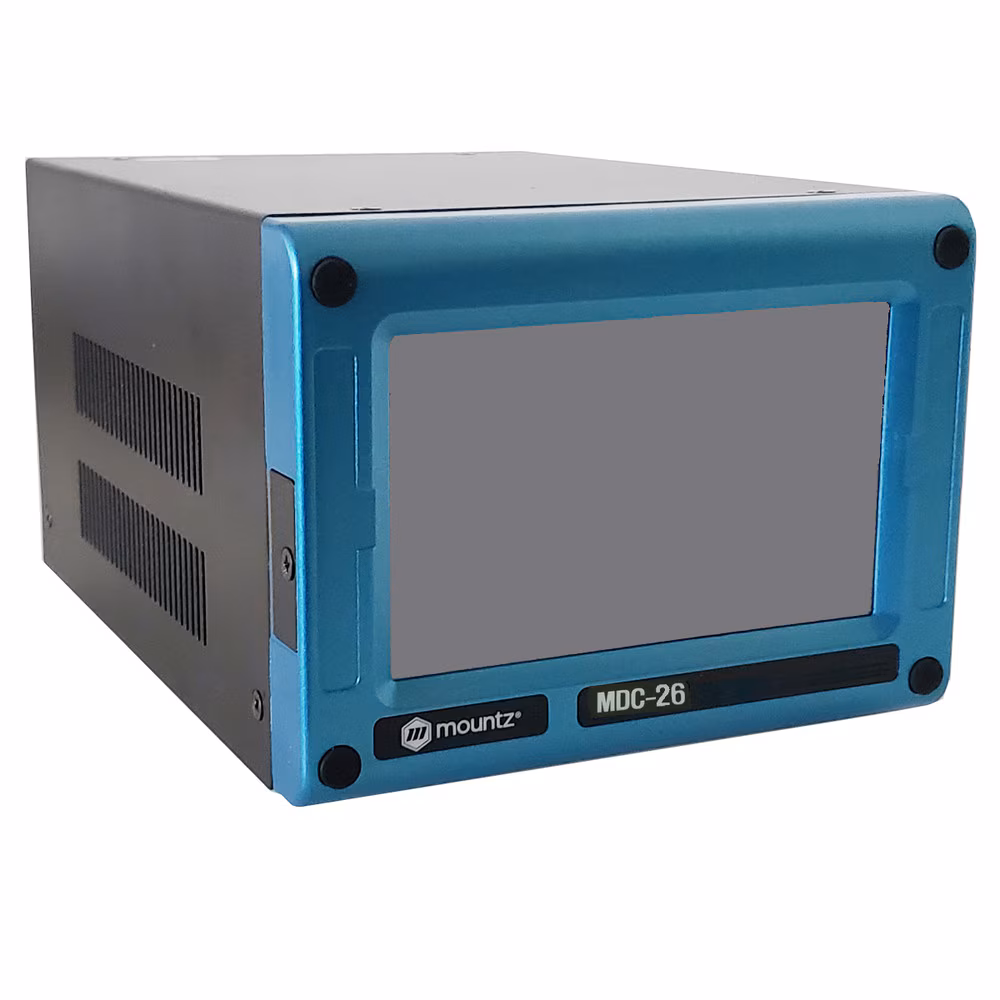

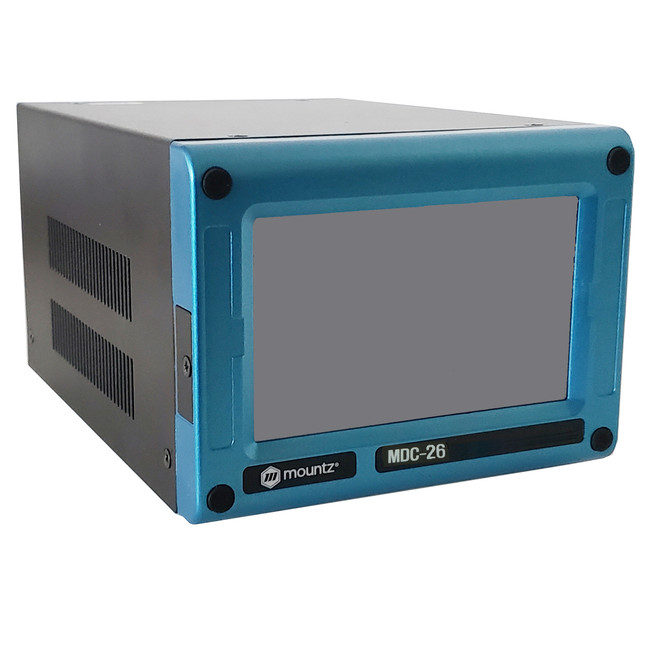

Mountz MDC v2 Controllers
The Mountz MDC v2 controllers drive the MDC series electric screwdrivers and log what the driver did. Each unit takes an SD card for fastening data.
- SD card data memory for traceable fastening records
- Input: 120 V or 230 V AC, 50–60 Hz, by model
- Output: DC, rated per controller — see the table
- Five models listed, matched to the driver you run
- Model, item number and dimensions are listed in the table below
- From Phil Industries, an authorised Mountz distributor in Singapore — held at our Ubi warehouse
- Description
- Reviews (0)
Description
Mountz MDC v2 controllers drive the MD-Series electric screwdrivers and log what each driver did, storing fastening records on an SD card for traceability. Phil Industries, an authorised Mountz distributor in Singapore, supplies MDC v2 controllers matched to the MD tools, with on-site set-up and after-sales support.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| Model | Item Name / Number | Input VAC | Output VDC | |
|---|---|---|---|---|
 |
MDC-26 Controller V2 with SD Card Data Memory (120V) | 310157 | AC120VC, 50-60Hz | DC38V 3.5A |
 |
MDC-32 Controller V2 with SD Card Data Memory (120V) | 310158 | AC120VC, 50-60Hz | DC38V 3.5A |
 |
MDC-26 Controller V2 with SD Card Data Memory (230V) | 310159 | AC230VC, 50-60Hz | DC38V 3.5A |
 |
MDC-32 Controller V2 with SD Card Data Memory (230V) | 310160 | AC230VC, 50-60Hz | DC38V 3.5A |
Where the MDC v2 Controllers fit in Singapore
An MD-Series screwdriver does nothing without its MDC v2 controller, and the controller is where the process is defined: torque and speed presets, the screw count for each product, and the I/O that tells the line whether a unit passed. Five models cover the MD range, each rated for the driver it runs, in 120 V and 230 V versions, so Singapore plants order the 230 V units. For lines that need a supervisor view of live results, add the TPM torque process monitoring touch screen.
Pair it with
- MD-Series pistol grip electric screwdriver
- MD-Series right angle
- MD-Series in-line
- MD-Series robotic
- TPM touch screen for MD-Series
- 44P I/O wiring box
- Mountz DC control tools
Frequently asked questions about MDC v2 controllers
Which screwdrivers work with MDC v2 controllers?
MDC v2 controllers run the Mountz MD-Series electric screwdrivers in pistol grip, right angle, in-line and robotic forms. Each controller model is rated for specific drivers, so order them as a matched pair.
Does the MDC v2 record fastening data?
Yes. Each MDC v2 unit takes an SD card and stores fastening records, which gives a traceable history per program and per shift.
Which MDC v2 model suits Singapore mains?
Choose the 230 V AC, 50 to 60 Hz version of the controller model that matches your MD screwdriver. Our engineers will confirm the pairing before quoting.
Is software included?
Yes. Mountz includes MountzCom III programming and analysis software with its DC controllers, with no annual licence fee.
Can Phil Industries demonstrate the MDC v2 controller and MD system in Singapore?
Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can demonstrate the MDC v2 controller and MD system on your line, help you select the model and controller, and quote the complete system. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
MDC Controller
- Color LCD touch-screen provides an intuitive interface – quickly program and select fastening parameters.
- Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
- Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- Collect and save all fastening data on SD memory card.
- Controller provides visibility into the fastening process with torque data analysis. (Real-time torque data and curve display. Perform analytics with Standard Deviation, Mean, Average, CP, CPK ).
- Controller features a built-in stand, which can fold up snugly to the controller and mounted on the wall.
Free product (ParaMon) PC software — no annual licensing required — savings of $2K.
Error-Proofing
- Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
- The EZ-Glider position control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors and ensures that every screw is correctly tightened in the correct sequence. Paired with MD-Series smart screwdrivers, the torque arm adds an extra layer of error-proofing to the fastening process.
Process Optimization
- Suitable for micro and low torque applications.
- Achieve multiple fastening tasks with one screwdriver system. A single fastening system can replace up to 15 power tools.
- Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
- Programmable fastening sequences and workflows. Create standardized fastening workflows. Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- Monitor fastening quality with the screw counting process. The built-in function counts the number of screws delivered and detects cross-threading, omissions, and unfinished rundowns.
Data Collection and Analysis
- Data collection – record and store torque and fastening data. SD Card data memory slot (memory card included).
- Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
- Review torque curves and make adjustments to controller parameters
Mountz Quality Standards
- Low maintenance with an extended life cycle.
- Swiss DC servo motor provides precise, accurate, and repeatable torque control.
- Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
Tool Packaging Includes
- Power tool table (3 meter length)
- Tool hanger hook
- Tool calibration report
Set-Up
- Requires MDC Controller.
- Drive Adapter: This adapter changes the bit drive socket configuration from a ¼” drive to a 4mm HIOS drive or vice versa.
- I/O Cable for connecting the MDC Controller to the 44P I/O Wiring Box device.
Error-Proofing & Process Improvement
- Bit Socket Tray: An error-proofing solution minimizes the risk of errors by automatically selecting the correct torque according to the socket or bit selected. It connects to the MDC controller. It will improve productivity and reduce operator errors. Saves downtime by automatically changing program settings for multiple fastening strategies.
- Position Control Torque Arms: Equipped with position encoders, the position control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors during the assembly process. The poka-yoke system reduces the risks of improperly fastening screws, ensuring that every screw is correctly tightened in the correct sequence.
- Screw Presenter: Deliver up to two screws per second to a fixed point where a human or robotic operator picks them up, cutting production time in half.
- Mag-O-Nets: Magnetize a bit by sliding the Mag-O-Net onto the bit—commonly used with a screw presenter.
- Vacuum Adapter: The kit is mounted on an electric screwdriver with a suction head that holds the screw on the bit, enabling the operator to pick it up with the tool. This effective, time-saving device works with most fasteners—commonly used with a screw presenter.
Ergonomics
- Tool Balancers: Provides easy handling for operators that work with power tools for long, continuous hours. A balancer enables a tool to be positioned over the workstation and helps workers avoid fatigue which can lead to low productivity, mistakes, and injuries.
- Ergonomic Torque Arms: Providing ergonomic solutions for your assembly line workers lessens fatigue, prevents injuries, and boosts productivity. Torque arm absorbs the torque reaction generated by a power tool. Mountz offers various arm configurations for flexible and mobile workstation designs. The ergonomic torque arms improve employee safety.
- Tool Stand: Prevent damage to power tools from dropping. Convenient tool positioning – adjust both vertically and horizontally.
Service & Calibration
- Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. Having an accurate way to test calibration onsite regularly is a great way to reduce risk. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
- Run-Down Adapters: It is used when testing power tools with a torque analyzer or sensor. The run-down adapter (RDA) is designed to provide consistent and reliable torque readings for power-driven torque control tools. An RDA reduces the impact and irregular peaks that cause poor repeatability. The device is mounted in-line between the tool drive and the transducer.
Mountz publishes a catalogue, operating manual and care documents for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
