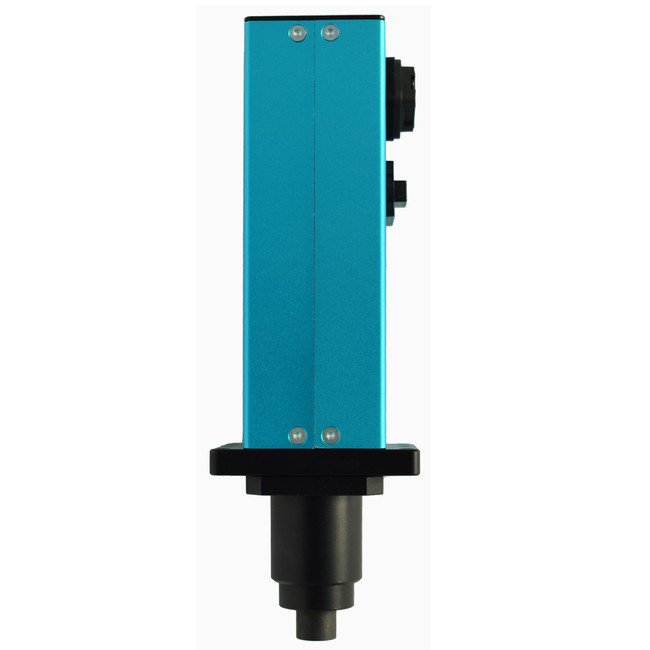

Mountz AD-Series Screwdriver
The DC control tool is a reliable robotic spindle system engineered for precise, accurate and repeatable torque control. The high performance automation fastening system allows manufacturers to optimize the assembly area, reduce labor costs and increase productivity. The robotic screwdriver system features built-in error-proofing data and screw counter. Multiple fastening strategies can be implemented for sensitive or of difficult assembly joints. Increase productivity as one tool can be programmed to do the job of multiple conventional tools; saving time, maintenance cost, space & training.
- Description
- Reviews (0)
Description
Mountz AD-Series Screwdriver — precise DC torque control
The Mountz AD-Series Screwdriver is a DC-controlled fastening tool built for precise, accurate and repeatable torque. It suits automated and robotic spindle assembly, so you can hold tight torque limits on every joint. Because the tool records error-proofing data and counts screws, it also helps your team catch missed or cross-threaded fasteners early.
In addition, one programmable AD-Series Screwdriver can replace several conventional drivers. As a result, assembly lines save space, cut training time and lower maintenance costs. Phil Industries supplies the Mountz AD-Series Screwdriver in Singapore and provides calibration support for new Mountz tools.
Where the AD-Series Screwdriver fits
Electronics, medical-device and precision-assembly plants rely on current-control screwdrivers for sensitive or hard-to-reach joints. Therefore this tool is a strong fit for Singapore and Southeast Asian manufacturers that need documented, consistent torque.
The Mountz AD-Series screwdriver is a robotic DC spindle for automated fastening, covering 1.4 to 49 N·m with built-in error-proofing data and a screw counter, and it runs from the ADC controller. Phil Industries, an authorised Mountz distributor in Singapore, supplies the AD-Series with its controller, integration advice and after-sales support.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|---|
 |
AD050R01-A/C | Spindle | 310060 | 0.43 – 5.2 lbf.in | 4.5 – 58.8 cN.m | 1/4″ F/Hex |
 |

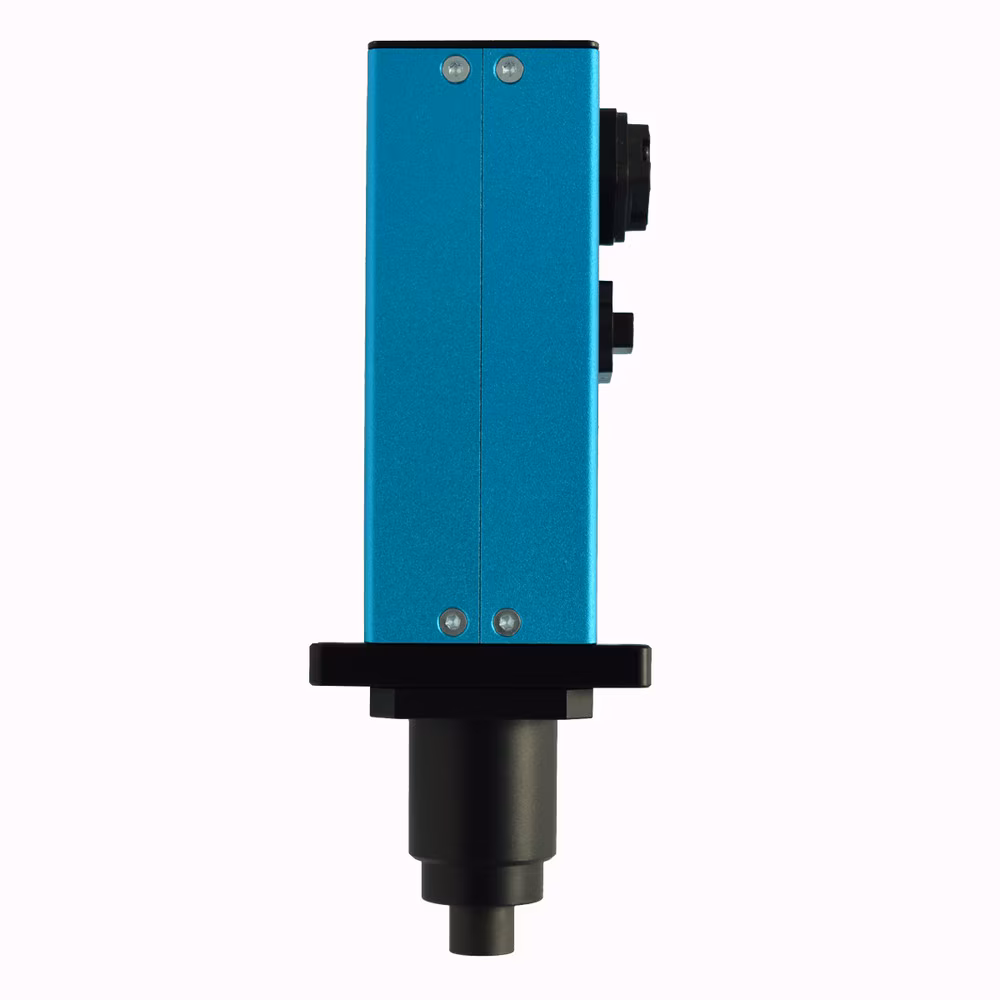

AD050R01-E/C | Spindle | 310061 | 0.43 – 5.2 lbf.in | 4.5 – 58.8 cN.m | 4mm D-Cut |
 |
AD100R01-A/C | Spindle | 310062 | 1.7 – 10.4 lbf.in | 19.6 – 117.7 cN.m | 1/4″ F/Hex |
 |

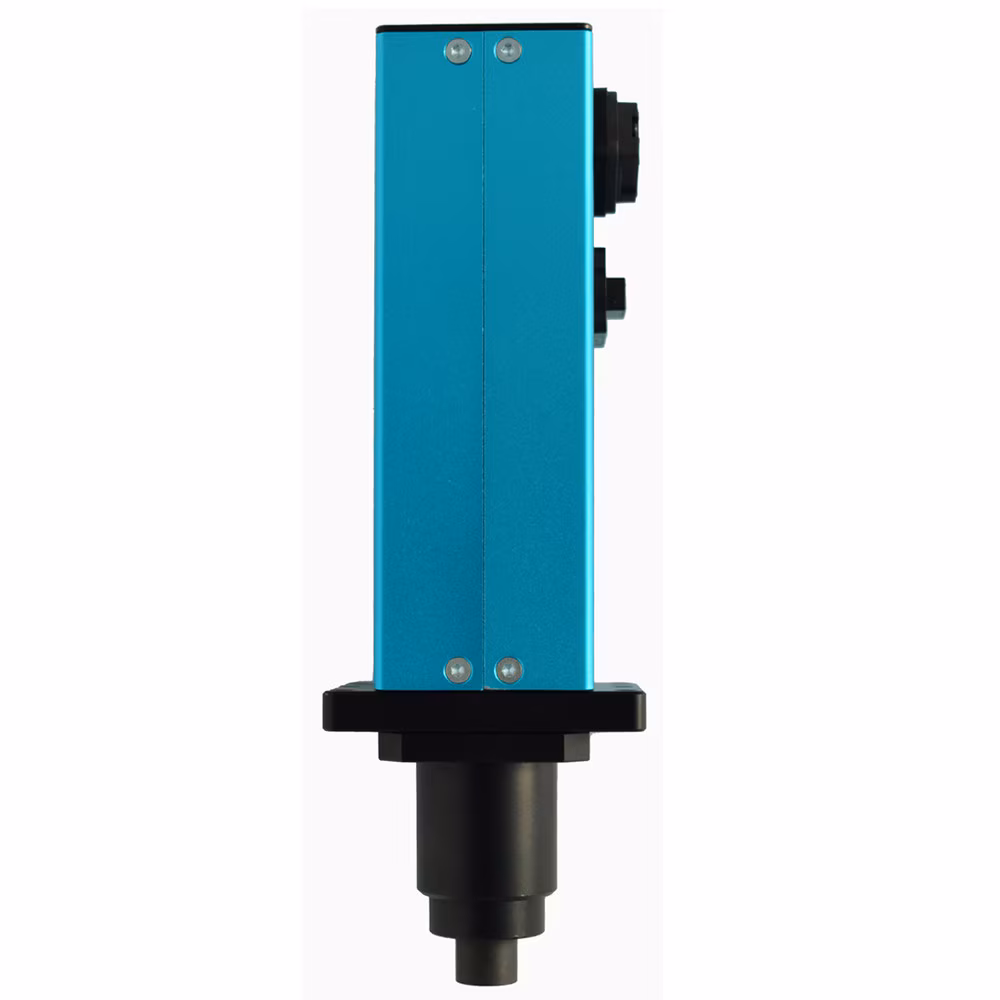

AD150R01-A/C | Spindle | 310063 | 1.7 – 17.3 lbf.in | 19.6 – 196.2 cN.m | 1/4″ F/Hex |
 |
AD150R02-A | Spindle | 310064 | 3.4 – 24.3 lbf.in | 39.2 – 274.6 cN.m | 1/4″ F/Hex |
 |

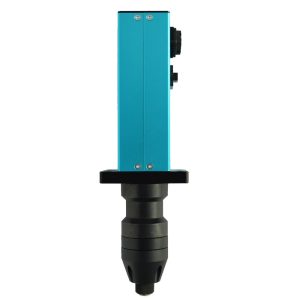

AD150R04-A | Spindle | 310065 | 4.34 – 43.4 lbf.in | 49 – 490.5 cN.m | 1/4″ F/Hex |
 |
AD150R11-A | Spindle | 310066 | 13 – 86.8 lbf.in | 1.4 – 9.8 N.m | 1/4″ F/Hex |
 |

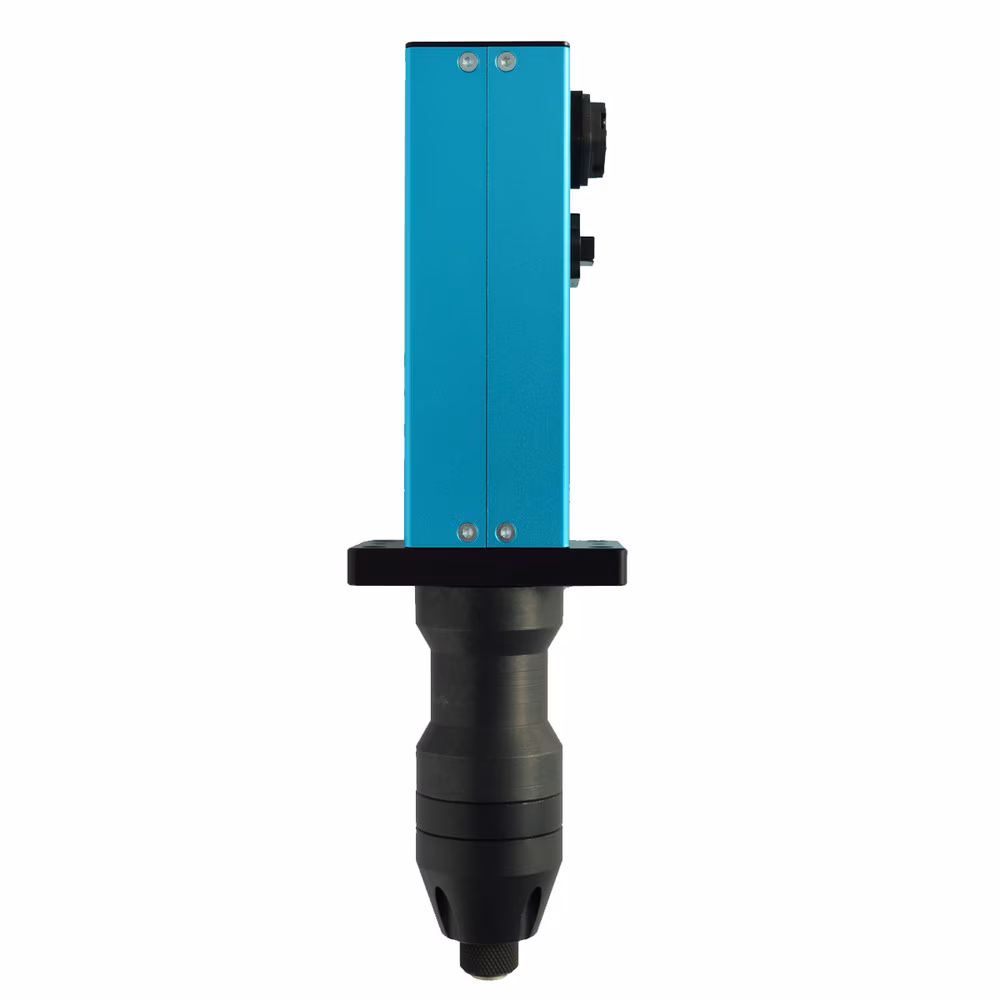

AD150R16-A | Spindle | 310067 | 26 – 156.2 lbf.in | 2.9 – 17.6 N.m | 1/4″ F/Hex |
 |

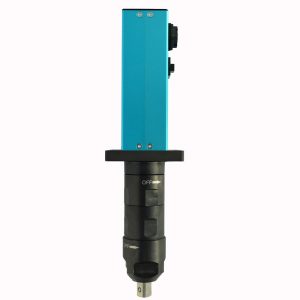

AD150R16-Q | Spindle | 310068 | 26 – 156.2 lbf.in | 2.9 – 17.6 N.m | 3/8″ Sq. Dr. |
 |
AD150R36-Q | Spindle | 310069 | 43.4 – 260.4 lbf.in | 4.9 – 29.4 N.m | 3/8″ Sq. Dr. |
 |
AD150R64-Q | Spindle | 310070 | 86.8 – 434 lbf.in | 9.8 – 49 N.m | 3/8″ Sq. Dr. |
 |
AD150R64-Q | Spindle | 310071 | 86.8 – 434 lbf.in | 9.8 – 49 N.m | 1/2″ Sq. Dr. |
Where the AD-Series Screwdriver fits in Singapore
Automation integrators and equipment builders in Singapore mount the AD-Series screwdriver on gantries, SCARA robots and dedicated fastening stations where cycle time and repeatability matter more than operator feel. The ADC controller holds up to 15 process sequences of 10 steps, offers digital I/O for the PLC, and reports fastening data with mean, standard deviation, Cp and Cpk through MountzCom III. As a result, the cell can select a sequence per product, count screws, and reject a unit automatically.
Pair it with
- Mountz ADC controllers (required)
- ECT-Series robotic transducerized screwdriver
- MD-Series robotic electric screwdriver
- Vacuum adapter kits for DC control tools
- Mountz DC control tools
- torque control basics
Frequently asked questions about AD-Series screwdriver
Which controller runs the AD-Series screwdriver?

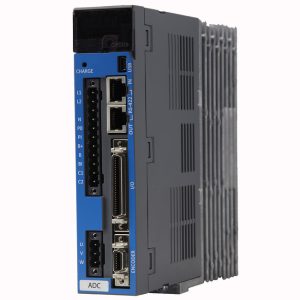

The Mountz ADC controller, available as ADC-100, ADC-200 and ADC-400 to match the spindle model. Controllers are matched to the driver and are not interchangeable across series.
What torque range does the AD-Series cover?
The AD-Series spindles cover 1.4 to 49 N·m across their models. Choose the spindle whose band places your target torque near the middle.
How does the AD-Series handle error-proofing in an automated cell?
The ADC controller stores up to 15 process sequences with 10 program steps each, counts screws per sequence, and signals OK or NG through digital I/O so the PLC can pass or reject the unit.
Is fastening data available for quality records?
Yes. The controller collects fastening data and MountzCom III software, included at no licence fee, provides mean, standard deviation, Cp and Cpk analysis.
Can Phil Industries demonstrate the AD-Series robotic spindle in Singapore?
Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can demonstrate the AD-Series robotic spindle on your line, help you select the model and controller, and quote the complete system. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
- Various models that range from 0.08 – 434 lbf.in
- Productivity: Increase productivity with one tool instead of 2 – 8 tools. Provides a consistently repeatable process control and eliminates potential variations
- Flexibility: Easy integration into a production line—rapid reconfiguration for new production projects.
- ROI: Optimum asset utilization. Tooling expense delivers favorable return of investment.
- Quality: Traceability and error-proofing. Real time monitoring. Swiss DC servo motor provides precise, accurate and repeatable torque control.
- I/O Interface: Digital I/O signals for communication with external devices such as PLC
- Controller Memory: Up to 15 process sequences with 10 program steps. Collect and save all fastening data on an SD memory card.
- Torque Analysis: Fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ) with MountzCom III software.
- Controller is fully programmable via the touch screen.
- Certified and documented fastening results. Supplied with free certification.
- Operate a leaner production environment with a flexible, configurable tool setup.
- Make fastening compliance and documentation easy.
Mountz publishes a catalogue, operating manual and care documents for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
Mountz AD-Series Screwdriver — frequently asked questions
What is the Mountz AD-Series Screwdriver used for?
It delivers programmable DC torque control for automated and robotic assembly. In short, it keeps fastening accurate and repeatable across high-volume production.
Does the AD-Series Screwdriver need calibration?
Yes. Like any precision torque tool, it should be calibrated regularly. Phil Industries provides calibration support for new Mountz tools supplied in Singapore.
Can Phil Industries supply the AD-Series Screwdriver in Singapore?
Yes. Phil Industries is a Mountz torque tool supplier in Singapore. Please contact us for pricing, lead time and the right model for your line.
Explore the full range on our Mountz torque tools page.
