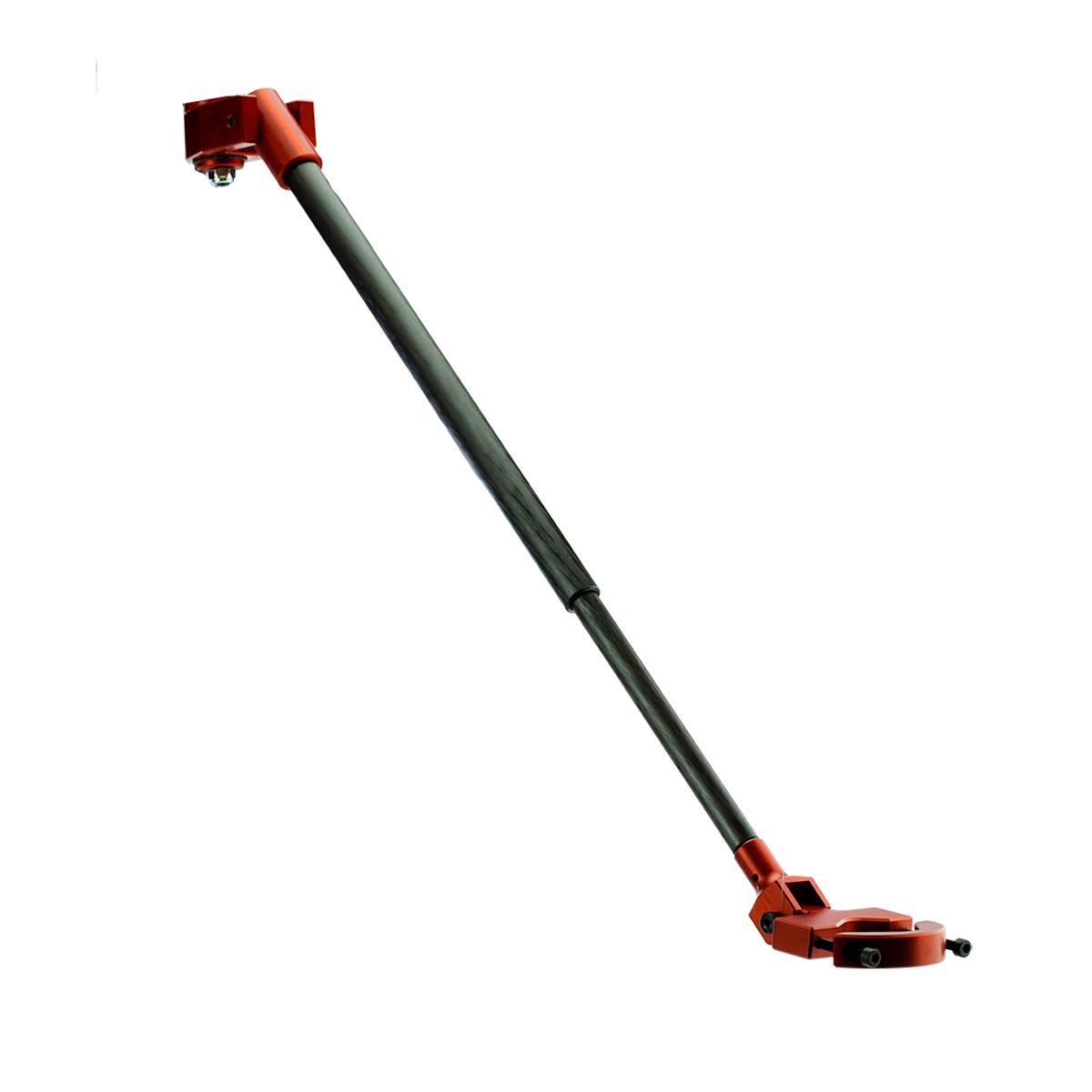

Mountz EZ-Glider Telescoping Torque Arms
Lightweight Carbon Fiber Precision for High-Volume Assembly The Mountz EZ-Glider Telescoping Torque Arm is an essential ergonomic tool designed to improve fastening accuracy while protecting operators in rigorous production environments. Crafted from premium, lightweight carbon fiber, this arm collapses like a telescope, providing smooth and fluid movement that allows operators to focus on precision without the physical strain of tool torque.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Max Torque Range – American | Torque Units – American | Max Torque Range – S.I. | Torque Units – S.I. | Max Torque Range – Metric | Torque Units – Metric | Clamp Diameter | Minimum Arm Reach | Maximum Arm Reach | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EZ-12T | 260075 | 8.8 | lbf.ft | 12 | N.m | 1.2 | kgf.m | 1 – 1 1/2″ | 18.1″ | 37″ |
|
EZ-12T/1500 | 260115 | 8.8 | lbf.ft | 12 | N.m | 1.2 | kgf.m | 1 – 1 1/2″ | 25.6″ | 59″ |
|
EZ-12T/2000 | 260116 | 8.8 | lbf.ft | 12 | N.m | 1.2 | kgf.m | 1 – 1 1/2″ | 32.3″ | 78.7″ |
 |
EZ-30T | 260076 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 18.7″ | 37.5″ |
|
EZ-30T/1500 | 260117 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 25.8″ | 59″ |
|
EZ-30T/2000 | 260118 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 32.4″ | 78.7″ |
|
EZ-30T/2500 | 260119 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 39.1″ | 98.4″ |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Various models that range from 0.08 – 24.3 lbf.in
- Increase productivity with one tool instead of 2 – 8 tools. Perfect for cell based manufacturing environments, change torque via front panel, PLC or direct connection to I/O on controller.
- Visual digital torque & speed control. .
- Built in screw counter, error detection, fastening strategy setting and customized software package provide documented fastening and control.
- State of the art technology at a fraction of the price. Replace 2 – 4 tools with 1 HD-Series system.
- Electric Screwdrivers feature a high performance brushless motor design that provides durability and reduces the standard maintenance costs for electric screwdrivers.
- ESD housing and bit tip control to 1 ohm, (cable not ESD).
- Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
- Programmable digital torque setting with memory for 8 preset torque settings.
- 25P I/O interface to a PLC or 8 direct sensor ports.
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
