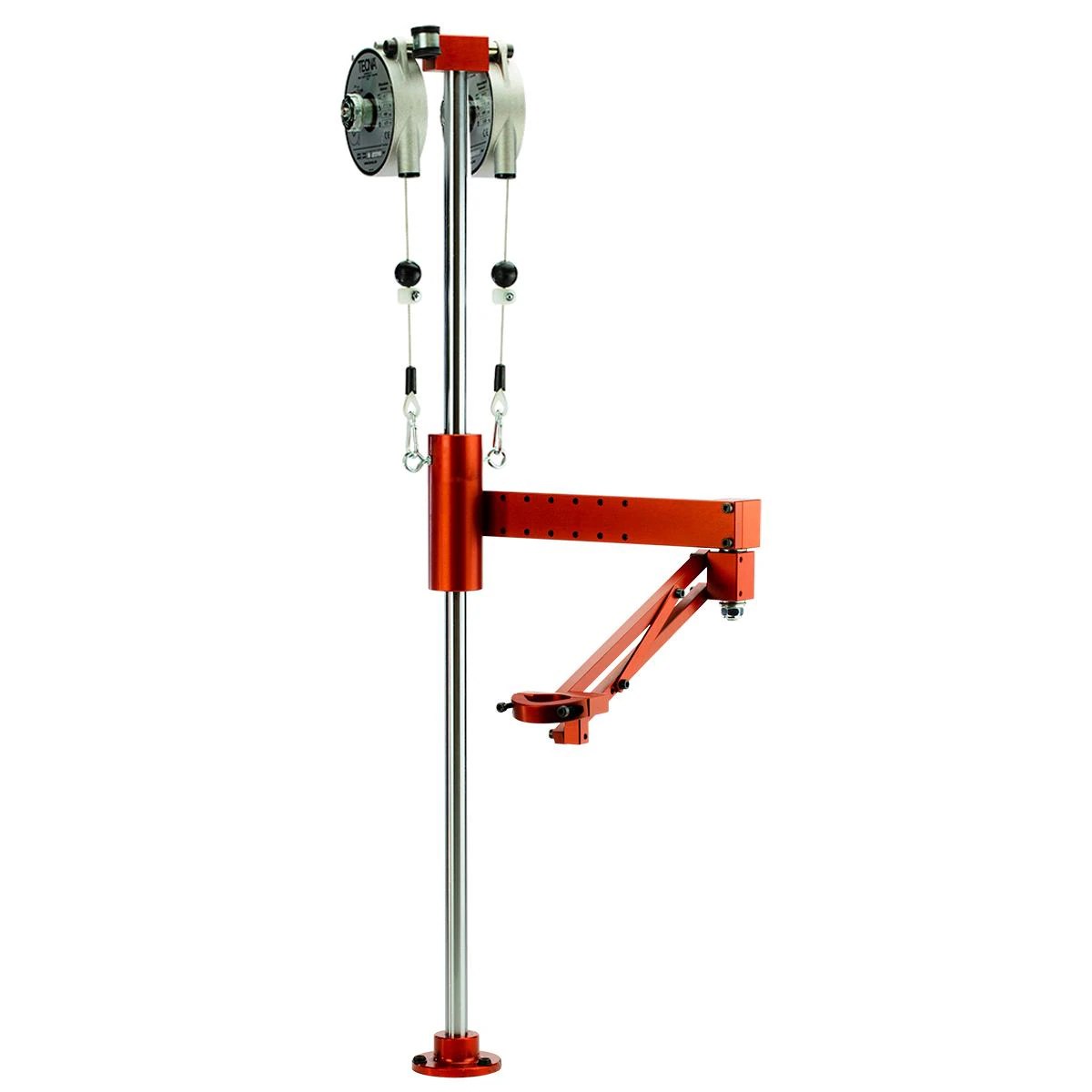

Mountz EZ-Glider Articulated Torque Arms
The EZ-Glider torque arms are designed to improve production and quality control during the assembly process. With the ability to bend like an elbow, the torque arm provides agility to position the tool in a variety of positions for different applications. Arm can be set at an inclination of 0º, 22.5º & 45º. The effortless handling of the torque arm provides comfortable tool operation and increased production.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Max Torque Range – American | Torque Units – American | Max Torque Range – S.I. | Torque Units – S.I. | Max Torque Range – Metric | Torque Units – Metric | Clamp Diameter | Arm Reach At Inclination 0 | Arm Reach At Inclination 22.5 | Arm Reach At Inclination 45 | Tool Height (IN) | Balance Weight Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

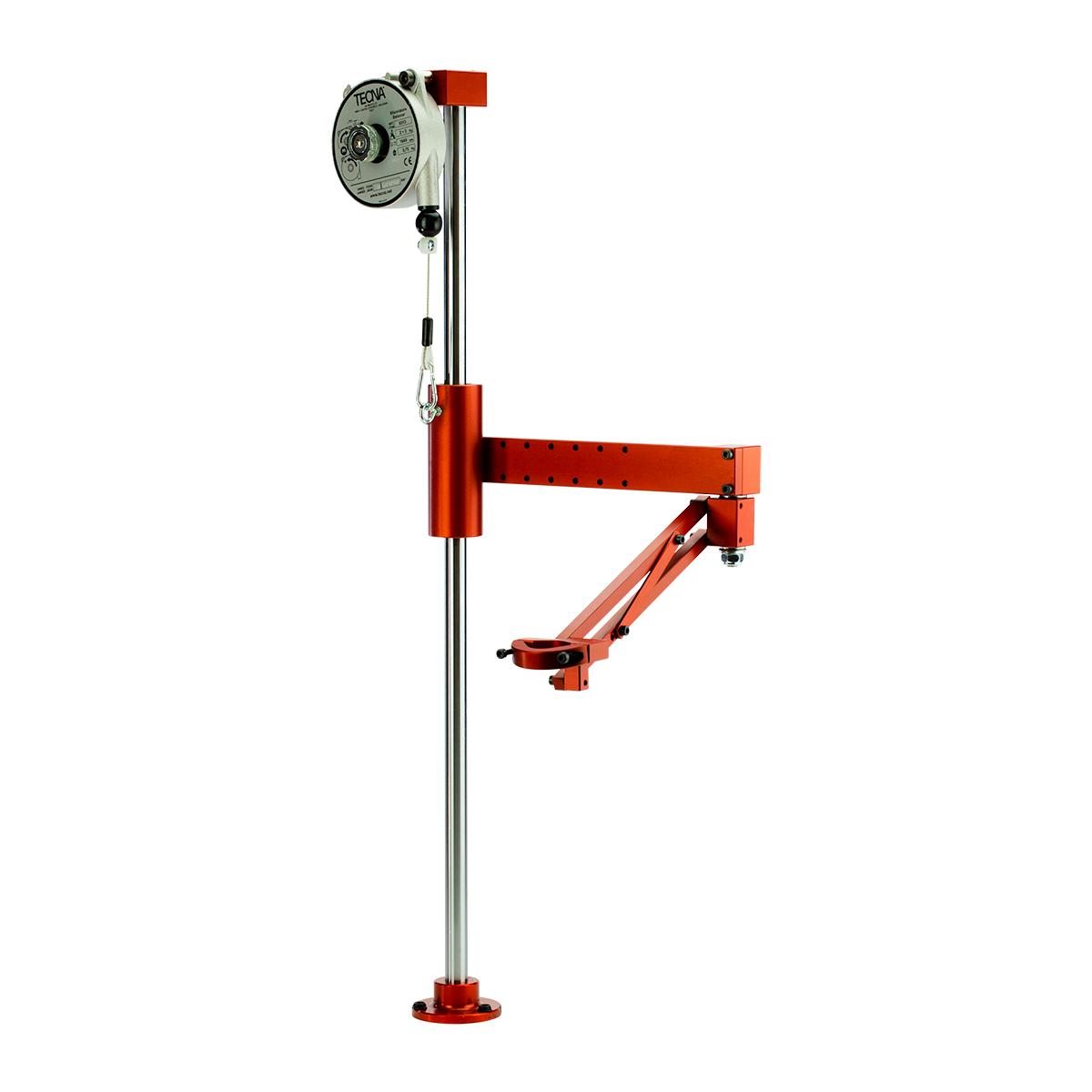

EZ-12R | 260081 | 8.8 | lbf.ft | 12 | N.m | 1.2 | kgf.m | 1 – 1 1/2″ | 15 1/8″ – 21″ | 14 1/2″ – 20″ | 12 1/3″ – 18″ | 32.5 | 1.1 – 2.6 lbs |
 |
EZ-25R | 260082 | 18.4 | lbf.ft | 25 | N.m | 2.6 | kgf.m | 1 – 2″ | 15 1/8″ – 21 1/2″ | 15″ – 20 1/2″ | 12 7/8″ – 18 1/2″ | 36.5 | 2.2 – 4.8 lbs |
|
EZ-40R | 260083 | 29.5 | lbf.ft | 40 | N.m | 4.1 | kgf.m | 1 – 2″ | 22 1/4″ – 30″ | 21 1/8″ – 29″ | 18 1/8″ – 26″ | 40.5 | 3.1 – 4.8 lbs |
|
EZ-100R | 260084 | 73.7 | lbf.ft | 100 | N.m | 10.2 | kgf.m | 1 – 2″ | 26 1/3″ – 34″ | 25 1/8″ – 33″ | 22″ – 29 1/2″ | 40.5 | 4.4 – 7.7 lbs |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Prevents cross threading and side load. Keeps tool perpendicular.
- Reduces RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) while boosting production.
- With the ability to bend like an elbow, the torque arm provides agility to position the tool in a variety of positions for different applications. Arm can be set at an inclination of 0º, 22.5º & 45º.
- Provides smooth flexible range as the arm absorbs torque reactions from electric & air screwdrivers, angle nut runners, pulse tools, pistol grip tools, grinders and drills.
- Arm length is adjustable.
- Includes an in-line driver clamp.
- Versatile torque arm works with a variety of tools, using different tool clamp options: angle drivers, pistol grip drivers, & in-line drivers.
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
