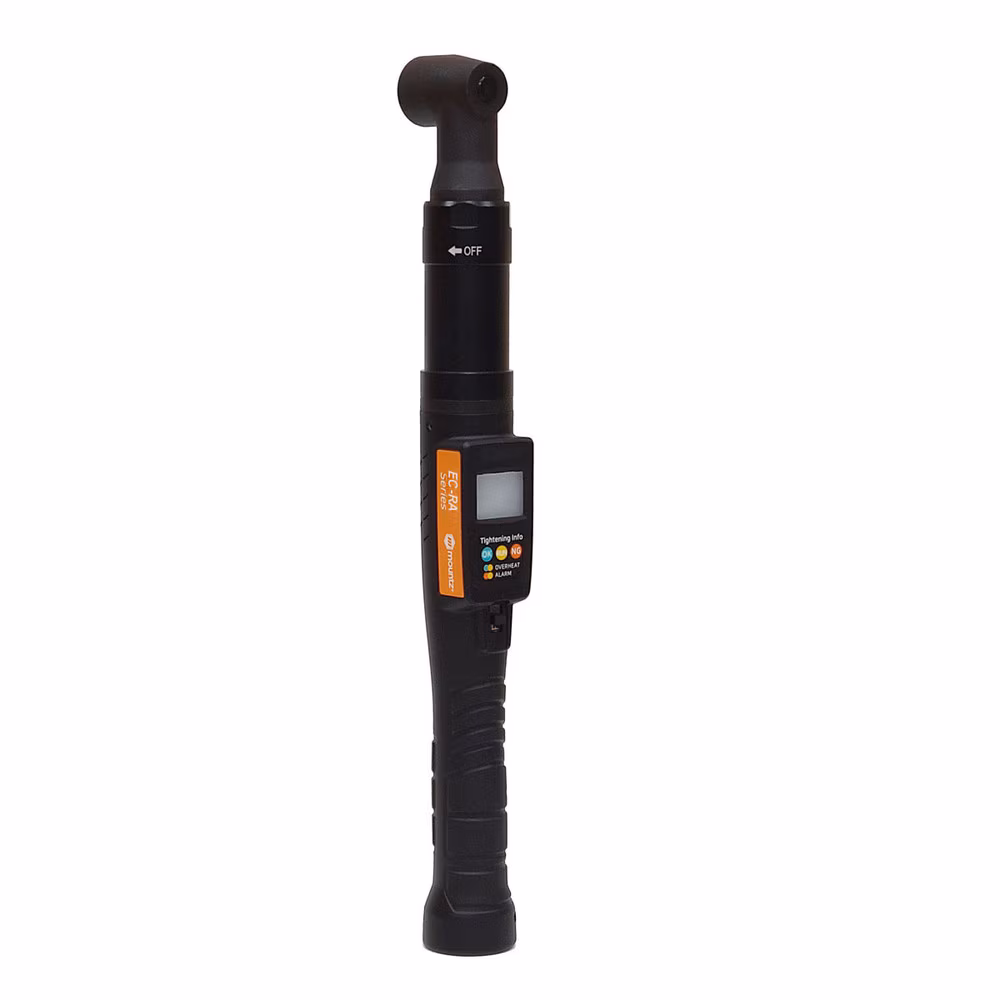

Mountz EC-Series Right Angle Electric Screwdrivers
Mountz EC smart right angle torque screwdriver systems provide engineers and operations with the latest error-proofing technology, eliminating manufacturing risks and reducing scrap rate costs.
Designed for high production and sensitive environments, the EC drivers are durable and reliable to ensure your assembly process runs smoothly with high-precision torque control.
Combined with built-in screw counters and error-proofing software, Mountz DC control tools offer maximum production results and product oversight.The ECT control system monitors and controls all aspects of the automation process, from installing error-proofing disciplines to adaptive fastening strategies.
EC screwdrivers MUST be combined with the ECD Controller for programming.
EC drivers offer a torque range suitable for micro, low, and higher torque applications.
All Mountz DC controllers include free product software for programming and analysis – no annual licensing is required.
Optimize Your Assembly Process:
- Accuracy ± 10% CW/CCW standard.
- Using a smart tool reduces tooling costs and improves operations by optimizing a company’s manufacturing footprint. A single electric screwdriver fastening system can replace up to 15 screwdrivers.
- All Mountz DC controllers include free product software for programming and analysis – no annual licensing is required.
- Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
- The EZ-Glider position control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors and ensures that every screw is correctly tightened in the correct sequence. Paired with EC smart screwdrivers, the torque arm adds an extra layer of error-proofing to the fastening process.
- Mountz EC screwdrivers are clean room compliant (ISO14644-1 2015 Class 5).
- NEW – MountzCom III Software: Empower your team to maximize productivity, efficiency, and control of your tools like never before with an improved suite of quality-of-life improvements. Customization meets simplicity with MountzCom III’s user role preferences. Tailor access and permissions to individual team members, granting them the right level of control and visibility. Our software ensures that every user experiences a role centered interface, reducing errors in selecting and editing parameters.
- Description
- Reviews (0)
Description
Mountz EC-Series right angle electric screwdrivers are corded DC torque screwdrivers that run from the ECD controller, with built-in screw counting and error-proofing programs instead of a plain clutch. Phil Industries, an authorised Mountz distributor in Singapore, supplies the EC range with the ECD controller, on-site demonstrations and after-sales support.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|---|
 |
EC40000-RA | Right Angle | 313174 | 0.7 – 3.5 lbf.in | 0.1 – 0.4 N.m | 1/4″ F/Hex |
 |
EC40050-RA | Right Angle | 313175 | 1.2 – 6.1 lbf.in | 0.15 – 0.7 N.m | 1/4″ F/Hex |
 |
EC40100-RA | Right Angle | 313176 | 2.4 – 12.2 lbf.in | 0.3 – 1.4 N.m | 1/4″ F/Hex |
 |
EC40200-RA | Right Angle | 313177 | 5.9 – 29.5 lbf.in | 0.7 – 3.3 N.m | 1/4″ F/Hex |
 |
EC40300-RA | Right Angle | 313178 | 8.7 – 43.4 lbf.in | 1 – 4.9 N.m | 1/4″ F/Hex |
 |
EC50100-RA | Right Angle | 313024 | 7.8 – 39.1 lbf.in | 0.9 – 4.4 N.m | 1/4″ F/Hex |
 |
EC50104-RA | Right Angle | 313234 | 7.8 – 39.1 lbf.in | 0.9 – 4.4 N.m | 3/8″ Sq. Dr. |
 |
EC50120-RA | Right Angle | 313235 | 11.3 – 56.4 lbf.in | 1.3 – 6.4 N.m | 1/4″ Sq. Dr. |
 |
EC50124-RA | Right Angle | 313236 | 11.3 – 56.4 lbf.in | 1.3 – 6.4 N.m | 3/8″ Sq. Dr. |
 |
EC50150-RA | Right Angle | 313025 | 13 – 65.1 lbf.in | 1.5 – 7.4 N.m | 1/4″ F/Hex |
 |
EC50154-RA | Right Angle | 313237 | 13 – 65.1 lbf.in | 1.5 – 7.4 N.m | 3/8″ Sq. Dr. |
Higher torque bands: from EC50200-RA
These models cover the upper half of the range, whereas the bands above suit lighter fasteners.
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|---|
 |
EC50200-RA | Right Angle | 313026 | 19.1 – 95.5 lbf.in | 2.2 – 10.8 N.m | 1/4″ F/Hex |
 |
EC50204-RA | Right Angle | 313238 | 19.1 – 95.5 lbf.in | 2.2 – 10.8 N.m | 3/8″ Sq. Dr. |
 |
EC50300-RA | Right Angle | 313027 | 27.8 – 138.9 lbf.in | 3.1 – 15.7 N.m | 1/4″ F/Hex |
 |
EC50304-RA | Right Angle | 313239 | 27.8 – 138.9 lbf.in | 3.1 – 15.7 N.m | 3/8″ Sq. Dr. |
 |
EC50500-RA | Right Angle | 313240 | 41.7 – 208.3 lbf.in | 4.7 – 23.5 N.m | 1/4″ F/Hex |
 |
EC50504-RA | Right Angle | 313241 | 41.7 – 208.3 lbf.in | 4.7 – 23.5 N.m | 3/8″ Sq. Dr. |
 |
EC50604-RA | Right Angle | 313242 | 55.6 – 277.7 lbf.in | 6.3 – 31.4 N.m | 3/8″ Sq. Dr. |
 |
EC50804-RA | Right Angle | 313243 | 69.4 – 347.2 lbf.in | 7.9 – 39.2 N.m | 3/8″ Sq. Dr. |
 |
EC50805-RA | Right Angle | 313244 | 69.4 – 347.2 lbf.in | 7.9 – 39.2 N.m | 1/2″ Sq. Dr. |
 |
EC50904-RA | Right Angle | 313245 | 86.8 – 434 lbf.in | 9.8 – 49 N.m | 3/8″ Sq. Dr. |
 |
EC50905-RA | Right Angle | 313246 | 86.8 – 434 lbf.in | 9.8 – 49 N.m | 1/2″ Sq. Dr. |
Manuals and Guides for the EC-Series
- View the product manual for the ECTD Controller.
- View the MountzCom III Software for the ECT-Series.
- View the Power Tool Cable Installation & Management Guide for the EC electric screwdrivers.
Where the EC-Series Right Angle Electric Screwdrivers fit in Singapore
The right angle EC models span 0.1–49 N·m and suit recessed joints and higher-torque frame assembly. Singapore EMS plants and electronics assemblers choose the EC-Series when they need repeatable ±10% torque, program storage and screw counting at a lower system cost than a transducerized tool. Mountz also rates the EC-Series for ISO 14644-1 Class 5 cleanrooms, so the same tool works in controlled assembly bays. However, when the audit requires measured torque per joint, step up to the ECT-Series transducerized version.
Pair it with
- Mountz ECD controller (required)
- EC-Series in-line electric screwdriver
- EC-Series pistol grip electric screwdriver
- ECT-Series transducerized version
- Bit socket tray for error-proofing
- torque control basics
- ESD and cleanroom screwdriver guide
Frequently asked questions about right angle electric screwdrivers
How is the EC-Series different from a clutch electric screwdriver?
The ECD controller sets torque, speed and soft start electronically and stores them as presets, adds a screw counter and error-proofing sequence, and reports results through I/O. A clutch screwdriver only slips at a set point and records nothing.
Which controller runs EC right angle screwdrivers?
The Mountz ECD controller. Choose the 120 V or 230 V model to match your supply; Singapore sites use the 230 V version.
What torque range do the right angle EC models cover?
The right angle EC family covers 0.1–49 N·m across its models. Pick the model whose band places your target torque near the middle.
When should I choose the ECT-Series instead?
Choose ECT when your quality system needs the actual torque of each fastening recorded. ECT drivers add a built-in transducer with ±5% clockwise accuracy, while the EC-Series is rated ±10% and records counts and pass or fail rather than measured torque.
Can Phil Industries demonstrate the EC right angle screwdriver in Singapore?
Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can demonstrate the EC right angle screwdriver on your line, help you select the model and controller, and quote the complete system. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
ECD Controller
- Fully programmable via the touch screen
- Digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
- Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- Collect and save all fastening data on SD memory card.
- ECD Controller provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).
Error-Proofing
- Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
- The EZ-Glider position control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors and ensures that every screw is correctly tightened in the correct sequence. Paired with EC smart screwdrivers, the torque arm adds an extra layer of error-proofing to the fastening process.
Process Optimization
- Achieve multiple fastening tasks with one screwdriver system. A single fastening system can replace up to 15 power tools.
- Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
- Programmable fastening sequences and workflows. Create standardized fastening workflows. Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- The built-in screw counting function ensures that all screws are accounted for during the assembly process.
- Operational for thread tapping applications.
Data Collection and Analysis
- Data collection – record and store torque and fastening data.
- Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
Mountz Quality Standards
- Low maintenance with an extended life cycle.
- Swiss DC servo motor provides precise, accurate, and repeatable torque control.
- Clean room compliant (ISO14644-1 2015 Class 5)
- Free product software — no annual licensing required — savings of $2K.
Set-Up
- Requires ECD Controller.
- Drive Adapter: This adapter changes the bit drive socket configuration from a ¼” drive to a 4mm HIOS drive or vice versa.
- I/O Cable for connecting the ECD Controller to the 44P I/O Wiring Box device.
Error-Proofing & Process Improvement
- Bit Socket Tray: An error-proofing solution minimizes the risk of errors by automatically selecting the correct torque according to the socket or bit selected. It connects to the MDC controller. It will improve productivity and reduce operator errors. Saves downtime by automatically changing program settings for multiple fastening strategies.
- Position Control Torque Arms: Equipped with position encoders, the position control torque arm is an error-proofing system that detects and eliminates costly screw-fastening errors during the assembly process. The poka-yoke system reduces the risks of improperly fastening screws, ensuring that every screw is correctly tightened in the correct sequence.
- Screw Presenter: Deliver up to two screws per second to a fixed point where a human or robotic operator picks them up, cutting production time in half.
- Mag-O-Nets: Magnetize a bit by sliding the Mag-O-Net onto the bit—commonly used with a screw presenter.
- Vacuum Adapter: The kit is mounted on an electric screwdriver with a suction head that holds the screw on the bit, enabling the operator to pick it up with the tool. This effective, time-saving device works with most fasteners—commonly used with a screw presenter.
Ergonomics
- Tool Balancers: Provides easy handling for operators that work with power tools for long, continuous hours. A balancer enables a tool to be positioned over the workstation and helps workers avoid fatigue which can lead to low productivity, mistakes, and injuries.
- Ergonomic Torque Arms: Providing ergonomic solutions for your assembly line workers lessens fatigue, prevents injuries, and boosts productivity. Torque arm absorbs the torque reaction generated by a power tool. Mountz offers various arm configurations for flexible and mobile workstation designs. The ergonomic torque arms improve employee safety.
- Tool Stand: Prevent damage to power tools from dropping. Convenient tool positioning – adjust both vertically and horizontally.
Service & Calibration
- Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. Having an accurate way to test calibration onsite regularly is a great way to reduce risk. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
- Run-Down Adapters: It is used when testing power tools with a torque analyzer or sensor. The run-down adapter (RDA) is designed to provide consistent and reliable torque readings for power-driven torque control tools. An RDA reduces the impact and irregular peaks that cause poor repeatability. The device is mounted in-line between the tool drive and the transducer.
Mountz publishes a catalogue, operating manual and care documents for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
CAD drawings and parts lists for each model are available on request. As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
