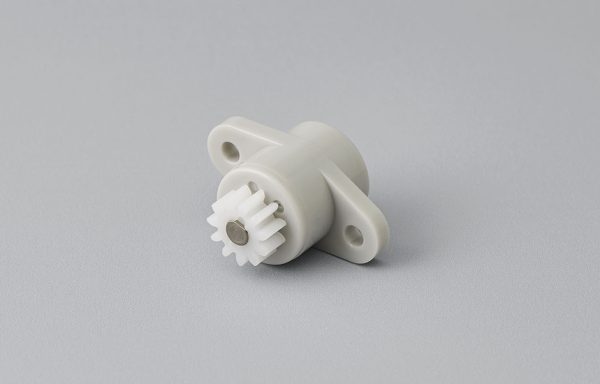

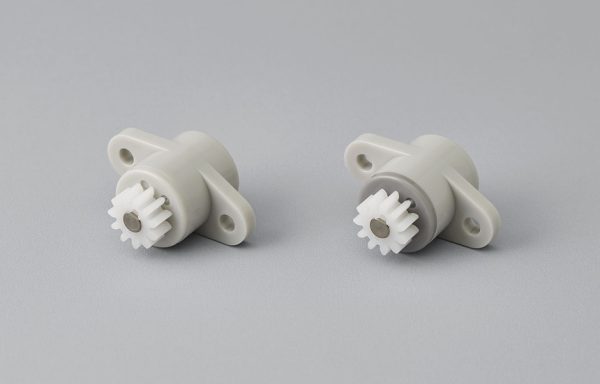

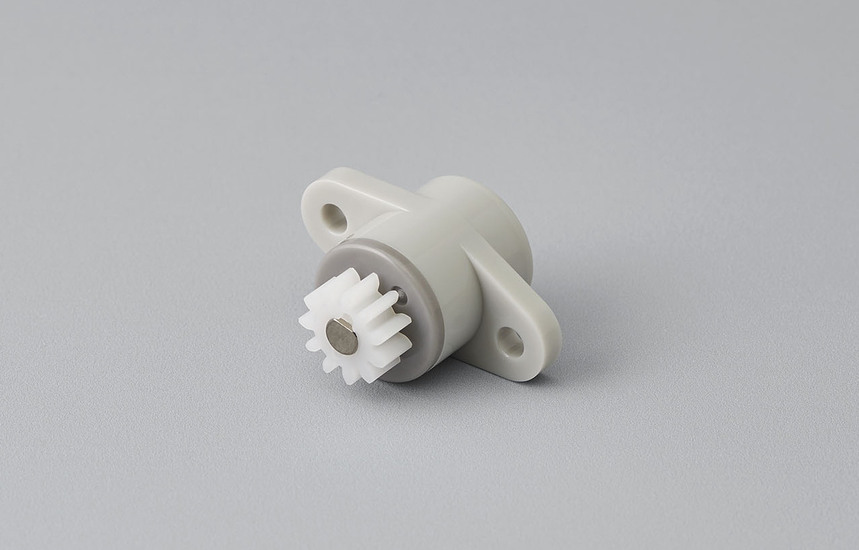

Easy to install | TD96

Outer mounting diameter of Ø 25 mm
Unidirectional rotary damper
The mounting flange corresponds to the bottom face

Category: TOK Rotary Dampers

Request Quote

Description

Description

Product lineup

Product name	Torque [mN·m] (lbf·in)	Damping direction	Cap color
TD96R1-500	50.0 ± 10 (0.44 ± 0.09)	CW	Dark gray
TD96R1-1000	100.0 ± 20 (0.89 ± 0.18)	CW	Dark gray
TD96R1-1500	150.0 ± 30 (1.33 ± 0.27)	CW	Dark gray

Product name	Torque [mN·m] (lbf·in)	Damping direction	Cap color
TD96L1-500	50.0 ± 10 (0.44 ± 0.09)	CCW	Gray
TD96L1-1000	100.0 ± 20 (0.89 ± 0.18)	CCW	Gray
TD96L1-1500	150.0 ± 30 (1.33 ± 0.27)	CCW	Gray

The torque of all rotary dampers is measured at a rotational speed of 20 min-1.

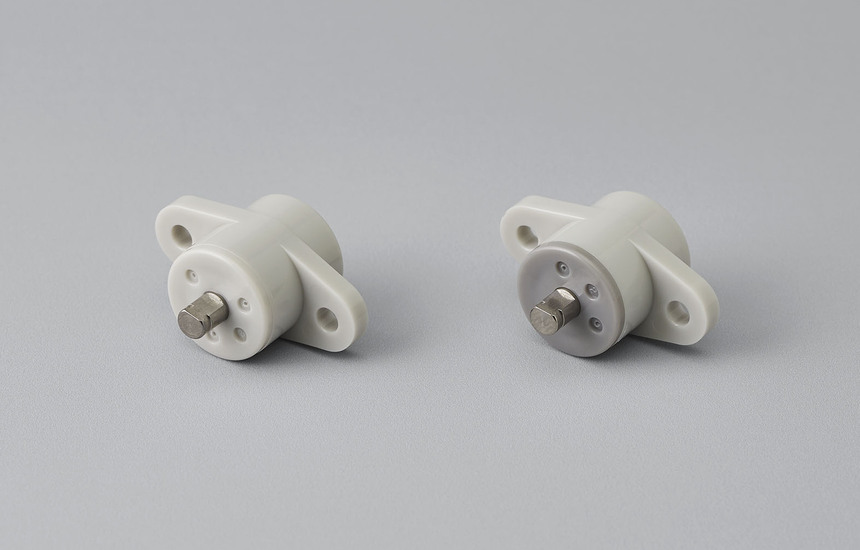

The products without gear have “(G-L)” at the end of the product name.
Bidirectional TD96 rotary dampers are not available.

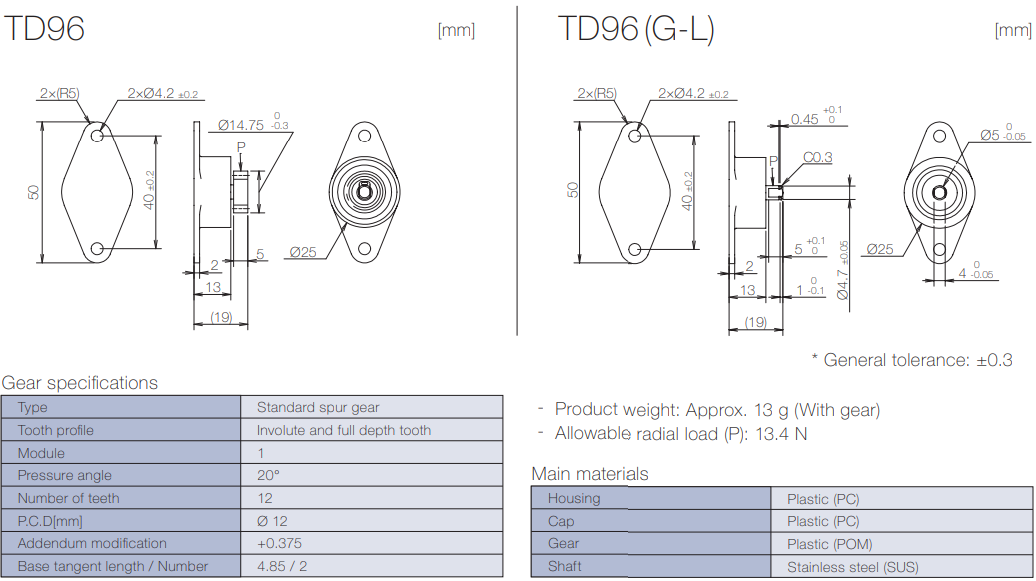

Product information

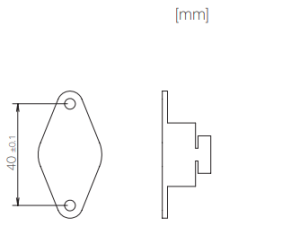

Dimensions related to mounting

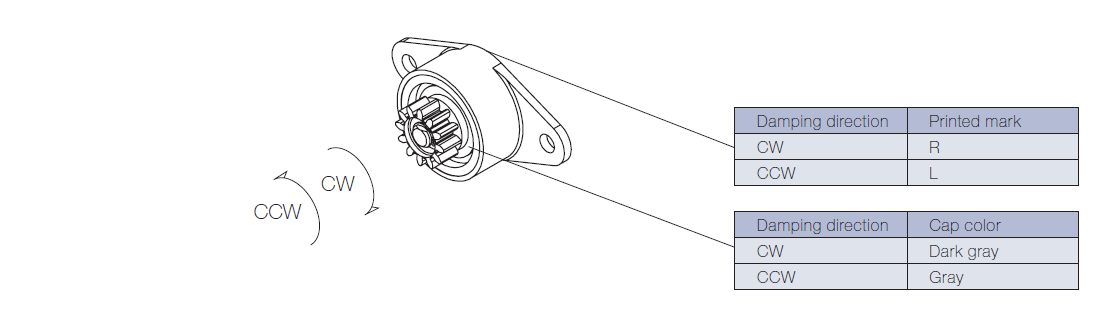

Damping directions

Damping direction of the shaft

Product specifications

Durability

Temperature characteristics

*Find the catalog below.

Easy to install | TD96 in Singapore

The Easy to install | TD96 provides controlled rotational resistance for Singapore manufacturing applications. Available from Phil Industries, the authorised TOK distributor in Singapore.

Key Features and Benefits

Furthermore, this rotary damper delivers precise torque control for smooth operation. The compact design integrates easily into product assemblies. In addition, consistent performance ensures reliable motion control throughout the product lifecycle.

Singapore Industry Applications

Moreover, TOK rotary dampers are used across Singapore manufacturing. Automotive, electronics, and consumer product manufacturers throughout the island integrate these dampers for controlled motion. As a result, toilet seat manufacturers, laptop hinge designers, and automotive interior component producers across Singapore depend on TOK dampers.
