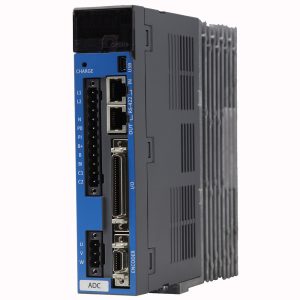

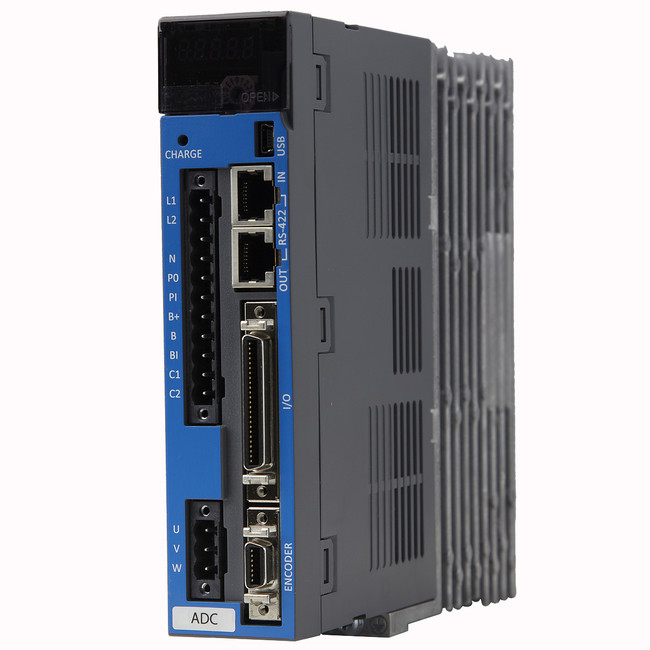

Mountz ADC Controllers
Mountz ADC controllers power and control AD-Series electric screwdrivers.
- Input: AC 200–230 V, 50/60 Hz, single phase
- ADC-100 and ADC-200 models available
- Match the controller to the driver — they are not interchangeable across series
- Genuine Mountz part from Phil Industries, an authorised Mountz distributor in Singapore
- Description
- Reviews (0)
Description
Mountz ADC controllers power and control the AD-Series robotic electric screwdrivers, storing the process sequences, screw counts and I/O logic that an automated fastening cell relies on. Phil Industries, an authorised Mountz distributor in Singapore, supplies ADC controllers matched to the AD spindle, with integration advice and after-sales support.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| Model | Item Name / Number | Input VAC | |
|---|---|---|---|
 |
ADC-100 | 310072 | AC200-230V, 50/60Hz single phase |
 |
ADC-200 | 310073 | AC200-230V, 50/60Hz single phase |
 |
ADC-400 | 310074 | AC200-230V, 50/60Hz single phase |
Where the ADC Controllers fit in Singapore
The ADC-100, ADC-200 and ADC-400 each match specific AD-Series spindles, run on 200 to 230 V single-phase supply, and are programmed from the touch screen or MountzCom III. For a Singapore automation cell that means the controller holds up to 15 process sequences of 10 steps, counts screws, exchanges OK and NG signals with the PLC over digital I/O, and keeps fastening data for Cp and Cpk analysis.
Pair it with
- Mountz AD-Series robotic screwdriver
- 44P I/O wiring box for ECD, ECTD, ADC and MDC
- Cables for DC controllers
- Mountz DC control tools
Frequently asked questions about ADC controllers
Which ADC controller do I need?
Match the controller to the AD-Series spindle model: ADC-100, ADC-200 or ADC-400. Controllers are not interchangeable across Mountz series, so our engineers confirm the pairing before quoting.
What supply does the ADC controller need?
200 to 230 V AC, 50/60 Hz, single phase, which matches Singapore mains without a transformer.
Can the ADC controller talk to my PLC?
Yes. Digital I/O carries sequence selection in and OK or NG results out. The 44P I/O wiring box simplifies the connection.
Is software included?
Yes. MountzCom III programming and analysis software is included with Mountz DC controllers, with no annual licence fee.
Can Phil Industries demonstrate the ADC controller and AD-Series spindle in Singapore?
Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can demonstrate the ADC controller and AD-Series spindle on your line, help you select the model and controller, and quote the complete system. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
- Productivity: Increase productivity with one tool instead of 2 – 8 tools. Provides a consistent repeatable process control and eliminates potential variations
- Flexibility: Easy integration into production line. Rapid reconfiguration for new production projects.
- ROI: Optimum asset utilization. Tooling expense delivers favorable return of investment.
- Quality: Traceability and error-proofing. Real time monitoring. Swiss DC servo motor provides precise, accurate and repeatable torque control.
- I/O Interface: Digital I/O signals for communication with external devices such as PLC
- Controller Memory: Up to 15 process sequences with 10 program steps. Collect and save all fastening data on SD memory card.
- Torque Analysis: Fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ) with MountzCom III software.
- Controller is fully programmable via the touch screen.
- Certified and documented fastening results. Supplied with free certification.
- Operate a leaner production environment with flexible, configurable tool set up.
- Make fastening compliance and documentation easy.
Mountz publishes a catalogue, operating manual and care documents for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
