5mm Stripe Polyester ESD Fabric Antistatic 2 / 3 Twill 75D X 75D
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | AF0063 |
- Description
- Additional information
- Reviews (0)
Description
This stripe ESD fabric is available in Singapore from Phil Industries. 5mm Stripe Polyester ESD Fabric Antistatic 2 3 Twill 75d x 75d provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD fabric in Singapore, Phil Industries offers island-wide delivery on all stripe ESD fabric products.
Detailed Product Description
5mm Stripe Polyester ESD Fabric Antistatic 2 / 3 Twill 75D X 75D
ESD 2/3 Twill Polyester Fabric 5mm Stripe: AF0063
Description: Anti-static ESD 2/3 Twill Polyester Fabric,5mm Stripe
Applications: ESD protection in clean rooms, work wear
Features
1) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer extremely good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in medicals, biology.
2) Meets ESD standards, system resistance 10⁶–10⁷ ohms
3) Autoclavable at 121 degrees if adopts special low-shrinkage conductive fiber
Specifications
| Spec | Value | Test Method |
|---|---|---|
| Material | 99% Polyester 1% Carbon Fiber | |
| Available Colors | All colors | |
| Carbon Configuration | 5mm Stripe | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 110gsm | |
| Surface Resistivity (ohm/unit) | 10⁶–10⁸ | |
| Friction charges (V) | <150 | |
|
Number of yarns (denier) Warp Weft |
75DFDY*75DFDY |
|
| Weave style | Woven | |
| Recommended Class Of Cleanroom | Class 100~1000 |

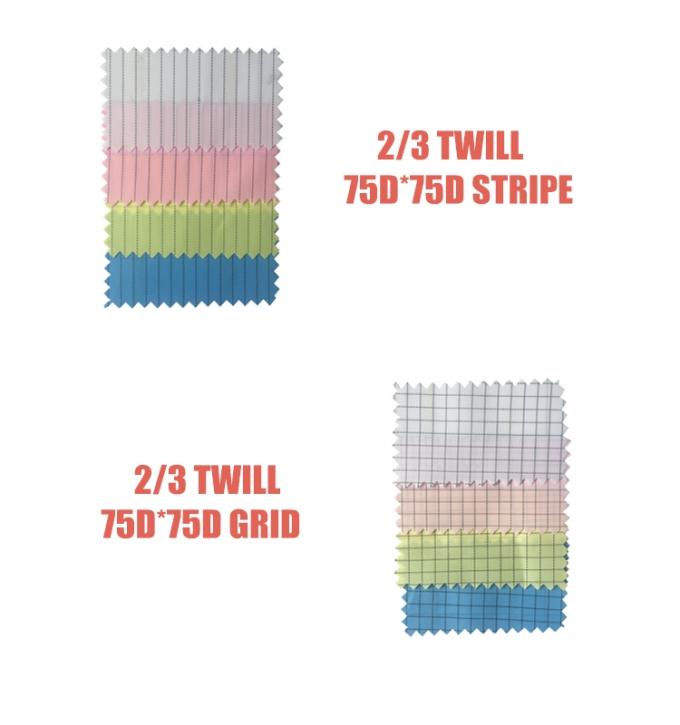

Our ESD Woven Fabric 75D series
| Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
| AF0061 | Strip 5mm | 75D36F*75D36F | 90-95g/m² | 160*88ends/inch | 1.2uc/m | <300V |
| AF0062 | Strip 5mm | 75D36F*100D36F | 110-115g/m² | 188*90ends/inch | 1.2uc/m | <300V |
| AF0063 | Strip 5mm | 75D36F*75D36F | 105-110g/m² | 188*120ends/inch | 1.0uc/m | <200V |
| AF0081 | Grid 5mm | 75D36F*75D36F | 90g-95g/m² | 160*88ends/inch | 1.0uc/m | <200V |
| AF0082 | Grid 5mm | 75D36F*75D36F | 105-110g/m² | 188*120ends/inch | 0.8uc/m | <150V |
Comparisons
Related pages in Singapore
- Browse all ESD Fabric.
- Learn about ESDpro, our own ESD and cleanroom brand.
- Read our guides on ESD standards IEC 61340 and ANSI/ESD S20.20 and setting up an ESD grounded workstation.
Phil Industries, the Singapore company behind the ESDpro brand, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
Additional information
| ESD Classification | |
|---|---|
| Surface Resistance | 10⁶–10⁸ Ω |
