ESD Plain Grid TC Fabric, 65/33/2 Cotton-Polyester-Carbon
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | AF0606 |
- Description
- Additional information
- Reviews (0)
Description
This grid ESD fabric is available in Singapore from Phil Industries. ESD Plain Grid T C Fabric 65 Cotton 33 Polyester 2 Carbon Filament 4mm Grid provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD fabric in Singapore, Phil Industries offers island-wide delivery on all grid ESD fabric products.
Detailed Product Description
ESD Knitted Plain Grid T C Fabric 65% Cotton 33% Polyester 2% Carbon Filament 4mm Grid
ESD Static Dissipative Fabric 4mm Grid(Checked): AF0606
Description: Anti-static ESD Knitted T/C Fabric, 4mm Grid
Applications: ESD protection in clean rooms, work wear
Features
1) For use in manufacturing ESD garments, more comfortable and breathable than conductive silk
2) This kind of garments, offer good resistance to static, chemicals and abrasion.
3) It is applicable in medicals, biology, lab and etc
4) Meets ESD standards, system resistance 10⁶–10⁹ ohms
Specifications
| Spec | Value | Test Method |
|---|---|---|
| Material | 65% Cotton 33% Polyester 2% Carbon | |
| Available Colors | All colors available providing Pantone number | |
| Carbon Configuration | Grid 4mm | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 125-130 | |
| Surface Resistivity (ohm/unit) | 10⁶–10⁸ | |
| Friction charges (V) | <200 | |
| Yarn Count | 40S/2*32S/1 | |
| Weave style | Plain |
Notice
Machine washable up to 40degree
Do not bleach
Do not use acid or alkali
Ironing at Medium temperature
Tumble dry at low temperature
Our ESD Plain Grid T/C Fabric
| Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
| AF0606 | Grid 4mm | 40S/2*32S/1 | 130g/m² | 27*21ends/cm | 0.8uc/m | <200V |
| AF0607 | Grid 4mm(double carbon fiber) | 40S/2*32S/1 | 130g/m² | 27*21ends/cm | 0.6uc/m | <150V |
| AF0609 | Grid 5mm | 40S/2*32S/1 | 130g/m² | 27*21ends/cm | 1.2uc/m | <300V |

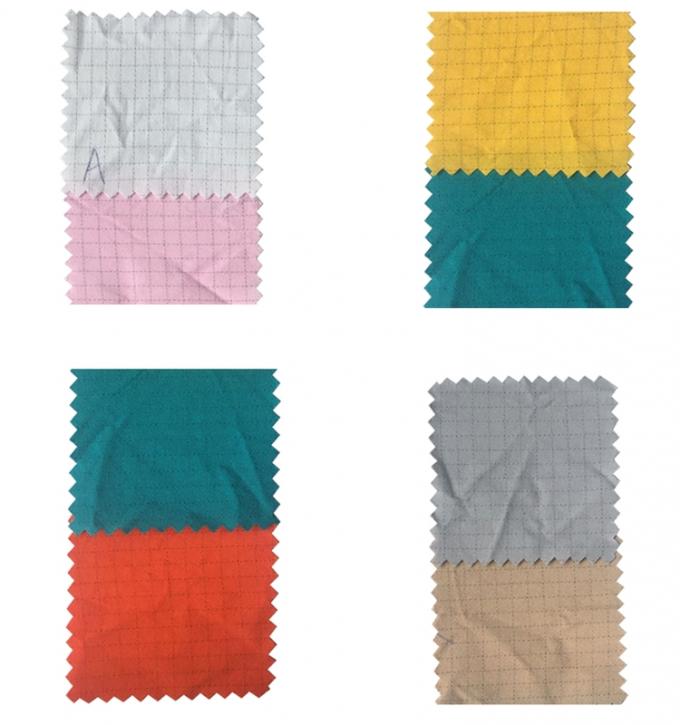

Color Swatches

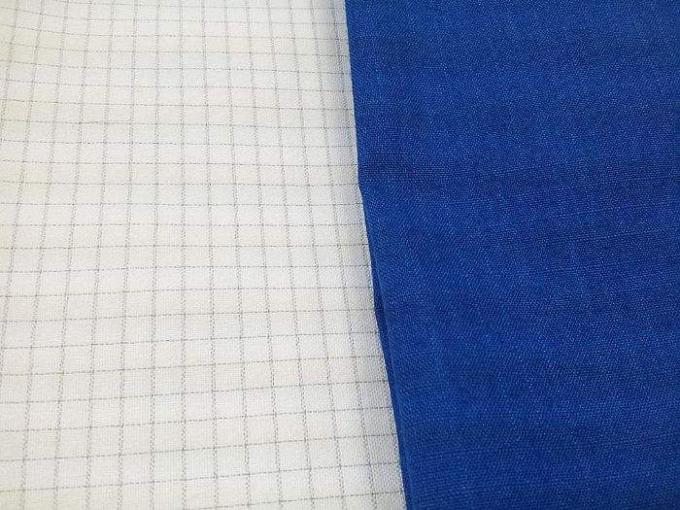

Shooting Images

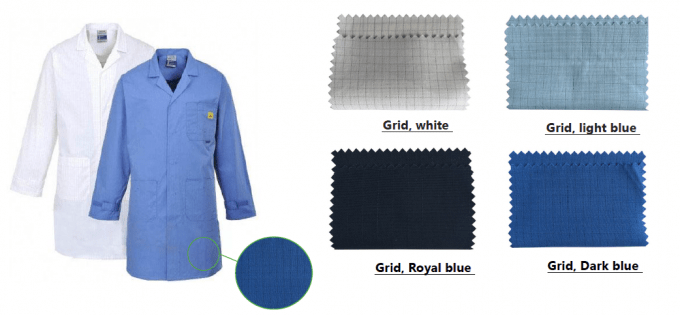

Applications
