2.5mm Diamond Knitted ESD Fabric, 135GSM, 3 Colours
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | AF0631 |
- Description
- Additional information
- Reviews (0)
Description
This knitted ESD fabric is available in Singapore from Phil Industries. 2 5mm Diamond Pattern ESD Knitted Fabric White Blue Green Weight 135gsm provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD fabric in Singapore, Phil Industries offers island-wide delivery on all knitted ESD fabric products.
Detailed Product Description

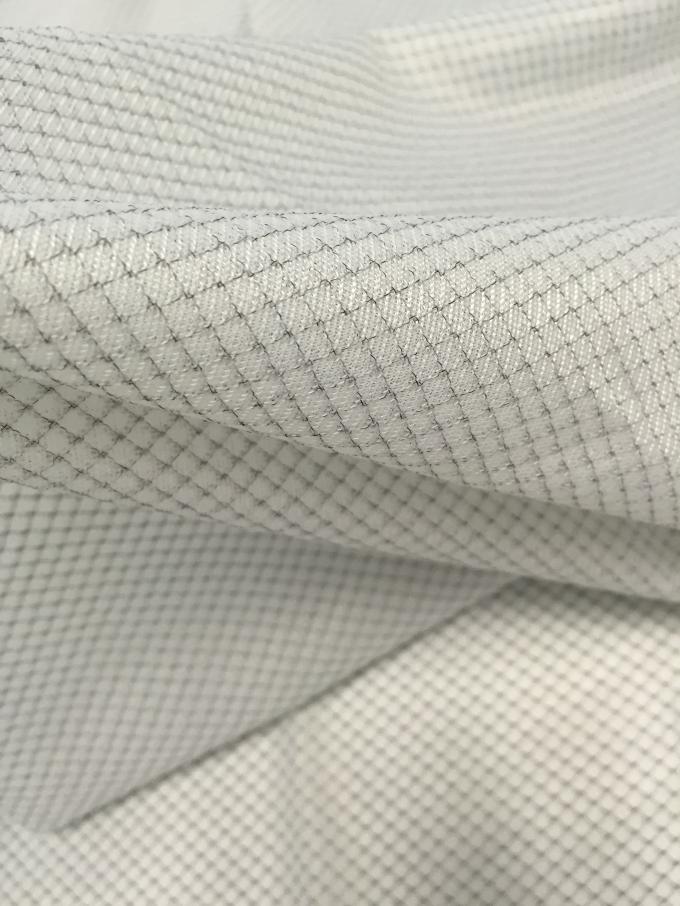

2.5mm Diamond Pattern Electrostatic Discharge Fabric White Light Weight 135GSM
ESD Knitted Fabric 2.5mm Diamond Pattern: AF0631
Description: Anti-static ESD Knitted Polyester Fabric, 2.5mm Diamond
Applications: ESD protection in clean rooms, work wear
Features
1) Durable and light weight, with good air permeability, in weight 135g per square meter
2) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer extremely good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in medicals, biology.
3) Meets ESD standards, system resistance 10⁶–10⁷ ohms
Specifications
| Spec | Value | Test Method |
|---|---|---|
| Material | 96% Polyester 4% Carbon Fiber | |
| Available Colors | White (Any color if Custom) | |
| Carbon Configuration | Diamond 2.5mm | |
| Width (cm) | 175 | |
| Weight (gr/sqm) | 135gsm | |
| Surface Resistivity (ohm/unit) | 10⁶–10⁷ | |
| Friction charges (V) | <150 | |
|
Number of yarns (denier) Warp Weft |
50DFDY*50DDTY |
|
| Weave style | Knitted | |
| Recommended Class Of Cleanroom | Class 100~1000 |

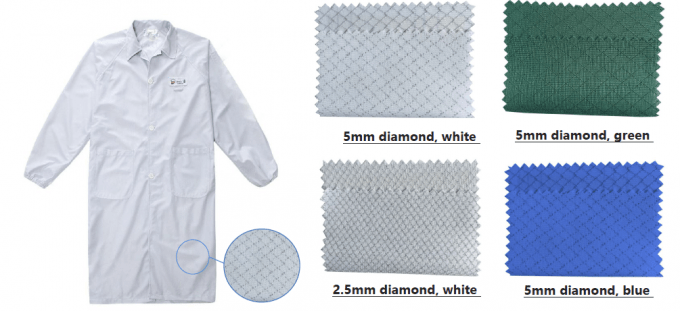

Our ESD Knitted Fabric Diamond Pattern Series
| Model | Spec | Yarn Count | Weight | Charge Density | Friction Voltage |
| AF0633 | Diamond 6mm | 50DFDY*50DDTY | 135-140gsm | 0.8uc/m | <200V |
| AF0632 | Diamond 5mm | 50DFDY*50DDTY | 135-140gsm | 0.8uc/m | <200V |
| AF0631 | Diamond 2.5mm | 50DFDY*50DDTY | 135-140gsm | 0.6uc/m | <150V |
More Photos
Applications
Related pages in Singapore
- Browse all ESD Fabric.
- Learn about ESDpro, our own ESD and cleanroom brand.
- Read our guides on ESD standards IEC 61340 and ANSI/ESD S20.20 and setting up an ESD grounded workstation.
Phil Industries, the Singapore company behind the ESDpro brand, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
Additional information
| ESD Classification | |
|---|---|
| Surface Resistance | 10⁶–10⁷ Ω |
