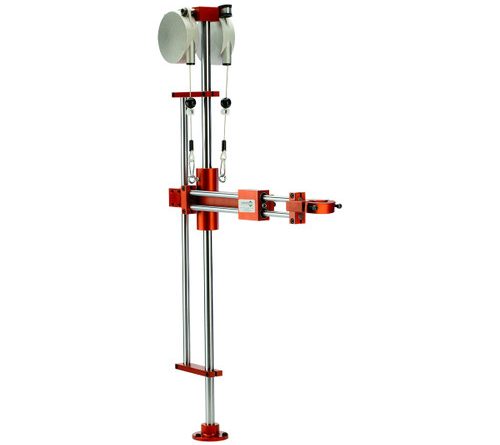

Position control torque arms in Singapore are quietly transforming critical screw-fastening lines — from medical devices and electronics to automotive sub-assemblies. First, the basics. A position control torque arm is a torque reaction arm equipped with position encoders that track exactly where the tool tip is in 3D space. As a result, the system knows whether each screw was driven in the correct location, in the correct sequence, and to the correct torque before allowing the operator to move on.
Why position control beats a plain torque arm
A standard torque arm only absorbs the back-torque of the powered screwdriver. However, it cannot tell whether the operator hit screw #3 before screw #1, or skipped a fastener entirely. The Mountz EZ-Glider position control torque arm closes that gap with a true poka-yoke (mistake-proofing) system. Therefore, every cycle is verified for location, sequence, and tightening result before the line moves on.
What the EZ-Glider RPC range covers
The EZ-Glider RPC family scales across four torque ranges so it fits both light electronics work and heavier sub-assembly stations:
- EZ-12RPC — up to 12 N.m, ideal for electronics and small device assembly.
- EZ-25RPC — up to 25 N.m, suited for medium-duty consumer products.
- EZ-40RPC — up to 40 N.m, common in automotive and appliance lines.
- EZ-100RPC — up to 100 N.m, for heavy sub-assembly and powertrain work.
In addition, each model offers an articulated elbow that lets the arm bend at 0°, 22.5°, and 45° inclinations, so awkward fixtures and angled bolt patterns are no longer a problem.
Error-proofing benefits on the production floor
The position control system acts like a quality manager stationed at every workstation. As a result, it detects cross-threading, missed screws, unfinished rundowns, and confirms cycle complete before signalling the next station. Furthermore, digital I/O makes it simple to integrate with PLCs, conveyors, and MES systems already running in Singapore plants. Above all, real-time monitoring means defects are caught at the station — not at end-of-line audit, and never at the customer.
Ergonomics and operator safety
Because the arm absorbs torque reactions from electric screwdrivers, pulse tools, angle nut runners, and pistol grip drivers, operators no longer wrestle with kick-back. Therefore, the risk of Repetitive Motion Injury (RMI) and Carpal Tunnel Syndrome (CTS) drops sharply on long shifts. In short, the line gets faster and safer at the same time.
Quick setup and 99 program memories
The EZ-Glider pairs with the DPC-Touch Posi-Control System, which offers self-teaching mode and automatic program generation. Therefore, changeovers between product variants take minutes rather than hours. With up to 99 stored programs, mixed-model assembly cells in Singapore can switch between SKUs without re-teaching the cell each time.
Talk to a Singapore assembly tooling specialist
If your team is dealing with mis-fastened screws, missed bolts, or scrap from out-of-sequence assembly, message our engineer on WhatsApp at +65 98539030 or use our contact page. In short, a position control torque arm in Singapore turns a high-risk manual operation into a verified, traceable, mistake-proof cycle — without slowing the operator down.
| Type | Axes of Movement | Best Application | Typical Load |
|---|---|---|---|
| 2-Axis Articulated Arm | 2 | Linear assembly cells, single-station | Up to 5 kg tool |
| 3-Axis Articulated Arm | 3 | Multi-position complex assemblies | Up to 8 kg tool |
| Horizontal Slide Rail | 1 (linear) | Conveyor-side fastening | Up to 10 kg |
| Balancer + Arm Combo | 3 + vertical float | Heavy tool suspension | Up to 20 kg |
| Ceiling Track System | Full XY coverage | Large assembly areas | Up to 30 kg |
Phil Industries’ Singapore Perspective
Position control torque arms are often the error-proofing element Singapore manufacturers overlook until a rework incident forces the conversation. A torque arm eliminates two common failure modes: operator reaction torque error (where the tool twists instead of the fastener) and wrong-station tooling (a Poka-Yoke function). We supply Mountz torque arm systems to Singapore PCB assembly, semiconductor packaging, and medical device lines — typically in 200–600 mm reach configurations covering the common station widths in local contract manufacturing.
The most frequent request is for torque arms with a quick-release mount accommodating both electric screwdrivers and pneumatic tools, allowing station reconfiguration during product changeovers. We design the arm bracket geometry to suit your specific workstation — a bespoke service included at no additional charge for systems of 3 or more arms. Contact Phil Industries at +65 6555 1745 or philindustries@gmail.com.
