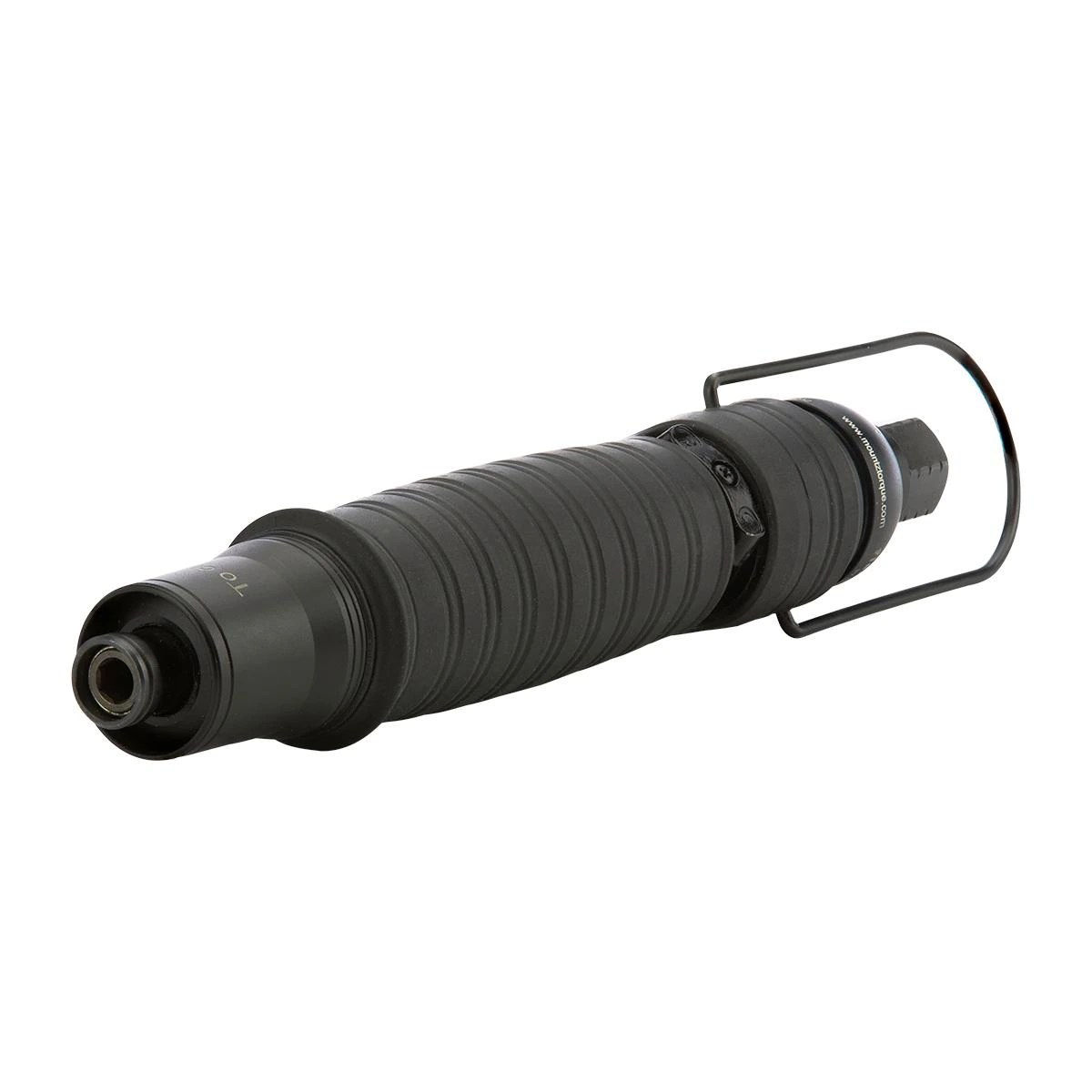

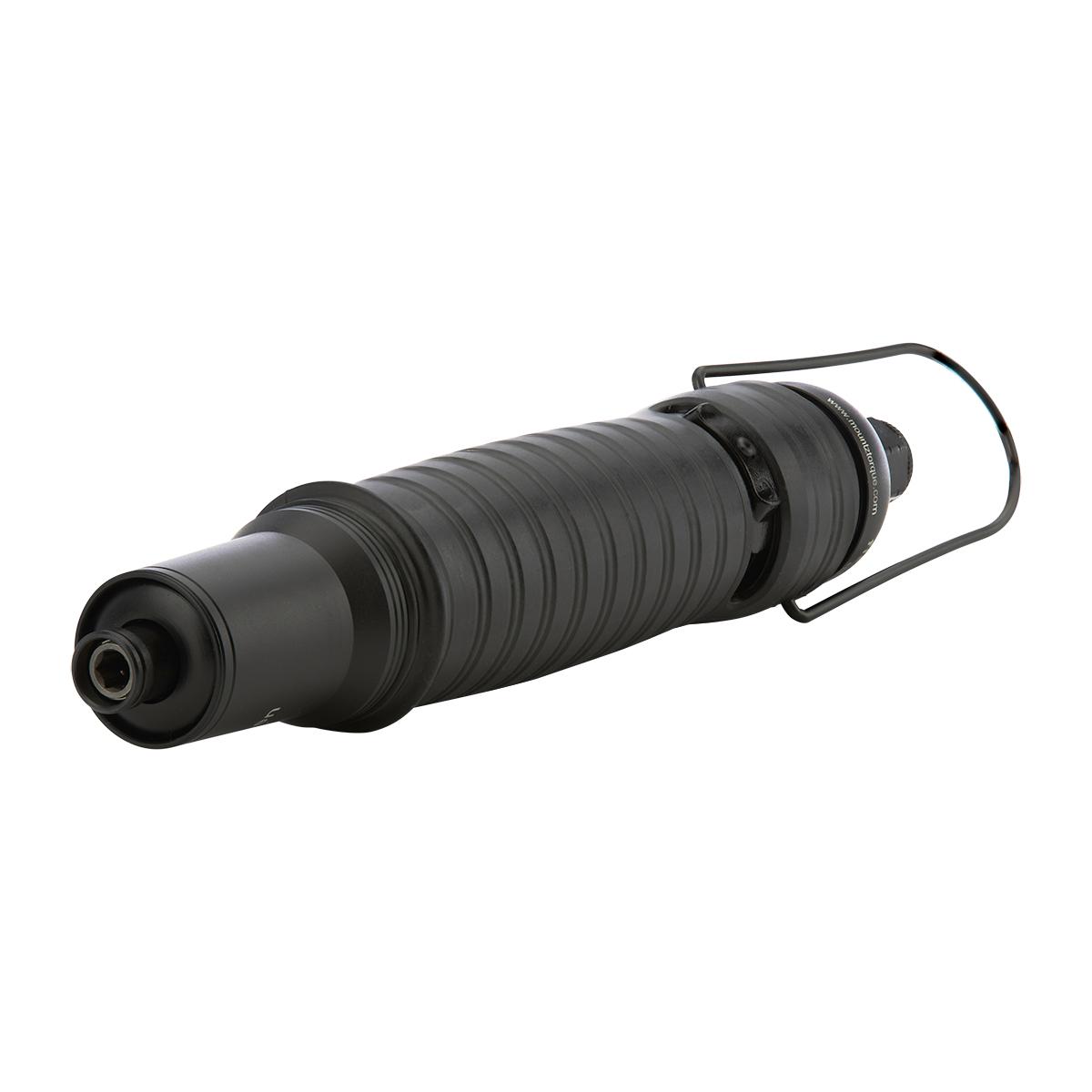

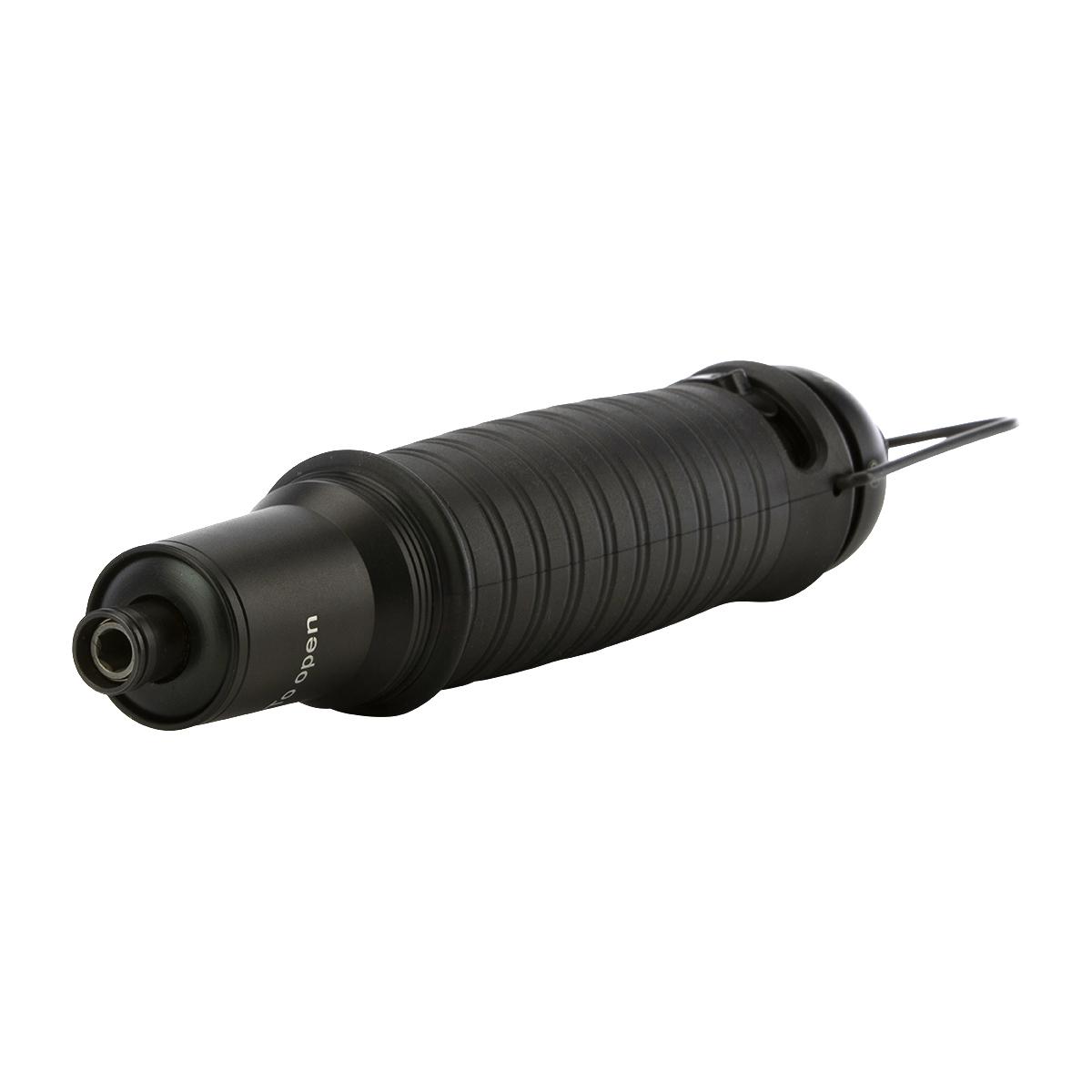

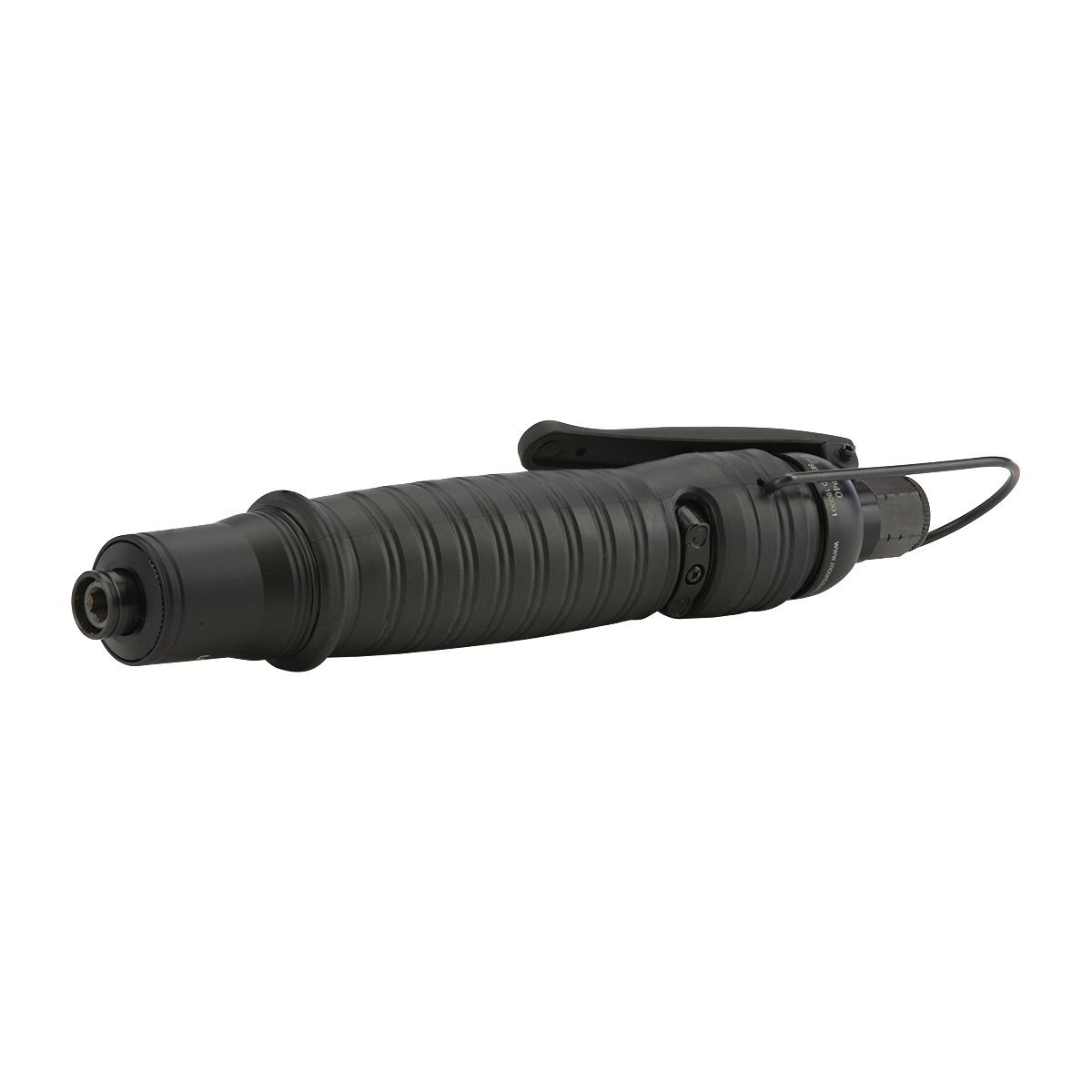

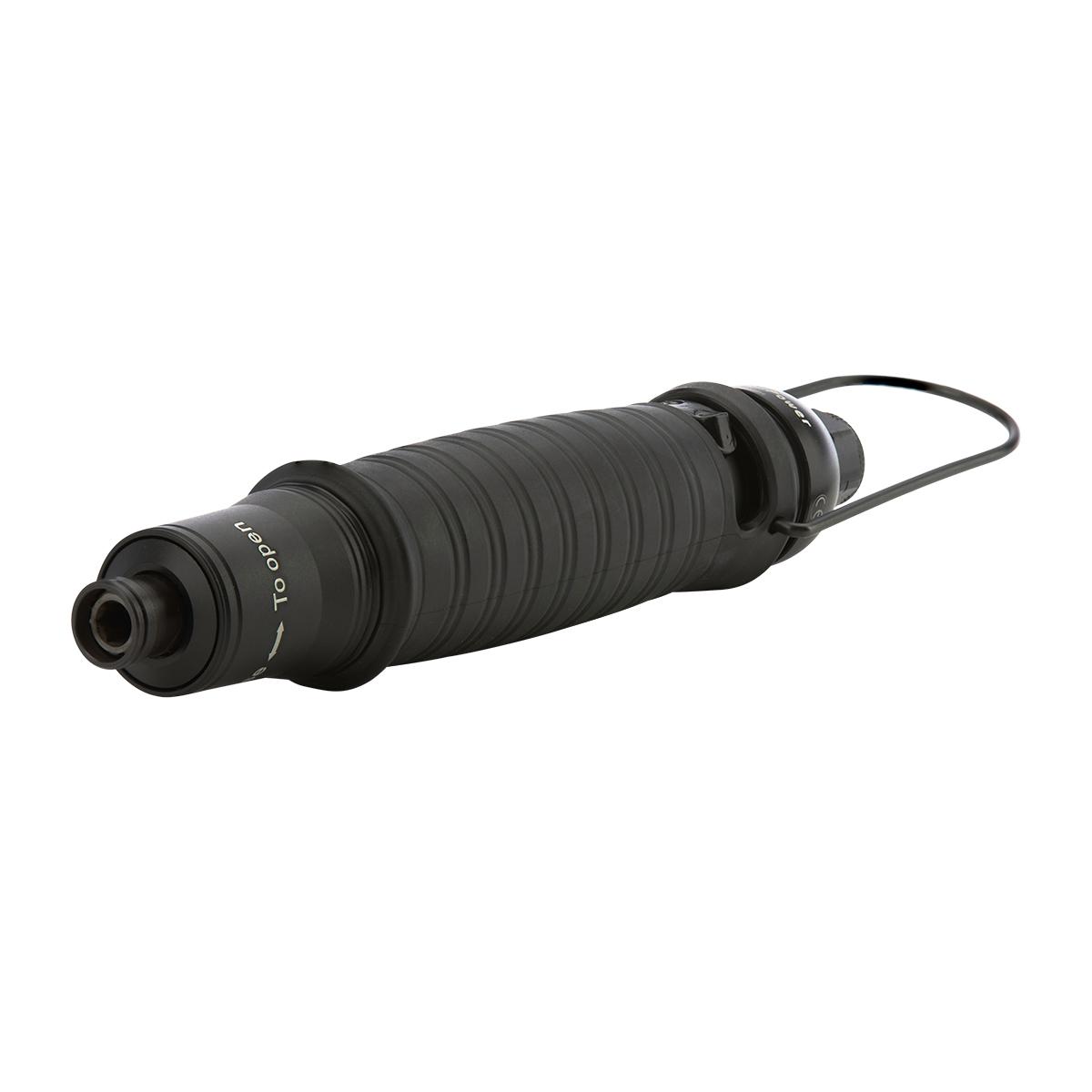

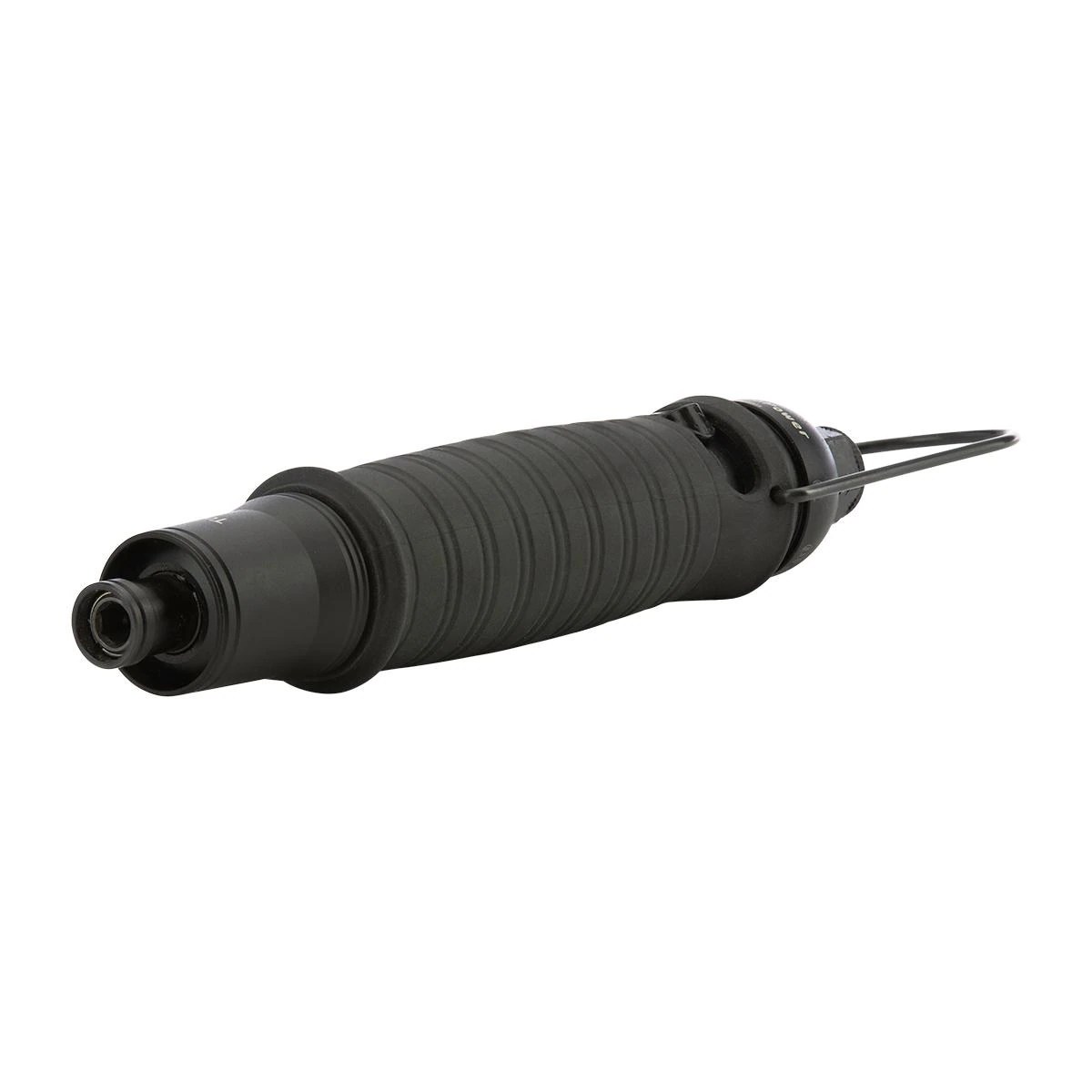

Mountz XP-Series In-Line Air Screwdrivers
Crafted for high production environments, the Flex Power In-Line air screwdriver provides durability, power and speed for assembly and manufacturing applications at an affordable price. Designed for safe operation and increase comfort for operators, the Flex Power tools provide lower noise decibels than comparative air tools as well as minimal vibration and low torque reaction on the operator. Featuring a patented clutch design the Flex Power tools delivers reliable accuracy with repeatable torque control. The clutch mechanism shuts off the air supply when the preset torque setting is achieved, preventing over-torque conditions from occurring.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Driver Type | Item Name / Number | American | S.I. | Metric | Drive Size | RPM | |
|---|---|---|---|---|---|---|---|---|
 |
XP35 | Lever Start | 360000 | 2.6 – 17.4 lbf.in | 0.3 – 2 N.m | 3.1 – 20.4 kgf.cm | 1/4″ F/Hex | 2200 |
 |
XP35PS | Push-to-Start | 360005 | 2.6 – 17.4 lbf.in | 0.3 – 2 N.m | 3.1 – 20.4 kgf.cm | 1/4″ F/Hex | 2200 |
 |
XP40 | Lever Start | 360001 | 4.3 – 30.4 lbf.in | 0.5 – 3.4 N.m | 5.1 – 34.7 kgf.cm | 1/4″ F/Hex | 1000 |
 |
XP40PS | Push-to-Start | 360006 | 4.3 – 30.4 lbf.in | 0.5 – 3.4 N.m | 5.1 – 34.7 kgf.cm | 1/4″ F/Hex | 1000 |
 |
XP45 | Lever Start | 360002 | 6.9 – 34.7 lbf.in | 0.8 – 3.9 N.m | 8.2 – 39.8 kgf.cm | 1/4″ F/Hex | 800 |
 |
XP45PS | Push-to-Start | 360007 | 6.9 – 34.7 lbf.in | 0.8 – 3.9 N.m | 8.2 – 39.8 kgf.cm | 1/4″ F/Hex | 800 |
 |
XP48 | Lever Start | 360003 | 4.3 – 39.1 lbf.in | 0.5 – 4.4 N.m | 5.1 – 52 kgf.cm | 1/4″ F/Hex | 1700 |
 |
XP48PS | Push-to-Start | 360008 | 4.3 – 39.1 lbf.in | 0.5 – 4.4 N.m | 5.1 – 52 kgf.cm | 1/4″ F/Hex | 1700 |
 |
XP60 | Lever Start | 360004 | 26 – 95.5 lbf.in | 2.9 – 10.8 N.m | 29.6 – 110.2 kgf.cm | 1/4″ F/Hex | 550 |
 |
XP60PS | Push-to-Start | 360009 | 26 – 95.5 lbf.in | 2.9 – 10.8 N.m | 29.6 – 110.2 kgf.cm | 1/4″ F/Hex | 550 |
- Various models that range from 2.6 – 95.5 lbf.in
- The high-performance oil-free motor delivers environmentally friendly, durable, power and speed. One-third more power than competitive models.
- Safe operation with reduced noise, vibration and low torque reaction.
- High accuracy patented clutch with precision automatic shut-off.
- Soft texture ergonomic grip for operator comfort.
- One-touch torque adjustment eliminates the difficult setup of drivers.
- Torque cover prevents operator tampering.
- Four different colored tool bands allow color-coding of specific torque values (Red, Green, Blue, Yellow are included)
- Built with new aluminum alloy to provide durability and reduced maintenance – no cracking, fading, or chipping found in composite body tools.
- Ergonomically safer than harmful hammering and vibration of impact wrenches.
- Air Hose
- Coupler
- Ergonomic Torque Arms
- Fittings
- Filter Regulator & Lubricator
- Mag-O-Nets
- Screw Presenter
- Tool Balancers
- Tool Stand
Mountz publishes datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
Model : XP35
View/Download Parts List
Model : XP35PS
View/Download Parts List
Model : XP40
View/Download Parts List
Model : XP40PS
View/Download Parts List
Model :XP45
View/Download Parts List
Model : XP45PS
View/Download Parts List
Model : XP48
View/Download Parts List
Model : XP48PS
View/Download Parts List
Model : XP60
View/Download Parts List
Model : XP60PS
View/Download Parts List As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
