Mountz VB-Series Brushless Electric Torque Screwdrivers
The HIOS VB-Series brushless electric screwdriver is designed to plug directly into a power outlet and does not require a separate power supply unit. Features a high performance brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers. Operates on a duty cycle of 0.5 seconds on and 3.5 seconds off.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Driver Type | Item Name / Number | 110V | American | S.I. | Drive Size | |
|---|---|---|---|---|---|---|---|
 |

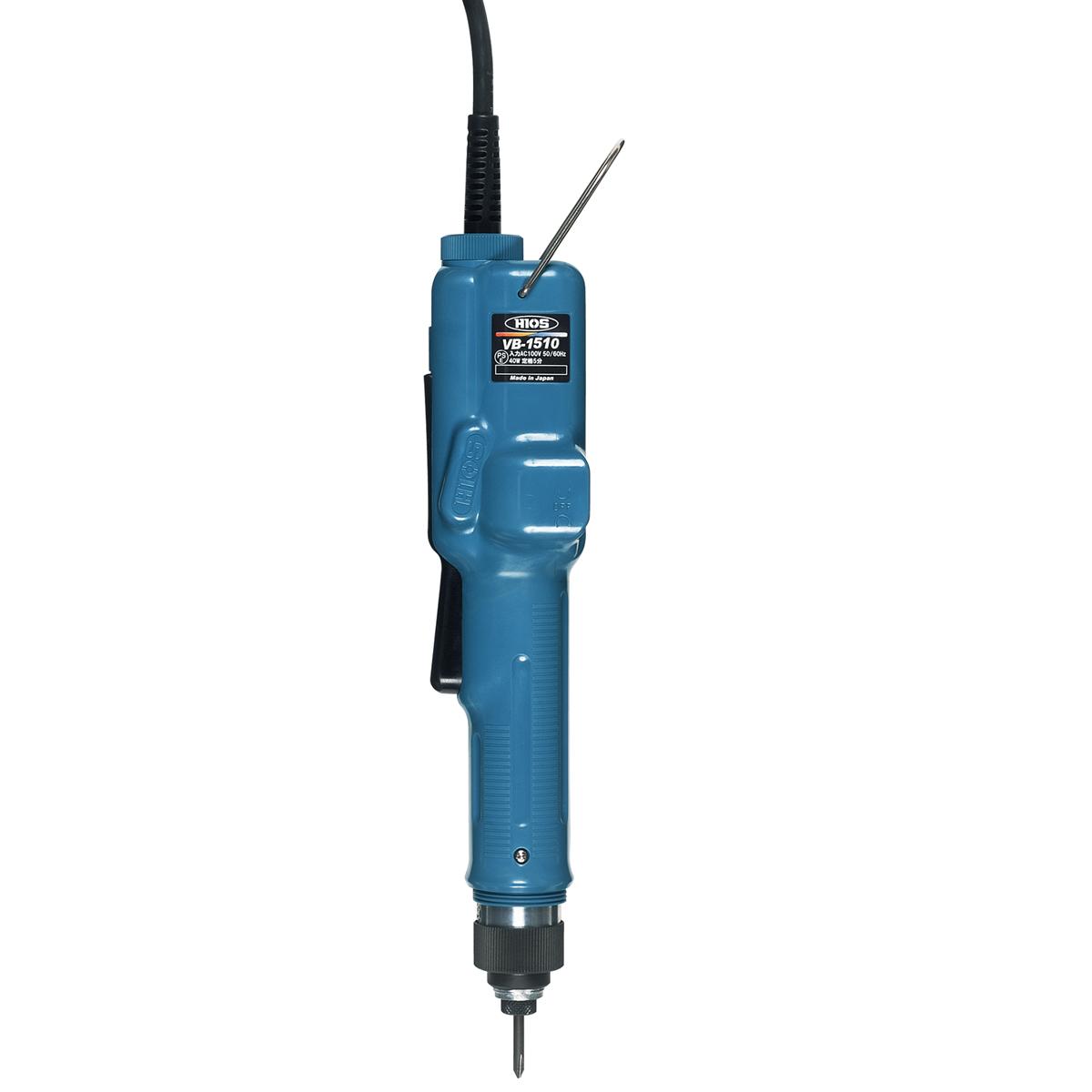

VB1510 | Lever Start | 144280 | T | 2.2 – 13 lbf.in | 25 – 150 cN.m | 1/4″ F/Hex |
 |

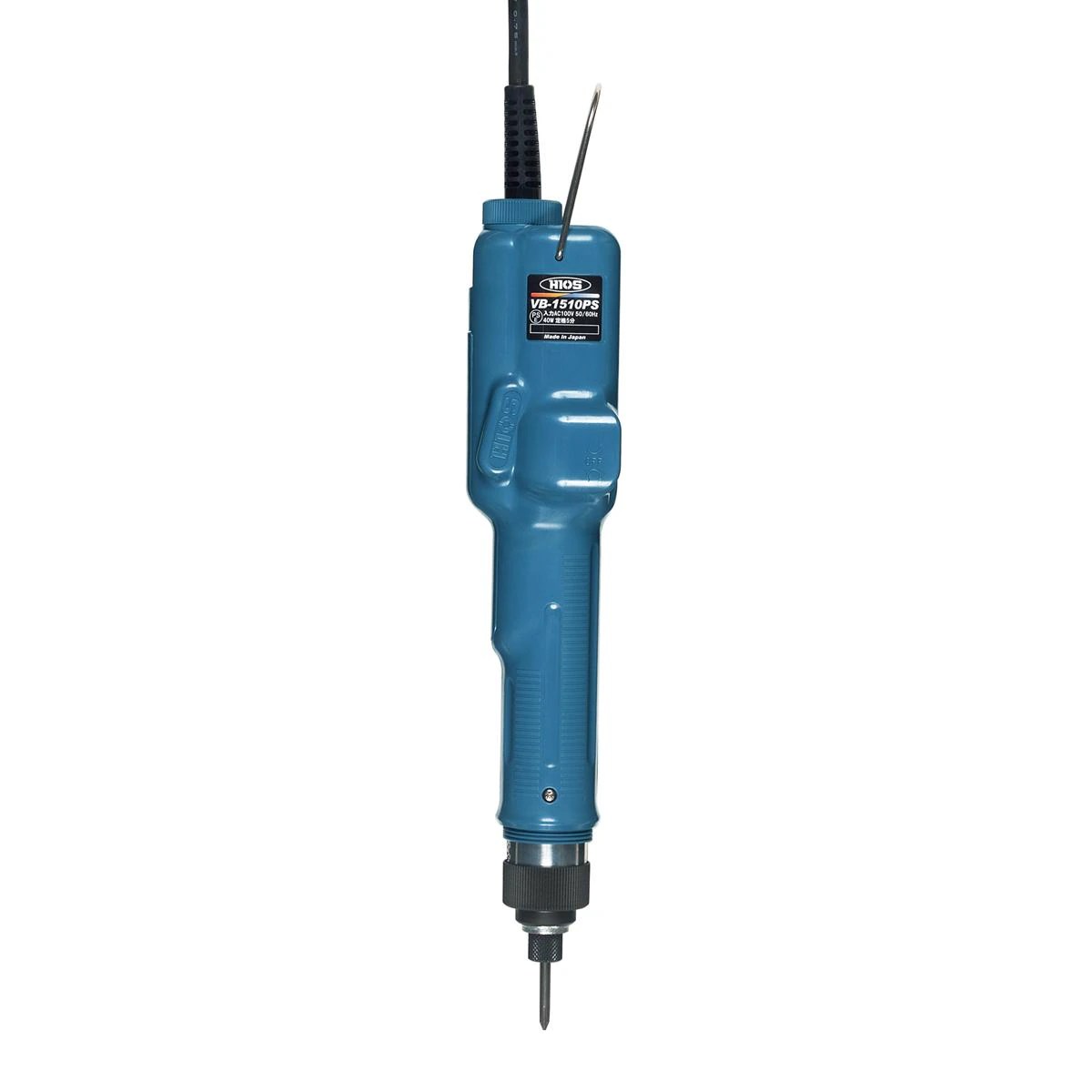

VB1510PS | Push-to-Start | 144281 | T | 2.2 – 13 lbf.in | 25 – 150 cN.m | 1/4″ F/Hex |
 |

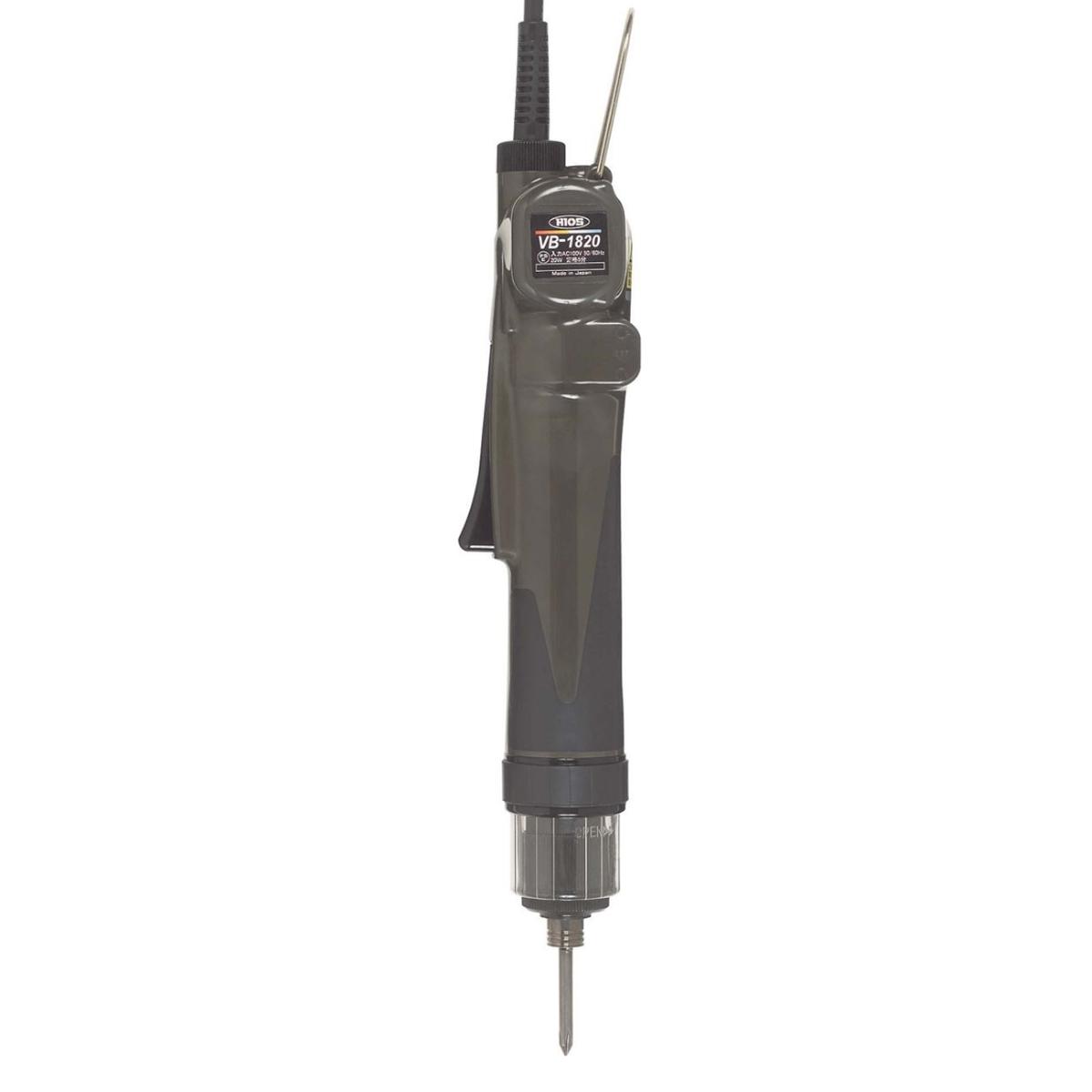

VB1820 | Lever Start | 144282 | T | 3.5 – 16 lbf.in | 40 – 180 cN.m | 1/4″ F/Hex |
 |
VB1820PS | Push-to-Start | 144283 | T | 3.5 – 16 lbf.in | 40 – 180 cN.m | 1/4″ F/Hex |
|
VB3012 | Lever Start | 144284 | T | 4.3 – 26 lbf.in | 50 – 300 cN.m | 1/4″ F/Hex |
|

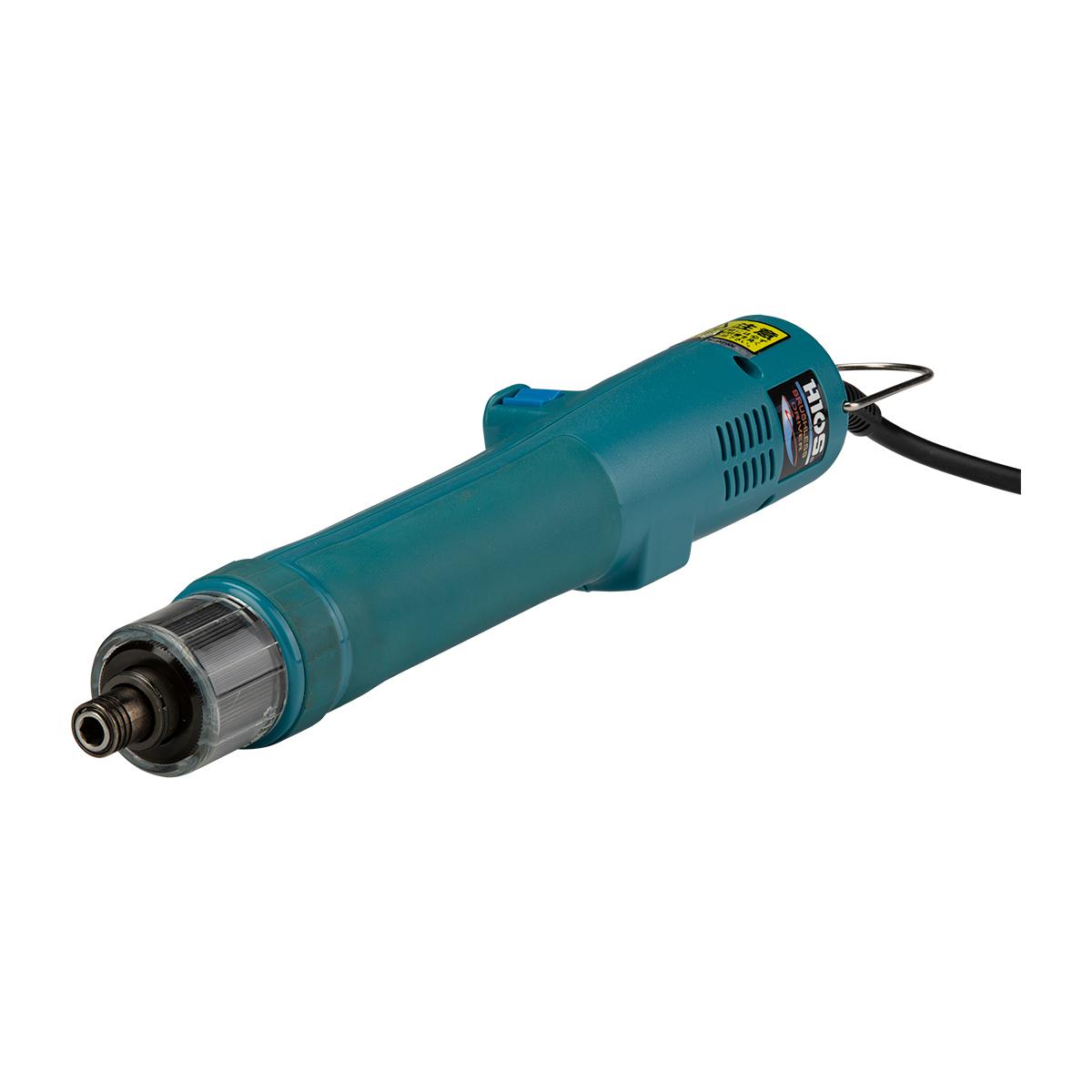

VB3012PS | Push-to-Start | 144285 | T | 4.3 – 26 lbf.in | 50 – 300 cN.m | 1/4″ F/Hex |
|
VB4504 | Lever Start | 144286 | T | 8.7 – 39 lbf.in | 100 – 450 cN.m | 1/4″ F/Hex |
|
VB4504PS | Push-to-Start | 144287 | T | 8.7 – 39 lbf.in | 100 – 450 cN.m | 1/4″ F/Hex |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
-
- Various models that range from 2.2 – 39 lbf.in
Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
- Plugs directly into a power outlet. Separate power supply not required
- Positive auto shut-off.
- Ergonomic hand grip.
- Push-to-start and Lever operated styles available.
- Duty cycle tool.
- 120 VAC, 10 foot power cord.
- External torque adjustment scale.
Model : VB1820
View/Download Parts List
Model : VB1820PS
View/Download Parts List
Model : VB3012
View/Download Parts List As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
