Ultra-Fine Polyester Knit Lint-Free Wipes, 95 to 140GSM
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/ROHS |
| Model Number: | 8003/8006/8009/8005 |
- Description
- Reviews (0)
Description
This polyester cleanroom wiper is available in Singapore from Phil Industries. Ultra Fine Polyester Knit Lint Free Cleaning Wipes Basic Weight 95gsm 105gsm 130gsm 140gsm provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom wipers in Singapore, Phil Industries offers island-wide delivery on all polyester cleanroom wiper products.
Detailed Product Description
Ultra Fine Polyester Knit Lint Free Cleaning Wipes Basic Weight 95gsm 105gsm 130gsm 140gsm
Description:
They are comprised of 100% ultra-fine continuous filament polyester
Laser cut/Heat cut/Ultrasonic sealed edge maximize reduces fiber contamination
Highly absorbent with extremely low levels of particulate and extractable counts.
Laundered by 18MΩ DI water and packaged in a ISO5 Cleanroom
Tested and manufactured in ISO compliant facilities
Features:
• Critically low particles, fibers, ions and extractables
• Excellent water and dust absorbility
• Leave no scratch on body’s sensitive surface
• Chemically compatible with IPA, Acetone and other solvents
• Complies with RoHS and REACH requirements
Technical Data:
| Spec | Value | Test Method |
|---|---|---|
| Size | 4” x 4”, 6” x 6”, 9” x 9”, 12” x 12” | |
| Material | 100% polyester | |
| Basis weight | 130 ± 5 g/m² | Electronic Balance Test |
| Liquid absorption ability | 320g/m² | Referred to IES-RP-CC004.3 analysis method |
| Particle Counts LPC: ≥0.5 µm | 642 count /m² | Tested by liquid particle analyzer |
|
IPA Extractant
|
1.87 µg/cm²
|
Measured by the weight of extract before and after volatilization |
|
DI Water Extractant
|
1.45 µg/cm² | Measured by the weight of extract before and after volatilization |
RoHS Compliant:
| Ion | Average Value | Equipment Limit Test Value | Test Mehod |
| Chloride(Cl- ) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sulfate(SO₄ ²⁻) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sodium(Na⁺ ) | 0.0014 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Ammonium(NH₄⁺) | 0.0020 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Fluoride(F) | 0.0010 | 0.0010 µg/cm² | test by ion chromatography(IC) |
Ultra-fine Polyester Knit Wiper Main Catalogues:
|
NO.
|
Model
|
Description
|
Weaving process
|
Composition
|
Basic Weight
|
Sealing Method
|
Standard Package
|
|
1
|
8003
|
Ultra-fine Cleanroom Wiper
|
Knitting
|
100% Polyester
|
95g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 25BAG/CTN
|
|
2
|
8006
|
Ultra-fine Cleanroom Wiper
|
Knitting
|
100% Polyester
|
105g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 25BAG/CTN
|
|
3
|
8009
|
Ultra-fine Cleanroom Wiper
|
Knitting
|
100% Polyester
|
130g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 25BAG/CTN
|
|
4
|
8005
|
Ultra-fine Cleanroom Wiper
|
Knitting
|
100% Polyester
|
140g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 25BAG/CTN
|
Applications:
It is designed for critical processing applications where the high level of contamination control is required.
It is widely used for cleaning medical device products; applying, removing, cleaning and disinfecting solutions;
Also used for flat panel, optics cleaning and chips multiprocessing(CMP).

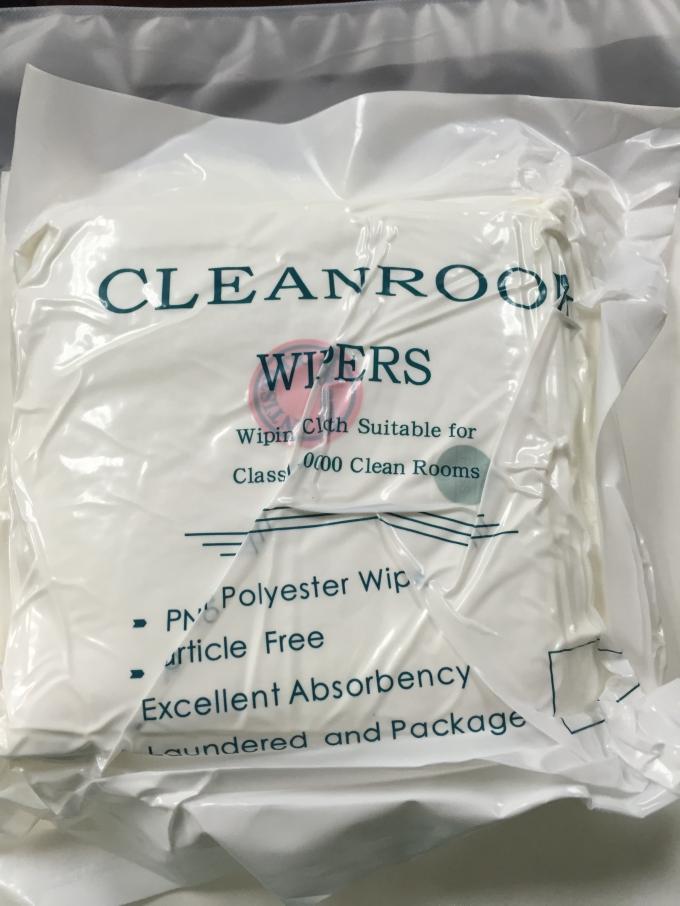

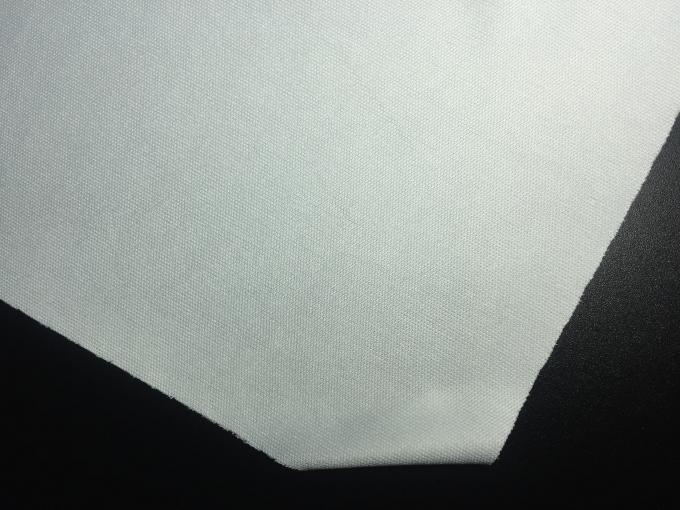

More photos
