Disposable Lint-Free Woven Microfibre Wiper, Matte Surface
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/ROHS |
| Model Number: | 7009 |
- Description
- Reviews (0)
Description
This microfiber cleanroom wiper is available in Singapore from Phil Industries. Disposable Lint Free Cleaning Cloths Woven Microfiber Wiper Matte Surface provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom wipers in Singapore, Phil Industries offers island-wide delivery on all microfiber cleanroom wiper products.
Detailed Product Description
Disposable Lint Free Cleaning Cloths Woven Microfiber Wiper Matte Surface
Description:
They are comprised of 70% Polyester and 30% Nylon
Laser cut/Heat cut/Ultrasonic sealed edge maximize reduces fiber contamination
Extremely low levels of particulate and extractable counts.
Laundered by 18MΩ DI water and packaged in a ISO5 Cleanroom
Tested and manufactured in ISO compliant facilities
Features:
• Critically low particles, fibers, ions and extractables
• Leave no scratch on body’s sensitive surface
• Chemically compatible with IPA, Acetone and other solvents
• Complies with RoHS and REACH requirements
Technical Data:
| Spec | Value | Test Method |
|---|---|---|
| Size | 4” x 4”, 6” x 6”, 9” x 9”, 12” x 12” | |
| Material | 70% Polyester and 30% Nylon | |
| Basis weight | 105 ± 5 g/m² | Electronic Balance Test |
| Liquid absorption ability | 250g/m² | Referred to IES-RP-CC004.3 analysis method |
| Particle Counts LPC: ≥0.5 µm | 400 count /m² | Tested by liquid particle analyzer |
|
IPA Extractant
|
1.4 µg/cm²
|
Measured by the weight of extract before and after volatilization |
|
DI Water Extractant
|
1.8 µg/cm² | Measured by the weight of extract before and after volatilization |
RoHS Compliant:
| Ion | Average Value | Equipment Limit Test Value | Test Mehod |
| Chloride(Cl- ) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sulfate(SO₄ ²⁻) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sodium(Na⁺ ) | 0.0014 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Ammonium(NH₄⁺) | 0.0020 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Fluoride(F) | 0.0010 | 0.0010 µg/cm² | test by ion chromatography(IC) |
Woven Microfiber Wiper Main Catalogues:
|
NO.
|
Model
|
Description
|
Weaving process
|
Composition
|
Basic Weight
|
Sealing Method
|
Standard Package
|
|
1
|
7009 |
Woven Microfiber Wiper
|
Woven Matte |
70% Polyester and 30% Nylon
|
105g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
|
2
|
3009
|
Woven Microfiber Wiper
|
Woven Plain Weave
|
70% Polyester and 30% Nylon
|
100g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
|
3
|
3009A
|
Woven Microfiber Wiper
|
Woven Plain Weave
|
70% Polyester and 30% Nylon
|
85g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
|
4
|
7008
|
Woven Microfiber Wiper
|
Woven Twill
|
70% Polyester and 30% Nylon
|
120g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
Applications:
It is designed for critical processing applications where the high level of contamination control is required.
It is widely used for cleaning medical device products; applying, removing, cleaning and disinfecting solutions;
Also used for flat panel, optics cleaning and chips multiprocessing(CMP).

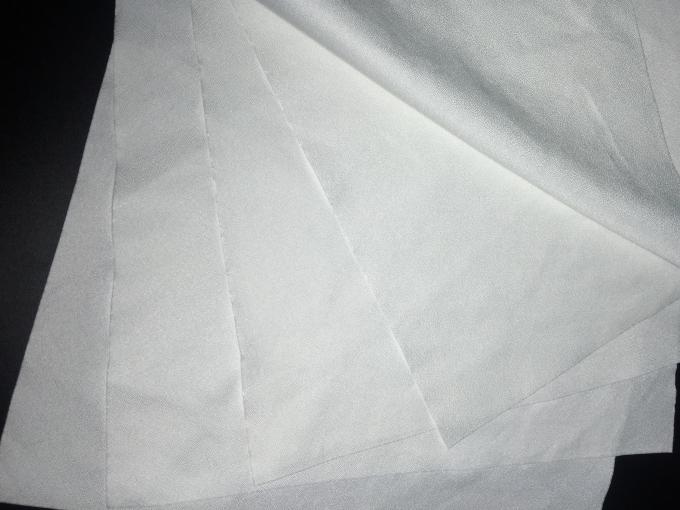

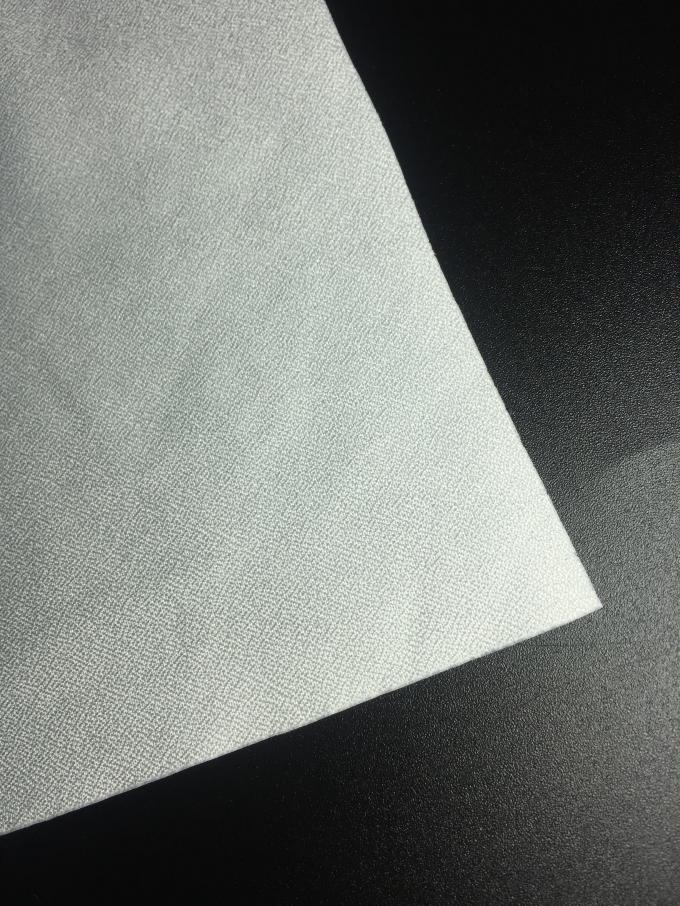

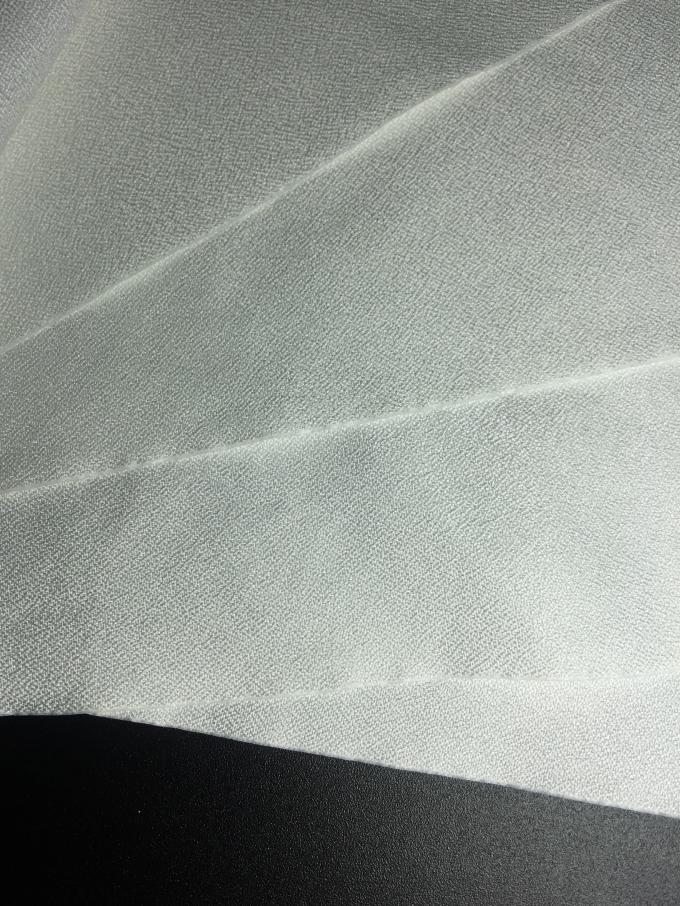

More photos
Related pages in Singapore
- Browse all Cleanroom Wiper.
- Learn about ESDpro, our own ESD and cleanroom brand.
- Read our guides on ESD standards IEC 61340 and ANSI/ESD S20.20 and setting up an ESD grounded workstation.
Phil Industries, the Singapore company behind the ESDpro brand, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
