ESD PCB Rack – Overall Side Panel Series
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | MR6663 / MR6665 |
- Description
- Reviews (0)
Description
antistatic ESD display rack Singapore
The antistatic ESD display rack Singapore is a reliable ESD-safe storage solution for printed circuit boards, supplied by Phil Industries.
This antistatic ESD display rack is available in Singapore from Phil Industries. Printed Circuit Board Racks Overall Side Panel Series F provides reliable ESD protection for packaging and electronics manufacturing. As a supplier of ESD packaging materials in Singapore, Phil Industries offers island-wide delivery on all antistatic ESD display rack products.
Detailed Product Description
Printed Circuit Board Racks Overall Side Panel Series For SMT / PCB Assembly
Model: MR6663 / MR6665
Description
1, Surface resistance: 10⁴–10⁸ Ohms(100-120℃)
2, External dimension: 355x320x563mm
3, Available for storing 50 pieces of PCB plates
4, Sizes of PCBs to be accommodated:355*(50-250)mm
5, Side guide slot, with depth of 3mm, width of 5.5mm and pitch of 10mm
6, Adjustable plastic gear track design allows easy operation
Features
1, Automation requires precision. For the use of the PCB Magazines in automated assembly lines, precision, stability and flexible are our most important quality assurance.
2, The stable frame construction guarantees a long lasting use of the magazine rack in your production. Overall side panel series allows frames more robust
3, The rack walls are manufactured from conductive materials, which could be temp resistance to 120degree around
Standard Size Table & Information:
| Model NO. |
Base Material |
Adjust |
Heat- Resistan Temp(℃) |
Outer Dimension (mm) |
Adjustable Width (mm) |
Ref. Position (mm) |
Side board structure |
Weight (kg) |
|||
| L | W | H | Material | structure | |||||||
| MR6601 | Metal |
Gear track |
100 |
400*320/380 *563 |
50-250/ 300 |
34 | Polystyrene |
Combined panel |
7.2 | ||
| MR6602 | Plastic | Screw | 80 | 355*315*580 | 80-250 | 34 | Polystyrene | Whole panel | 5.1 | ||
| MR6602F | Metal | Screw | 80 | 355*315*580 | 80-250 | 34 | Polystyrene |
Whole panel |
5.2 | ||
| MR6603 | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.2 | ||
| MR6603G | Metal |
Gear track |
230 | 355*320*563 | 50-250 | 34 | Polycarbonate |
Combined panel |
7 | ||
| MR6603GL | Metal |
Gear track |
502 | 355*320*563 | 50-250 | 34 | Aluminum |
Combined panel |
6.7 | ||
| MR6604 | Metal | Screw | 100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.1 | ||
| MR6604G | Metal | Screw | 230 | 355*320*563 | 50-250 | 34 | Polycarbonate |
Combined panel |
6.9 | ||
| MR6604GL | Metal | Screw | 502 | 355*320*563 | 50-250 | 34 | Aluminum |
Combined panel |
6.7 | ||
| MR6605 | Plastic |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
4.9 | ||
| MR6606 | Metal |
Gear track |
100 | 460*400*563 | 50-330 | 34 | Polystyrene |
Combined panel |
7.5 | ||
| MR6606G | Metal |
Gear track |
230 | 460*400*563 | 50-330 | 34 | Polycarbonate |
Combined panel |
9.7 | ||
| MR6607 | Metal | Screw | 100 | 460*400*563 | 50-330 | 34 | Polystyrene |
Combined panel |
7.4 | ||
| MR6607G | Metal | Screw | 230 | 460*400*563 | 50-330 | 34 | Polycarbonate |
Combined panel |
9.7 | ||
| MR6608 | Metal |
Gear track |
100 | 535*460*570 | 50-390 | 34 | Polystyrene |
Combined panel |
10.5 | ||
| MR6609 | Metal |
Gear track |
100 | 535*530*570 | 120-460 | 34 | Polystyrene |
Combined panel |
12.7 | ||
| MR6666 | Metal |
Belt drive |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
7 | ||
| MR6663 | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Whole panel |
5.7 | ||
| MR6665 | Plastic |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Whole panel |
4.4 | ||
| MR6610 | Metal | Screw | 100 | 355*320*563 |
50-225 /75-225 |
34 | Polystyrene |
Combined panel |
7 | ||
| MR6611 | Metal |
Gear track |
100 | 355*320*363 | 50-250 | 34 | Polystyrene |
Combined panel |
4 | ||
| MR6603k | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.3 | ||

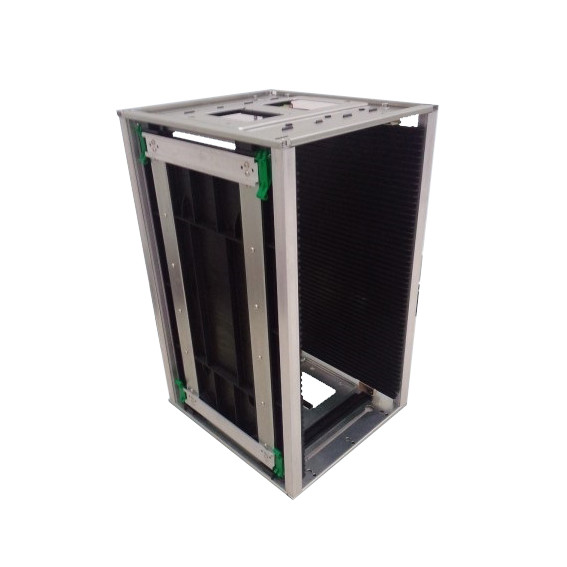

Model: 6663 / Overall Side Panel / Top and Bottom Metal / Gear Adjustment

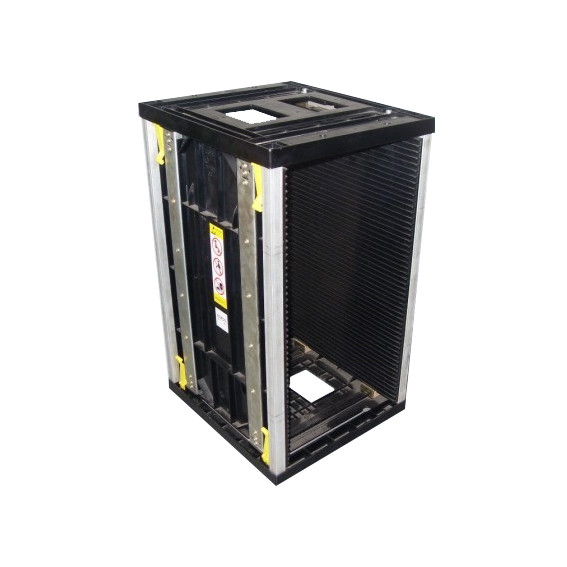

Model: 6665 / Overall Side Panel / Top and Bottom Plastic / Gear Adjustment
