Adjustable ESD SMT PCB Storage Rack
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | MR6610 |
- Description
- Reviews (0)
Description
This antistatic ESD display rack is available in Singapore from Phil Industries. Adjustable ESD Smt PCB Rack Storage High Stability PCB provides reliable ESD protection for packaging and electronics manufacturing. As a supplier of ESD packaging materials in Singapore, Phil Industries offers island-wide delivery on all antistatic ESD display rack products.
Detailed Product Description

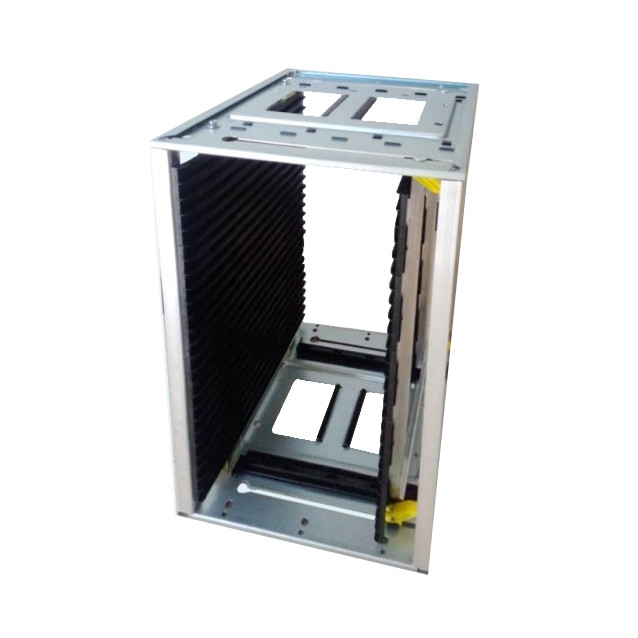

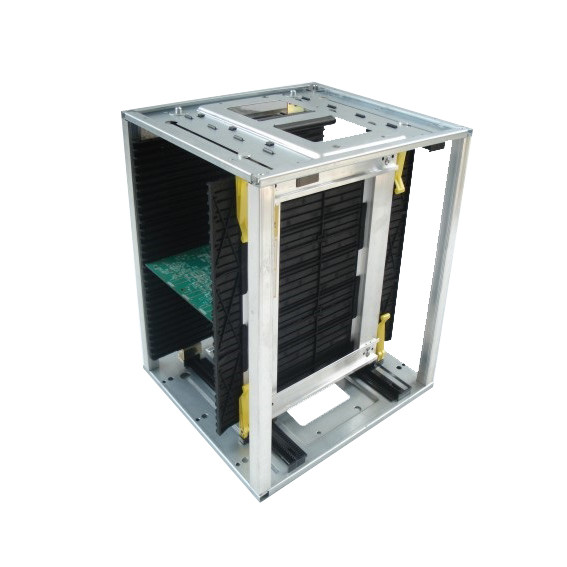

Adjustable ESD SMT / PCB Rack Storage High Stability PCB Magazine Rack
Model: MR6610
Description
1, Surface resistance: 10⁴–10⁸ Ohms(100-120℃)
2, External dimension: 355x320x563mm
3, Available for storing 100 pieces of PCB plates
4, Sizes of PCBs to be accommodated:355*(50-225, 75-255)mm
5, Side guide slot, with depth of 3mm, width of 5.5mm and pitch of 10mm
6, The top and bottom are made of metal
7, Adjustable through screw
Features
1, Automation requires precision. For the use of the PCB Magazines in automated assembly lines, precision, stability and flexible are our most important quality assurance.
2, The stable frame construction guarantees a long lasting use of the magazine rack in your production.
3, The rack walls are manufactured from conductive materials, which could be temp resistance to 120degree around
Standard Size Table & Information
| Model NO. |
Base Material |
Adjust |
Heat- Resistan Temp(℃) |
Outer Dimension (mm) |
Adjustable Width (mm) |
Ref. Position (mm) |
Side board structure |
Weight (kg) |
|||
| L | W | H | Material | structure | |||||||
| MR6601 | Metal |
Gear track |
100 |
400*320/380 *563 |
50-250/ 300 |
34 | Polystyrene |
Combined panel |
7.2 | ||
| MR6602 | Plastic | Screw | 80 | 355*315*580 | 80-250 | 34 | Polystyrene | Whole panel | 5.1 | ||
| MR6602F | Metal | Screw | 80 | 355*315*580 | 80-250 | 34 | Polystyrene |
Whole panel |
5.2 | ||
| MR6603 | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.2 | ||
| MR6603G | Metal |
Gear track |
230 | 355*320*563 | 50-250 | 34 | Polycarbonate |
Combined panel |
7 | ||
| MR6603GL | Metal |
Gear track |
502 | 355*320*563 | 50-250 | 34 | Aluminum |
Combined panel |
6.7 | ||
| MR6604 | Metal | Screw | 100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.1 | ||
| MR6604G | Metal | Screw | 230 | 355*320*563 | 50-250 | 34 | Polycarbonate |
Combined panel |
6.9 | ||
| MR6604GL | Metal | Screw | 502 | 355*320*563 | 50-250 | 34 | Aluminum |
Combined panel |
6.7 | ||
| MR6605 | Plastic |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
4.9 | ||
| MR6606 | Metal |
Gear track |
100 | 460*400*563 | 50-330 | 34 | Polystyrene |
Combined panel |
7.5 | ||
| MR6606G | Metal |
Gear track |
230 | 460*400*563 | 50-330 | 34 | Polycarbonate |
Combined panel |
9.7 | ||
| MR6607 | Metal | Screw | 100 | 460*400*563 | 50-330 | 34 | Polystyrene |
Combined panel |
7.4 | ||
| MR6607G | Metal | Screw | 230 | 460*400*563 | 50-330 | 34 | Polycarbonate |
Combined panel |
9.7 | ||
| MR6608 | Metal |
Gear track |
100 | 535*460*570 | 50-390 | 34 | Polystyrene |
Combined panel |
10.5 | ||
| MR6609 | Metal |
Gear track |
100 | 535*530*570 | 120-460 | 34 | Polystyrene |
Combined panel |
12.7 | ||
| MR6666 | Metal |
Belt drive |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
7 | ||
| MR6663 | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Whole panel |
5.7 | ||
| MR6665 | Plastic |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Whole panel |
4.4 | ||
| MR6610 | Metal | Screw | 100 | 355*320*563 |
50-225 /75-225 |
34 | Polystyrene |
Combined panel |
7 | ||
| MR6611 | Metal |
Gear track |
100 | 355*320*363 | 50-250 | 34 | Polystyrene |
Combined panel |
4 | ||
| MR6603k | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.3 | ||
Other Model: 6611 / 30 PCBs Hold Up/ Top and Bottom Metal / Gear Adjustment
Model: 6603K / 25 PCBs Hold Up / Guide Slot 3mmx15mmx10mm /Gear Adjustment
