Mountz NF-Series Angle and Auto Reverse Models
The Mountz NF-Series angle and auto reverse models handle fasteners a straight driver cannot reach, and back screws out without a switch change.
- Torque: 2.6–39 lbf.in (29.4–441 cN.m)
- Angle head for restricted access
- Auto reverse for rework and disassembly
- ESD-safe housings on the ESD models, for use inside an EPA
- Pick the model from the table below — torque range, drive size and item number are listed per model
- From Phil Industries, an authorised Mountz distributor in Singapore — held at our Ubi warehouse
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|---|
 |

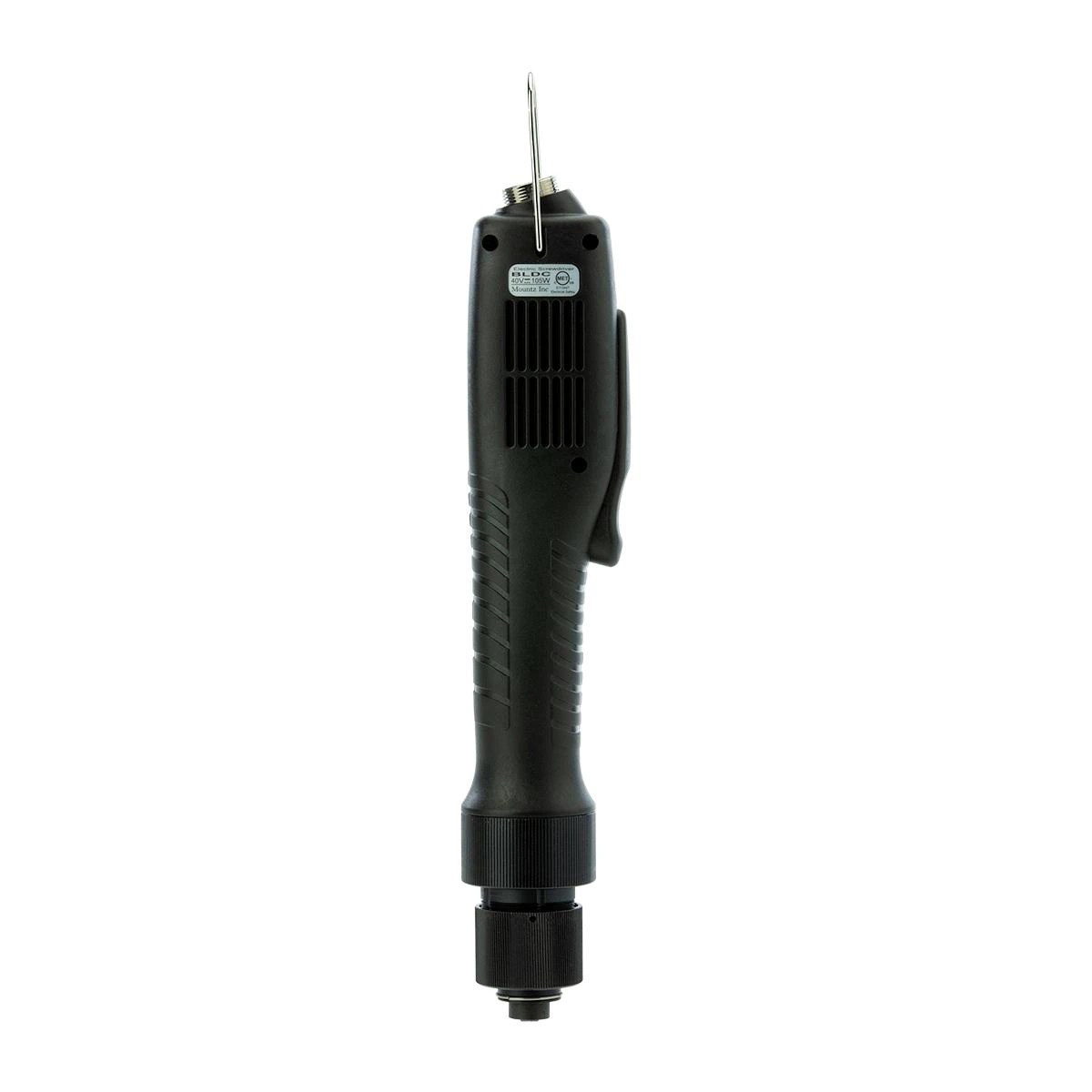

NFT150-A ESD | Lever Start | 145858 | 2.6 – 13 lbf.in | 29.4 – 147 cN.m | 1/4″ F/Hex |
|
NFT220-A ESD | Lever Start | 145859 | 5.2 – 19 lbf.in | 58.9 – 215.8 cN.m | 1/4″ F/Hex |
 |

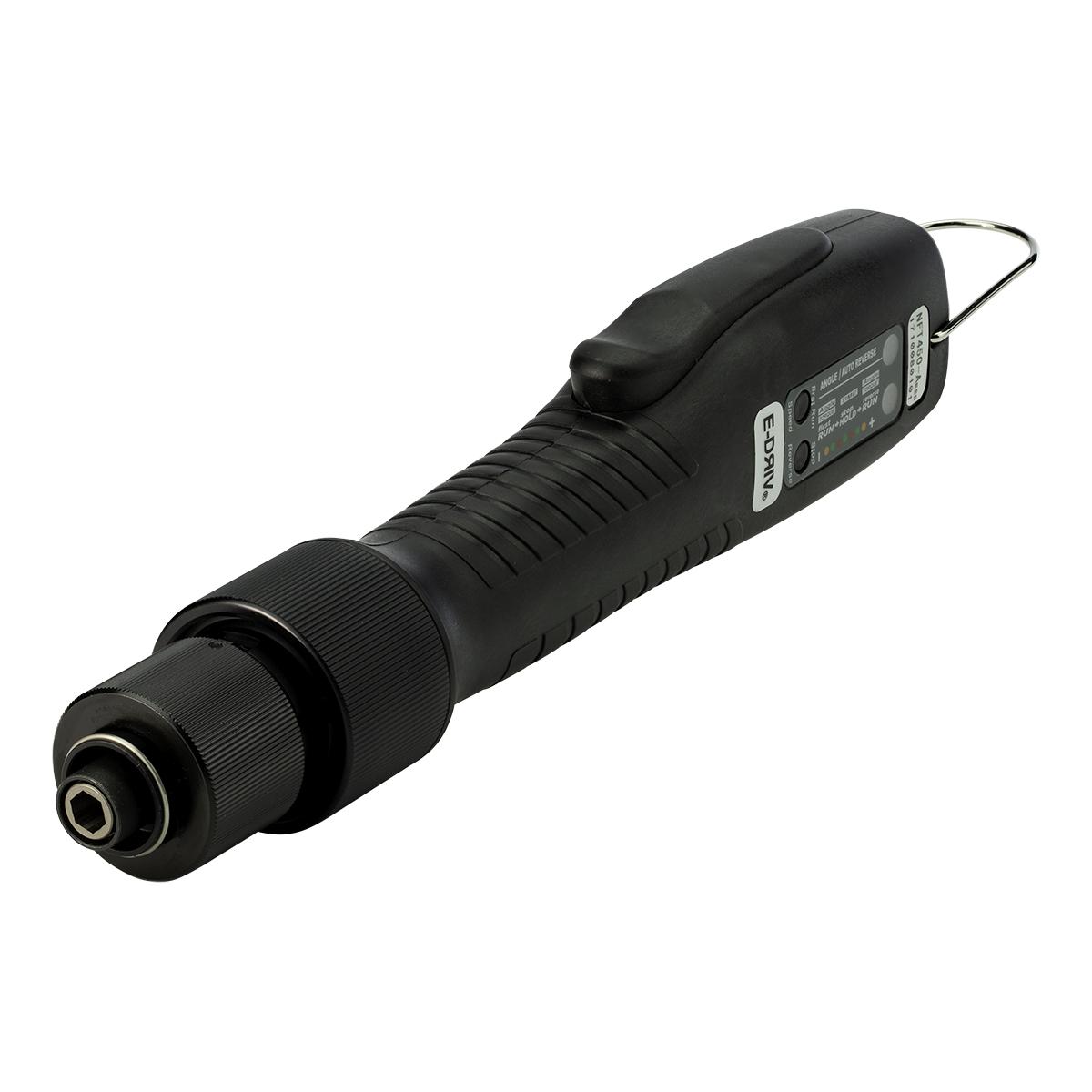

NFT450-A ESD | Lever Start | 145860 | 6.1 – 39 lbf.in | 68.7 – 441 cN.m | 1/4″ F/Hex |
Calibration and Preventative Maintenance
- View the calibration and preventative guidelines for Mountz electric screwdrivers.
- NF-Series angle and auto reverse models are available in torque ranges from 2.6 to 39 lbf.in. Suitable for low, medium, and higher torque applications. torque applications.
Error-Proofing
- The external torque adjustment scale allows team leaders to change torque quickly and easily. For an extra layer of error-proofing, add a torque cover that prevents operators from making adjustments without approval, preventing mistakes.
Process Improvement
- Designed for high-production environments, NF drivers experience minimal heat build-up, even when the tool is operated continuously. Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
- ESD safe tool prevents electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
- NF-Series drivers can be connected with the Scout Screw Counter for an additional layer of error-proofing.
- The screwdriver is designed for installing heli-coil screw thread inserts, as well as light tapping and gauging applications. These installation tools feature the ability to set and adjust the speed, and the rotation (number of turns), as well as program an auto-reverse function. Set the start and stop point by angle control within a range of 0.25 – 30 turns. Also set the “Stop Holding Time” within a range of 0.1 to 6 seconds.
- NF-Series Angle and Auto Reverse models feature an adjustable RPM setting on the tool. The RPM setting is adjusted with designated RPM increments within the range of the tool model.
Mountz Quality Standard
- High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
Set-Up
- Requires STC 40 Transformer (power supply).
- Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select NF-Series models. The Program Lock Key must be plugged into the STC40 Transformer.
- Drive Adapters
- Ergonomic Torque Arms
- Mag-O-Nets
- Pistol Grip Attachment
- Right Angle Adapters
- Screw Counter
- Screw Presenter
- Tool Balancers
- Torque Cover
- Tool Stand
- Vacuum Adapters
Mountz publishes datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
Model : NFT150
View/Download Parts List
Model : NFT220
View/Download Parts List
Model : NFT450
View/Download Parts List As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
