Mini RDA – Run Down Adapters
Mountz mini run-down adapters (RDA) are designed to be used with low torque sensors to provide consistent and reliable torque readings for power-driven torque control tools. Run down adapters are used to simulate various joint characteristics to provide a more accurate torque reading during testing and calibration.
Mini RDAs allow for an accurate simulation of actual joints. Run-down adapters are mounted in-line between the tool drive and the transducer of a torque analyzer or sensor, reducing the impact and irregular peaks that cause poor testing repeatability.
Mini RDAs are designed for use with Mountz torque analyzers and Mountz BMX20z – BMX10i and MTX low torque sensors.
Accurate Power Tool Testing
- Provide consistent and reliable torque readings for power-driven torque control tools.
- RDA is mounted in-line between the tool drive and the transducer of a torque analyzer or sensor.
- Compact to limit spacing between the power tool and torque measurement equipment for improved accuracy and ease of use.
- Operates in a clockwise direction only. After each run down, the RDA should be backed-up.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Screws | |
|---|---|---|---|
 |

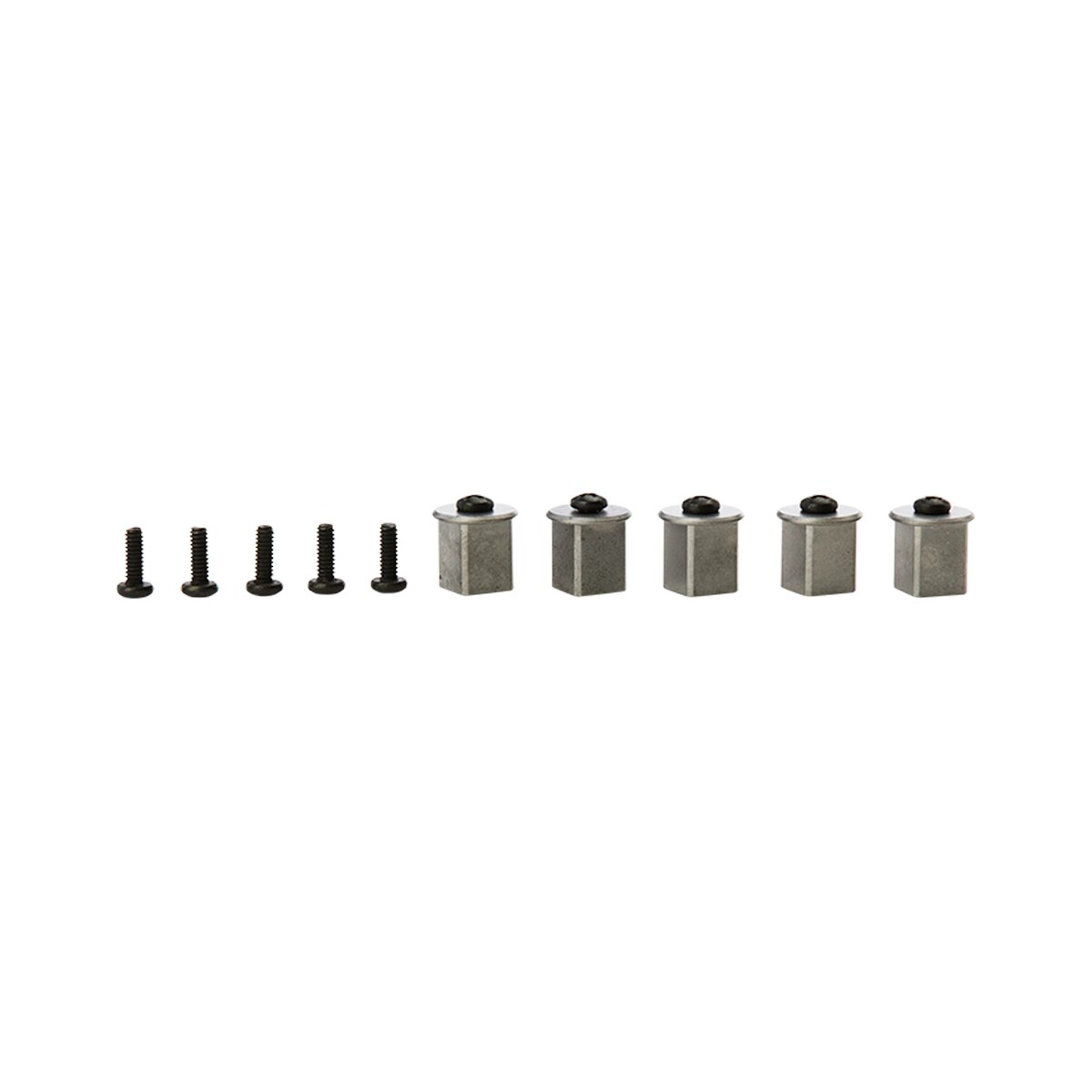

Mini RDA2 | 061229-2 | PH Phil 2-56 x 1/4 SS |
 |
Mini RDA4 | 061229-4 | PH Phil 4-40 x 1/4 SS |
 |

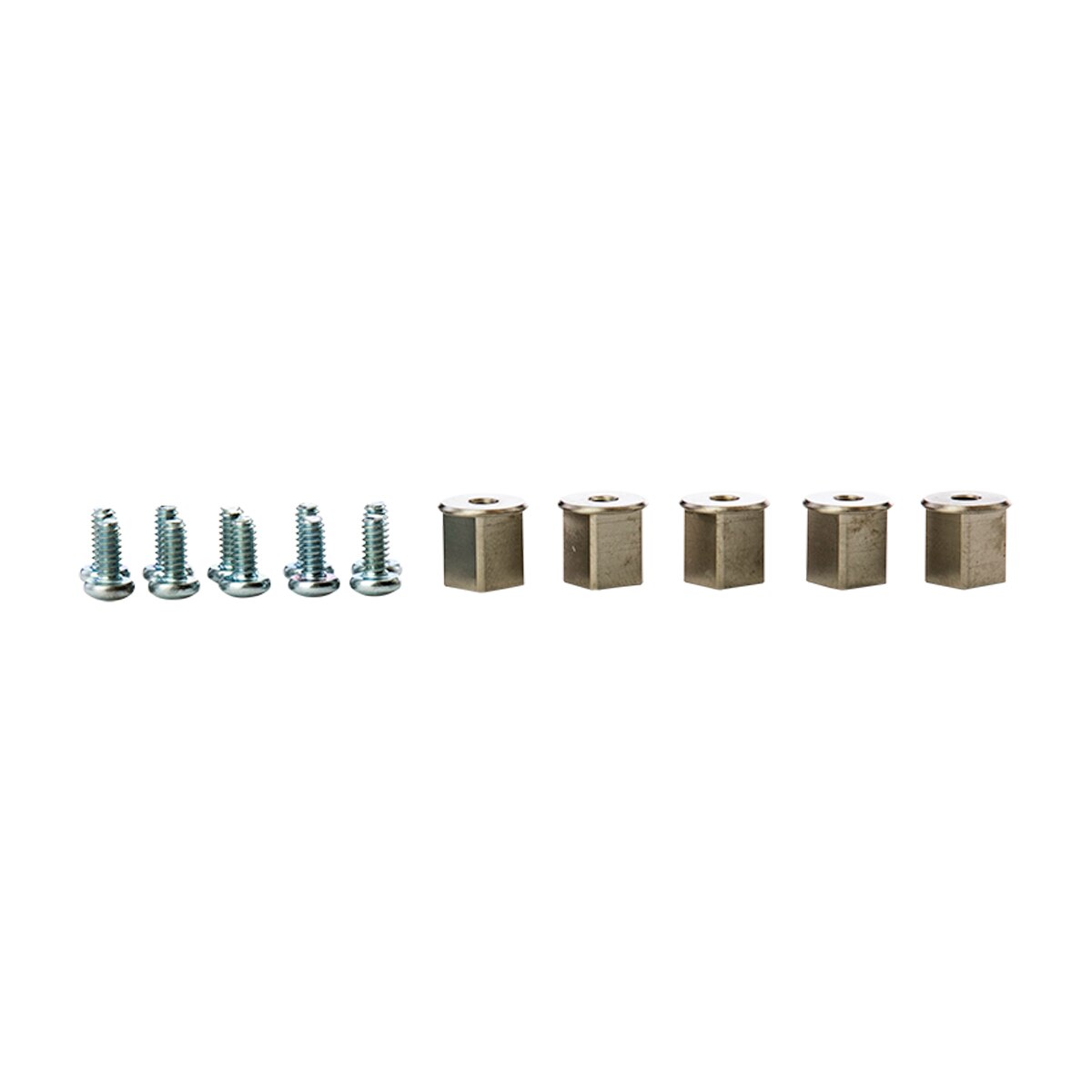

Mini RDA6 | 061229-6 | PH Phil 6-32 x 1/4 SS |
 |

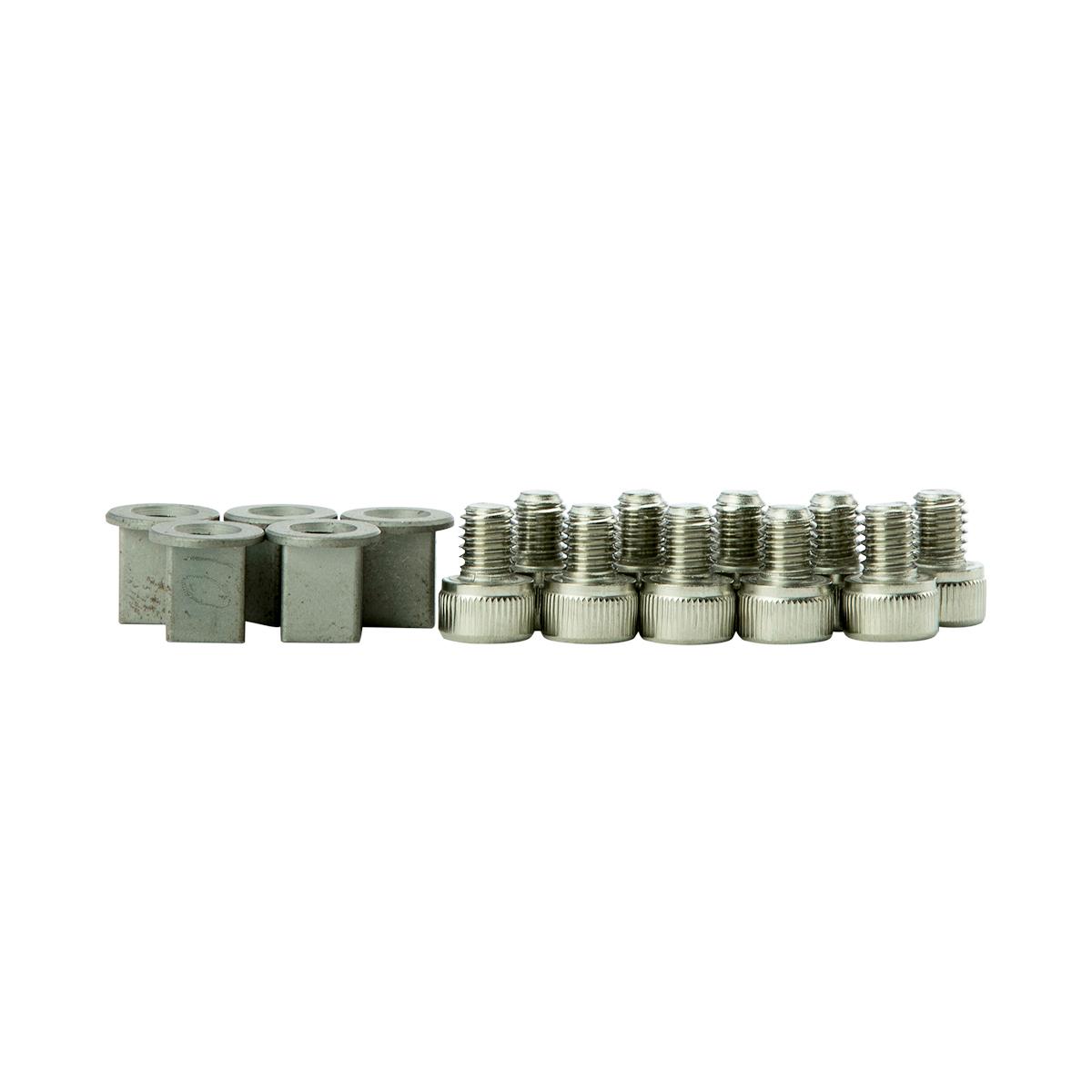

Mini RDA10 | 061229-10 | SKT Head 5-32 x 1/4 SS |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
Accurate Power Tool Testing:
- Designed to provide consistent and reliable torque readings for use with low torque power tools.
- The mini RDAs allow a close simulation of actual joints.
- RDA is mounted in-line between the tool drive and the transducer of a torque analyzer or sensor.
- Operates in a clockwise direction only. After each run down, the RDA should be completely backed up
- The kit includes 5 mini RDA units along with 10 fasteners.
Designed for use with Mountz torque measurement equipment, including LTT torque analyzers and BMX20z – BMX10i and MTX torque sensors.
