Lint-Free Polyester Foam Swabs – Microelectronics
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | CS-743B |
- Description
- Reviews (0)
Description
This polyester cleanroom swabs is available in Singapore from Phil Industries. Microelectronics Lint Free Foam Swabs Polyester Sealed provides reliable protection for cleanroom and electronics manufacturing environments. As a supplier of cleanroom consumables in Singapore, Phil Industries offers island-wide delivery on all polyester cleanroom swabs products.
Detailed Product Description

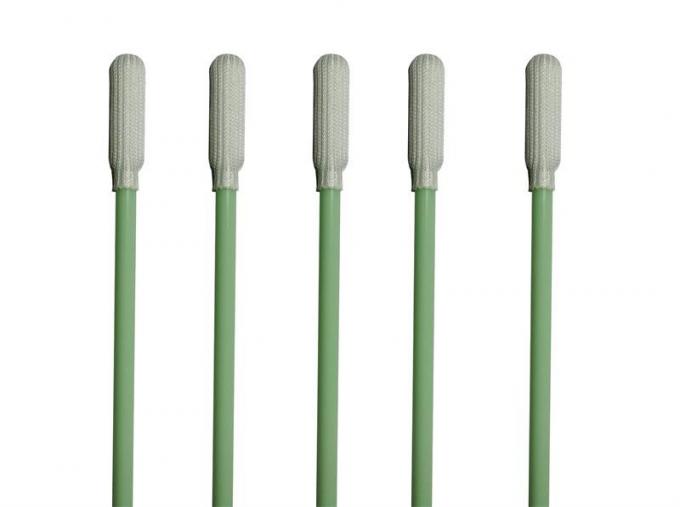

Microelectronics Lint Free Foam Swabs Polyester Sealed Tip Knitted Head Material
Cleanroom Swab Polyester Tip Knitted for Critical Environments ref. NO. CS-743B
Description
1, It consists of 100% continuous filament knitted polyester laundered in Class 100-1000 cleanrooms. These swabs are especially low in chemical extractables and particle counts.
2, It is thermally-bonded onto the handle, sealing exposed edges for reduced fiber release and eliminating the need for adhesives.
3, The swabs are compatible with acetone and excellent chemical resistance.
4, For model CS-743B, it is an excellent general-purpose swab and the small tip is ideal for cleaning small areas, surfaces and recesses.
Features
1, Thermal bonded, no chemical or glue contamination;
2, Cleaning sensitive surfaces such as optical assemblies
3, Low IC and volatile residue, using with harsh solvents (such as IPA)
4, Cleaning of grooves, tracks, slots and other small spaces
5, No silicone oil, Amide and DOP
Physical Characteristics
| Head material | Knitted Polyester |
| Head width | 4.0mm |
| Head thickness | 3.6mm |
| Head length | 13mm |
| Handle material | Polypropylene |
| Handle width | 3mm |
| Handle thickness | 3mm |
| Handle length | 68mm |
| Total swab length | 70mm |
| Head bond | Thermal |
| Handle color |
Light green or Light blue (for optional based on MOQ) |
| Chloride | <0.9 |
| Sulfate | <0.4 |
| DI extractant | <0.15 |
| IPA extractant | <0.4 |
Microparticle
| LPC | Particle Size >0.5µm | <25,000 counts/swab |
Pacakge Information
100pc/inner bag, 5 inner bag/bag, 50bags/case ( 25,000swabs/case)
case dimension: 300x350x400mm, weight 10kg
Applications
More Details
