Cleanroom Swabs – Double Polyester Tip
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | CS-758B / L |
- Description
- Reviews (0)
Description
This polyester cleanroom swabs is available in Singapore from Phil Industries. Cleanroom Swabs Cleanroom Consumables Polyester Tip Dou provides reliable protection for cleanroom and electronics manufacturing environments. As a supplier of cleanroom consumables in Singapore, Phil Industries offers island-wide delivery on all polyester cleanroom swabs products.
Detailed Product Description

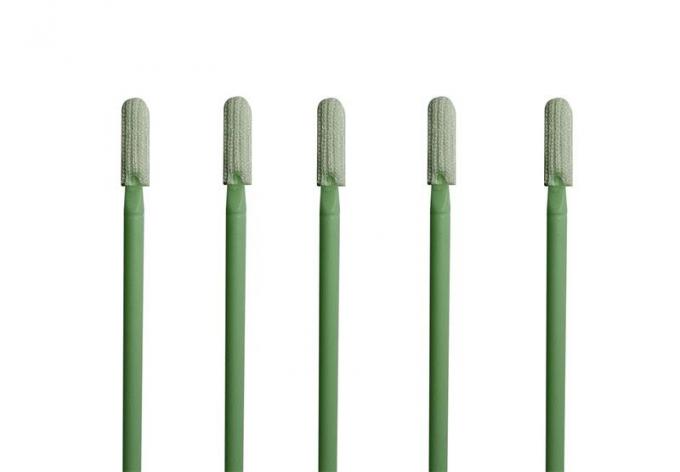

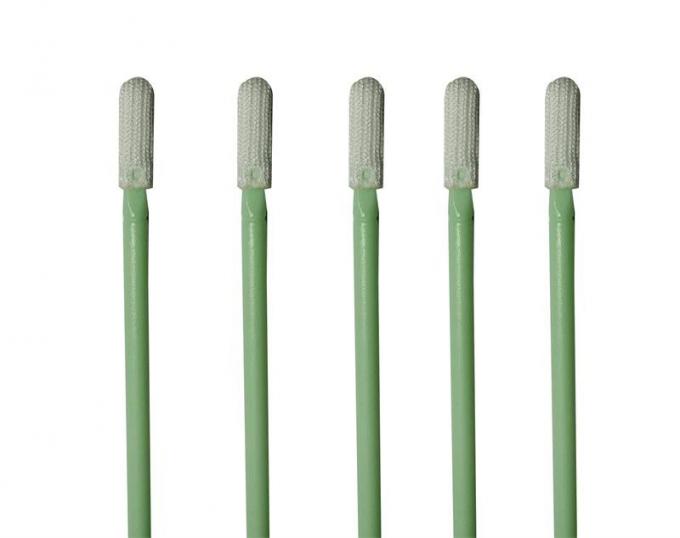

Cleanroom Swabs Cleanroom Consumables Polyester Tip Double / Single Layered
Cleanroom Swab Polyester Tip Double (D ) /Single (S) Layered for Critical Environments ref. NO. CS-758B & CS-758L
Description
1, It consists of 100% continuous filament knitted polyester laundered in Class 100-1000 cleanrooms. There’re 2 kinds of knitting ways, D (double layered) method and S (single layered) method for options. These swabs are especially low in chemical extractables and particle counts.
2, It is thermally-bonded onto the handle, sealing exposed edges for reduced fiber release and eliminating the need for adhesives.
3, The swabs are compatible with acetone and excellent chemical resistance.
4, They are both micro-sized tip, is excellent for cleaning very small grooved, slotted and recessed areas plus crevices and holes.
Features
1, Cleaning sensitive surfaces such as optical assemblies
2, Using with harsh solvents (such as IPA, DI water)
3, Precision spot cleaning of grooves, tracks, slots and other small spaces
Physical Characteristics
| Head material | Knitted Polyester |
| Head width | 3.2mm |
| Head thickness | 2.2mm |
| Head length | 10mm |
| Handle material | Polypropylene |
| Handle width | 2.2mm |
| Handle thickness | 2.2mm |
| Handle length | 68mm |
| Total swab length | 70mm |
| Head bond | Thermal |
| Handle color |
Light green or Light blue (for optional based on MOQ) |
| Chloride | <0.9 |
| Sulfate | <0.4 |
| DI extractant | <0.15 |
| IPA extractant | <0.4 |
Microparticle
| LPC | Particle Size >0.5µm | <25,000 counts/swab |
Pacakge Information
100pc/inner bag, 5 inner bag/bag, 50bags/case ( 25,000swabs/case)
case dimension: 300x350x400mm, weight 10kg
Applications
More Details
CS-758L (Tip-single layered knitted polyester)
CS-758B (Tip-double layered knitted polyester)
