Model 1009DLE/120 Laser-Cut Double Knit Wiper, 120GSM
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/ROHS |
| Model Number: | 1009DLE/120 |
- Description
- Reviews (0)
Description
This polyester cleanroom wiper is available in Singapore from Phil Industries. Laser Cut Polyester Cleanroom Wiper Basic Weight 120 GSM Double Knit Model 1009dle 120 provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom wipers in Singapore, Phil Industries offers island-wide delivery on all polyester cleanroom wiper products.
Detailed Product Description
Laser Cut Polyester Cleanroom Wiper Basic Weight 120 GSM Double Knit Model 1009DLE/120
Cleanroom Wiper: 1009DLE
Description:
They are comprised of 100% continuous filament polyester in a double-knit, interlock pattern with laser cut edge
Highly absorbent with extremely low levels of particulate and extractable counts.
Laundered and packaged in a cleanroom
Tested and manufactured in ISO compliant facilities
Applications:
It is designed for critical processing applications where the high level of contamination control is required.
It is widely used for cleaning medical device products; applying, removing, cleaning and disinfecting solutions;
Also used for flat panel, optics cleaning and chips multiprocessing(CMP).
Features:
– 100% continuous-filament double-knit polyester fiber
– Laser cut edge for reduced fiber contamination
– Moderate absorbency and abrasion resistance
– Excellent chemical compatibility with IPA and other common solvents
– Low levels of particulate and extractable counts
– Available in a variety of sizes to suit most applications
– More technical characteristics as below
| Spec | Value | Test Method |
|---|---|---|
| Size | 4” x 4”, 6” x 6”, 9” x 9”, 12” x 12” | |
| Material | 100% polyester | |
| Basis weight | 120 ± 5 g/m² | Electronic Balance Test |
| Liquid absorption ability | 300g/m² | Referred to IES-RP-CC004.3 analysis method |
| Particle Counts LPC: ≥0.5 µm | 592 count /m² | Tested by liquid particle analyzer |
|
IPA Extractant
|
1.42 µg/cm²
|
Measured by the weight of extract before and after volatilization |
|
DI Water Extractant
|
1.32 µg/cm² | Measured by the weight of extract before and after volatilization |
| Ion | Average Value | Equipment Limit Test Value | Test Mehod |
| Chloride(Cl- ) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sulfate(SO₄ ²⁻) | 0.0030 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sodium(Na⁺ ) | 0.0012 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Ammonium(NH₄⁺) | 0.0020 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Fluoride(F) | 0.0010 | 0.0010 µg/cm² | test by ion chromatography(IC) |
- Cleanroom Apparels(Disposable, Launderable)
- Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
- Cleanroom &ESD Chairs/Stools,
- Cleanroom Documentation(Paper, Pen, Notebook),
- Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
- Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
- ESD Package Materials(Bags, Tapes etc),
- ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
- ESD Wrist/Heel Straps/Grounding Cords.
- Static Control Ionizing Blower/Gun/Nozzle,
- Illuminated Magnifier,
- Cleanroom Curtain and etc

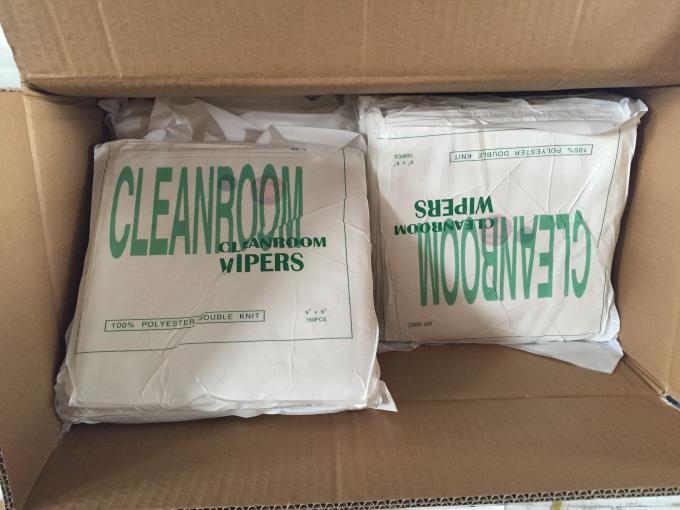

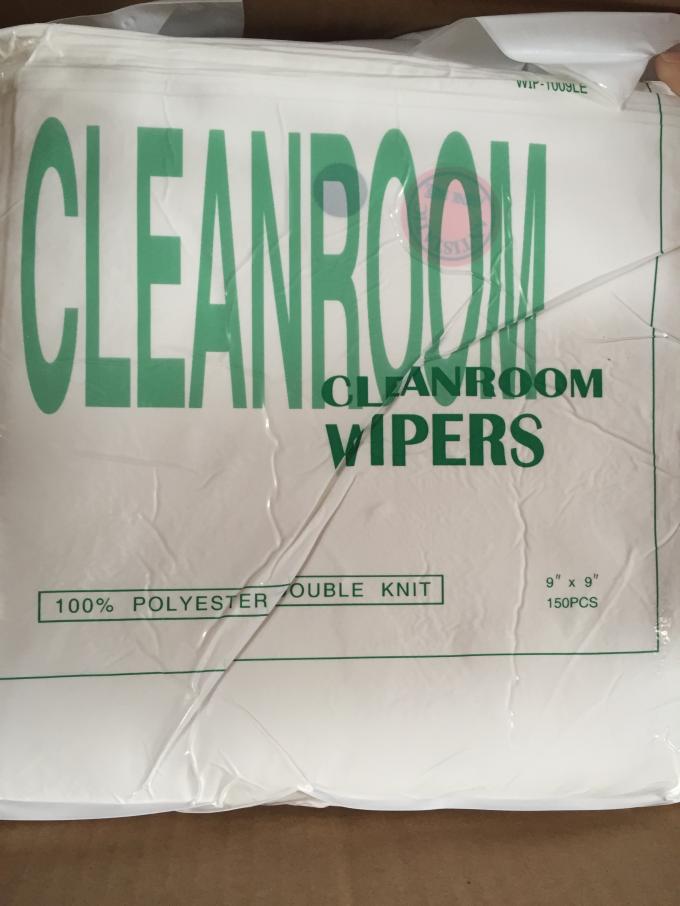

More photos
