Knitted Microfibre Cleanroom Wiper, Laser or Ultrasonic Cut
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/ROHS |
| Model Number: | 4009 |
- Description
- Reviews (0)
Description
This microfiber cleanroom wiper is available in Singapore from Phil Industries. Knitted Microfiber Wiper Cleanroom Wiper Laser Cut Heat Cut Ultrosonic Cut Sealed provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom wipers in Singapore, Phil Industries offers island-wide delivery on all microfiber cleanroom wiper products.
Detailed Product Description
Knitted Microfiber Wiper Cleanroom Wiper Laser Cut Heat Cut Ultrosonic Cut Sealed
Nylon Other Sizes could be Customized Model 4009
Description:
They are comprised of 70% Polyester and 30% Nylon
Laser cut/Heat cut/Ultrasonic sealed edge maximize reduces fiber contamination
Extremely low levels of particulate and extractable counts
Excellent absorbency and wiping efficiency
Laundered by 18MΩ DI water and packaged in a ISO5 Cleanroom
Tested and manufactured in ISO 4 compliant facilities
Features:
• Ultra-low particle and fiber release
• Free of Silicon, Amides, and DOP contamination
• Leave no scratch on body’s sensitive surface
• Chemically compatible with IPA, Acetone and other solvents
• Complies with RoHS and REACH requirements
Technical Data:
| Spec | Value | Test Method |
|---|---|---|
| Size | 4” x 4”, 6” x 6”, 9” x 9”, 12” x 12” | |
| Material | 70% Polyester and 30% Nylon | |
| Basis weight | 180/210g/m² | Electronic Balance Test |
| Liquid absorption ability | 820g/m² | Referred to IES-RP-CC004.3 analysis method |
| Particle Counts LPC: ≥0.5 µm | 685count /m² | Tested by liquid particle analyzer |
|
IPA Extractant
|
1.7 µg/cm²
|
Measured by the weight of extract before and after volatilization |
|
DI Water Extractant
|
1.2 µg/cm² | Measured by the weight of extract before and after volatilization |
RoHS Compliant:
| Ion | Average Value | Equipment Limit Test Value | Test Mehod |
| Chloride(Cl- ) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sulfate(SO₄ ²⁻) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sodium(Na⁺ ) | 0.0014 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Ammonium(NH₄⁺) | 0.0020 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Fluoride(F) | 0.0010 | 0.0010 µg/cm² | test by ion chromatography(IC) |
Knitted Microfiber Wiper Main Catalogues:
|
NO.
|
Model
|
Description
|
Weaving process
|
Composition
|
Basic Weight
|
Sealing Method
|
Standard Package
|
|
1
|
16404 |
Knitted Microfiber Wiper
|
Knitted |
80% Polyester and 20% Nylon
|
160/180/195g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
|
2
|
4009
|
Knitted Microfiber Wiper |
Knitted
|
70% Polyester and 30% Nylon
|
180/210g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
|
3
|
8001/8008 |
Knitted Microfiber Wiper
|
Knitted
|
70% Polyester and 30% Nylon
|
140/220g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
|
4
|
9001
|
Knitted Microfiber Wiper
|
Knitted
|
70% Polyester and 30% Nylon
|
260g/㎡
|
Laser cut/Heat cut/Ultrosonic cut
|
100PCS/BAG, 20BAG/CTN
|
Applications:
Ideal products for the microelectronics industry, ISO5-6 clean room cleaning products: such as hard disk / memory / LCD panel / tablet / smart phone / lens production process
Aerospace, laboratory cleanrooms and etc
More photos

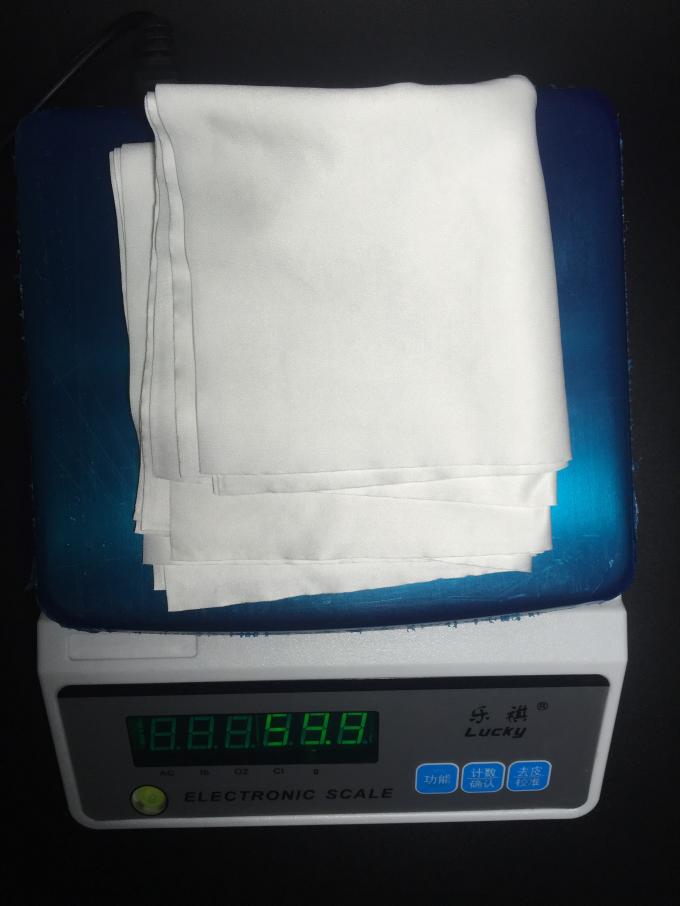

(5sheets microfiber wiper 4009/210 size 9*9inch, weight is 59.9g)
