Mountz Insulated Torque Wrenches
Intended for low and high voltage applications where torque is critical, Mountz insulated torque wrenches protect their operators in both low and high voltage situations. Essential for worker safety, insulated torque wrenches also improve work quality and productivity by preventing product damage due to arcing or shorting. Applications for linemen and electricians include a wide variety of live electrical situations, such as uninterrupted power supply repair. Mountz insulated torque wrenches meet IEC 6900 standards, keeping your workers safe.
- Description
- Reviews (0)
Description
The Mountz insulated torque wrench protects technicians working on live or potentially live electrical assemblies in Singapore. Non-conductive insulation is rated to 1,000 volts, while the wrench still delivers controlled torque from 4 to 20 N·m on a 1/4″ or 3/8″ drive.
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|
 |

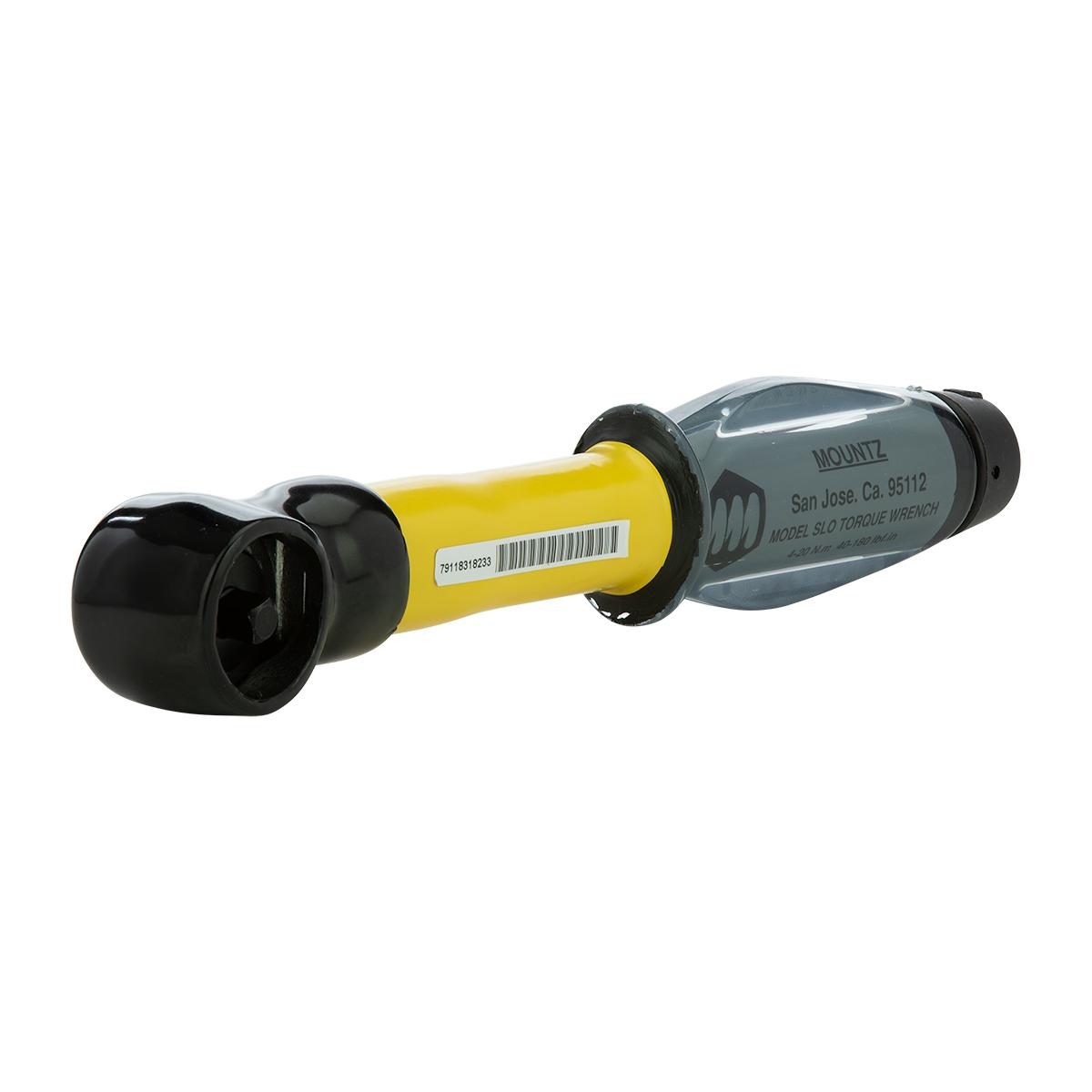

SLO1/4I | 060398 | 40 – 180 lbf.in | 4 – 20 N.m | 1/4″ Sq. Dr. |
 |

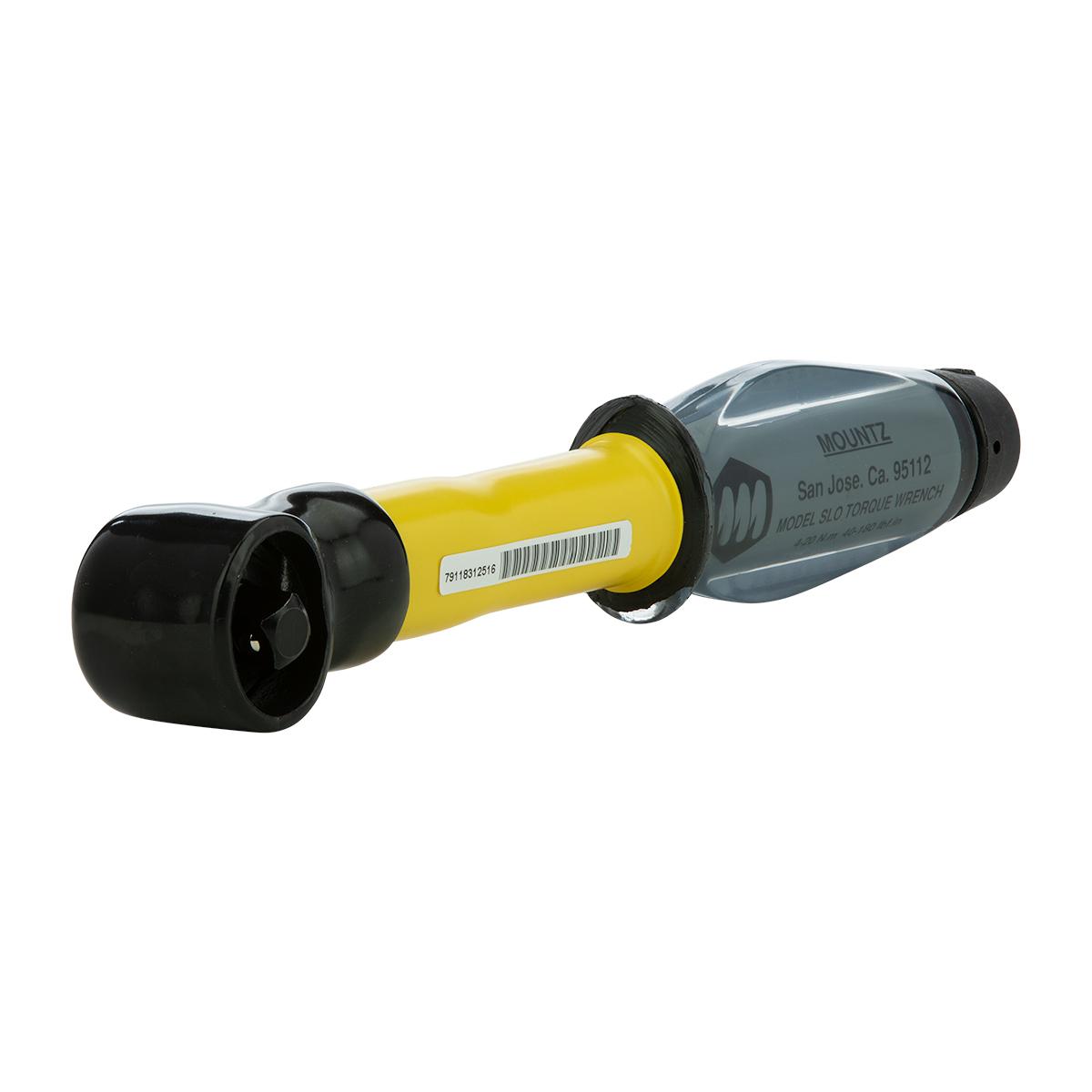

SLO3/8I | 060113 | 40 – 180 lbf.in | 4 – 20 N.m | 3/8″ Sq. Dr. |
- Insulated Wrenches are for life-threatening high voltage and low voltage electrical assembly applications where over-torque conditions are not tolerated and operator safety is mandatory.
- Designed with nonconductive plastic insulation, the torque wrenches provide operators with the proper safety for fastening applications.
- The Insulated torque wrenches ensure proper torque control and eliminate the possibility of product failure due to shorting, arcing or other electrical damage.
- The 1000V Insulated torque wrenches are built to protect against voltages up to 1,000 volts making these torque tools ideal for use in electrically live situations for a wide range of industries.
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 4% of indicated setting).
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
Insulated torque wrench at a glance
| Type | 1000V insulated torque wrench |
| Range | 4 – 20 N·m |
| Models and part numbers | SLO1/4I (060398), SLO3/8I (060113) |
| Drive sizes | 1/4″ and 3/8″ square drive |
| Insulation | Non-conductive, rated to 1,000 V |
| Accuracy | ISO 6789, ±4% of indicated setting |
Where the insulated torque wrench fits in Singapore
Insulated torque wrenches belong wherever torque and live voltage meet: switchgear and busbar connections, battery energy storage systems, EV and data-centre power distribution. In Singapore these jobs fall under strict electrical safety rules; therefore, a wrench that insulates the operator and controls torque at the same time is the correct tool.
Pair it with
- All Mountz torque wrenches for non-electrical work.
- Mountz torque analyzers to verify the setting.
- Wrench adjusting keys for setting changes.
Frequently asked questions about the insulated torque wrench
What voltage is the Mountz insulated torque wrench rated for
The insulation protects against voltages up to 1,000 volts, which covers low-voltage switchgear, battery and power distribution work.
What torque range does it cover
Both models cover 4 to 20 N·m, with a choice of 1/4-inch (SLO1/4I) or 3/8-inch (SLO3/8I) drive.
How accurate is it
The certified range follows ISO 6789 at plus or minus 4 percent of the indicated setting.
Where is an insulated torque wrench used
It is used on busbars, switchgear, battery energy storage and EV power systems, in other words anywhere a fastener must be torqued near live conductors.
Need help choosing a model? Message our Singapore engineers on WhatsApp at +65 9853 9030, call +65 6555 1745 or email sales@phil-industries.com.sg for a quotation, a stock check or an on-site demonstration.
Related Mountz pages in Singapore
- Browse all Insulated Torque Wrenches and the wider Torque Wrenches range.
- See the full Mountz torque tools range in Singapore.
- Read our engineers’ guides to torque control basics and choosing between a torque wrench, screwdriver or multiplier.
- Verify tool output in-house with the Mountz EZ-TorQ III torque analyzer.
Phil Industries, an authorised Mountz distributor in Singapore, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
