Mountz Flex Power Right Angle Auto Shut-Off Pulse Tools
Auto shut-off right angle pulse tool that automatically shuts off the air supply when the pre-set torque is reached. It offers access for hard-to-reach fasteners in tight spaces. The drive on a right-angle tool is mounted at a 90-degree angle to the tool body. Designed for safe, reaction free operation for various industrial assembly applications. The FlexPower Pulse Tools provide operators with an industry leading power-to-weight ratio, allowing for a smaller tool selection for greater torques giving operators a lighter tool with more torque capability. Ergonomically safer than harmful hammering and vibration of impact wrenches. Built for durability with a superior O-ring design and specially designed pulse fluid FlexPower extends life between regular oil changes and provides more torque stability. Low noise decibels, minimal vibration and low torque reaction. It is important to understand your joint application before a selecting a pulse tool.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | American | S.I. | Drive Size | Free Speed RPM | |
|---|---|---|---|---|---|---|
 |
FLEXS-50RX | 360145 | 7 – 11.8 lbf.ft | 9 – 16 N.m | 1/4″ F/Hex | 4300 |
 |
FLEXS-50R | 360138 | 7.7 – 12.8 lbf.ft | 10.5 – 17 N.m | 3/8″ Sq. Dr. | 4300 |
 |

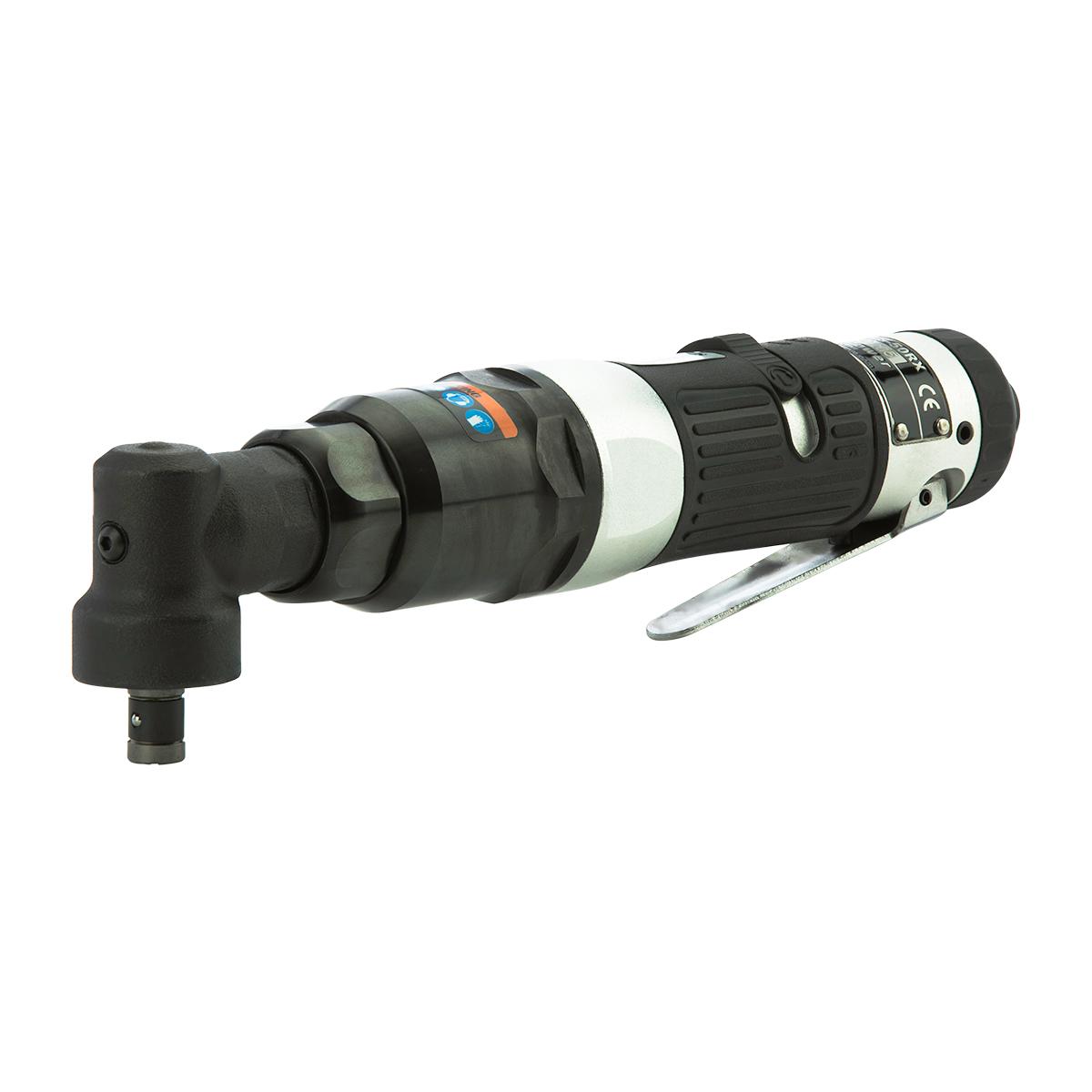

FLEXS-60RX | 360146 | 10 – 16.2 lbf.ft | 13.5 – 22 N.m | 1/4″ F/Hex | 5300 |
 |

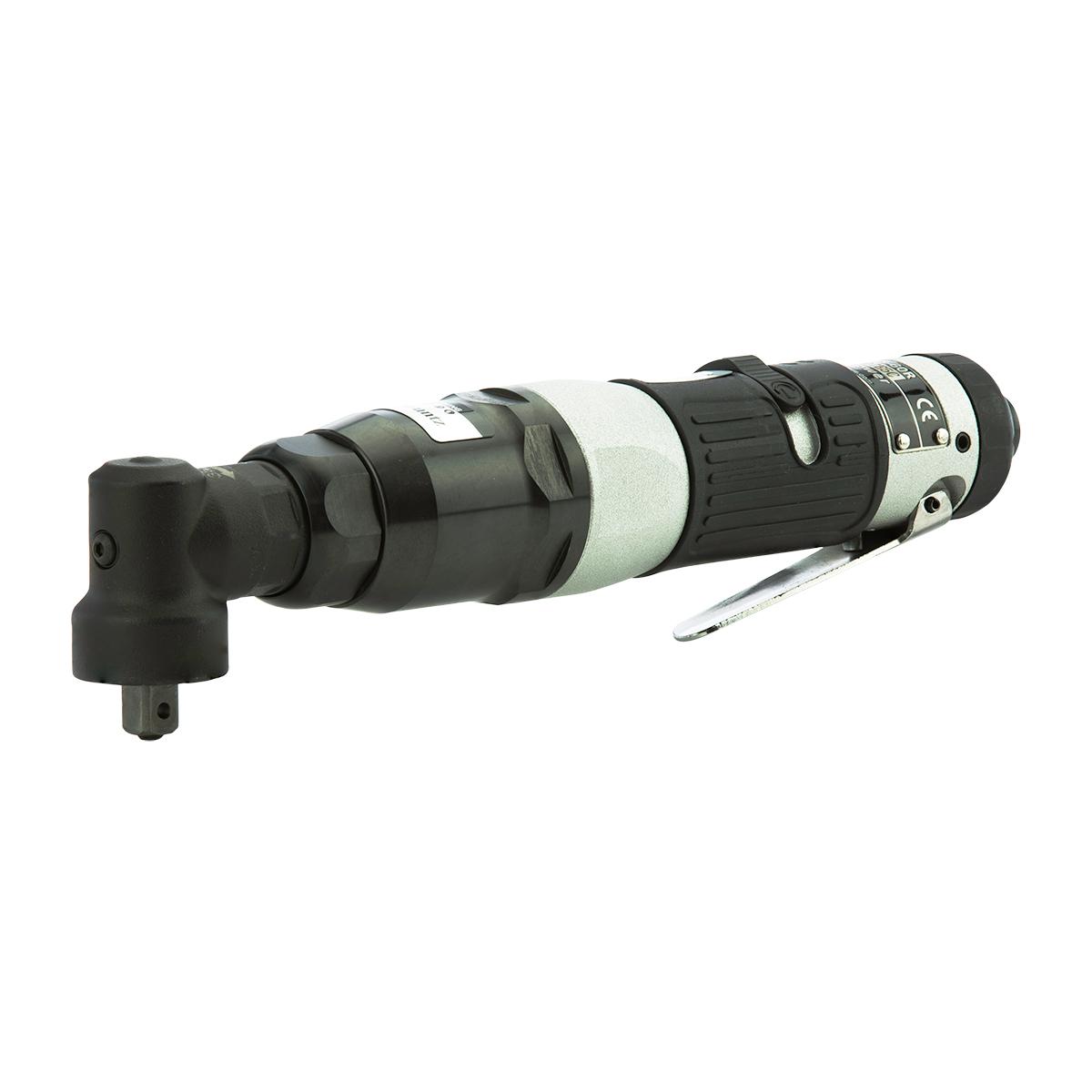

FLEXS-60R | 360139 | 11.1 – 17.7 lbf.ft | 15 – 24 N.m | 3/8″ Sq. Dr. | 5300 |
 |

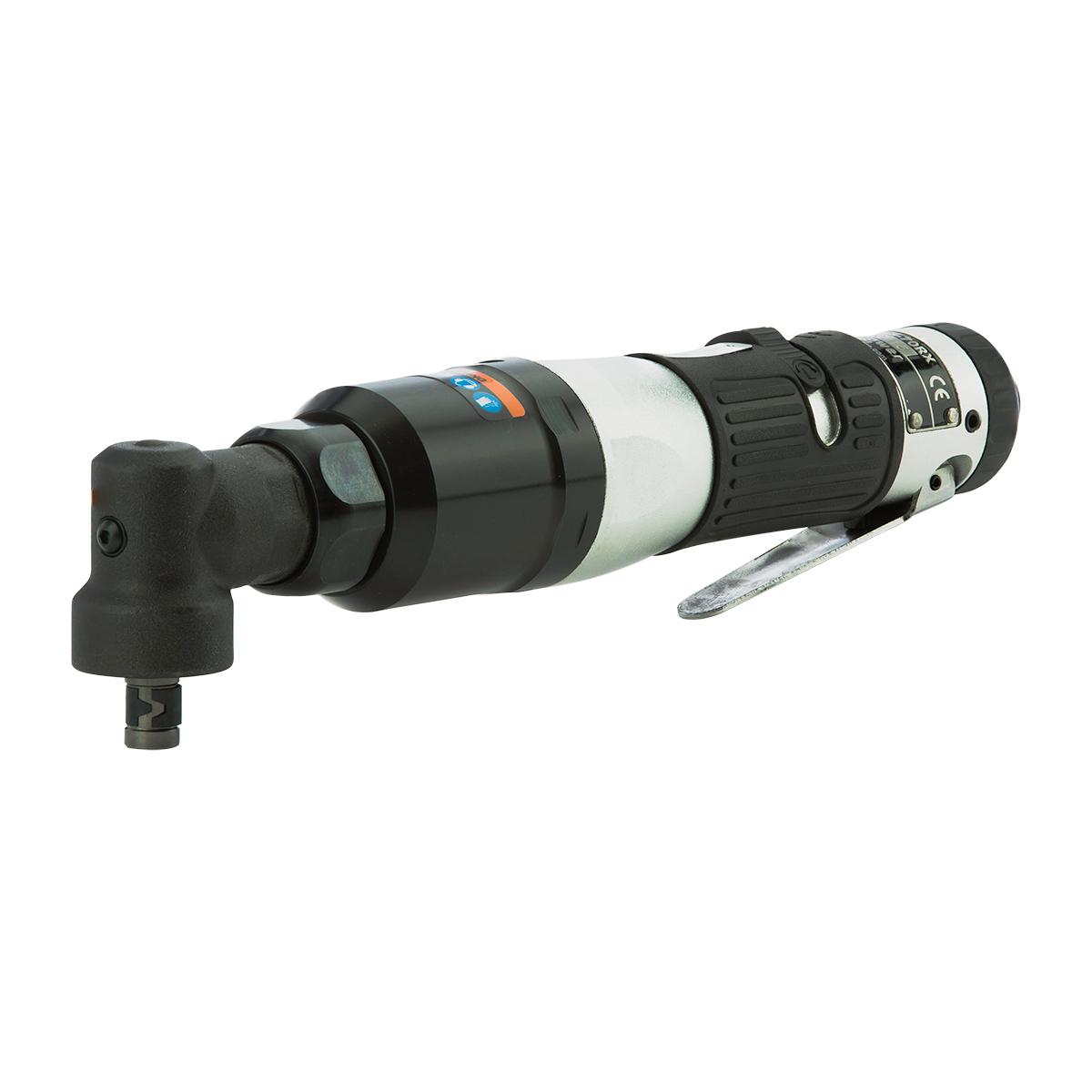

FLEXS-70RX | 360147 | 14.8 – 21.4 lbf.ft | 20 – 29 N.m | 1/4″ F/Hex | 4500 |
 |

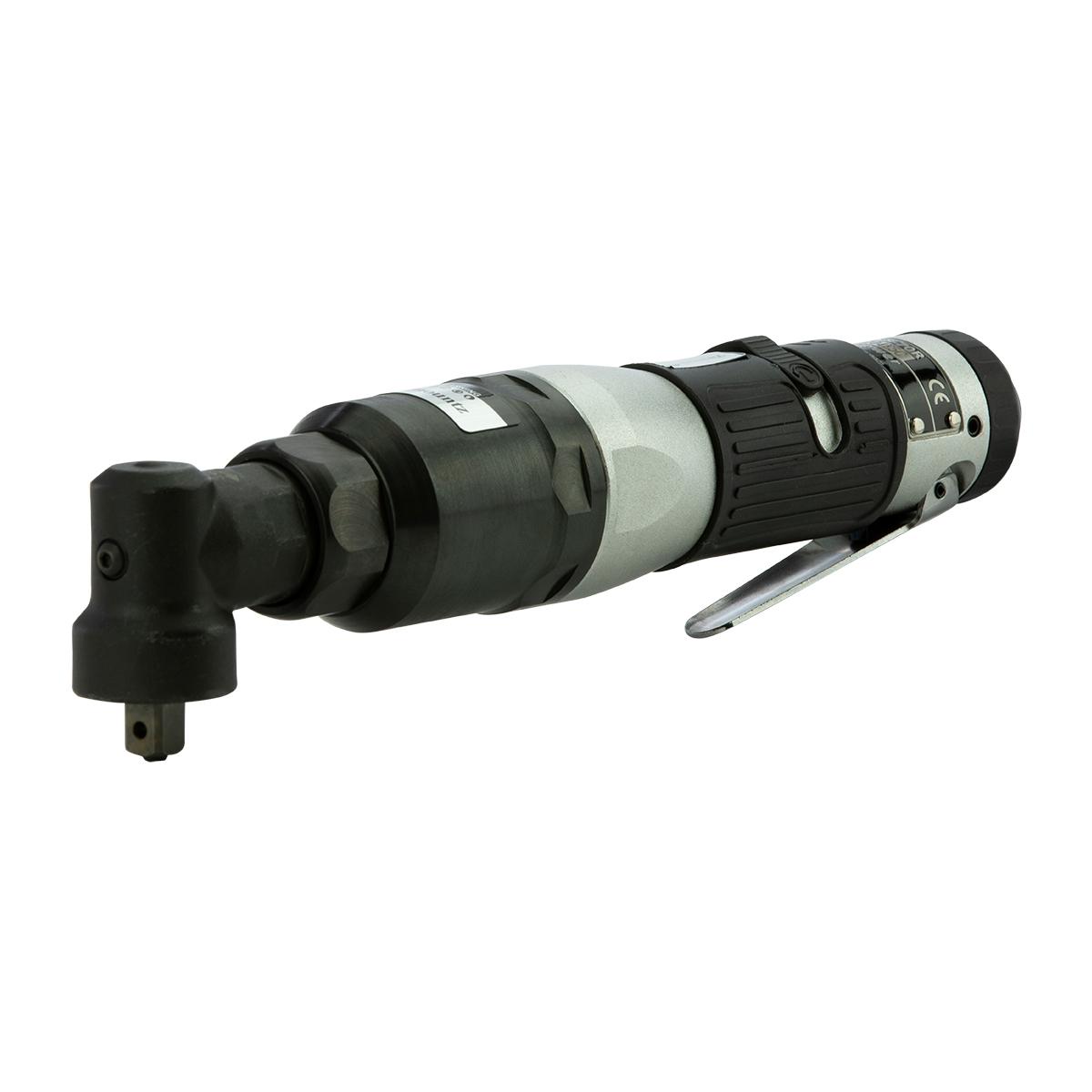

FLEXS-70R | 360140 | 16.2 – 22.8 lbf.ft | 22 – 31 N.m | 3/8″ Sq. Dr. | 4500 |
 |

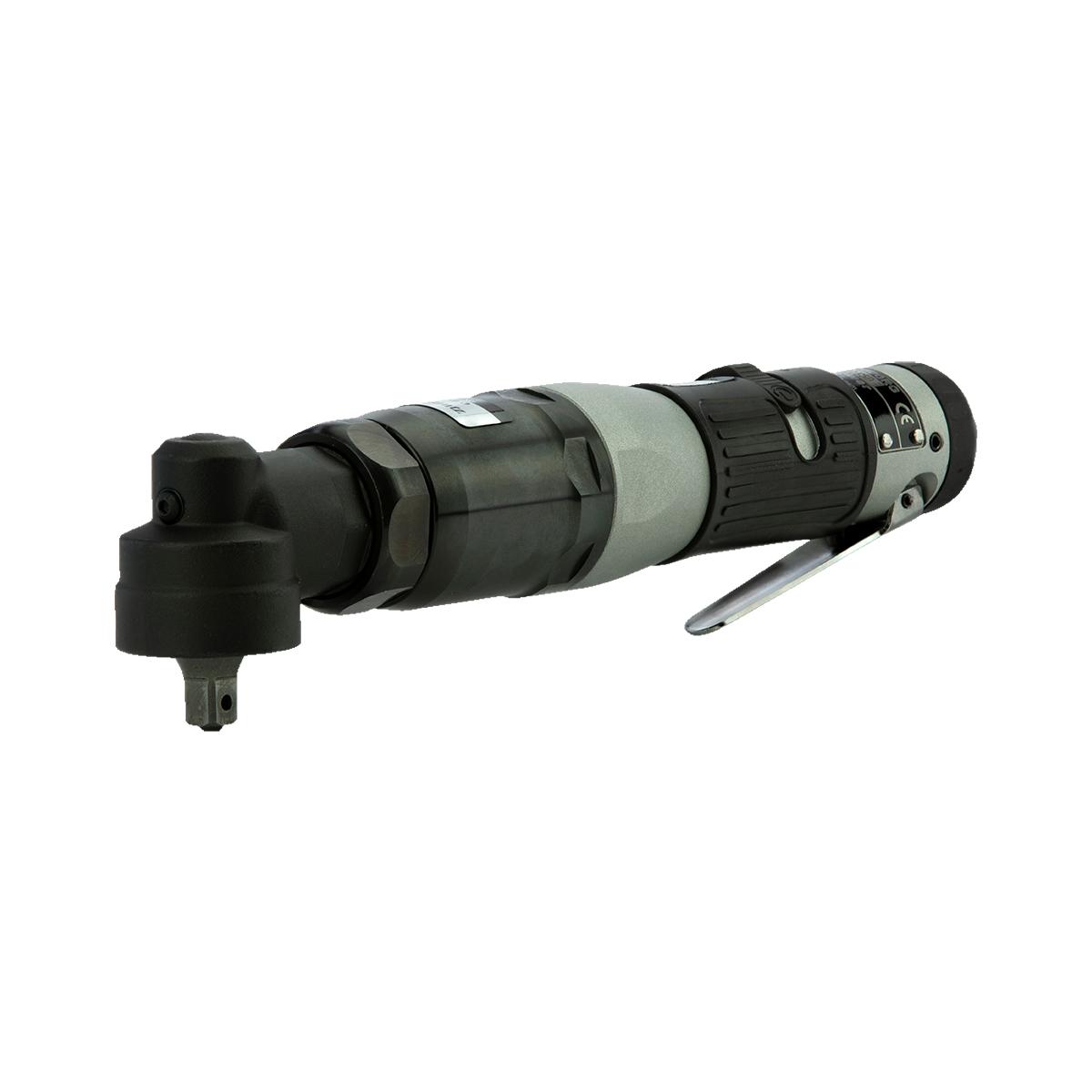

FLEXS-70RG | 360162 | 27.3 – 36.9 lbf.ft | 37 – 50 N.m | 3/8″ Sq. Dr. | 2000 |
 |

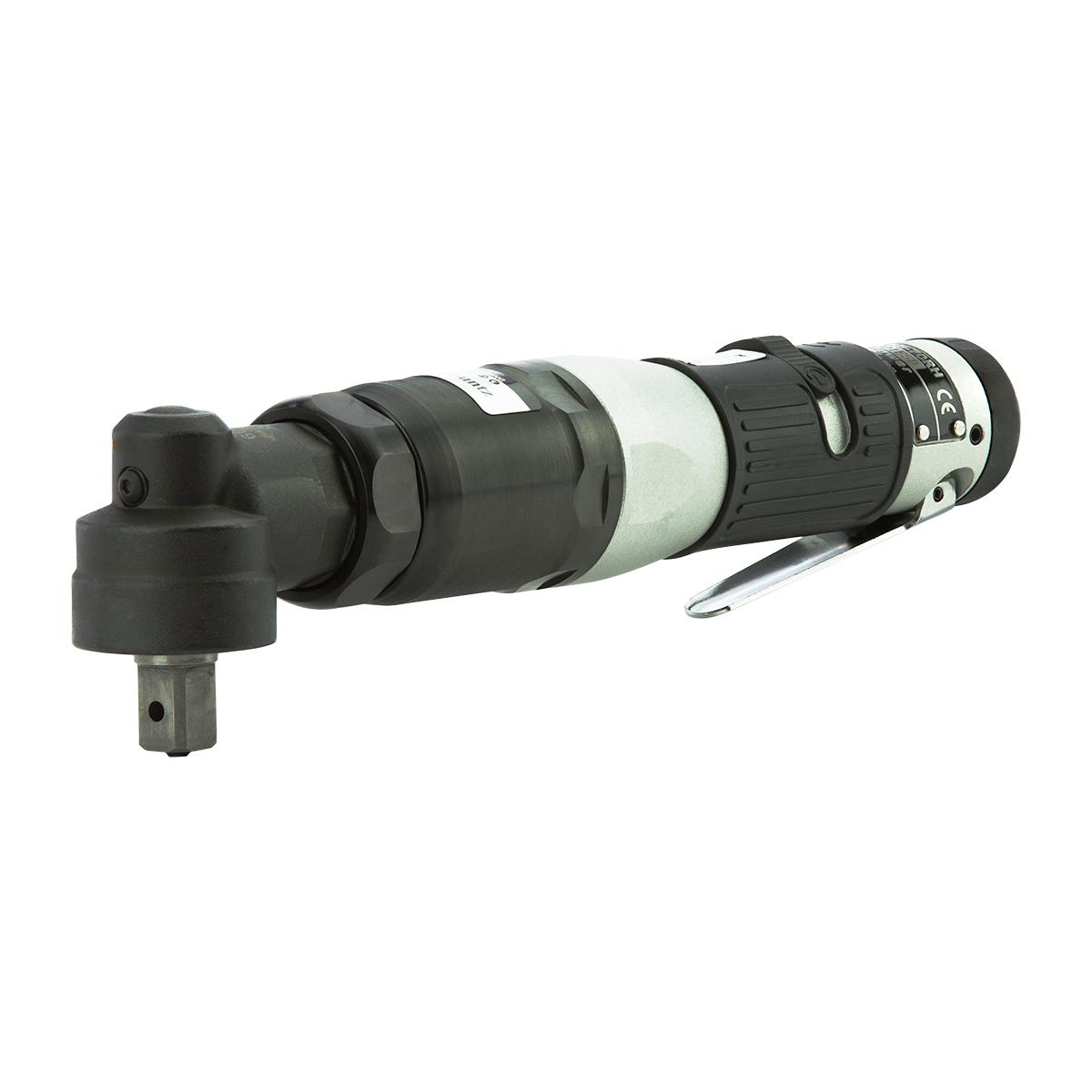

FLEXS-70RH | 360144 | 34 – 44.2 lbf.ft | 46 – 60 N.m | 1/2″ Sq. Dr. | 2200 |
 |

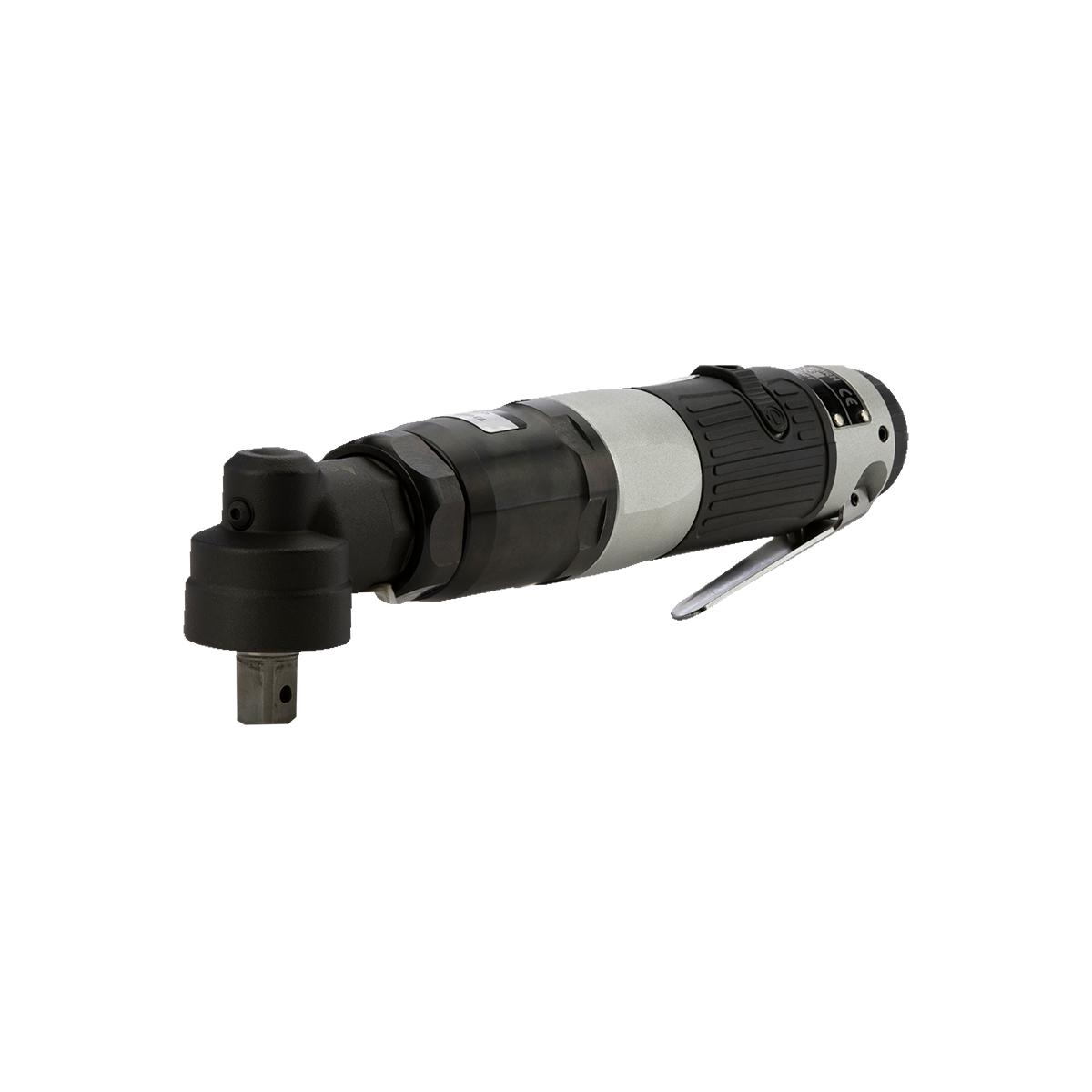

FLEXS-80RH | 360163 | 36.9 – 51.6 lbf.ft | 50 – 70 N.m | 1/2″ Sq. Dr. | 2800 |
- Various models that range from 7 – 51.6 lbf.ft
- Ergonomically safer than harmful hammering and vibration of impact wrenches.
- Designed to enhance cycle time with high-speed rundown.
- Excellent power-to-weight ratio.
- Safe ergonomic tool – low noise decibels, minimal vibration & reaction free operation.
- Comfortable rubberized non-slip grips for easy handling and excellent thermal ergonomics.
- O-ring design and specially designed pulse fluid FlexPower extends life between regular oil changes and provides more torque stability.
- Specially designed pulse fluid extends life between oil changes and provides better torque stability. Double sealing increases performance and reduces maintenance.
- Automatically shuts off the air supply when the pre-set torque is reached.
- Pin Detent included with square drive models.
- Air Hose
- Coupler
- Ergonomic Torque Arms
- Fittings
- Filter Regulator & Lubricator
- Mag-O-Nets
- Screw Presenter
- Tool Balancers
- Tool Stand
Mountz publishes datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
Model : FLEXS-50RX
View/Download Parts List
Model : FLEXS-50R
View/Download Parts List
Model : FLEXS-60RX
View/Download Parts List
Model : FLEXS-60R
View/Download Parts List
Model : FLEXS-70RX
View/Download Parts List
Modal : FLEXS-70R
View/Download Parts List
Model : FLEXS-70RG
View/Download Parts List
Model : FLEXS-70RH
View/Download Parts List
Model : FLEXS-80RH
View/Download Parts List As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
