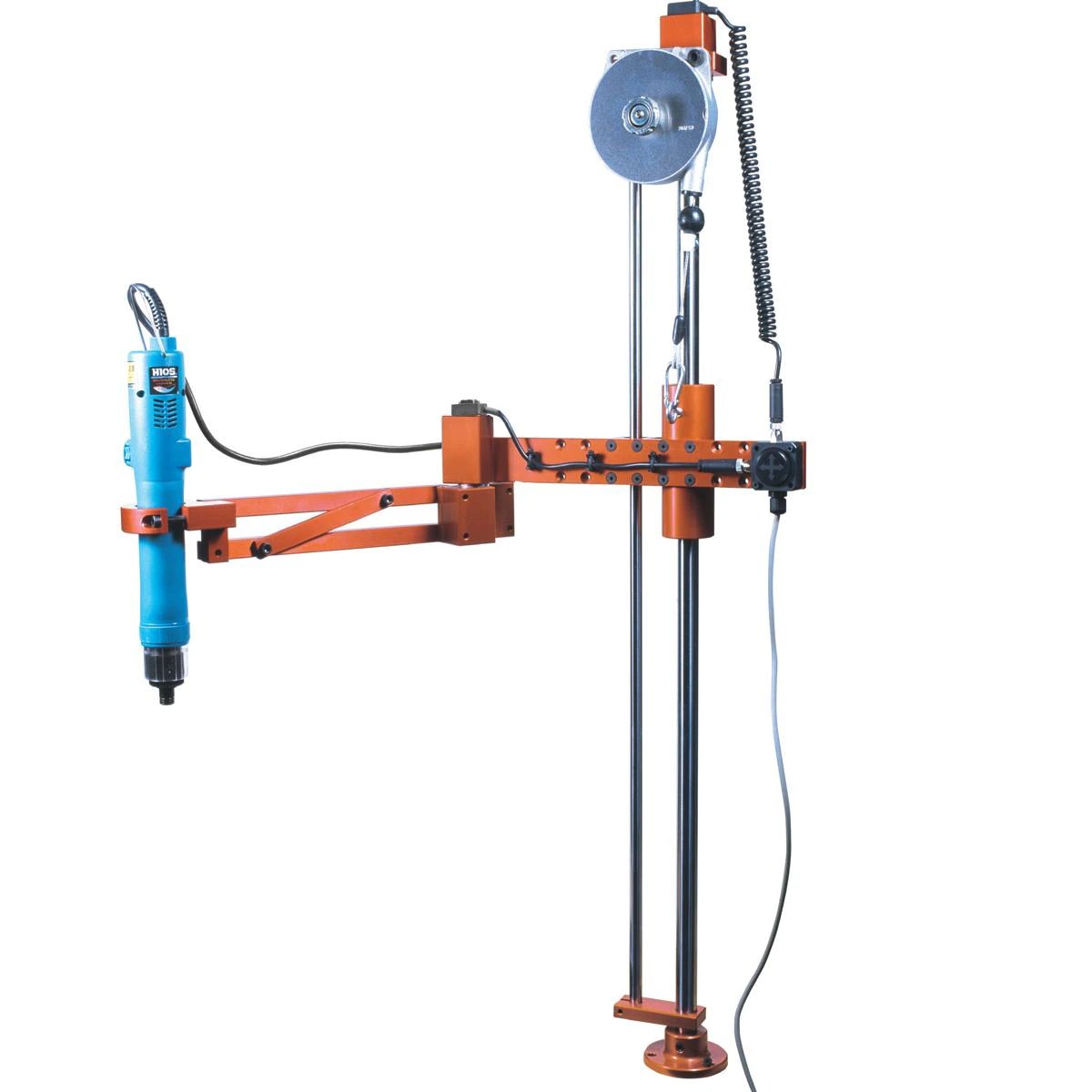

Mountz EZ-Glider Position Control Torque Arms
Eliminate Fastening Errors with Intelligent Articulation The Mountz EZ-Glider Position Control Torque Arm is an advanced “poka-yoke” solution designed to safeguard your assembly process against costly human errors. By combining the agility of an articulated “elbow” design with high-precision positioning sensors, this system ensures that every screw is tightened in the exact sequence and location required for a perfect joint. It provides a digital layer of quality control, acting as a tireless manager right at the workstation.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Max Torque Range – American | Torque Units – American | Max Torque Range – S.I. | Torque Units – S.I. | Max Torque Range – Metric | Torque Units – Metric | Clamp Diameter | Arm Reach At Inclination 0 | Arm Reach At Inclination 22.5 | Arm Reach At Inclination 45 | Tool Height (IN) | Balance Weight Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EZ-12RPC | 260165 | 8.8 | lbf.ft | 12 | N.m | 1.2 | kgf.m | 1 – 1 1/2″ | 15 1/8″ – 21″ | 14 1/2″ – 20″ | 12 1/3″ – 18″ | 32.5 | 1.1 – 2.6 lbs |
|
EZ-25RPC | 260156 | 18.4 | lbf.ft | 25 | N.m | 2.6 | kgf.m | 1 – 2″ | 15 1/8″ – 21 1/2″ | 15″ – 20 1/2″ | 12 7/8″ – 18 1/2″ | 36.5 | 2.2 – 4.8 lbs |
|
EZ-40RPC | 260157 | 29.5 | lbf.ft | 40 | N.m | 4.1 | kgf.m | 1 – 2″ | 22 1/4″ – 30″ | 21 1/8″ – 29″ | 18 1/8″ – 26″ | 40.5 | 3.1 – 4.8 lbs |
|
EZ-100RPC | 260158 | 73.7 | lbf.ft | 100 | N.m | 10.2 | kgf.m | 1 – 2″ | 26 1/3″ – 34″ | 25 1/8″ – 33″ | 22″ – 29 1/2″ | 40.5 | 4.4 – 7.7 lbs |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Secure the assembly process by ensuring that every screw is in the correct location at the right torque.
- Programmable sequence operation.
- Error proofing.
- Detects – cross threading, omissions, unfinished rundowns and cycle complete.
- Compatible with DC Controlled Tools, torque electric screwdrivers (with transformers or controllers), air tools (ported).
- Password protection and wall mountable.
- Can interface with most intelligent driver systems that store multiple torque programs and has external digital I/O control.
- Prevents cross threading and side load. Keeps tool perpendicular.
- Reduces RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) while boosting production.
- With the ability to bend like an elbow, the torque arm provides agility to position the tool in a variety of positions for different applications. Arm can be set at an inclination of 0º, 22.5º and 45º .
- Provides smooth flexible range as the arm absorbs torque reactions from electric air screwdrivers, angle nut runners, pulse tools, and pistol grip tools.
- Quick and easy to setup. Self teaching and automation program mode.
- Programmable: Positioning tolerance, Min. and Max. time for Poka Yoke control (automatic or manual) and 99 memory points
- Operates with touch posi-control device.
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
